Product Description:

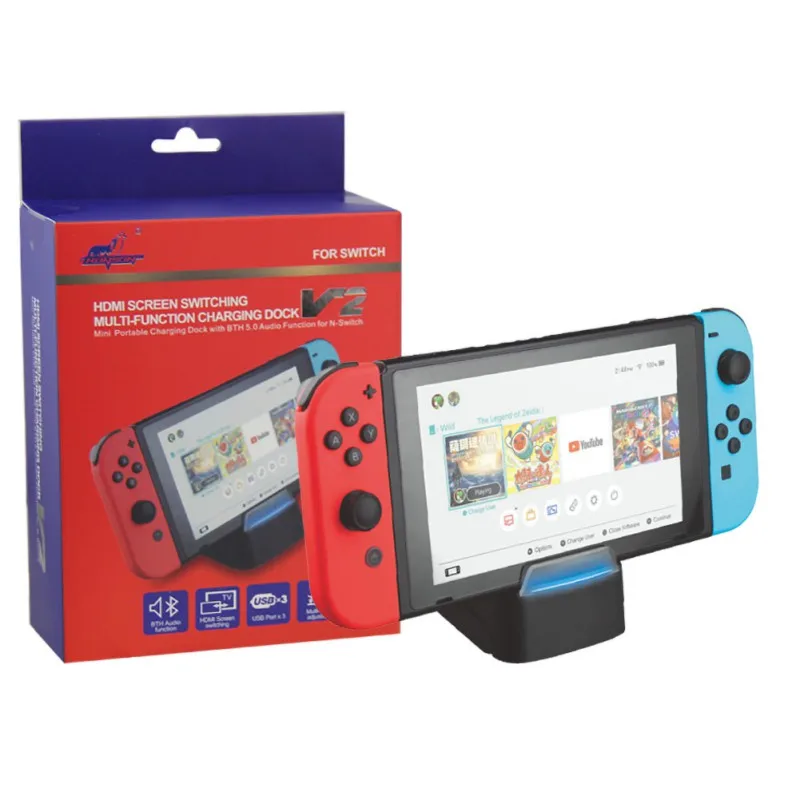

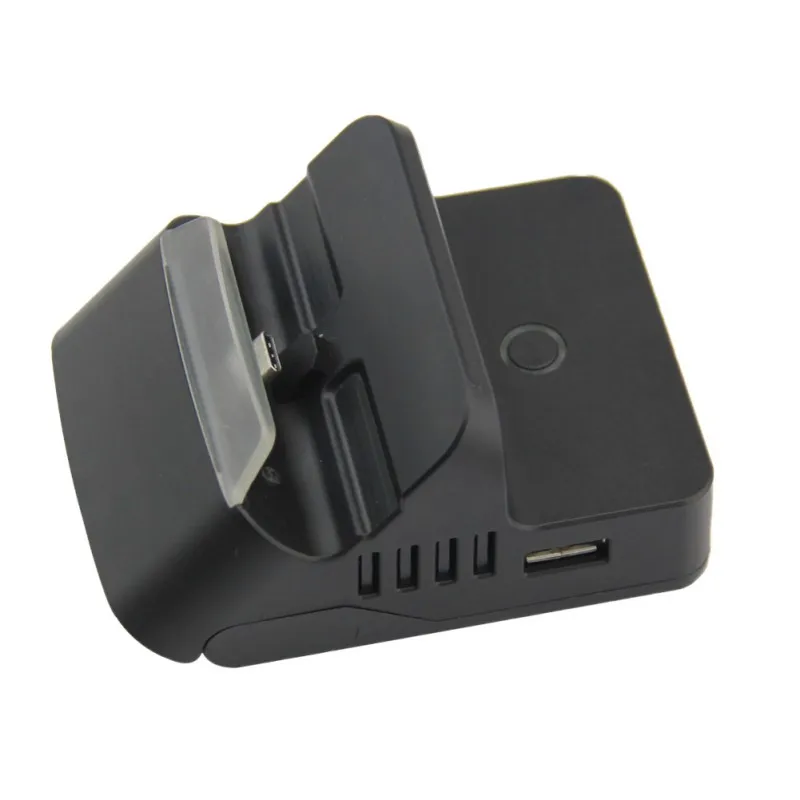

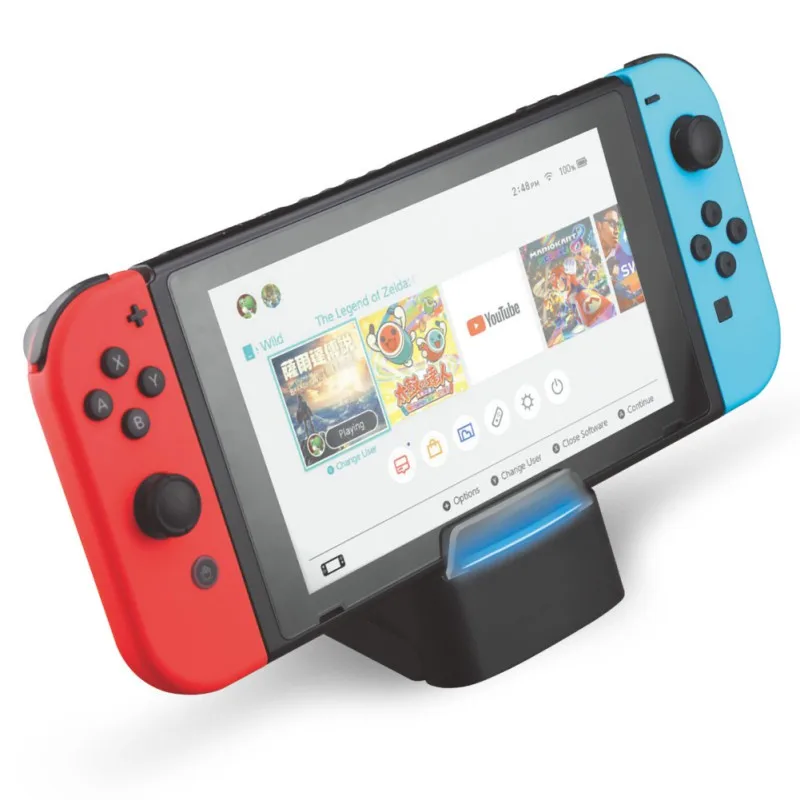

 1. This product is a portable mini HDMI video conversion base for Switch
2, data input: TYPE-C male plug SWITCH host
3, video data output: HDMI to TV conversion video audio

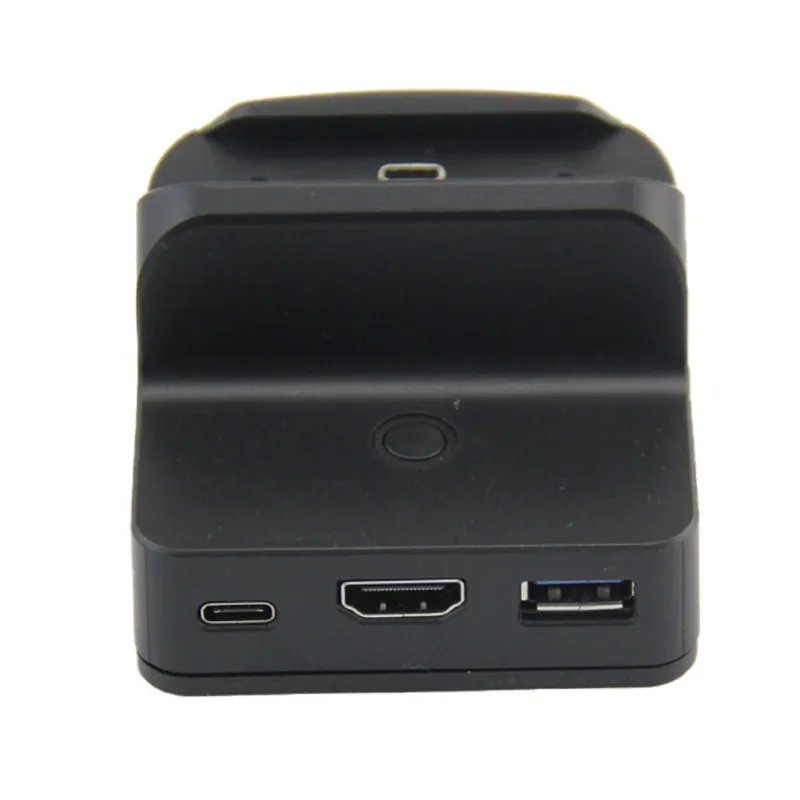

4, USB HUB output: 1 USB3.0 2 USB2.0

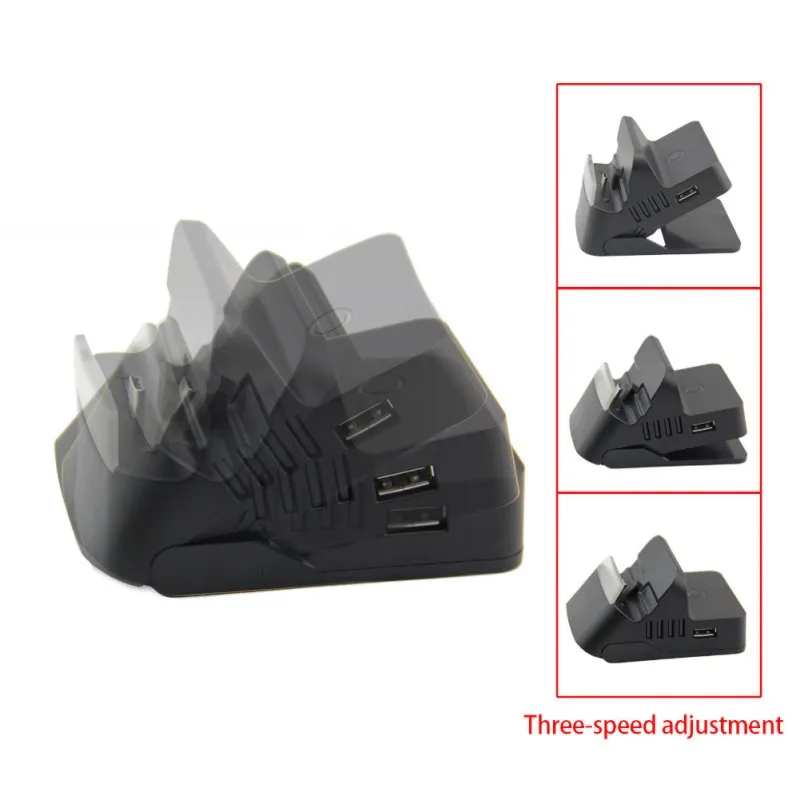

5. The flip cover has three kinds of comfortable angle adjustments, which can be adjusted to the best viewing angle according to the sitting position and the height of the table top to relieve cervical fatigue.
6, Bluetooth voice output, can receive the host\'s audio output through the Bluetooth audio device and the base Bluetooth connection

Instructions:
1. Connect the adapter power supply to the base power input Type-c interface, connect the TV to the base with the HDMI connector, and connect the video to the HDMI interface. The host is placed on the TYPE-C male plug-in conversion device to convert the video to the TV terminal. (The pairing button blue LED light flashes slowly) Bluetooth is in the search state

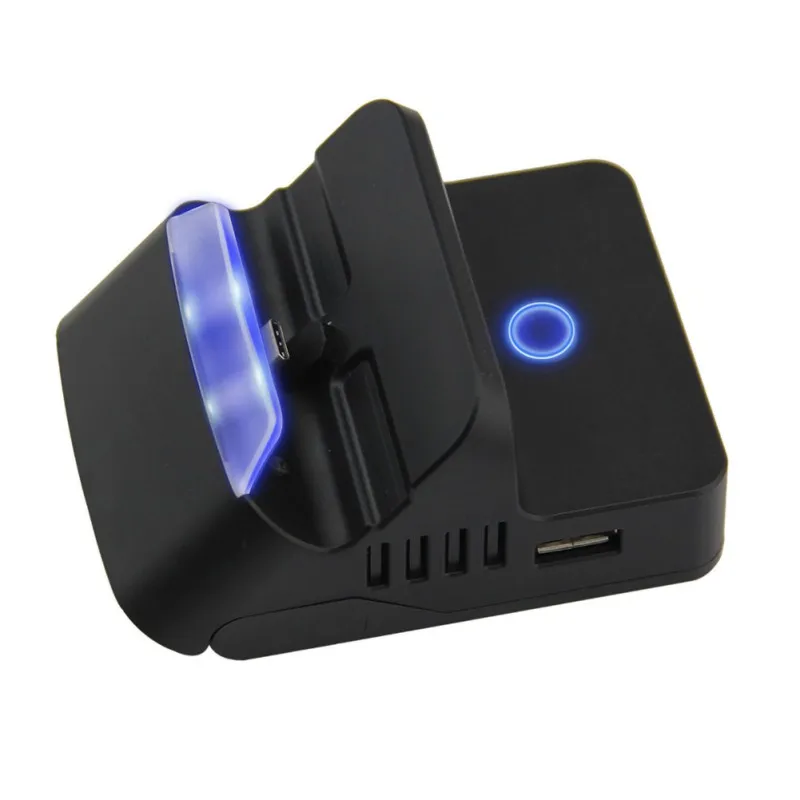

2, Bluetooth connection, the first use of the Bluetooth audio device needs to be paired: press the pairing button for about 3 seconds, the blue light flashes quickly to enter the pairing mode; then turn on the Bluetooth audio device search mode, the first Bluetooth audio pairing is successful The blue LED is always on,
3. If you need to connect another Bluetooth audio device, press the pairing button for about 3 seconds, then the red light flashes quickly. (The blue light flash is the Bluetooth audio connected before the connection will be disconnected immediately.) Turn on the Bluetooth audio device search mode. After the Bluetooth audio device is successfully connected, the red light is always on (connecting two Bluetooth audio devices, the red and blue LEDs are always on)
4. Back to the connected device, the device will automatically connect back after booting. After the connection is successful, the first connected blue LED is always on, and the second connected red LED is always on.
5, disconnect the Bluetooth device, you can short press the pairing button on the base, you can turn off, or directly turn off the Bluetooth audio device, the LED on the base flashes slowly after the Bluetooth is disconnected Key Function Short press the pairing button to turn off/on Bluetooth Long press the pairing button for 3 seconds for the button to search for the connection mode LED flashing quickly Long press 7 seconds blue red light double flash 3 times to clear the previous connection information LED corresponding mode The first Bluetooth audio connection is blue The second Bluetooth audio connection is lit red Blue red light double flash 3 times before clearing the connection information The long flashing 5 short flashes and 4 cycles indicate the standby state. Parameter Input DC voltage: 5V-15V, working current: about 2.6A Bluetooth version number: 2.1 Precautions Only Bluetooth audio with the same model can be connected to two bases. Different models of Bluetooth audio support only one connection.
