Atmel-ICE Basic Kit Comes with Additional Adapter and Cables | Компьютеры и офис
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Sep-16-2025 | 0.0 руб. | 0.43 руб. | 0 руб. |
| Aug-16-2025 | 0.34 руб. | 0.13 руб. | 0 руб. |
| Jul-16-2025 | 0.54 руб. | 0.12 руб. | 0 руб. |
| Jun-16-2025 | 0.52 руб. | 0.7 руб. | 0 руб. |
| May-16-2025 | 0.20 руб. | 0.68 руб. | 0 руб. |
| Apr-16-2025 | 0.98 руб. | 0.41 руб. | 0 руб. |
| Mar-16-2025 | 0.20 руб. | 0.36 руб. | 0 руб. |
| Feb-16-2025 | 0.81 руб. | 0.22 руб. | 0 руб. |
| Jan-16-2025 | 0.60 руб. | 0.41 руб. | 0 руб. |
Описание товара
DESCRIPTION
Atmel-ICE Basic Kit, Powerful development tool for debugging and programming Atmel SAM and AVR microcontrollers, Comes with additional adapter and cables
Overview
Atmel-ICE is a powerful development tool for debugging and programming Atmel ARM® Cortex®-M based Atmel SAM and AVR® microcontrollers with on-chip debug capability.
Key Features
- Supports JTAG, SWD, PDI, TPI, aWire, SPI and debugWIRE interfaces
- Full source-level debugging in Atmel Studio
- Supports all built-in hardware breakpoints in the target microcontroller (number depends on the OCD module in the target)
- Up to 128 software breakpoints
- 1.62 to 5.5V target operation
- USB powered
- Provides both ARM Cortex Debug Connector (10-pin) pin-out and AVR JTAG connector pin-out
Supported Software
- Perfectly supports Atmel Studio 6.2 or higher version
- Directly supports ICC8AVR or higher version
- Supports programming HEX files generated by ICCAVR, CVAVR, IAR, etc.
Supported Devices
- Programming and on-chip debugging of all Atmel AVR 32-bit MCUs on both JTAG and aWire interfaces
- Programming and on-chip debugging of all Atmel AVR XMEGA® family devices on both JTAG and PDI 2-wire interfaces
- JTAG and SPI programming and debugging of all Atmel AVR 8-bit MCUs with OCD support on either JTAG or debugWIRE interfaces
- Programming and debugging of all Atmel SAM ARM Cortex-M based MCUs on both SWD and JTAG interfaces
- Programming of all Atmel tinyAVR® 8-bit MCUs with support for the TPI interface
For more details, please visit UC3, Mega, SAM , Tiny, Xmega
Specifications
Physical Interfaces
Atmel-ICE Connection Options
Note :
While connecting the adapter board to a target, please pay attention to the Pin 1 (indicated by white spot or square solder pad).
The adapter board included in Atmel-ICE-B2 is compatible with the official one in the Atmel-ICE Full Kit.
Development Resources
Wiki : www.waveshare.com/wiki/Atmel-ICE
Selection Guide
Atmel-ICE: includes everything in the official Atmel-ICE Full Kit, and an extra free 6-pin to 10-pin ISP cable
Atmel-ICE-B2: includes everything in the official Atmel-ICE Basic Kit, and more adapter and cables from Waveshare, provides the same functions as Atmel-ICE Full Kit in lower price

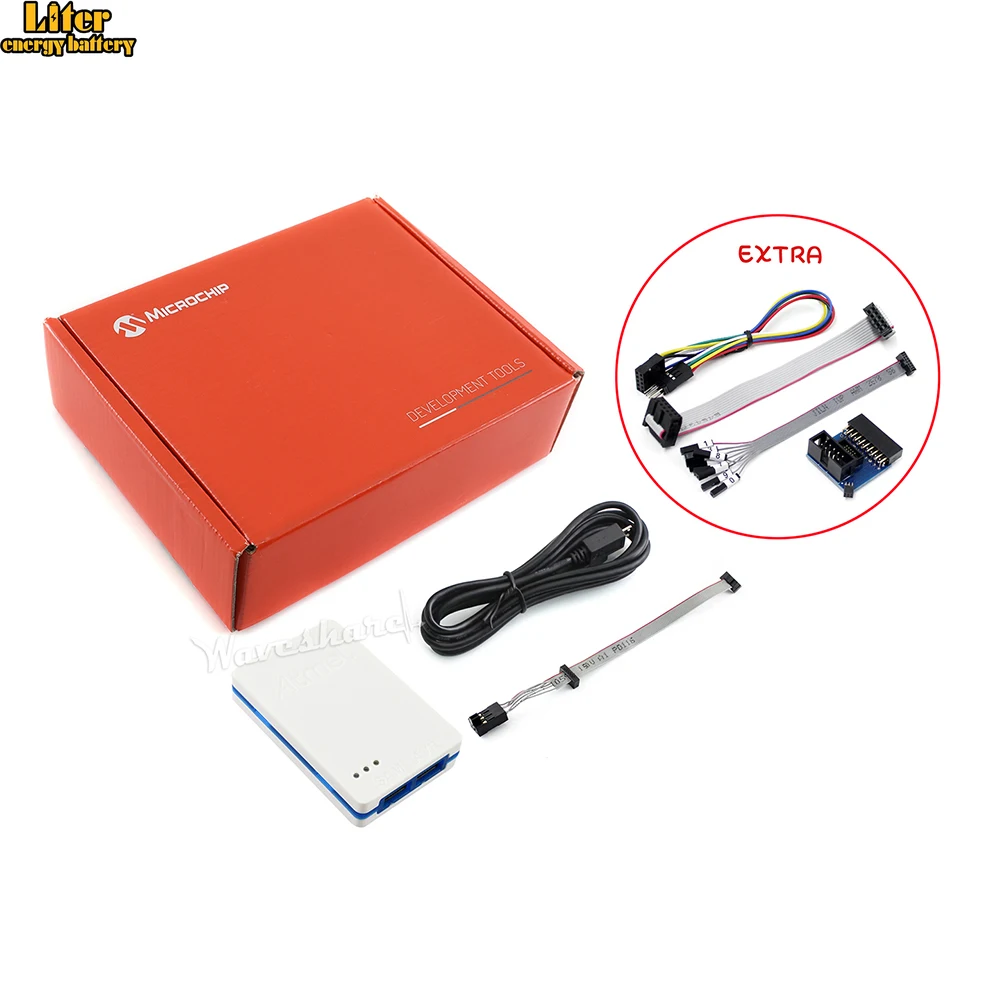

PACKAGE CONTENT
Weight: 0.178 kg

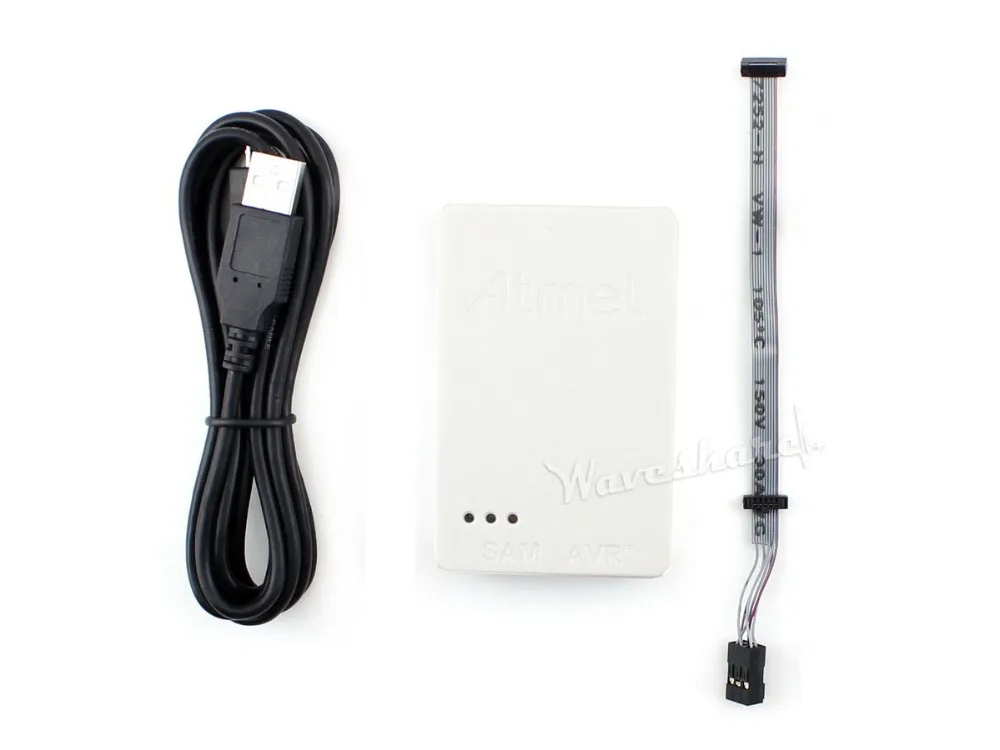

- Atmel-ICE unit x1
- USB cable (1.8m, high-speed, micro-B) x1
- IDC flat cable with 10-pin 50-mil connector and 6-pin 100-mil connector x1

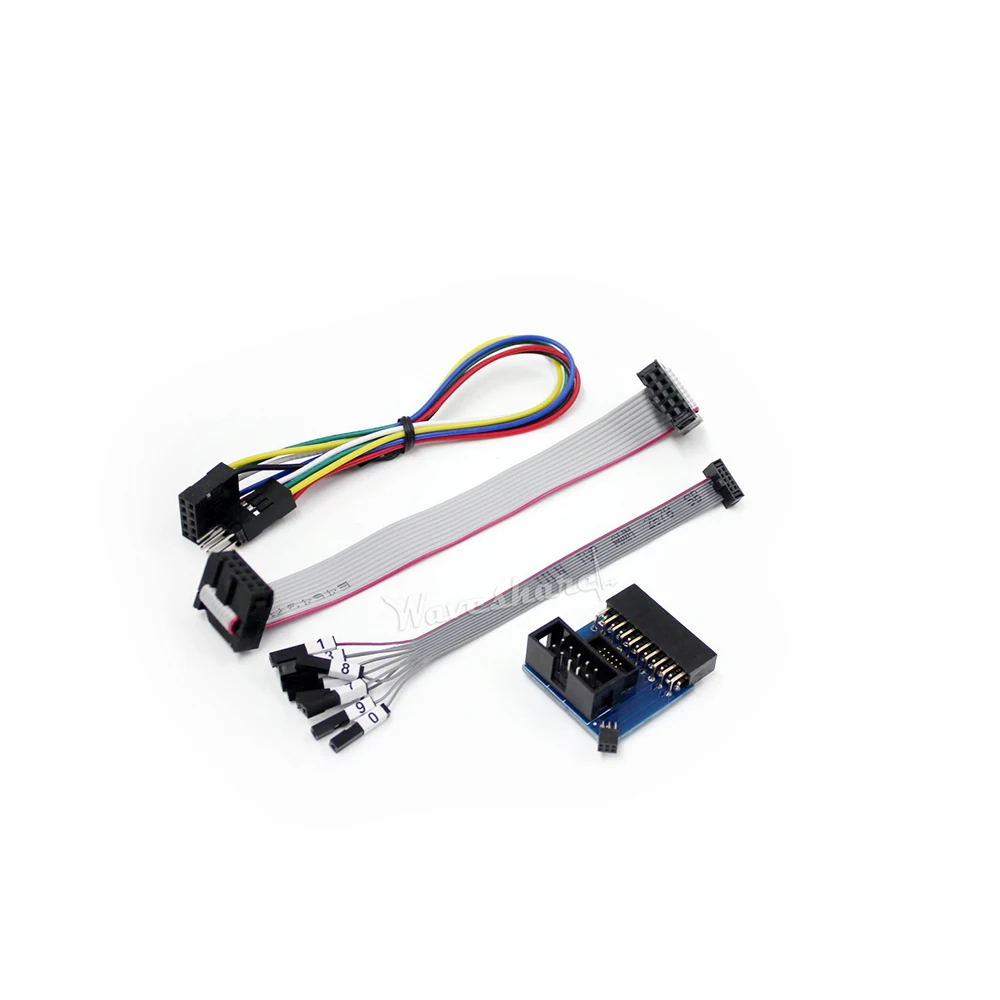

- Multi-functional adapter board x1
- 10pin flat cable x1
- 10pin 100mil squid cable x1
- 6-pin to 10-pin ISP cable x1
