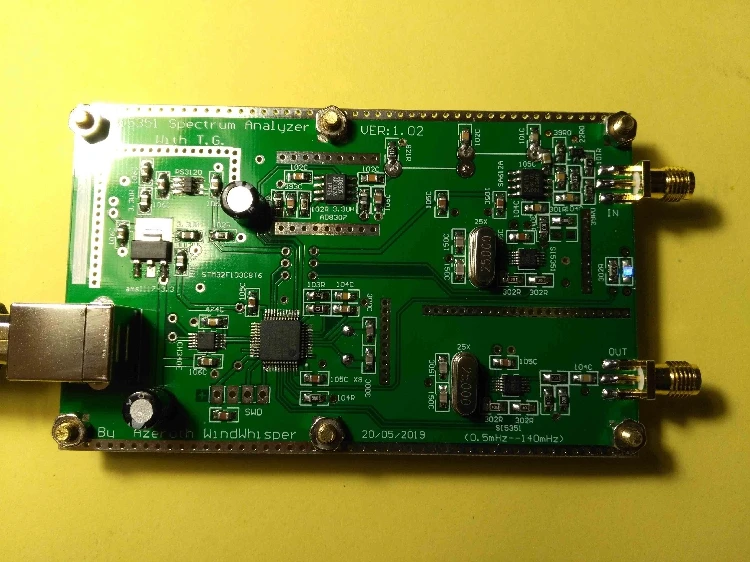

SI5351 Sweeper V1.02 Simple Spectrum 0.5m-140mHz Sweep Signal Generator | Электроника

Interface: usb

Power supply: usb

Average current: 100Ma

Output level: 3.3v (the output is a square wave due to the logic output circuit composed of internal trigger groups)

Sweep bandwidth: 0.5mHz---140mHz

Sweep step: ≥ 1Hz

Sweep speed: ≥400 points / sec

Point frequency or sweep output power: 10dBm



Software on the computer side: NWT4.09.07 version

Computer operating system: winxp, win732, win764 (win10, most can)


Attenuation standard measurement attenuation distribution:

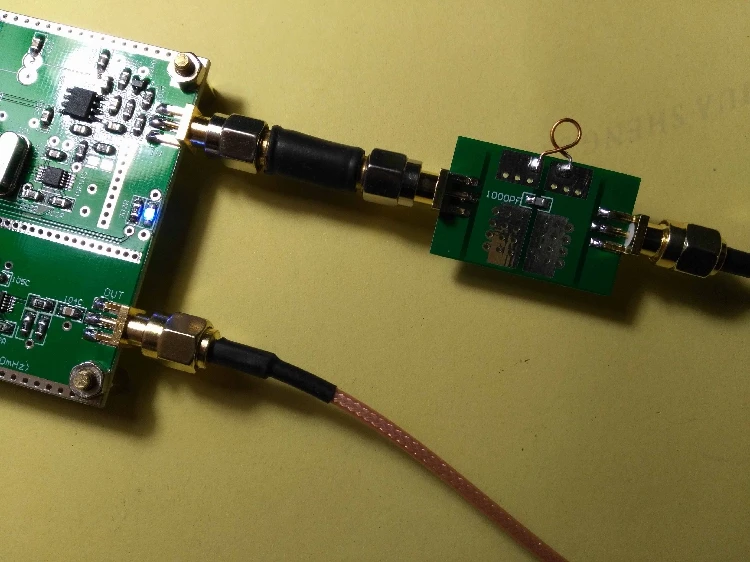

Adf4351 small signal source:

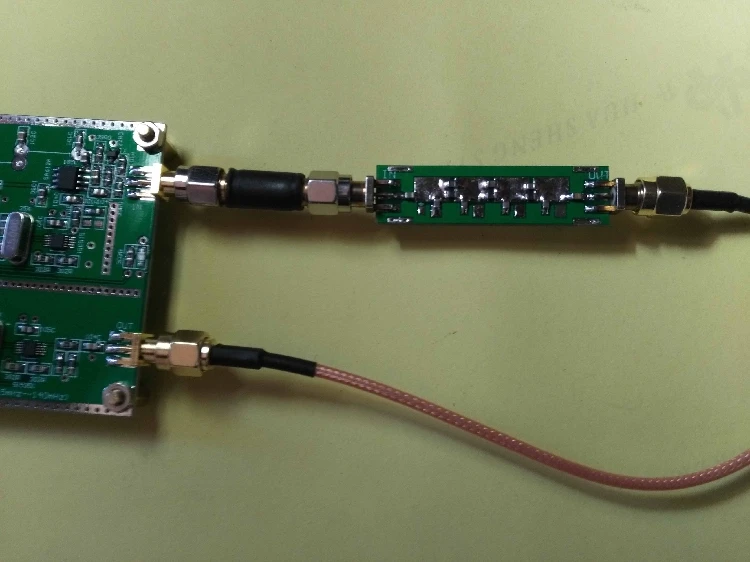

The 45mhz low-pass filter that suppresses the image frequency on the AD9834 sweeper:

Can actually measure 455 ceramic filter, of course, the tracking source is always 200khz behind the local oscillator, so the passband position went to the 655khz position,



Package Contents
100% Brand New
1 XSimple standing wave table meter
