DESCRIPTION

Overview

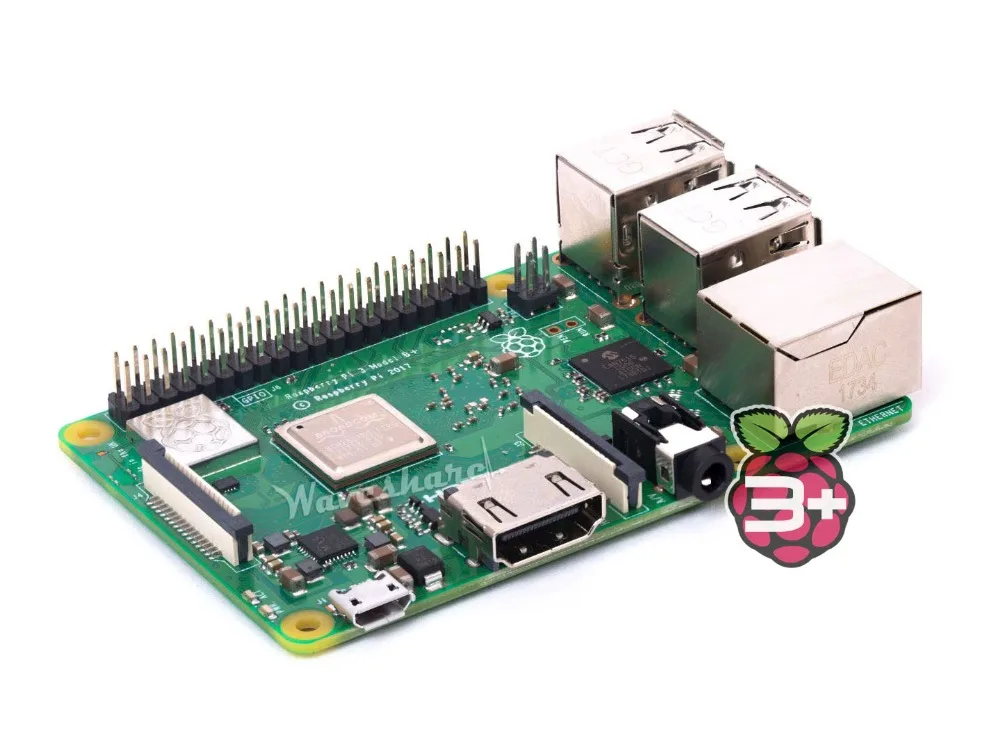

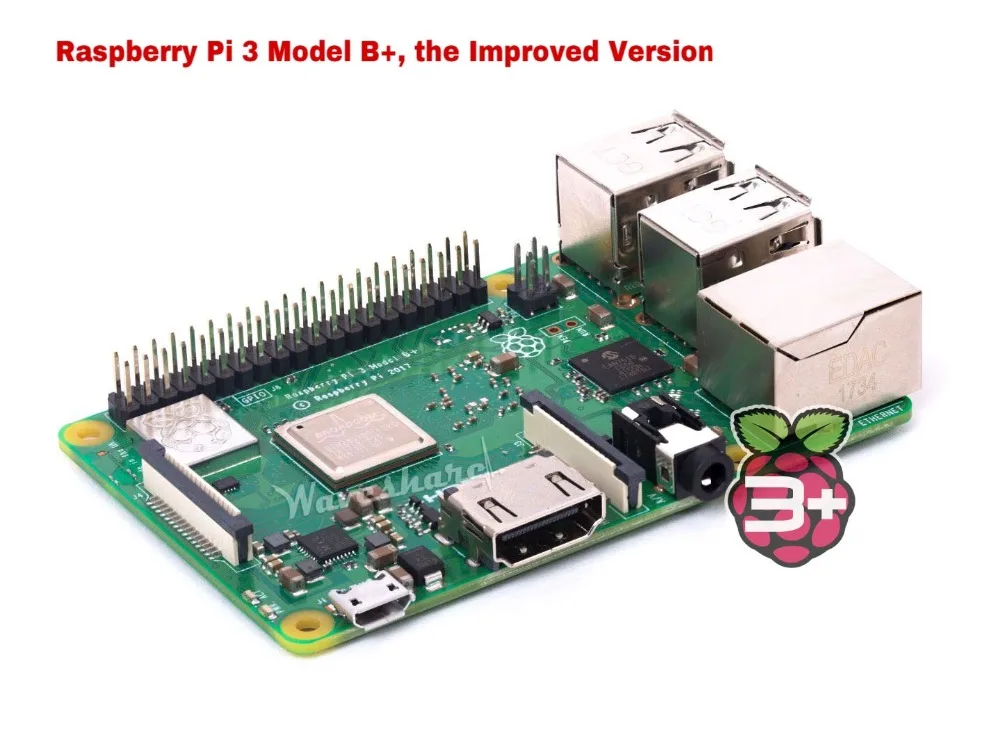

Raspberry Pi 3 Model B+ is the improved version of Raspberry Pi 3 Model B, the key improvements include:

• A 1.4GHz 64-bit quad-core ARM Cortex-A53 CPU
• Dual-band 802.11ac wireless LAN and Bluetooth 4.2
• Faster Ethernet (Gigabit Ethernet over USB 2.0)
• Power-over-Ethernet support (with separate PoE HAT)
• Improved PXE network and USB mass-storage booting
• Improved thermal management

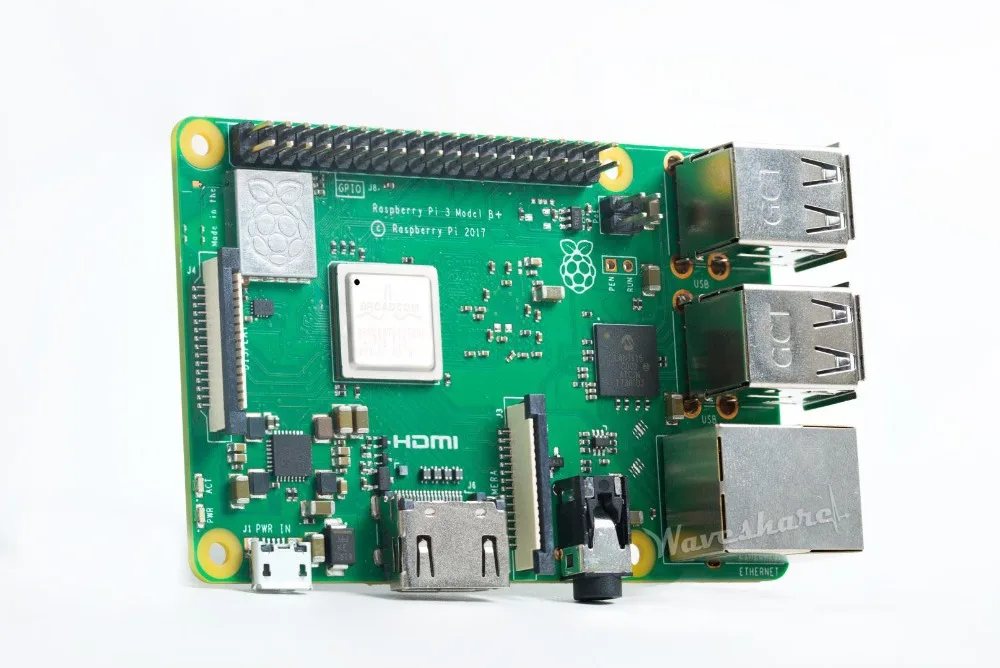

Raspberry Pi 3 Model B+ Specifications

• Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz
• 1GB LPDDR2 SDRAM
• 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE
• Gigabit Ethernet over USB 2.0 (maximum throughput 300 Mbps)
• Extended 40-pin GPIO header
• Full-size HDMI
• 4 USB 2.0 ports
• CSI camera port for connecting a Raspberry Pi camera
• DSI display port for connecting a Raspberry Pi touchscreen display
• 4-pole stereo output and composite video port
• Micro SD port for loading your operating system and storing data
• 5V/2.5A DC power input
• Power-over-Ethernet (PoE) support (requires separate PoE HAT)

Pioneer600 Features

• Supports Raspberry Pi A+/B+/2B/3B/3B+
•   dual LED, joystick, buzzer, the basic components
•  CP2102, control the Pi through serial terminal
• <Display> 0.96inch OLED, big world in the little screen
• <RTC> DS3231, high precision, backup battery holder is also available
• <AD/DA> PCF8591, 8-bit resolution, screw terminal IO interface
• <GPIO Expansion> PCF8574, more GPIO, more possibility
• <IR Control> LFN0038K, Raspberry Pi remote control comes true
• <Pressure Sensor> BMP280, measuring air pressure and temperature
• <1-WIRE> for connecting 1-WIRE devices, DS18B20 is included
• <Sensor Interface> for connecting various sensors

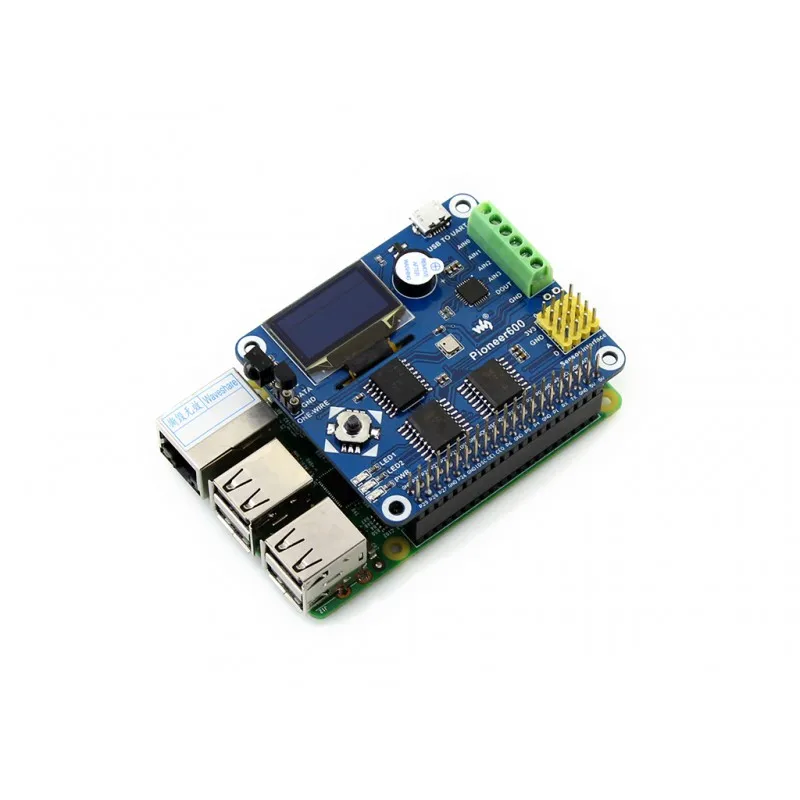

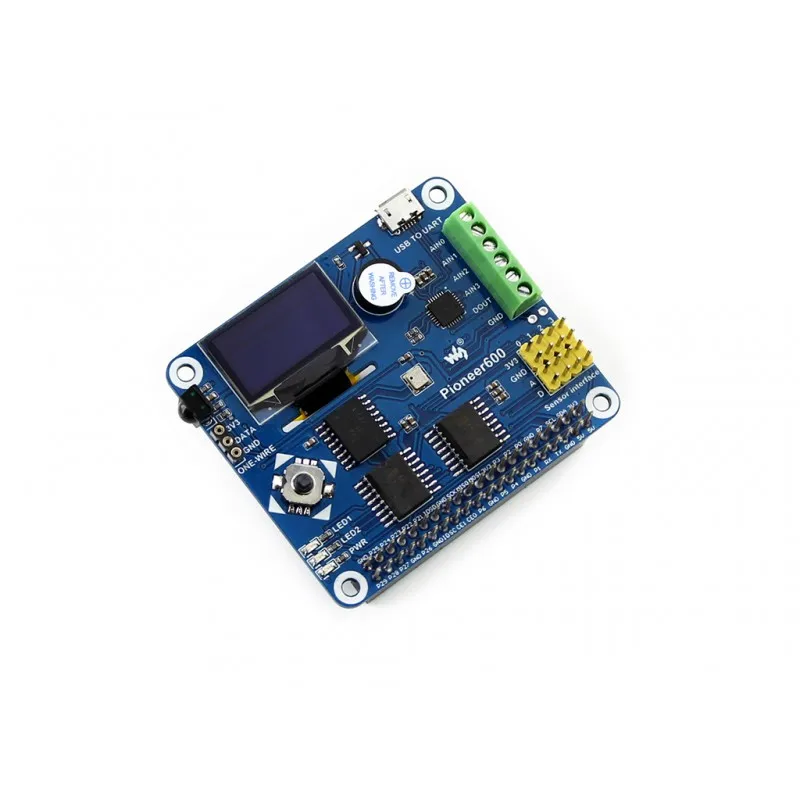

What's on the Pioneer600

1. Raspberry Pi GPIO interface : for connecting Raspberry Pi
2. USB TO UART : control the Pi through serial terminal
3. AD/DA IO interface : screw terminal
4. 1-WIRE interface : for connecting 1-WIRE devices like DS18B20
5. Sensor interface : for connecting various sensors
6. 0.96inch OLED : SSD1306 driver, 128×64 resolution, SPI interface
7. Buzzer
8. CP2102 : USB TO UART converter
9. PCF8591 : 8-bit AD/DA converter, I2C interface
10. BMP280 : pressure sensor, I2C interface
11. PCF8574 : I/O expansion chip, I2C interface
12. DS3231 : high precision RTC chip, I2C interface
13. Power indicator
14. User LED
15. Joystick
16. LFN0038K IR receiver

Photos

Examples

Development Resources

Wiki : www.waveshare.com/wiki/Raspberry_Pi_3_Model_B_Plus_Package_B

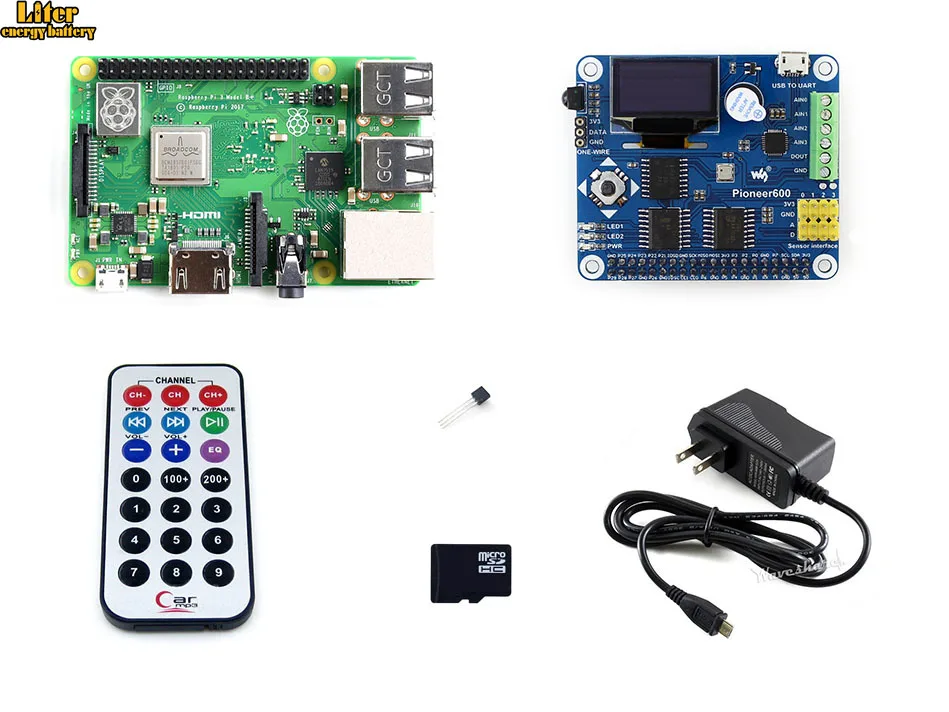

PACKAGE CONTENT

Weight: 0.202 kg

1. Raspberry Pi 3 Model B+ x1
2. Pioneer600 x1
3. DS18B20 ×1
4. USB Type A Plug to Micro B Plug Cable x1
5. RPi screws pack (2pcs) x1
6. Micro SD Card 16GB x1
7. Power adapter US standard 5V/3A micro x1
8. Infrared Remote Controller x1
