6.0L Powerstroke Crude Oil High Pressure Rail Ball Tube O Rings 2003 - 2010 |

6.0L Powerstroke Crude Oil High Pressure Rail Ball Tube O Rings 2003 - 2010 |

Please note that this particular listing is for (8) Orings ONLY - Ball tubes and special tool are NOT included. When Ball tube o-ring failure occurs the ball tubes themselves are often etched and failure to replace them may cause repeat failure to occur. See the 6.0L Powerstroke section of our Ebay store for ball tubes, special tools, and kits with the tools and parts togther, as well as tools to service multiple connections
Are you experiencing repeat failure of the high pressure oil inlet o-ring on 6.0L injectors? The often-overlooked cause of this problem is the ball tube o-ring in the high pressure oil rail.
If close examination of the failed injector seal indicates that it was eroded from the top to the bottom, then the root cause is in the high pressure oil rail. Until recently, this rail was not a serviceable part and required replacement as an assembly at great expense. We now have the parts and tools available to correctly perform this repair and prevent costly comebacks.
Any time the valve covers are removed from a 6.0L engine you should check the oil rails for leaks. This can be done by removing the ICP sensor and pressurizing the system with shop air. You will need to command the IPR valve closed with a scan tool in order to build pressure in the system. Frequently you will find leaks between the ball tube and the oil rail.
If there is a leak at one ball tube it is probably wise to replace them all. Even if you do not find any leaks during air testing, it is wise to closely inspect the nipple portion of the ball tube where it inserts into the fuel injector. Even the slightest surface imperfections here are not acceptable. Since pressure in the high pressure oil system can exceed 3,500 PSI even slight surface abnormalities can result in problems over time.
6.0L Injector Seal Failure
Note that if your injector high pressure oilinlet seals have failed you do NOT have to replace the injectors - we have the seals available - click HERE. Our ball tube orings are made from a higher temperature Viton material to prevent repeat failure.
Performing the ball tube / oring repair requires a special tool to remove and replace the hex compression ring. The tool also aligns and centers the ball tube to the rail during the reassembly process. This tool is a one-time investment that can be used over and over again.
colour:red
Material:metal

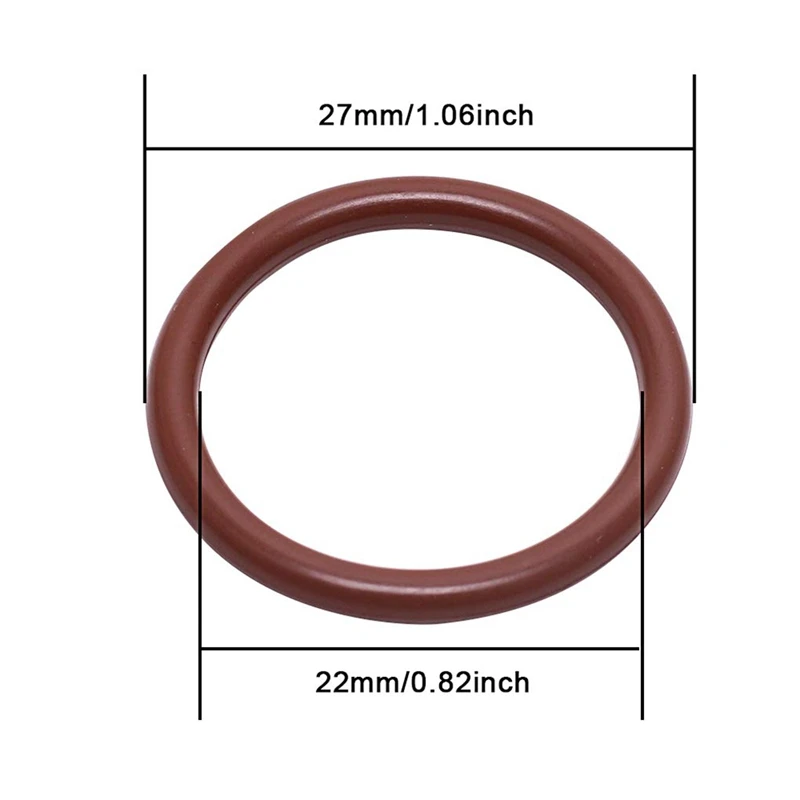

size:Outer diameter 27MM; inner diameter 22MM
Package Contents:

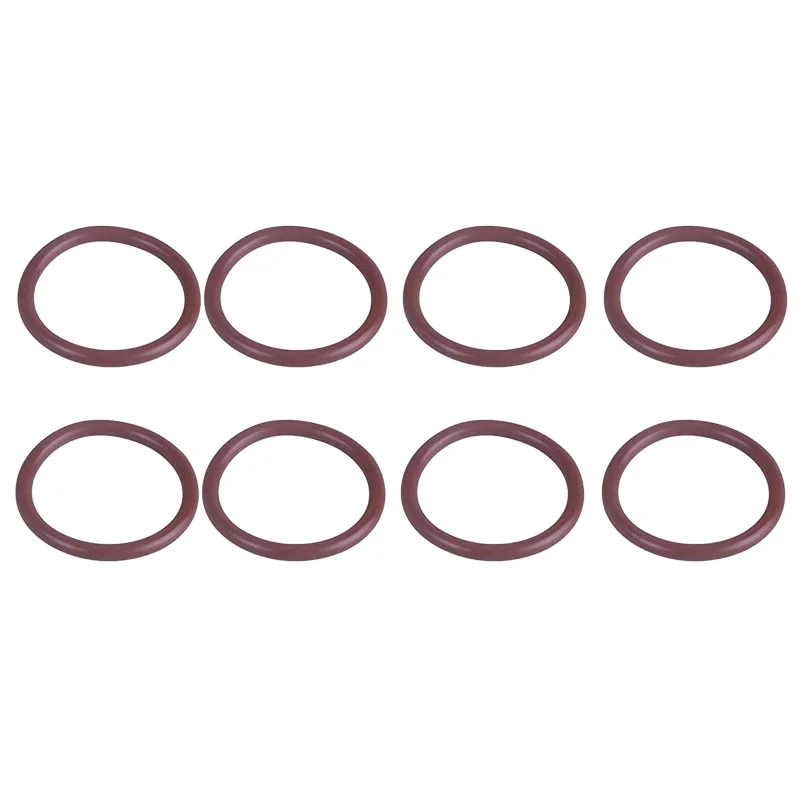

8 * O-shaped coil
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
