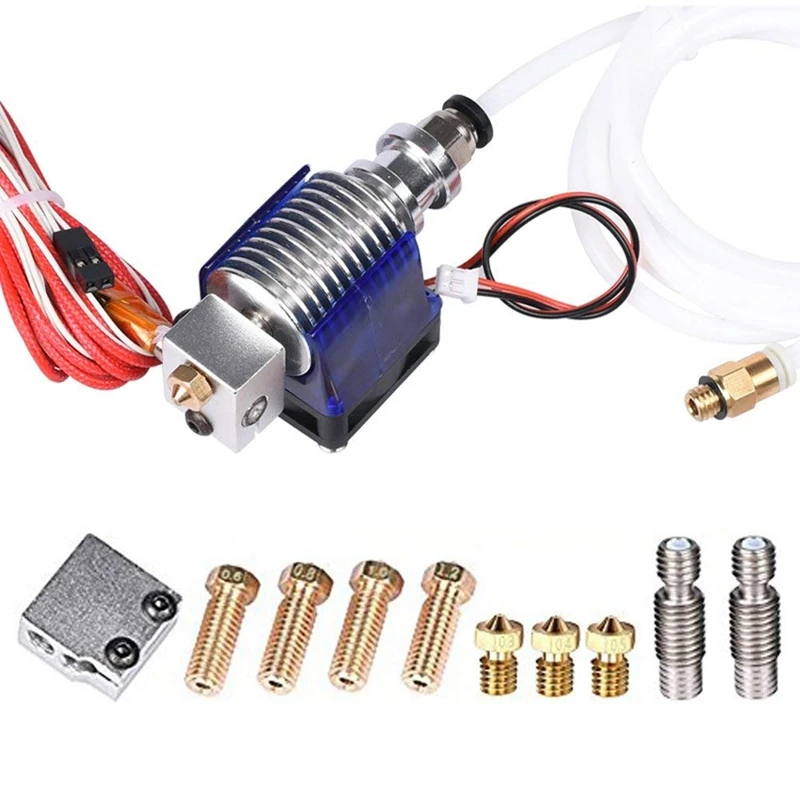

3D Printer J-Head Hotend With Fan For 1.75mm 12v V6 Direct Filament Wade Extruder 0.4mm Nozzle
Applicability & compatibility: compatible with all 1.75mm E3D V6 Makerbot 3D printer; NTC connector with terminal, easy to intall
Anti-leakage & anti-blocking design: extruder nozzle connect connect with the tube seamless, prevent print material from leaking or blocking
Heat resistant & ventilation: 12V/40W NTC heater, avoid NTC burn and break frequently, 304 stainless steel material nozzle throat and high quality resistor whose temperature can up to 280°C, 12V high speed fan, radiating quickly
Specification: brass material extruder nozzles, output diameter 0.3mm/ 0.4mm/ 0.5mm, input diameter (filament) 1.75mm
12V/40W heater,temperature can be up to 280°C(Long-term temperature: 240°C/ short-term temperature: 280°C)
12V high speed fan with shroud, radiating quickly
One meter long PTFE/teflon tubing 4mm OD 2mm ID
PC4-01 tube fitting
Volcano heating block
Outer thread : M6 M7
Nozzle throat outer diameter: 6mm
Nozzle throat inner diameter: 4mm
Teflon pipe inner diameter: 2mm
Length of nozzle throat: 22.5mm
Filament diameter : 1.75mm
Extruder brass nozzle input diameter: 1.75mm
Extruder brass nozzle output diameter: 0.3mm 0.4mm 0.5mm
Volcano extruder nozzle output diameter: 0.6mm 0.8mm 1.0mm 1.2mm
Color:as shown
material: metal
Package Contents:
1 x all metal V6 hotend 12V/40W/1.75mm/0.4mm nozzle/ extruder
1 x 12V high speed fan with shroud
1 x One meter long PTFE/teflon tubing 4mm OD 2mm ID
1 x PC4-01 Tube Fitting
1 x 0.3mm nozzle print head
1 x 0.4mm nozzle print head
1 x 0.5mm nozzle print head
1 x 0.6mm volcano nozzle print head
1 x 0.8mm volcano nozzle print head
1 x 1.0mm volcano nozzle print head
1 x 1.2mm volcano nozzle print head
1 x volcano heating block
2 x teflon tube within 1.75mm stainless steel nozzle throat
Notice: Small parts, keep away from children
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
