Характеристики
Raspberry Pi Zero WH (built-in WiFi pre-soldered headers)Type E Micro SD Card Power Adapter 2.13inch e-Paper HAT Basic Component |
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Apr-03-2026 | 0.13 руб. | 0.89 руб. | 0 руб. |
| Mar-03-2026 | 0.8 руб. | 0.99 руб. | 0 руб. |
| Feb-03-2026 | 0.5 руб. | 0.64 руб. | 0 руб. |
| Jan-03-2026 | 0.52 руб. | 0.53 руб. | 0 руб. |
| Dec-03-2025 | 0.39 руб. | 0.37 руб. | 0 руб. |
| Nov-03-2025 | 0.23 руб. | 0.96 руб. | 0 руб. |
| Oct-03-2025 | 0.64 руб. | 0.97 руб. | 0 руб. |
| Sep-03-2025 | 0.51 руб. | 0.63 руб. | 0 руб. |
| Aug-03-2025 | 0.1 руб. | 0.19 руб. | 0 руб. |
Описание товара
(NOTE: US Standard adapter will be sent in the package by default, if want to change to EU adapter, please leave us a message in the order)
DESCRIPTION

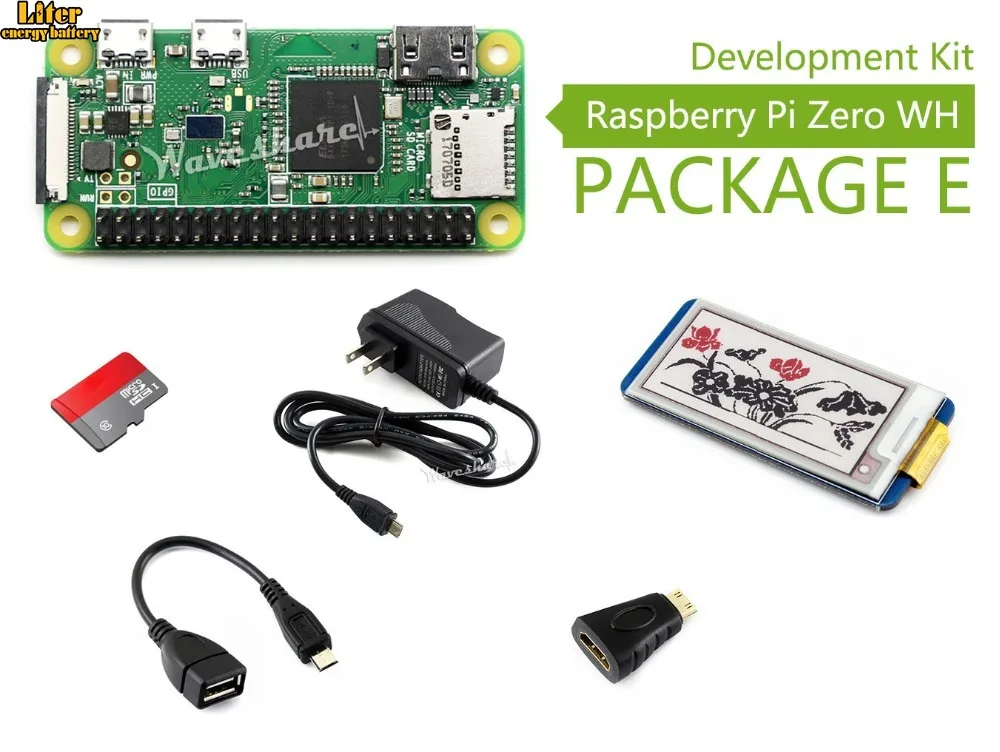

Raspberry Pi Zero WH (built-in WiFi, pre-soldered headers) Development Kit Type E, Micro SD Card, Power Adapter, 2.13inch e-Paper HAT, and Basic ComponentsOverview
This development kit includes: the Raspberry Pi Zero WH (built-in WiFi, pre-soldered headers), 16GB Micro SD Card, 5V 2.5A Power Adapter, 2.13inch e-Paper HAT (B) which is a three-color e-ink display.
The kit also comes with some most basic components you may need to get going with your Pi Zero: Mini HDMI to HDMI Adapter, Micro USB OTG Cable.

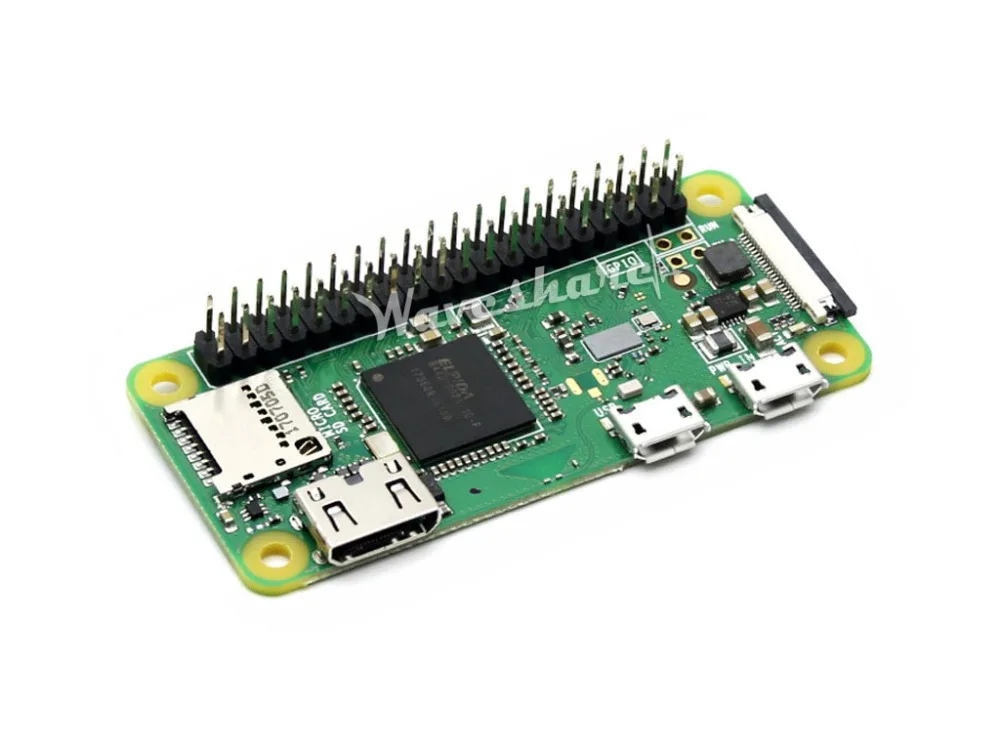

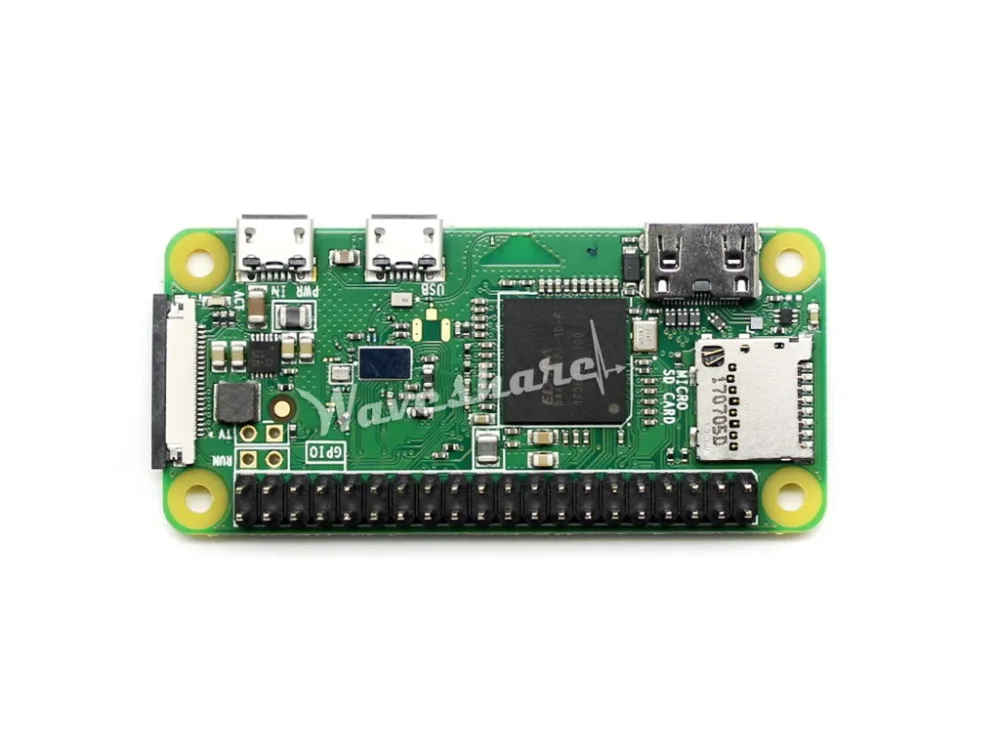

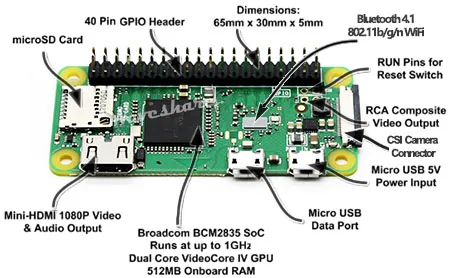

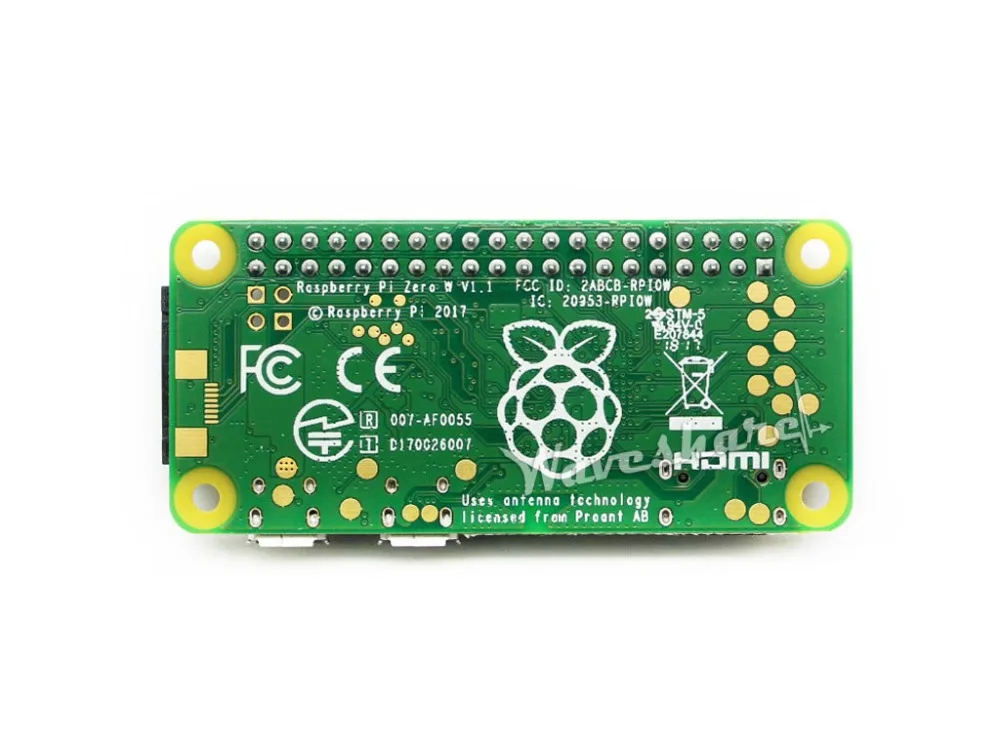

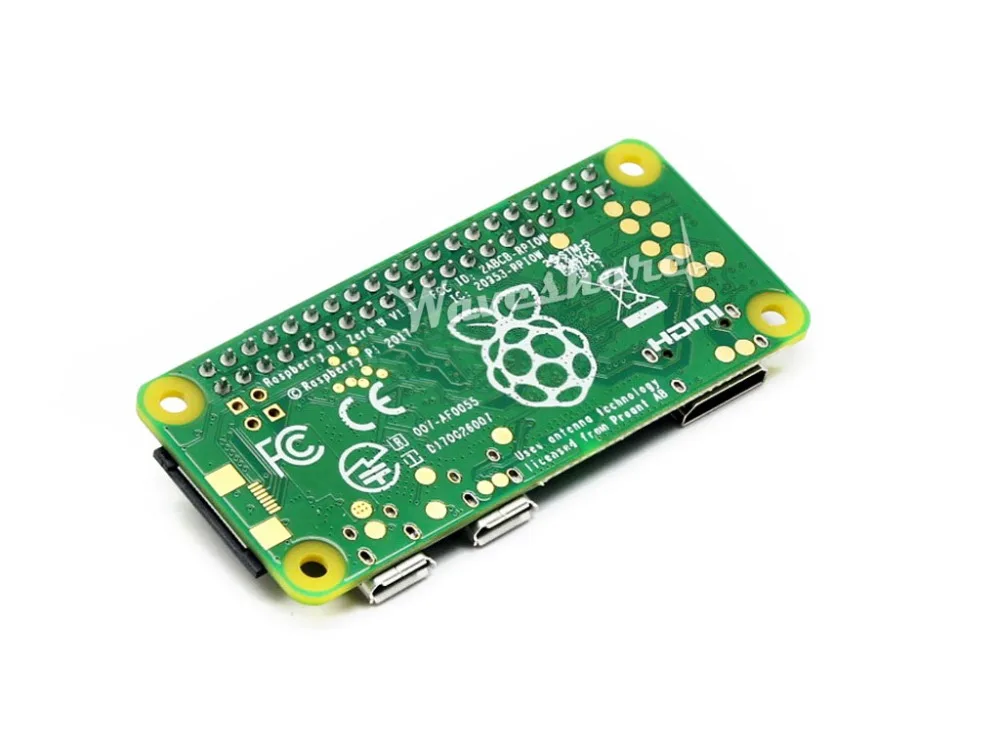

Raspberry Pi Zero WH Features
- Broadcom BCM2835
- 1GHz ARM11 single-core processor
- 512MB RAM
- Added wireless connectivity
- 802.11 b/g/n wireless LAN
- Bluetooth 4.1
- Bluetooth Low Energy (BLE)
- 40PIN pre-soldered GPIO headers
- Micro SD card slot
- Mini-HDMI port (1080p60 video output)
- Micro-USB power
- Micro-USB OTG port
- CSI camera connector
- Composite video header
- Composite reset header
- Dimension: 65mm x 30mm x 11.6m
2.13inch e-Paper HAT (B) Features
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Compatible with Raspberry Pi 2B/3B/Zero/Zero W
- Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.
- Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
2.13inch e-Paper HAT (B) Specifications
- Operating voltage: 3.3V
- Interface: 3-wire SPI, 4-wire SPI
- Outline dimension: 65mm × 30.2mm
- Display size: 23.71mm × 48.55mm
- Dot pitch: 0.229 × 0.228
- Resolution: 212 × 104
- Display color: red, black, white
- Grey level: 2
- Full refresh time: 15s
- Refresh power: 26.4mW(typ.)
- Standby power: <0.017mW
- Viewing angle: >170
Selection Guide
| Package Contents | Products | ||||||
|---|---|---|---|---|---|---|---|
| Item | Description | Standard | Package A | Package B | Package D | Package E | Package α |
| Raspberry Pi Zero WH | Raspberry Pi Zero WH, with built-in WiFi, pre-soldered headers | √ | √ | √ | √ | √ | √ |
| Mini HDMI to HDMI Adapter | Mini HDMI male to standard HDMI female | √ | √ | √ | √ | ||
| Micro USB OTG Cable | Micro USB to USB | √ | √ | √ | √ | ||
| Micro SD Card 16GB | Class 10 16GB Micro SD Card | √ | √ | √ | √ | ||
| 5V 2.5A Power Adapter | 5V 2.5A output | √ | √ | √ | √ | ||
| Raspberry Pi Zero Case | Official Case for the Zero | √ | |||||
| USB HUB HAT | USB HUB, USB to UART | √ | |||||
| 2.13inch e-Paper HAT (B) | 2.13inch e-ink display, three-color: red, black, and white | √ | |||||
| AlphaBot2-PiZero | Adapter board, for connecting RPi Zero WH | √ | |||||
| AlphaBot2-Base | Motor driver, integrates sensors for obstacle avoiding, line tracking | √ | |||||
| Ultrasonic sensor | Ultrasonic obstacle avoiding, ranging | √ | |||||
| IR remote controller | remotely control the robot | √ | |||||
| RPi Camera (B) | Raspberry Pi camera, adjustable focus | √ | |||||
| SG90 | Servo, working with the pan head, controlling the rotation of the camera | √ |
PACKAGE CONTENT
Weight: 0.151 kg- Raspberry Pi Zero WH x1
- Mini HDMI to HDMI Adapter x1
- Micro USB OTG Cable x1
- Micro SD Card 16GB x1
- Power adapter US standard 5V/3A micro x1
- 2.13inch e-Paper HAT (B) x1
- RPi screws pack (2pcs) x1
- PH2.0 20cm 8Pin x1
