C8051F Series C8051F320 8051 Evaluation Development Board Kit + DVK501 System Tools =EX-F320 Premium Free Shipping
A complete starter kit and development system for the C8051F320 microcontroller
Overview
A complete starter kit and development system for theC8051F320 microcontroller. It is designed to give designers a quick start to develop code on the device.
This development system contains a main development board with the C8051F320 chip in LQFP32 package, and an additional expansion board with various peripheral devices.

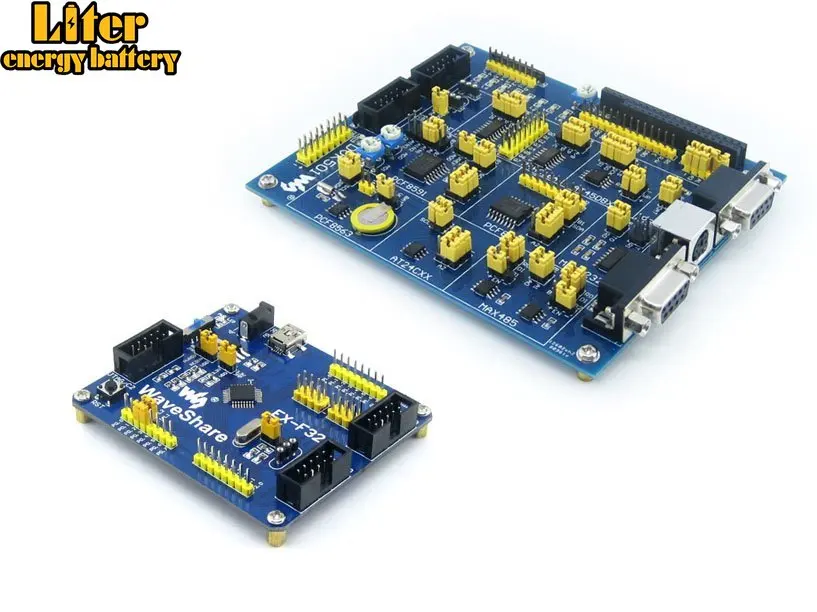

The BUS-A & BUS-B headers located on both boards should be used to connect the two boards via 10-pin cables, which are delivered with the product. As shown in the figure right.
What's On Board

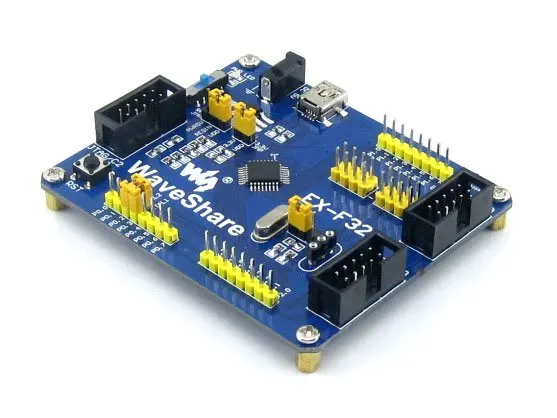

EX-F320
- Power
- Powered from mini USB port or 5V DC jack, configured via on board switch
- Power input/output pin headers
- spare power input
- convenient for providing power supply to other board/device if necessary
- Onboard Chips
- C8051F320 (LQFP32), the C8051F Microcontroller
- AMS1117-3.3, on board regulator
- Interfaces
- JTAG/C2 interface for programming/debuging
- mini USB interface
- BUS-A & BUS-B, for connecting to the expansion board DVK501, ease to study/develop various peripheral devices
- Human to Machine Interface
- Reset button, used to reset the system
- Power indicator LED
- Other Features
- External crystal configurable
- there is a jumper for selecting on board 12M crystal or custom crystal mounted via the socket
- a jumper for configuring MCU pins as oscillator inputs or regular I/O pins
- All the MCU I/O pins are accessible on expansion connectors for further expansion
- All the pins are clearly marked on the PCB. These marks provide the basic information on the pins
- External crystal configurable
- Microcontroller
- C8051F320
- LQFP32 package
- On board regulator
- AMS1117-3.3
- External crystal configuration
- on-board 12 M crystal on left side
- custom crystal socket on right side
- selected via jumper
- Power input switch
- USB or 5V DC
- Reset
- Power indicator
- mini USB interface
- 5V DC jack
- Peripherals expansion ports
- for connecting to DVK501
- header pinout definition is provided
- easy to develop various peripherals
- 10-pin JTAG/C2 interface
- standard C2 interface
- External crystal enable jumper
- short the jumper to use external crystal
- open the jumper to config the pins as regular I/O pins
- Jumper 3.3VJMP
- open the jumper when REG0 enabled
- short the jumper when REG0 disabled
- Jumper REGJMP
- short PWR5V & REGIN when REG0 enabled
- short REGIN & VDD when REG0 disabled
- Pin headers connected to MCU I/O pins
- marked clearly on the PCB
- easy for testing and further expansion
- Power Input/Output
- 5V/3.3V
- power input (spare)
- power output

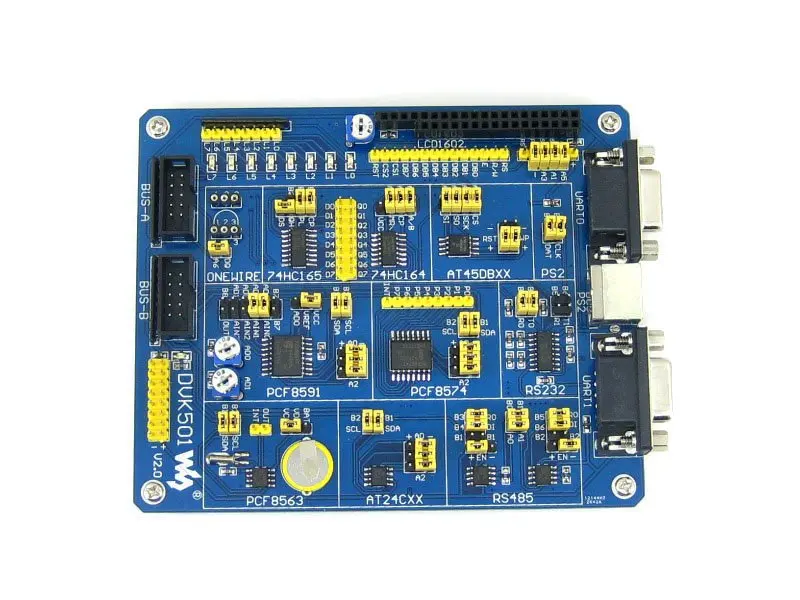

DVK501
| Device on board | Description | Interface |
|---|---|---|
| AT24CXX | 2-Wire Serial EEPROM keeps data after power down | I2C |
| PCF8563 | Real-time clock/calendar, low backup current from battery | I2C |
| PCF8591 | 8-bit A/D and D/A converter, four channels AD conversion, one channel DA conversion | I2C |
| PCF8574 | Remote 8-bit I/O expander | I2C |
| DS18B20 | Programmable Resolution 1-Wire Digital Thermometer, measures temperatures from –55°C to +125°C | 1-Wire |
| DS2401 | Silicon Serial Number, a low-cost, electronic registration number that provides an absolutely unique identity | 1-Wire |
| AT45DBXX | Serial-interface sequential access Flash memory ideally suited for higher memory density requirement | SPI |
| 74HC164 | 8-bit serial-in, parallel-out shift register, for reducing the IO cost | SART |
| 74HC165 | 8-bit parallel-in, serial out shift register, for reducing the IO cost | SART |
| MAX3232 | 3.0V to 5.5V, True RS-232 Transceivers, for communicating with the PC | serial |
| MAX485 | RS-485 Transceiver, for long distance communication | serial |
| PS/2 | PS/2 interface, for connecting the keyboard or mouse | 2 wires |
| LED | 8-bit status indicator LED, also can be used for displaying simple data | 8 wires |
| Character LCD Connector | Used for connecting the character LCD module, such as LCD1602 | 7 wires or 11 wires |
| Graphic LCD Connector | Used for connecting the Graphic LCD module, such as LCD12864 | SPI or 12 wires |
Examples

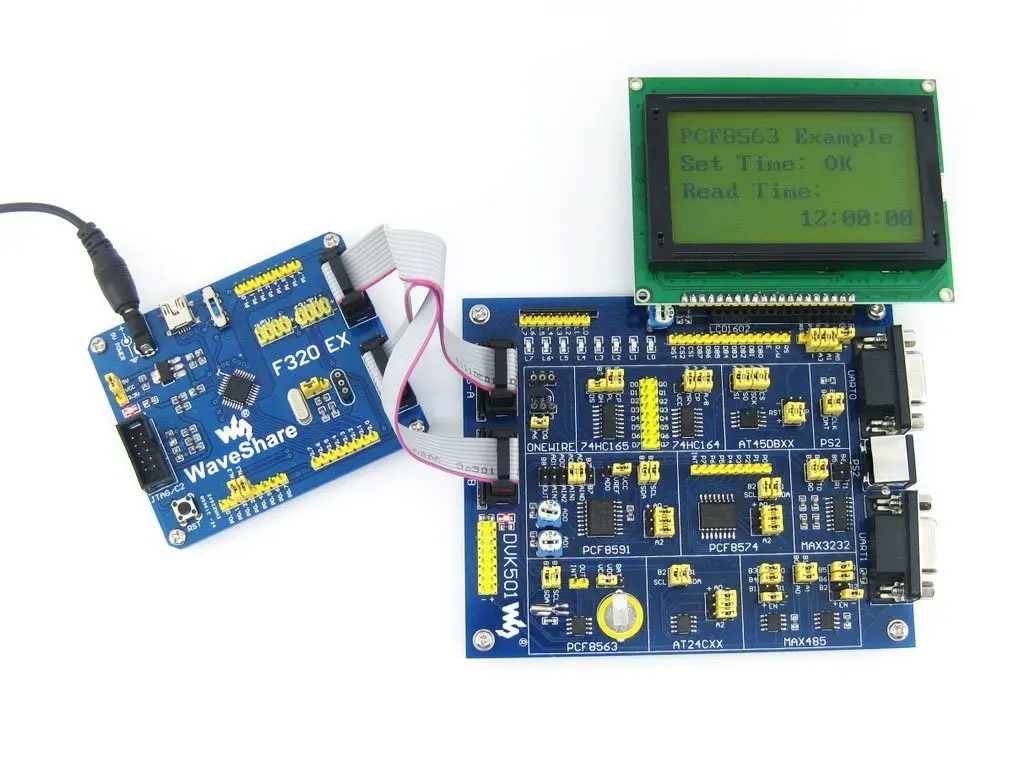

Examples that come with this development system will show you how to connect the C8051F microcontroller to other peripheral components or devices and how to develope your prototype device easily. The pictures below show how the EX-F320 works with the DVK501 and the results of the examples.
Note: The LCD12864 is not included in the price, please browse our store to buy it separately if you need one. Click on the image to enlarge.
This development board supports 3.3V LCD ONLY.

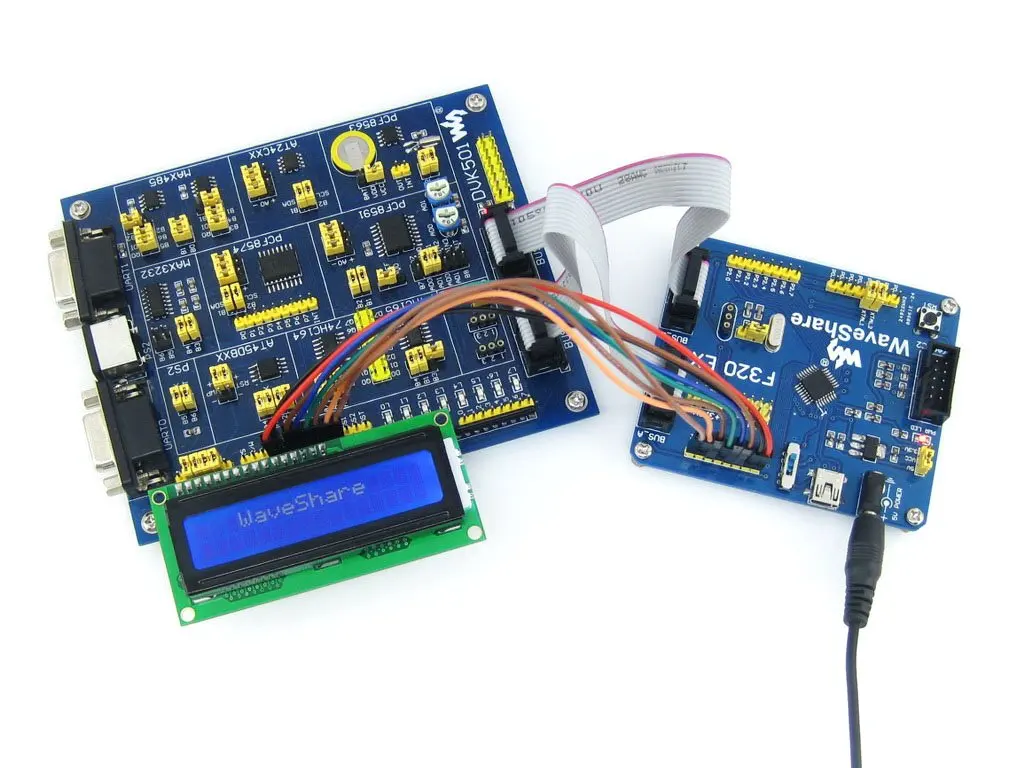

Displaying text on LCD
Serial/parallel communication example using 74HC164/74HC165
Writing and Reading data from AT24CXX EEPROM via I2C interface
Writing and Reading data from AT45DBXX DATAFLASH via SPI interface
Measuring temperature using DS18B20+ and displaying results on LCD
Sending and receiving data over UART interface using MAX3232
Reading date and time from PCF8563 Real Time Clock
Example of PCF8574 I/O expander
A/D conversion and displaying conversion results on LCD
Sending data from PS/2 keyboard

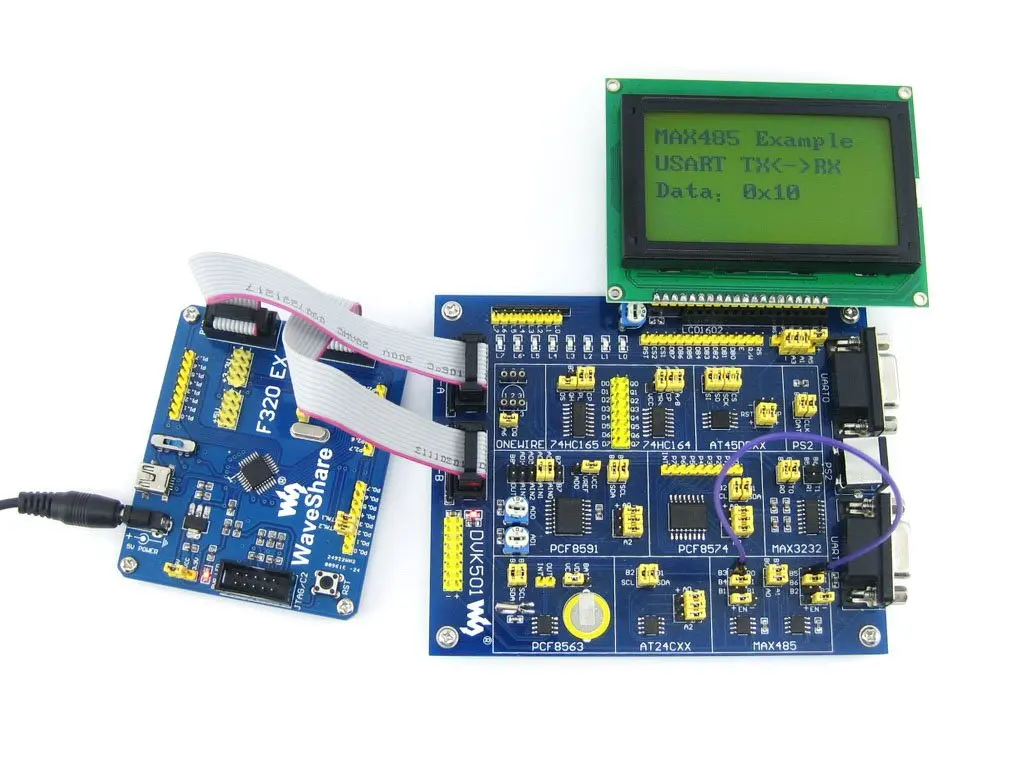

Sending and receiving data over UART interface using MAX485
registration number identification via 1-wire bus using DS2401
Development Resources
- User Guide CD
- CD with software, drivers and examples
- Schematic Circuit Diagram
- Examples in C
- Based on Silabs IDE and Keil
- Related Software
- Silabs IDE
- Keil
- Datasheets of the chips
Package Contains
EX-F320 Package
- EX-F320
- USB type A to Mini-B cable
- USB power cable
- 4-pin wire x 2
- 2-pin wire x 2
- User Guide CD
