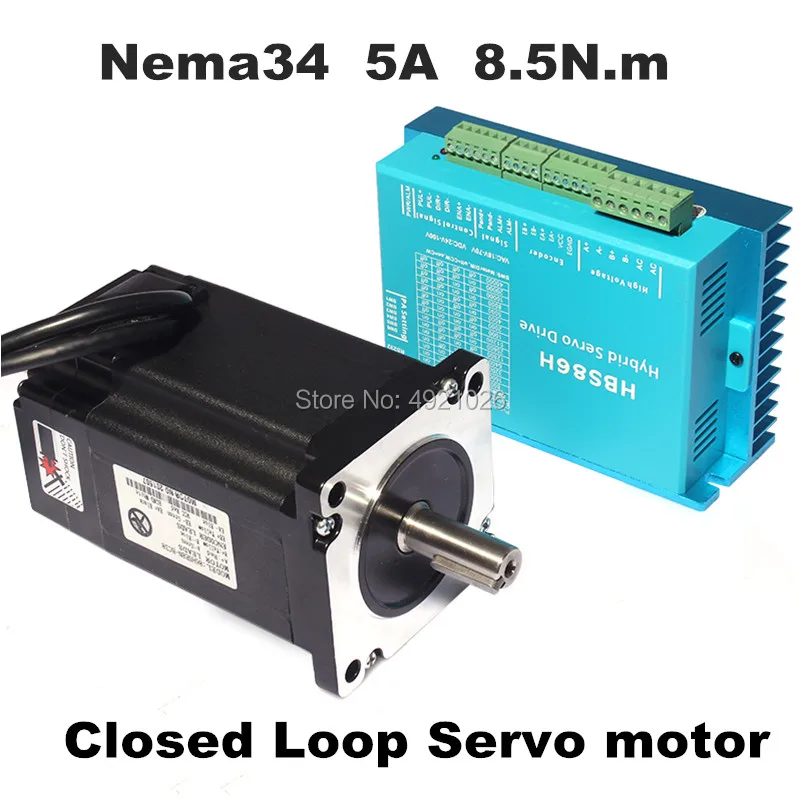

Nema 34 Stepper Motor Driver Servo 86HSZ8.5N+HBS86H Closed-loop step motor 8.5N.m 86 Hybrid closed loop 2-phase | Обустройство дома

---

Package Included:



1 x HBS86H Stepper Motor Drive + 1 x 86HSZ8.5N 8.5N.M. Motor + 1 x 3 meters Encoder Cable

  Details of Motor:     Motor Model: 86HSZ8.5N   Motor Current: 5.8A   Output Torque: 8.5N.m.   Body Length: 137MM   Shaft Diameter: 14MM, keyway 5MM   Outlet Mode: single output shaft   Motor Temperature Resistance: below 85 degrees   Rotating Speed: Rated speed is 1000 rpm. Torque drops above 1000 rpm in one minute, up to 2000 rpm   Outlet Mode: Two-phase four-wire (red line A+, green line A+, yellow line B+, blue line B-)         Details of Stepper Drive:



Drive Model: HBS86H (Nema 34, 86 stepper motor)   Pulse Signal: 3.3V/5V/24V compatible. No string resistor required       Input Voltage: AC AC16-70V, DC DC24-100V   Subdivision Setting: 800-51200 subdivision   HBS86H adopts special motor control DSP chip and application vector closed-loop control technology to overcome the problem of open-loop stepping motor lost step, the impulse response frequency can reach 200KHZ.







Features:

1. Low heat (static, the current is almost zero, no heat).   2.Smoothing (based on the feedback vector space vector current control algorithm and vector smoothing filtering technology, the traditional stepping motor troubled low frequency resonance has a very good resistance).   3. Applicable industry: dispenser / woodworking machine / welding machine / screw machine / zipper machine / winding machine / placement machine / packaging machine / engraving machine / laser machine / LED / electronic equipment.   4. Large torque output in some cases can simplify the complexity of the machine.





Note:



Please contact us, if you need:   1. to add Longer Cable   2. to add Brake for Motor <BE YOUR CHINA SOURCING AGENT  >   If you want to purchase ITEMS from China, please give me  your product list, let me give you a quote.   We`re a professional manufacturer for linear rail,linear shaft,linear support,linear unit,ballscrew and end support. For bulk order,pls contact us for more details. Combined/comprehensive order is recommended. The more you buy, the lower cost will be. YOU CAN SEND THE PRODUCTS LIST FOR YOU NEED,AND WE WILL CHECK THE TOTAL FREIGHT FOR YOU. If you need other linear motion products which not listed on the store or have any questions,pls send message to me and we will reply within 24 hours.   PAYMENT   - We accept Escrow, Credit Card,T/T,Western Union,WebMoney Qiwi wallet and Brazil Boleto.   -We send goods within 3-7 business days after receiving the payment.   RETURNS   - If you receive a wrong or defective item please email us within 7 days from the date you receive the product.   - Later than 7 days the item cannot be accepted for returning.   - If the order is defective,we will send replacement parts to you after receiving the proof of the defective photos of the items that you received, and no additional charge. Shipping and handling are not refundable.  All returns must include all original items undamaged, in re-saleable condition,all packaging including manuals, warranty forms,etc.   SHIPPING   - Please be sure that the address you give is correct.If the address is incorrect, the parcel fail to delivery and is sent back to the seller ,the buyer should pay for the first and returning shipping fees.   - Delivery time depends on destination and other factors, it may takes up to 20 business days.(Brazil and Russia would take 20-60 days,because of the local customs.   - If it happens to be any duties, taxes and any other fees charged by the courier company and your respective country, the buyers are duty to pay.(The buyer from Brazil should provide the VAT number when you order.)   FEEDBACK   -If you satisfied with our product,please give us postive feedback and Five Star Detail Seller Rating. Your approve is the most encourage for us!!   -If you have any questions, please contact us, we will service to your satisfaction!!   Thank you!
