Характеристики

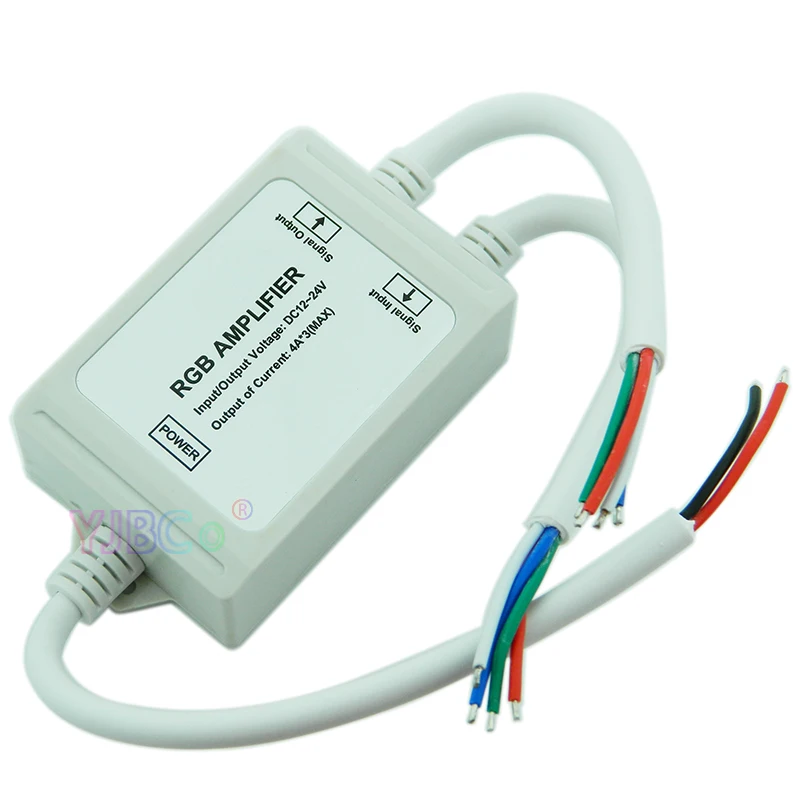

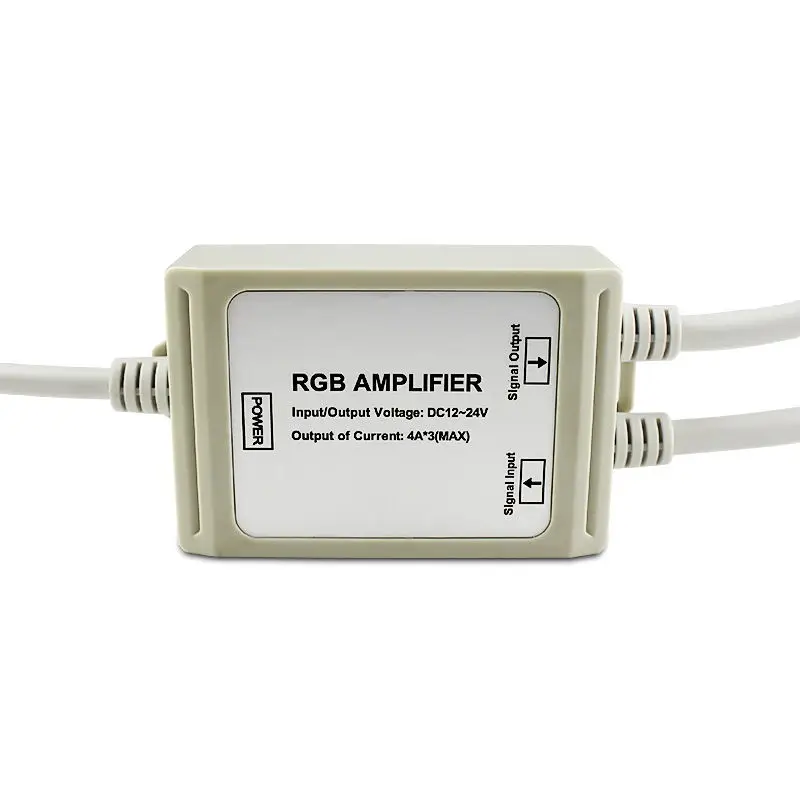

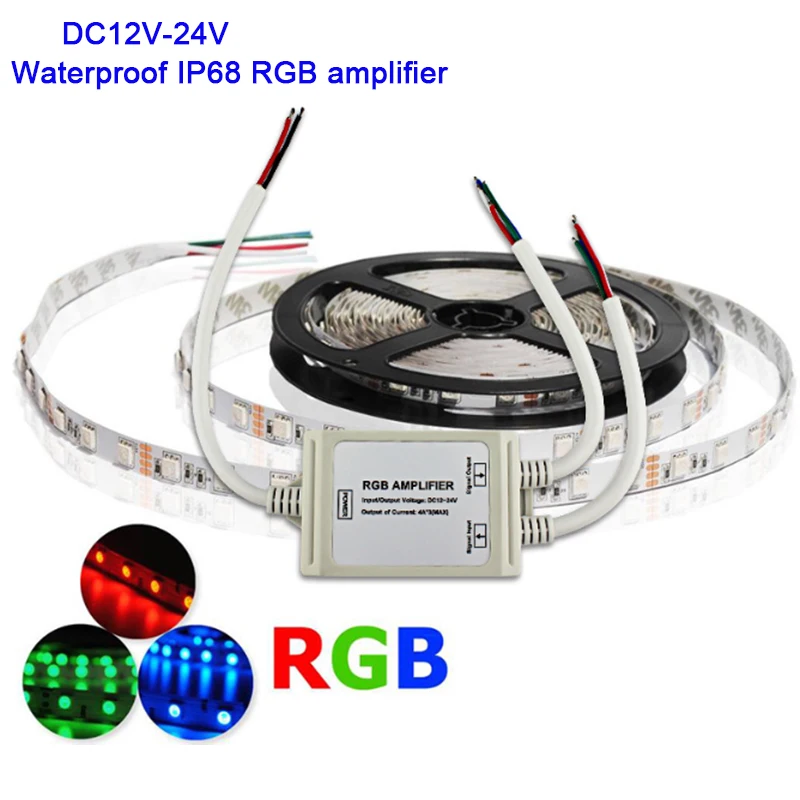

DC12V 24V Waterproof IP68 RGB led amplifier for hard light strips flexible panel lights LED modules floodlights | Лампы и освещение
История изменения цены
*Текущая стоимость 1 048,06 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Sep-15-2025 | 1247.62 руб. | 1309.11 руб. | 1278 руб. |
| Aug-15-2025 | 1237.64 руб. | 1299.7 руб. | 1268 руб. |
| Jul-15-2025 | 1038.60 руб. | 1090.77 руб. | 1064 руб. |
| Jun-15-2025 | 1216.55 руб. | 1277.82 руб. | 1246.5 руб. |
| May-15-2025 | 1058.6 руб. | 1111.30 руб. | 1084.5 руб. |
| Apr-15-2025 | 1195.65 руб. | 1255.2 руб. | 1225 руб. |
| Mar-15-2025 | 1184.93 руб. | 1243.39 руб. | 1213.5 руб. |
| Feb-15-2025 | 1174.62 руб. | 1233.34 руб. | 1203.5 руб. |
| Jan-15-2025 | 1163.38 руб. | 1221.31 руб. | 1192 руб. |
Описание товара
Product Description:
This product is developed to extend and expand the power of RGB controllers. It is used in conjunction with PWM dimming controllers to extend the length of the strip and increase the number of LED fixtures. In addition, the use of this controller can achieve a small range of overall style changes. The product can adapt to a variety of constant pressure lamps, such as hard light strips, flexible strips, panel lights, LED modules, floodlights and so on. It also has IP67 rated waterproof function.
Main feature:
1. Input voltage adaptive DC 12~24V with input polarity protection.
2. Adaptive various PWM dimming signals, the effect of the change is fine, no flicker.
3. Adopt high-power dimming control MOS tube to drive load capacity and stable performance.
4. Input and output effects remain unchanged
Performance parameter
● Working temperature: -20-70 °C
● Power supply voltage: DC12V~24V
● Output: 3 loops
● Connection method: common anode
● Controller size: L95×W53×H30mm
● Net weight: 100g
● Static power consumption: <1W
● Output current: <4A/ch
● Output power: 12V: <144W, 24V: <288W
Dimensions
Interface Description
nstructions for use
According to the silkscreen prompt on the RGB amplifier panel, connect the input and output signal lines in order to ensure that there is no short circuit between the wires, and then connect the RGB amplifier to the power supply. For specific use with the LED control, please refer to the following
Typical application
Note:
1. The power supply voltage of the waterproof RGB amplifier is DC12~24V, and must not be connected to other voltages;
2. The lead wire should be correctly wired according to the color and label provided by the wiring diagram;
3, waterproof RGB amplifier can not be overloaded
Package included:
1pcs led Amplifier
