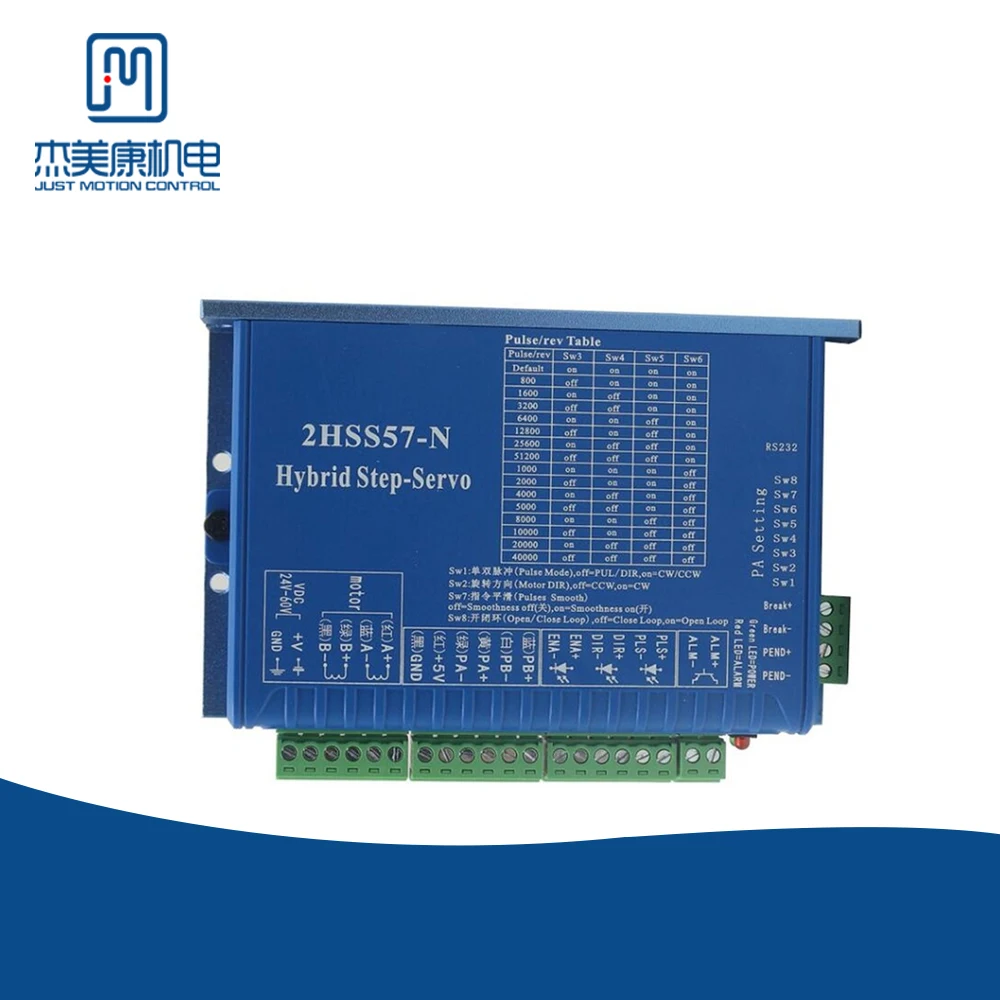

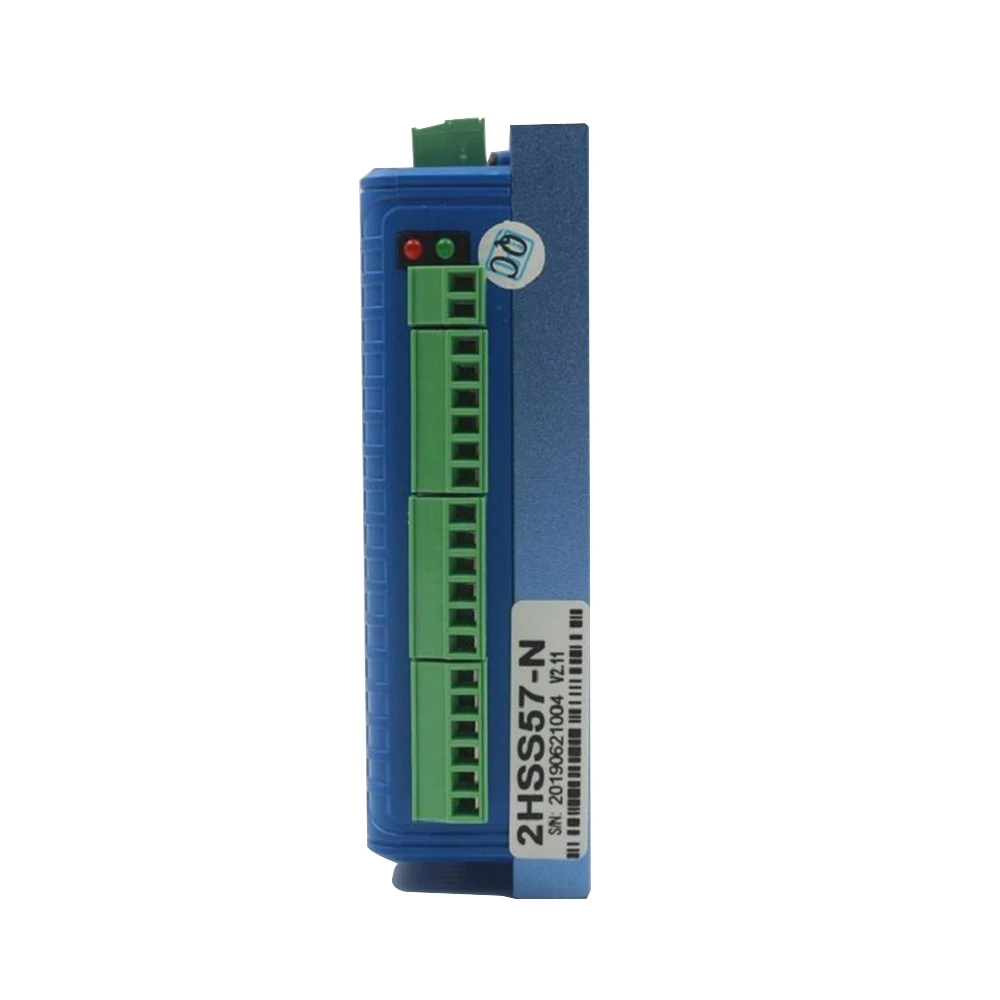

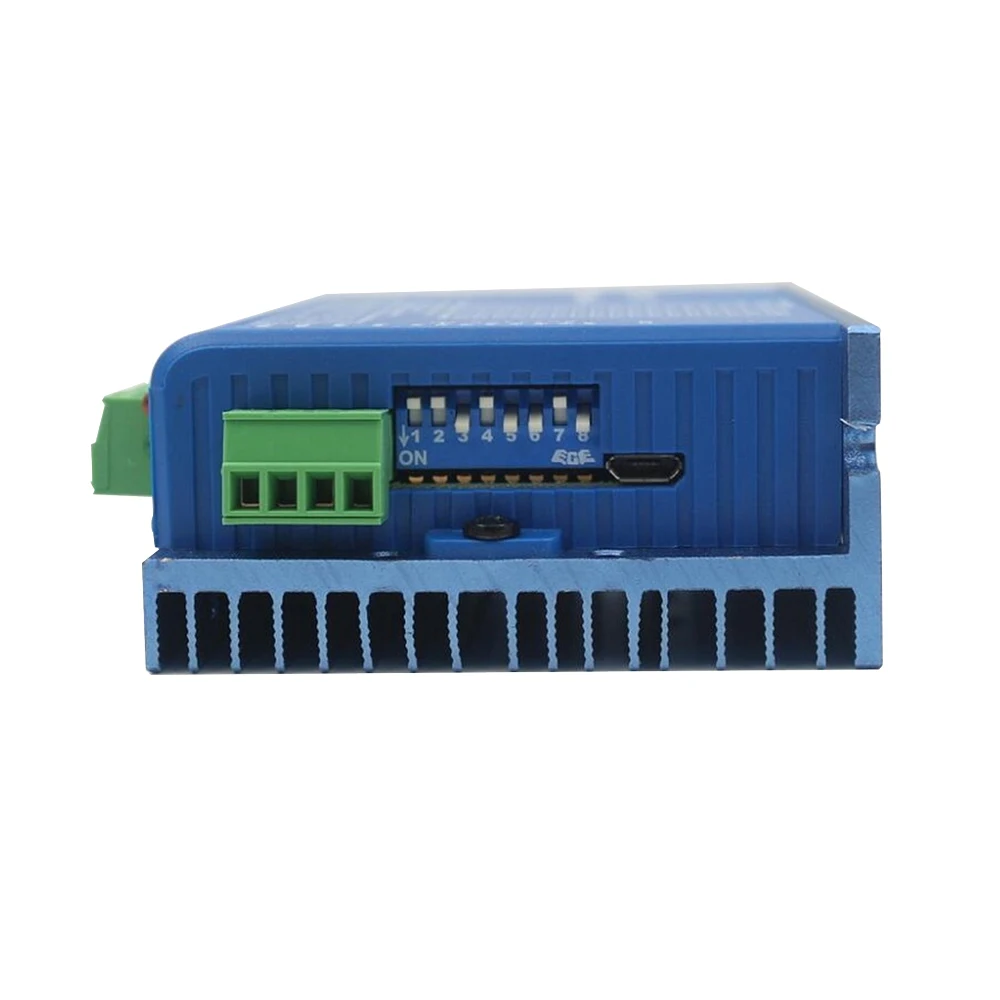

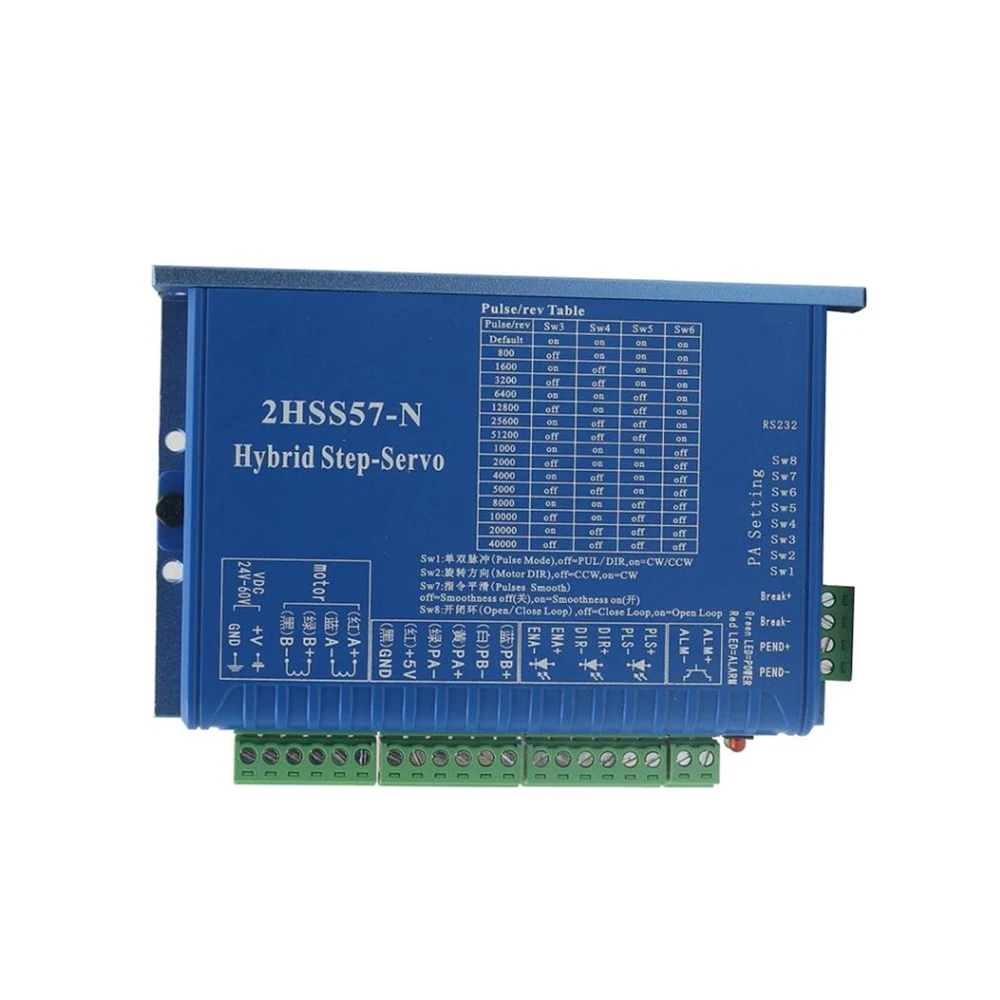

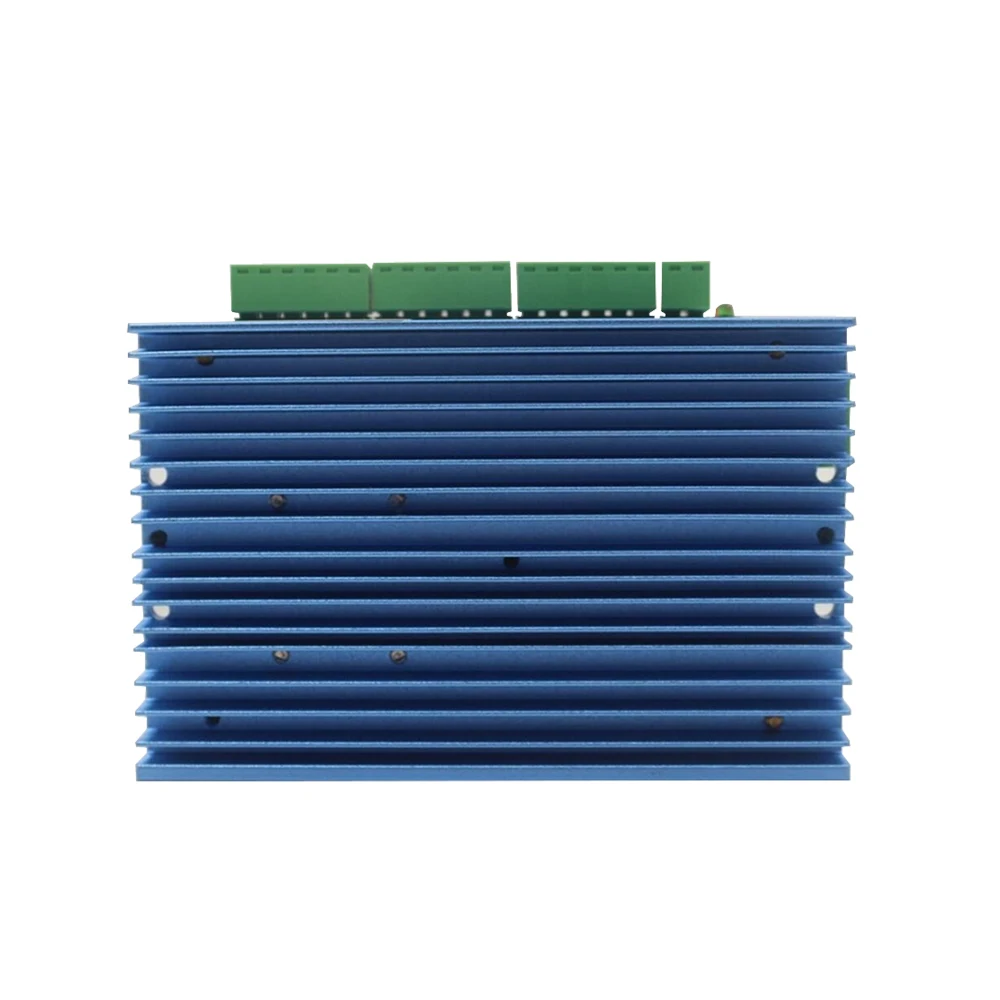

JMC Original Hybrid Stepper Servo Motor Drive 2HSS57 Input Voltage DC24-60V Current 1.0-4.2A Match with 57mm Motor Product Description

Introductions

2HSS57 two  phase hybrid stepper servo drive system integrated servo control technology into the digital step driver. It adopts typical tricyclic control method which include current loop, speed loop and position loop. This product has the advantage of both step and servo  system, and it’s a highly cost-effective motion control products.

• Full closed loop control

• Motor with standard 1000 line encoder

• It save energy and achieve nearly 100% output torque

• Micro step setting range is 2-256

• High speed response, High speed

• Optical isolation fault  alarm output interface ALM

• Current loop bandwidth: (-3dB) 2KHz (typical value)

• Speed loop bandwidth: 500Hz (typical value)

• Position loop bandwidth: 200Hz (typical value)

• RS232 serial communication available to download or change the parameters

• Optical isolation fault  alarm output interface ALM

• Over current, I2T, over voltage, under voltage, temperature, speeding, over-differential protection

• Alarm clear input ENA

Electrical Specifications

Environment

Faults alarm and led flicker frequency

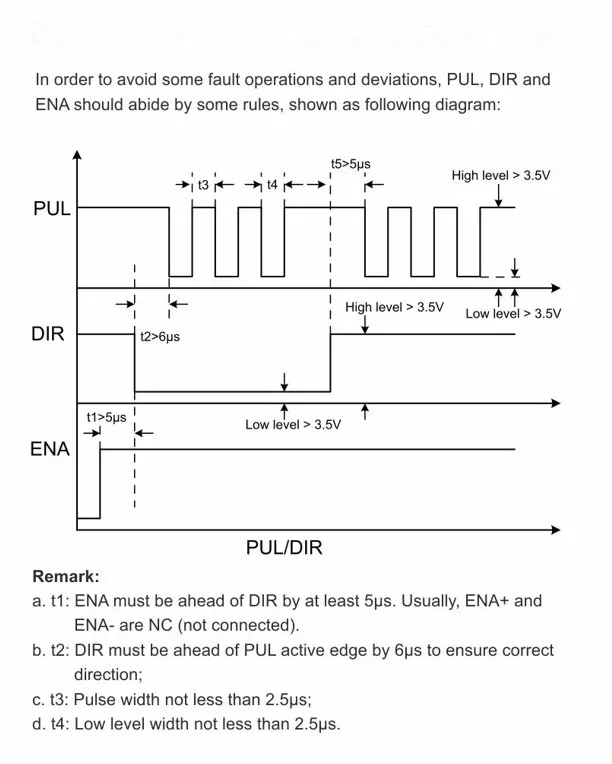

Sequence Chart of Control Signals
