BEITIAN 3-18V drone UAV RTK handheld GNSS helical spiral antenna GPS BDS GLONASS GALILEO Ubx ZED-F9P SMA-J BT-244

PRODUCT DISCRIPTION

Model:BT-244

The antenna has the characteristics of small volume, high positioning precision and light weight, and can meet the needs of users effectively.

Characteristic one: quality is light. The total weight of the antenna is less than 30g, which is especially suitable for equipment such as unmanned aerial vehicle (UAV), hand held machine, wearable equipment and so on. It can greatly reduce the load burden.

1

Features two: easy installation. The antenna is fed and transmitted by a standard SMA joint, and the antenna joint is connected with the signal connector of the terminal device to fix the antenna without additional installation holes. Characteristic three: excellent omnidirectional radiation characteristics. Compared with the traditional microstrip antenna, the antenna has four arm spiral structure. It has better low elevation gain and wide-angle circular polarization characteristics, and can receive more low elevation satellite signals.   Specifications Electrical Specifications Frequency Range(MHz) GPS L1/L2 GLONASS L1/L2 BDS B1/B2/B3 GALILEO E1/E5b Gain(dBi) 3 Antenna AR (dB) ≤3 VSWR ≤1.8 Polarization Right-hand circular polarization Port Impedance(Ω) 50  LNA Gain(dB) 33±2 Noise figure(dB) ≤1.8 Operating voltage(V) 3.0V-18.0V Operating current(mA) ≤42 Connector type SMA-J Antenna size(mm) Φ27.5*58 Antenna weight(g) ≤30 Operating temperature(℃) -40 - +70 Storage temperature(℃) -55 - +85 Waterproof grade IP67

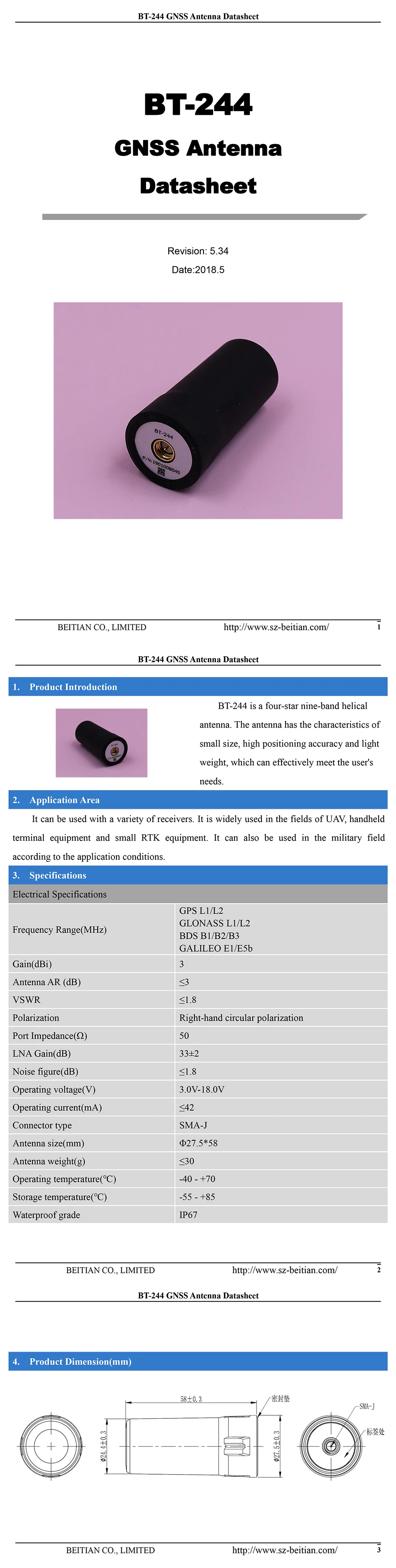

BT-244-Datasheet-22-E     Dimension picture:

1



Antenna with four arm spiral structure, with good low angle gain, wide-angle circular polarization characteristics, to ensure the reception of low elevation signal;

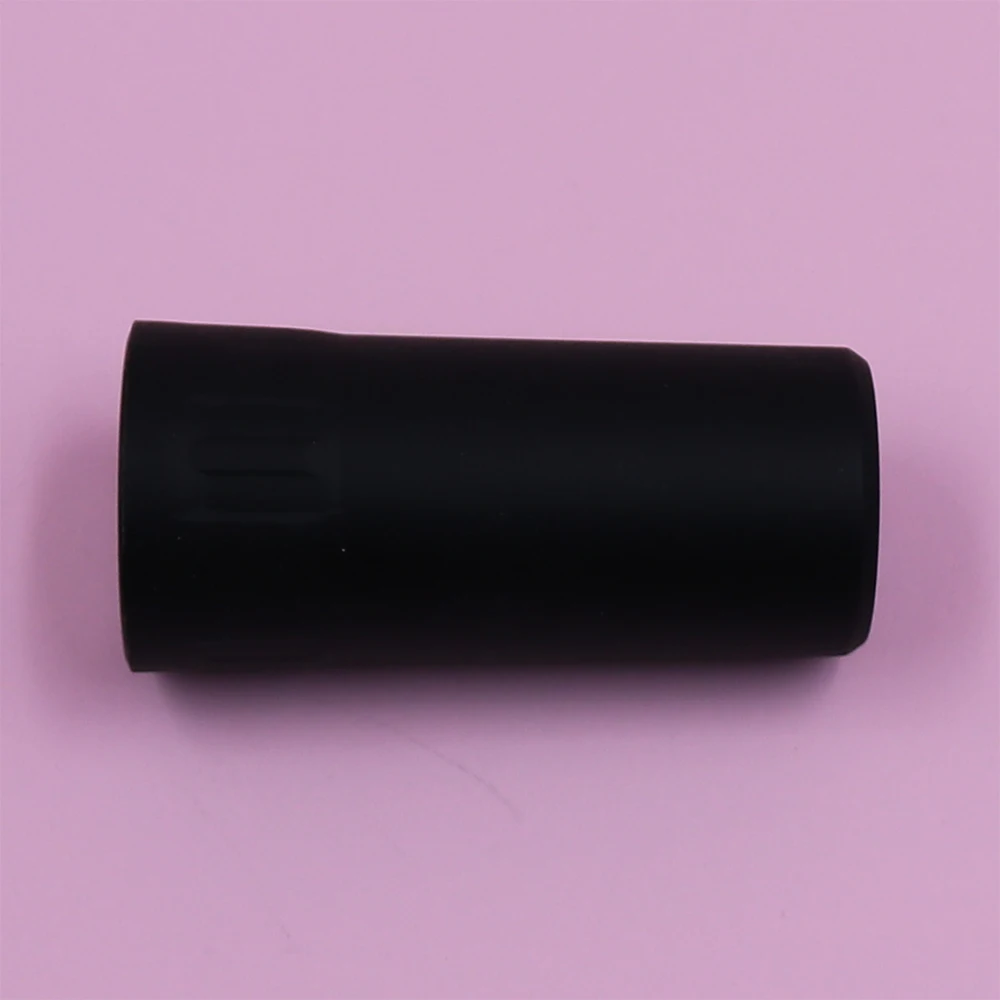

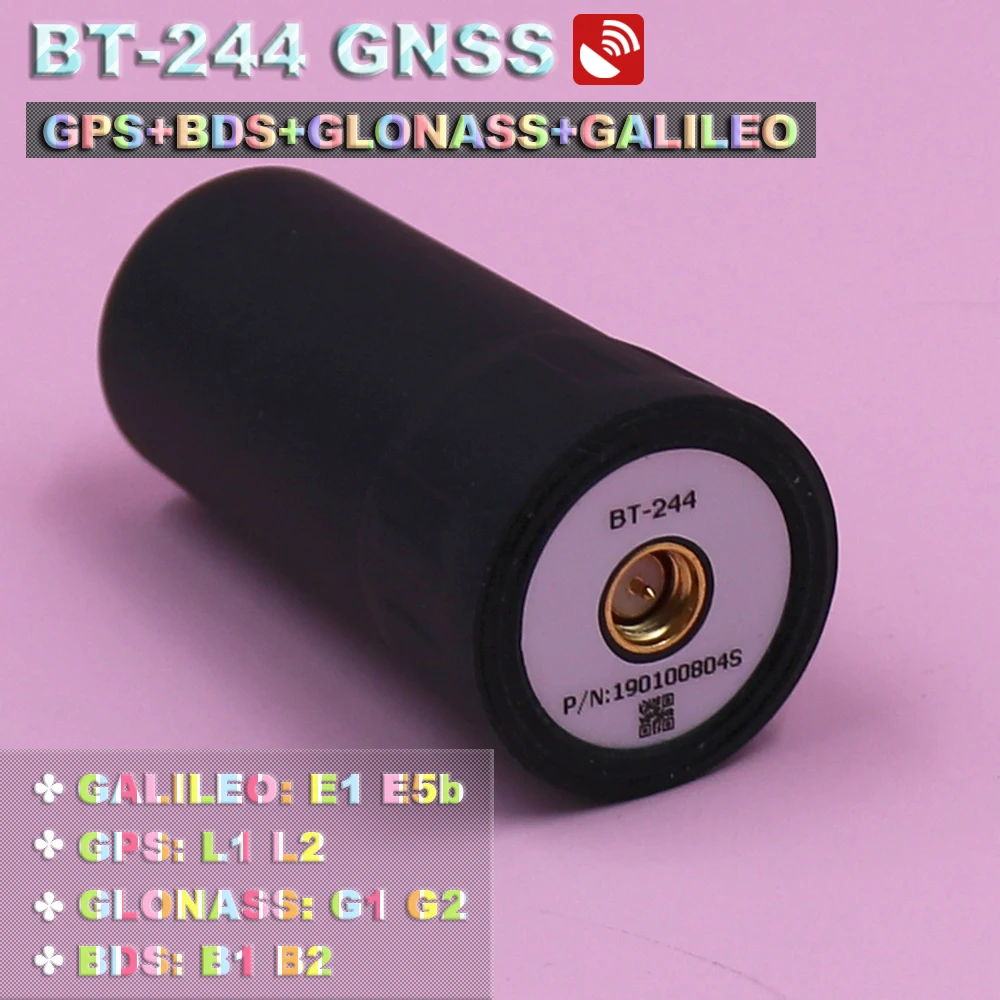

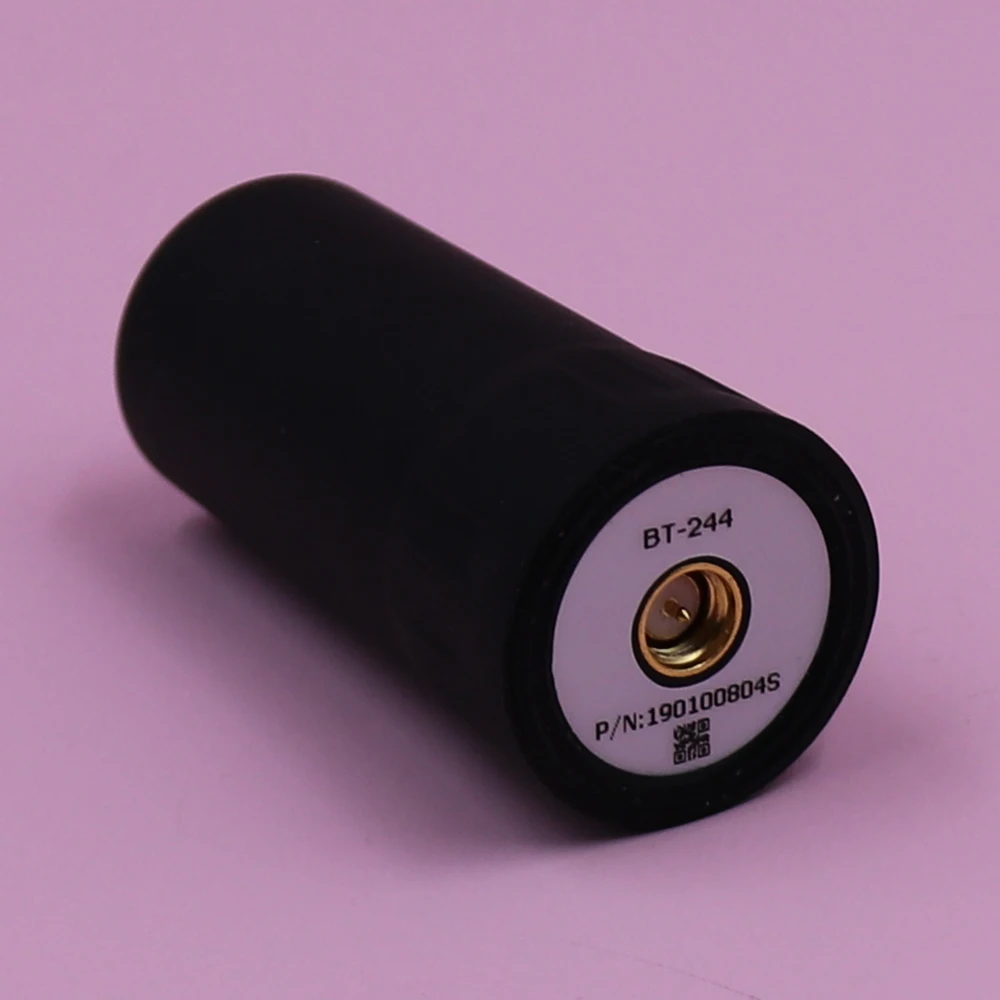

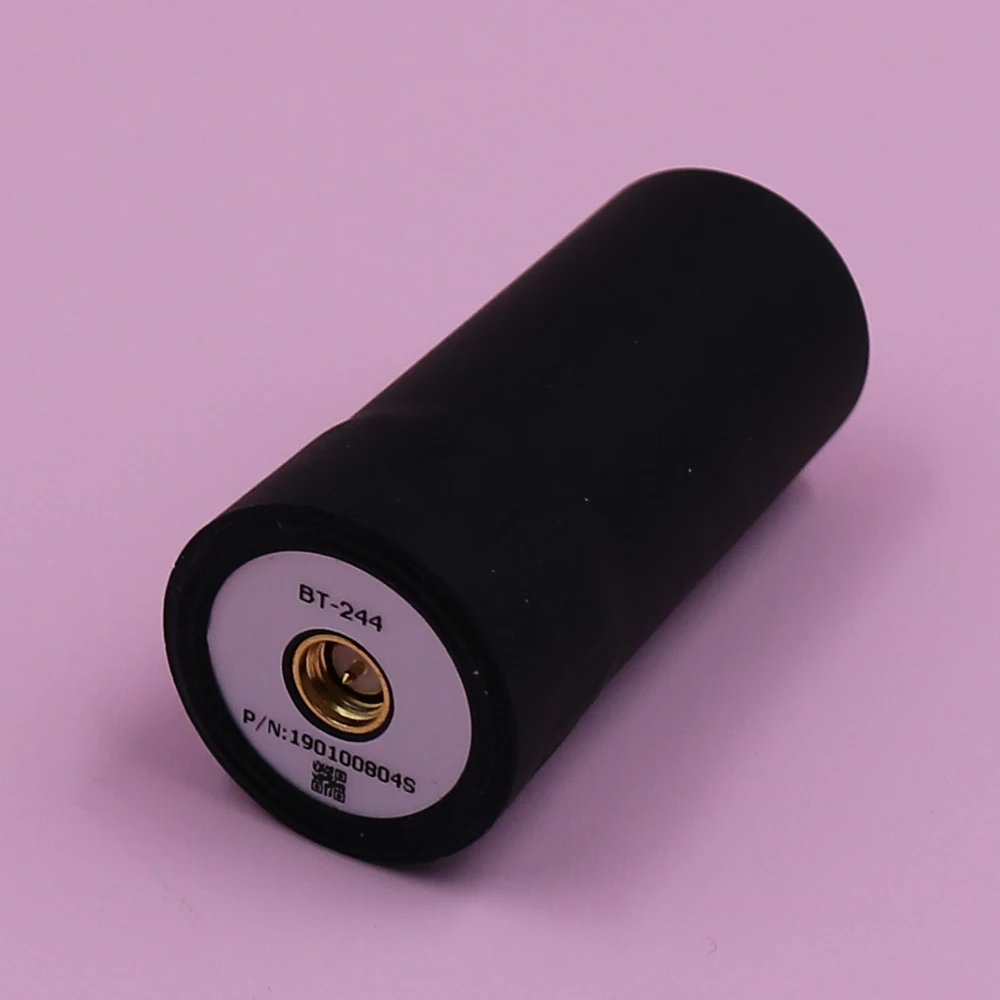

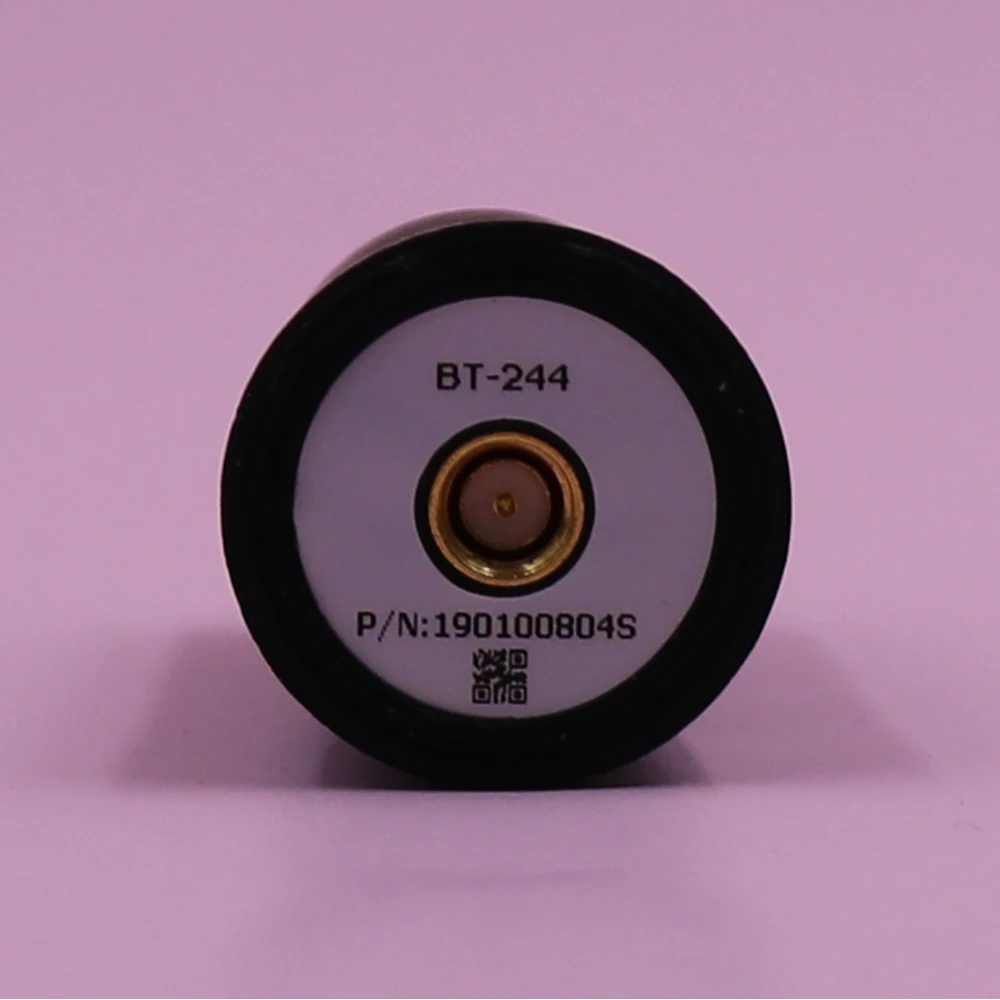

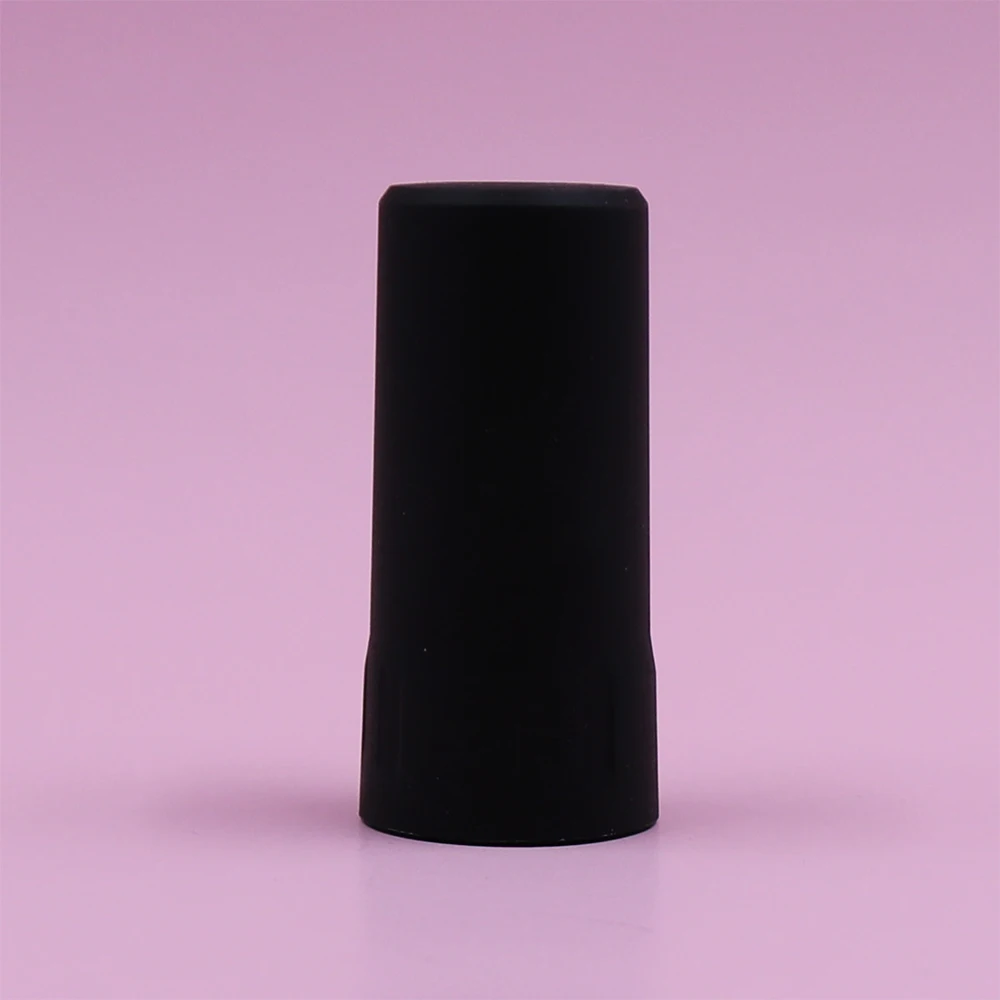

The antenna has a stable phase center, minimizing the influence of the antenna on measurement error; The antenna circuit adopts anti-interference technology, and can still work normally in a complex environment with certain interference; • antenna housing has high and low temperature impact, waterproof, anti ultraviolet and other characteristics, for the antenna can be long-term work in the field to provide protection.     PACKING LIST   1 Piece GNSS Antenna BT-244   PRODUCT PICTURE

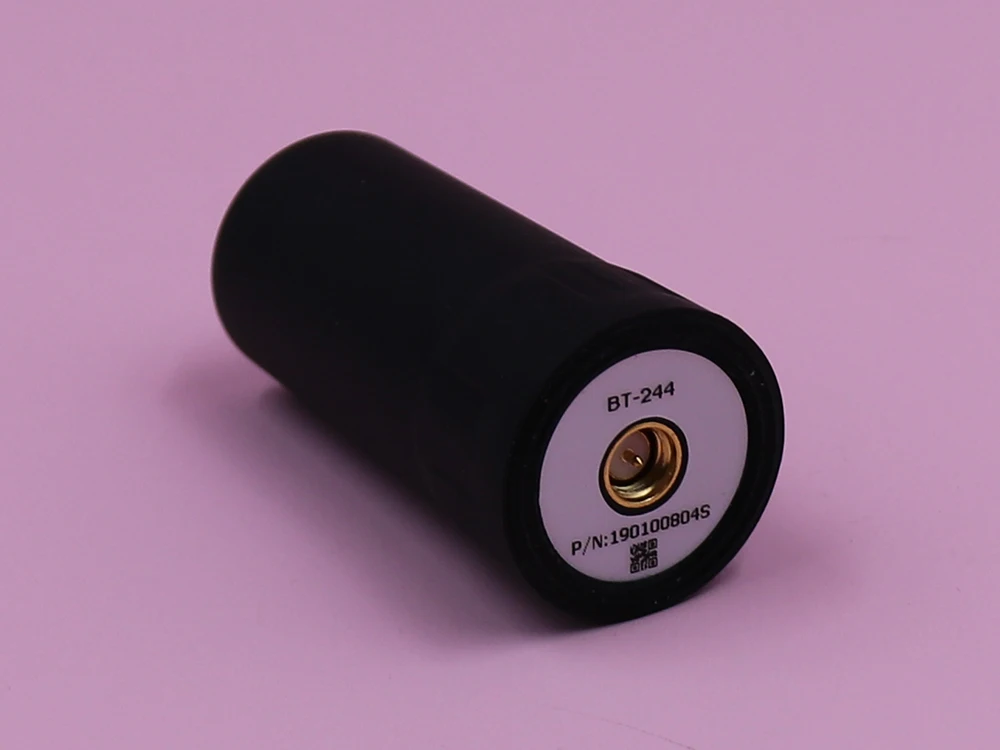

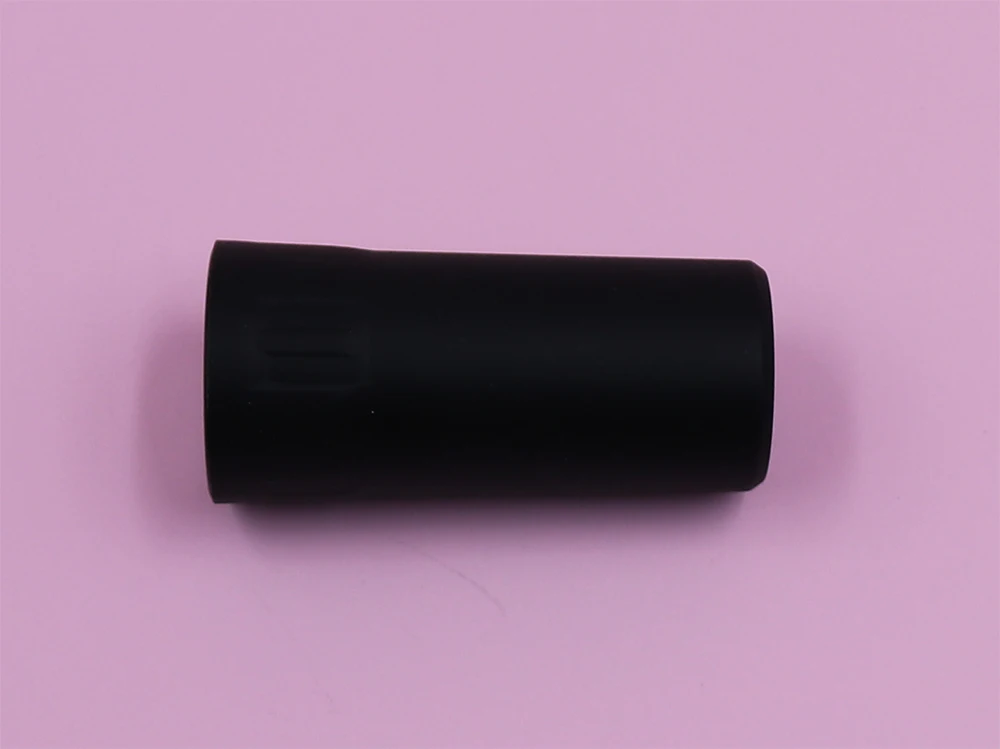

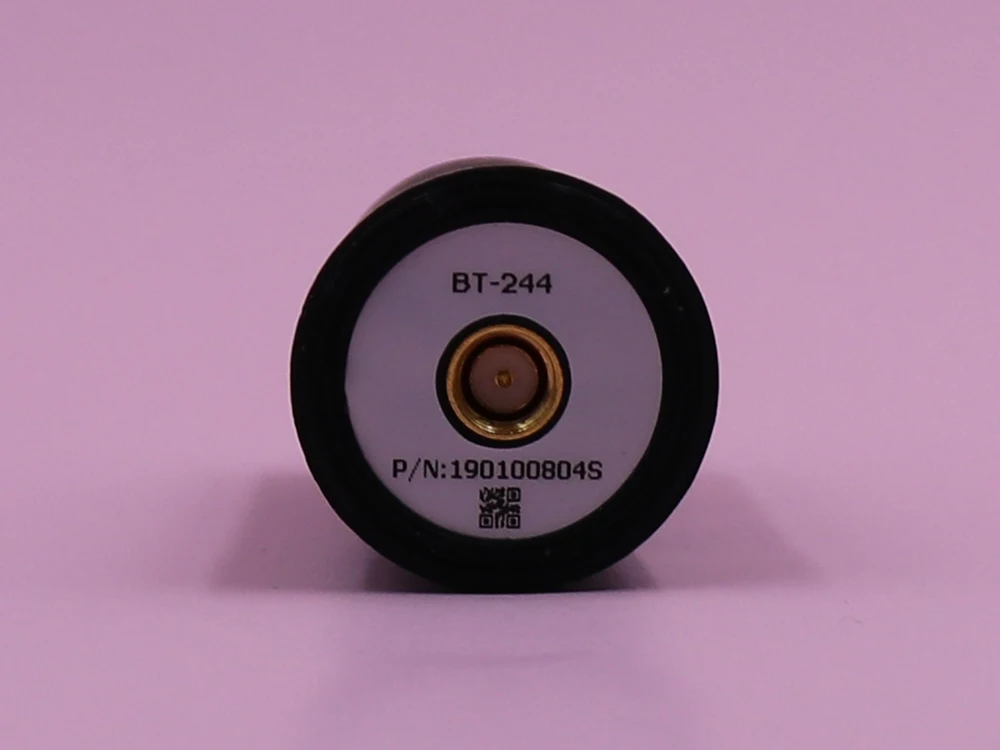

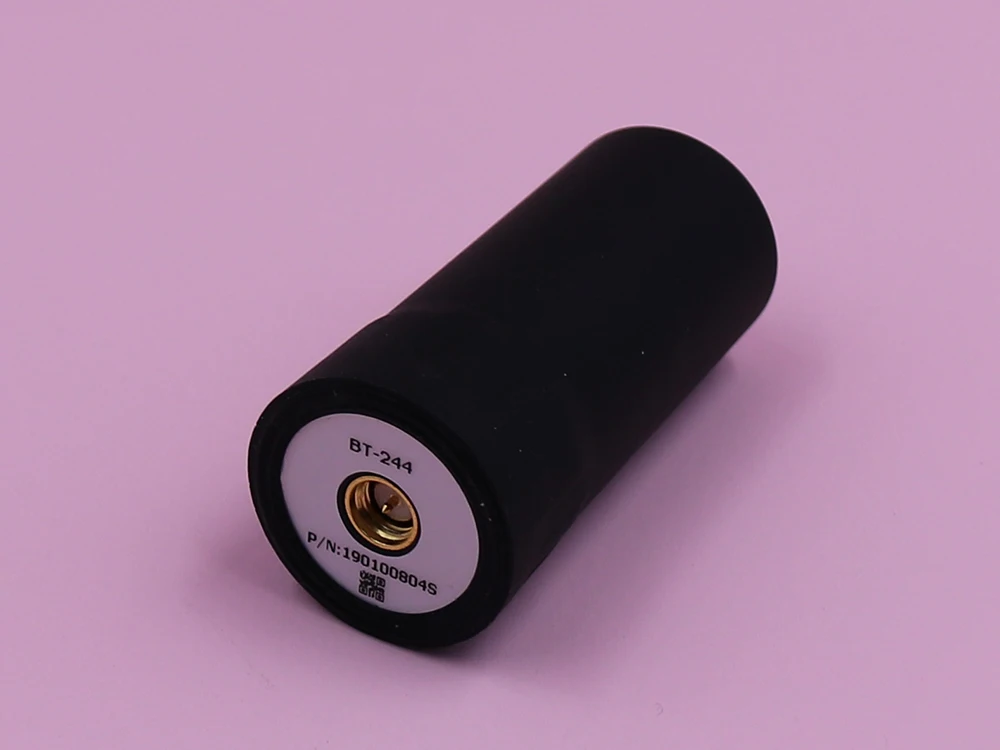

IMG_2221-22IMG_2223-22IMG_2224-22IMG_2225-22IMG_2226-22

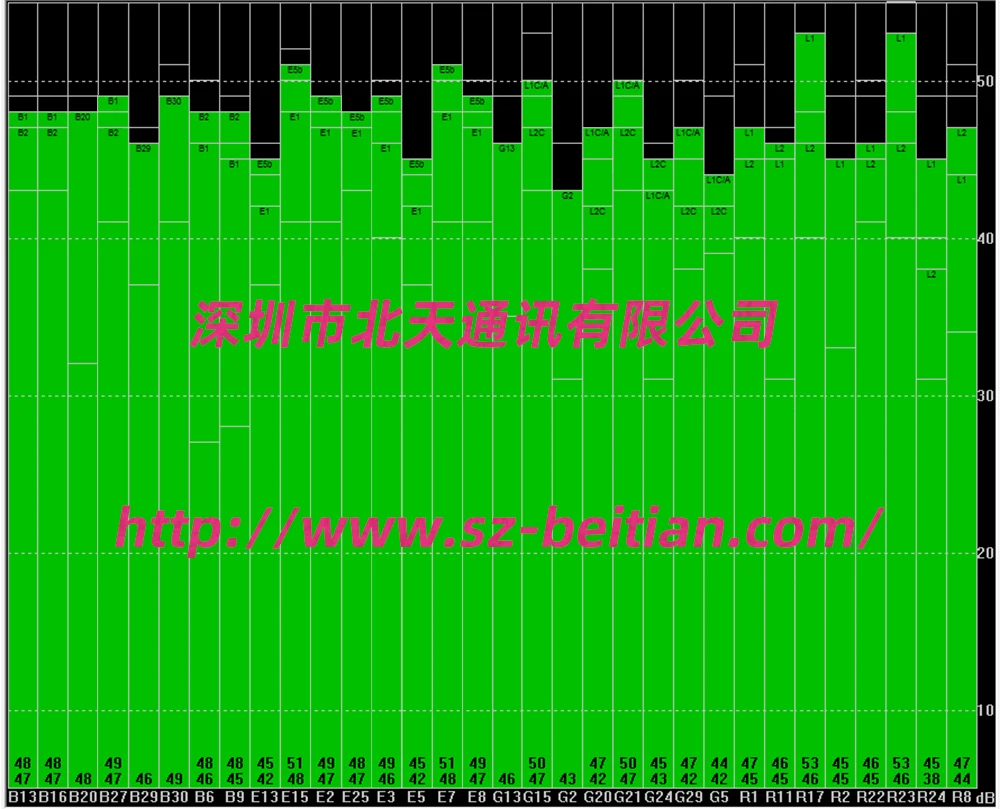

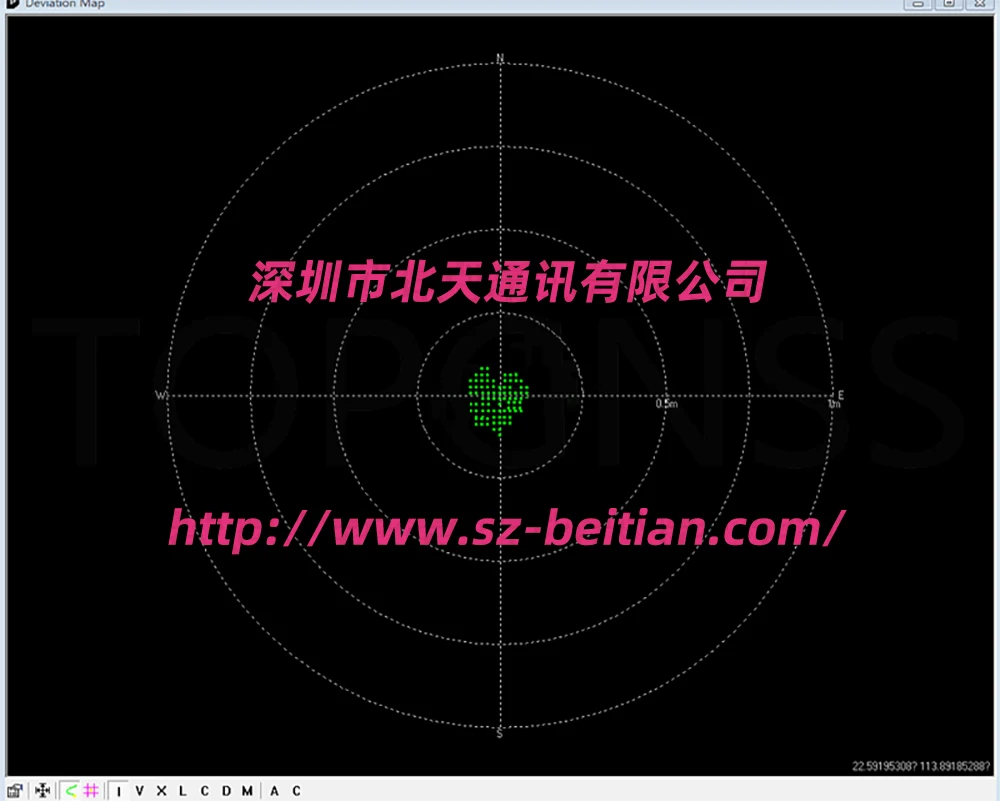

547567-22433343-22
