Описание товара

AD8307 Module 1MHz to 500MHz wideband RF detector power meter ALC AGC Strength Meter FOR Ham Radio Amplifier FM | ЭлектроникаAD8307 Module 1MHz to 500MHz wideband RF detector power meter ALC AGC Strength Meter FOR Ham Radio Amplifier FM | ЭлектроникаAD8307 Module 1MHz to 500MHz wideband RF detector power meter ALC AGC Strength Meter FOR Ham Radio Amplifier FM | ЭлектроникаAD8307 Module 1MHz to 500MHz wideband RF detector power meter ALC AGC Strength Meter FOR Ham Radio Amplifier FM | ЭлектроникаAD8307 Module 1MHz to 500MHz wideband RF detector power meter ALC AGC Strength Meter FOR Ham Radio Amplifier FM | ЭлектроникаAD8307 Module 1MHz to 500MHz wideband RF detector power meter ALC AGC Strength Meter FOR Ham Radio Amplifier FM | Электроника

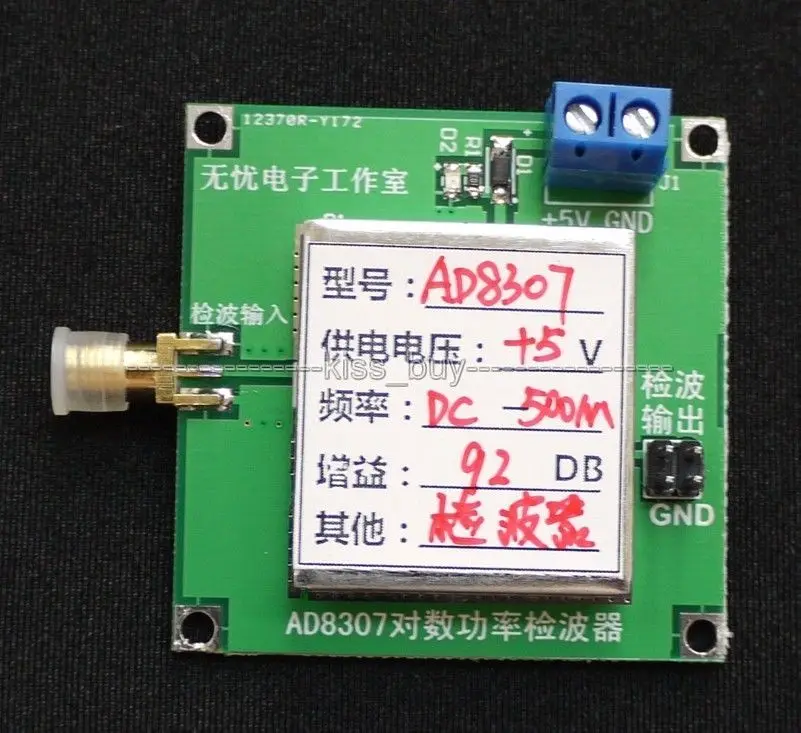

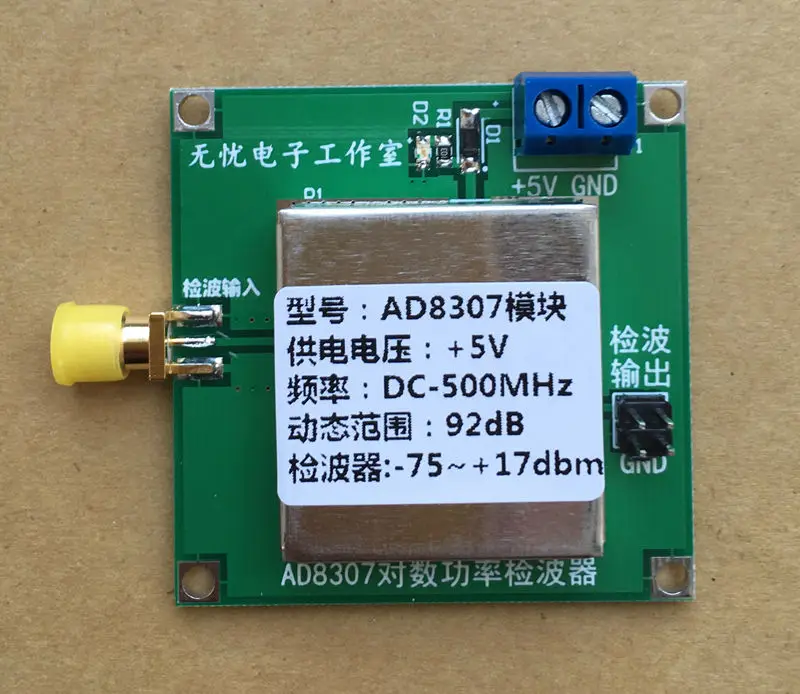

  AD8307 wideband RF detector RF power meter power meter ALC AGC Strength Meter



　
 Description:
  • Features:

    Logarithmic power detector (AD8307)

    First, the product application:

    AD8307 is applied to the 500 MHz frequency within the dynamic range of 92 dB (-75 dBm- + 17 dBm) multistage logarithmic amplifier. It uses an 8-pin SOIC-N package, as shown in FIG. Use 2.7 ~ 5.5 V, 7.5 mA from a single supply, low-power, 3 V power consumption of only 22.5 mW. It can be widely applied to the signal power need accurate measurement of high frequency communication and instrumentation systems. When measuring power use AD8307, typical linear slope of 0.025 V / dB, a measurement range of -75 dBm ~ + 16 dBm. . Shielding shell and anti-reverse protection diode.

    Second, technical indicators

    1, power supply voltage: 5V DC (typical current 6mA)

    2, programmable gain attenuation range: 0 to 31.5DB stepping 0.5DB Input Output Impedance: 50 Ohm

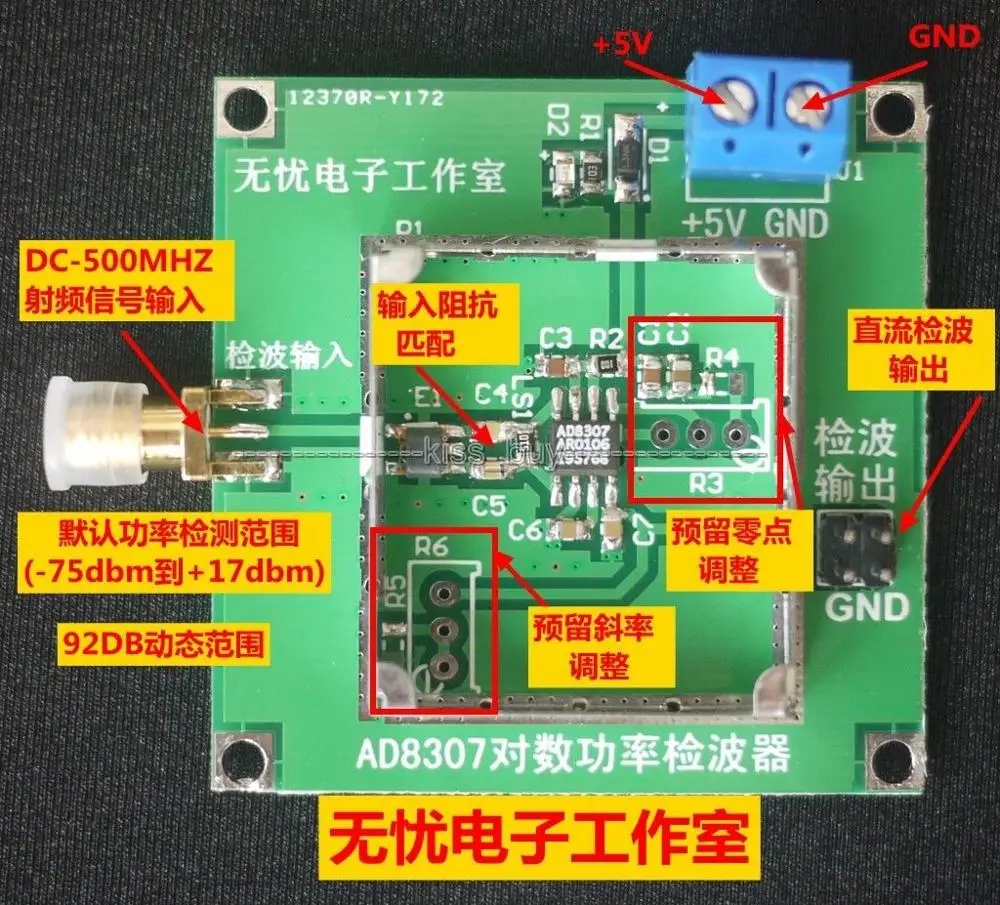

    3, module support change detection slope and zero setting.

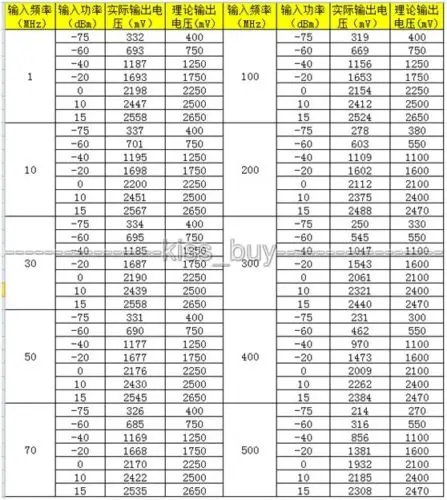

    4, Bandwidth: 1MHz to 500MHz (power detection at different frequencies as shown in Table 5-1)

    5, shielded with a metal shell

    6, to provide a PDF schematic


    Package Contents
    100% Brand New
    1 X module
