Оригинальная система контроллера Weihong PM95A + Lambda5S 3 4 5 осей NC Studio для ЧПУ-роутера, заменяющая PM53C.



Сохраните в закладки:

Цена:283353.88RUB
*Стоимость могла изменится

Количество:


Новое поступление

Характеристики

Оригинальная система контроллера Weihong PM95A + Lambda5S 3 4 5 осей NC Studio для ЧПУ-роутера заменяющая PM53C.

История изменения цены

*Текущая стоимость 283353.88 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"

Месяц Минимальная цена Макс. стоимость Цена
Aug-15-2025 359858.62 руб. 367055.36 руб. 363456.5 руб.
Jul-15-2025 291854.91 руб. 297691.13 руб. 294772.5 руб.
Jun-15-2025 354191.21 руб. 361275.75 руб. 357733 руб.
May-15-2025 351358.24 руб. 358385.85 руб. 354871.5 руб.
Apr-15-2025 280519.63 руб. 286129.88 руб. 283324 руб.
Mar-15-2025 345691.48 руб. 352605.25 руб. 349148 руб.
Feb-15-2025 342857.74 руб. 349714.83 руб. 346285.5 руб.
Jan-15-2025 340024.17 руб. 346824.57 руб. 343424 руб.

Описание товара

Оригинальная система контроллера Weihong PM95A + Lambda5S 3 4 5 осей NC Studio для ЧПУ-роутера, заменяющая PM53C.Оригинальная система контроллера Weihong PM95A + Lambda5S 3 4 5 осей NC Studio для ЧПУ-роутера, заменяющая PM53C.Оригинальная система контроллера Weihong PM95A + Lambda5S 3 4 5 осей NC Studio для ЧПУ-роутера, заменяющая PM53C.Оригинальная система контроллера Weihong PM95A + Lambda5S 3 4 5 осей NC Studio для ЧПУ-роутера, заменяющая PM53C.




Because PM53C stopped to produce,​you can use  PM95A to replace it, but difference connection port

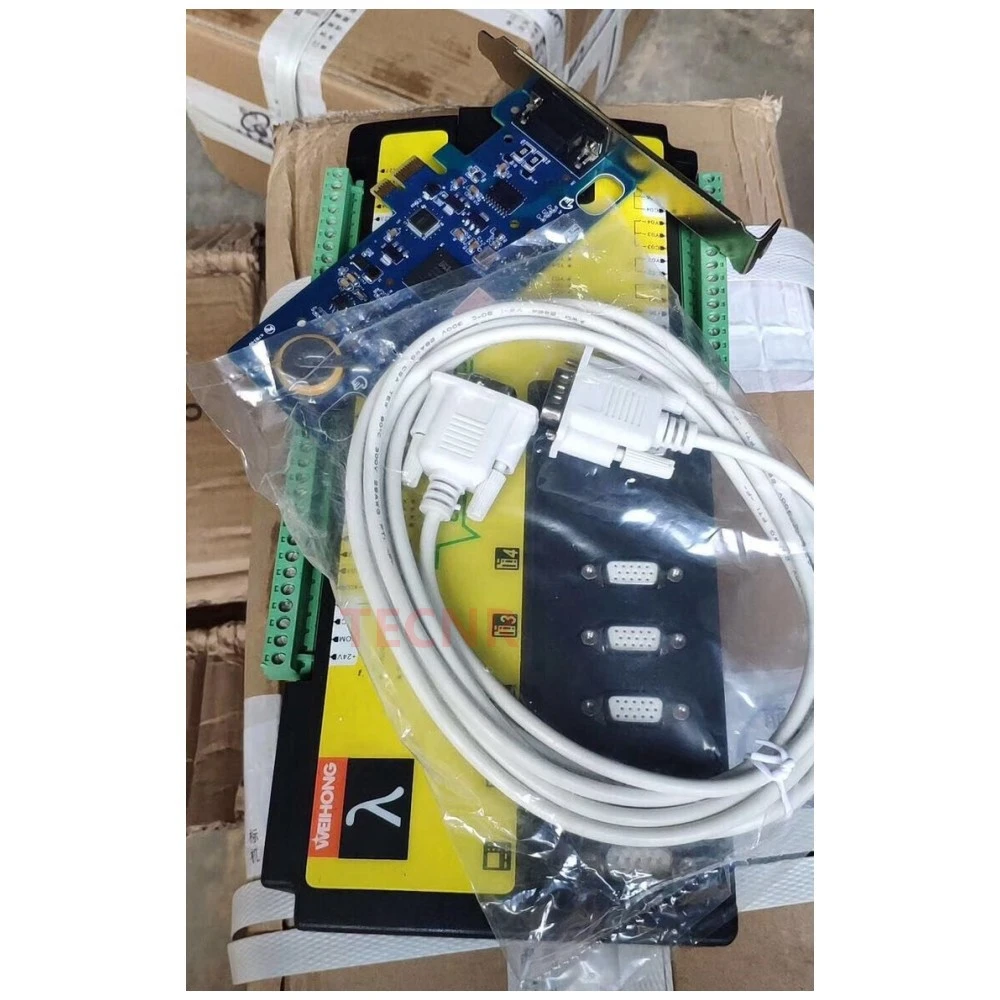

PACKING LIST



SPECIFICATION



CNC Specification

  • Number of Axes Supported
    3-5axes

Control Signals

  • Plus Frequency
    1MHz

  • Control Mode
    Position control

  • Control Signal
    Differential signals

  • Position Signal Type
    Plus+Direction

Communication

  • External
    PCI-E

  • Interactive with Lambda
    PHOENIX bus

Spindle

  • Analog Voltage Output
    0-10V

Tool Measurement

  • Tool Measurement Mode
    Fixed calibration, Mobile calibration, First calibration & Calibration after tool change

Compensation

  • Compensation Type
    Screw error compensation, Backlash compensation, AQE compensation, Tool compensation

Toolpath File

  • Supported File Format
    *.g/*.nc/*.u??/*.demo/*.iso/*.eng/*.cut/*.dxf/*.plt/*.txt

Operations

  • WCS
    Supporting WCS G54-G59 and Work Zero saving

  • Processing Technology
    Array, Mirror&rotate, Cycle machining

Convenient Operation

  • Handwheel guide, Breakpoint resume, Tool selection

High-speed High-precision Optimization

  • Interpolation Algorithms
    T-type, S-type and LEP algorithms

Software Language

  • Chinese,English

Safety & Reliability

  • Sofeware Alarms
    Alarms of program error, operation error, over-travel error, PLC error, and IO communication error





Features of Lambda 5S :



1.Enclosed controller, oil-proof, dust-proof, and water-proof;

2.Input polarity adjustable, inputs active high/ low;

3.Cascaded connection available for the extended terminal board;

4.Serial communication, high speed 485 interface, baud rate 10Mbps;

5.Max. pulse output frequency: 1MHz:Fewer cables and easier wiring;

6.On-line update of hardware, dismounting avoided;

7.Hardware adaptable, software customizable;

8.Hardware encryption and software encryption for safety concerns;

9.Encoder feedback function available:2 to 5 axes motion control

10.Time registration function for the driver available.



Features of Lambda 5S :



1. Controller is equipped with a shell mechanism to effectively protect product components and improve product stability.

2. Support 24V power input.

3. Support 1 set of spindle analog output with a voltage range of 0~10V and a precision of 0.2v

4.8 common input ports (x00-x27), where Y00/Y01 adds protection circuit and the voltage load is less than 24V for holding brake

5.1 pulse shaft interfaces support one pulse shaft control, and the highest pulse output frequency is 1MHZ.

6.1 mechatrolin-i1 interfaces, currently supporting up to 8 axis bus control

7.1 hand wheel interfaces, up to six shaft hand wheel control.

8.1 extended interfaces for cascading.Serial communication, high-speed 485 interface, baud rate of 10Mbps.

9. Support firmware for online upgrade;The hardware is adaptable and can be customized for each type of software.

10. Support Phoenix communication and link layer communication cycle of 50 us.No extension.

11. Support encoder latch and absolute encoder feedback.

12. Support for M2 communication mode.Pulse interpolation cycle is 1ms.

13.Support for slave loss detection and slave address settability.

14. Reduce the number of connection lines and reduce the burden of wiring;Elbow plug terminal, convenient wiring;
