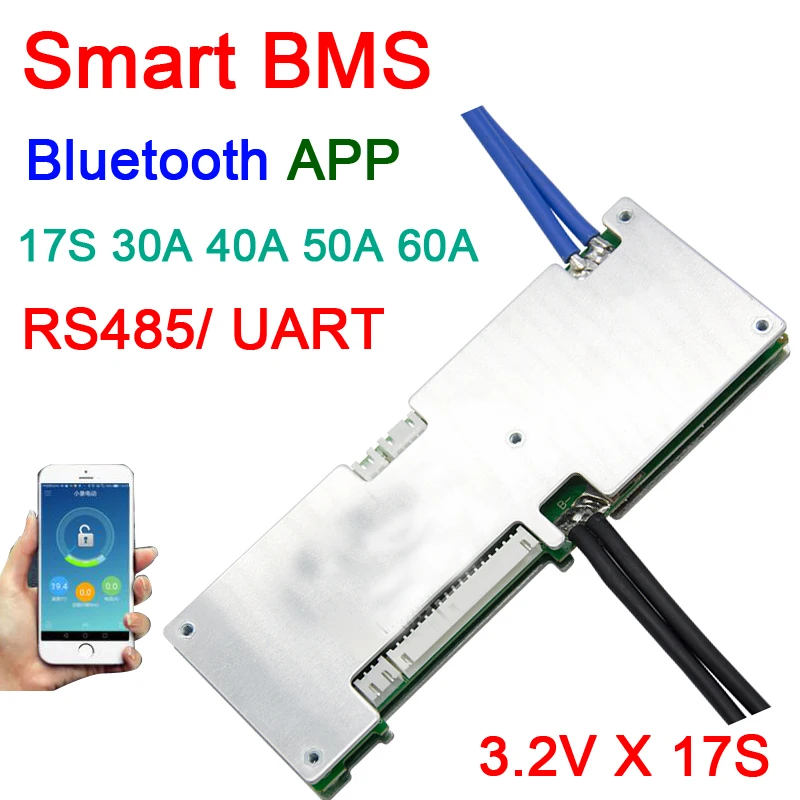

17S 30A 40A 50A 60A 18650 li-ion Lithium battery smart protection board balance bms pcm W android Bluetooth app UART wi software monitor UART RS485 Dual communication
Note: There are 10 types : When buying, please choose!
Notice:The product price does not include Bluetooth and communication box, Bluetooth and communication box need alone choose
With UART 485 is Dual communication interface
with UART only interface
|
|
|
|
|
|
|
Description:
|
-
Features:
Note: this BMS with balance function. your battery need matching, battery should have good consistency, if not sure, please use new brand battery.

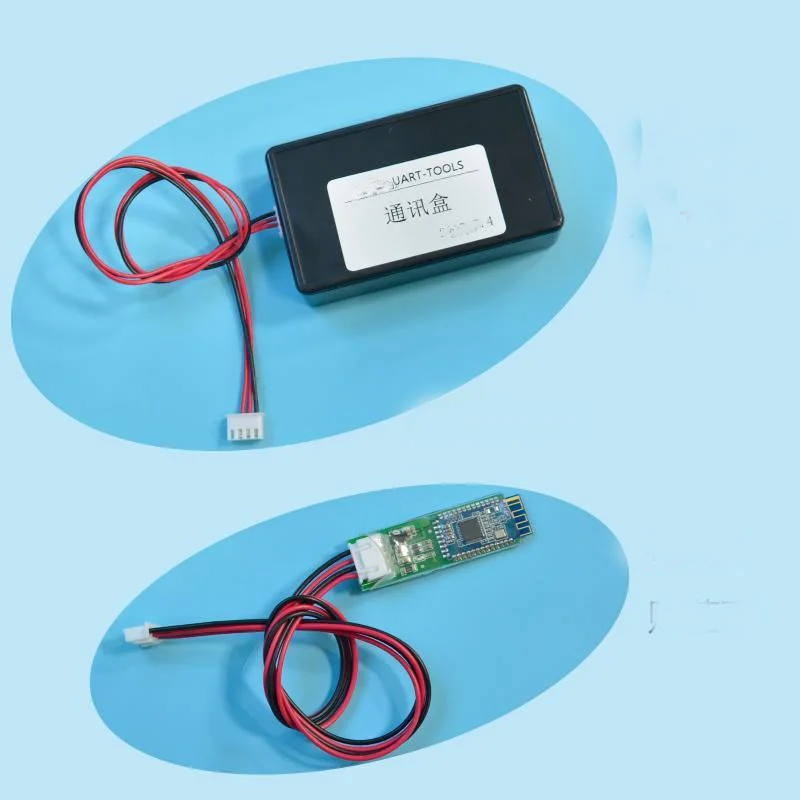

RS485 /UART to USB module or Bluetooth should use together with the board.
RS485/ UART to USB module connect to PC by USB, so you can monitor the board, and set the parameter.
Bluetooth module can connect to smart phone, right now only support android 4.3 above.
APP support english
Main Features:
1)Smart BMS with app & laptop controlling;
2) Balance & Balance display;
3) Mulit Temperature switches);
4) MOS transistor can control the battery charge and discharge;
5) low standby current consumption.
6) with UART interface, Bluetooth interface, support PC or smart phone.
7) over charge and over discharge can set by software( APP).
Parameter can set by software(APP).
Balance current: 50-60mA
Charge voltage: 4.2V * 17S

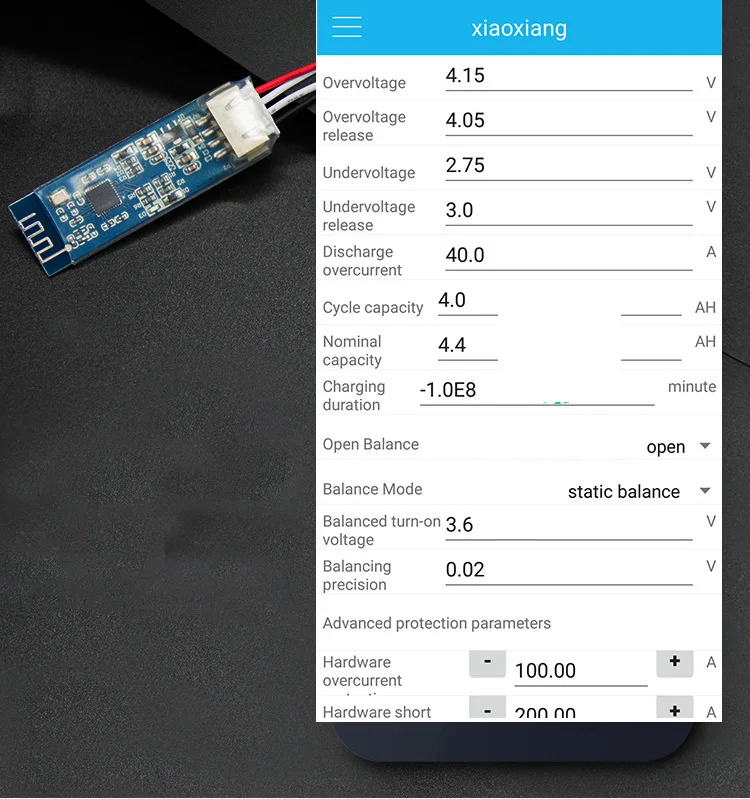

Adjustable Parameters:
1.Balance voltage setup: Balance voltage Range: 3.3-4.2V
2.Over-voltage voltage setup: Charge voltage Range : 3.6-4.3V
3.Under-voltage voltage setup: Discharge voltage Range : 2.0-3.3V
4.Over Charge/Discharge current Setup....
Reference Battery Show by PC or Smart phone :
Total voltage show
Voltage range show
Each cell voltage show
Min/Max voltage show
Nominal capacity show
Remaining capacity show
Percentage capacity show
Charge, Discharge current show
Charge/DischargeTemperature show
Reminder Speed K/m show
Average Seed K/m show
Total mileage show
Travel Time Show
![HTB1DLa8bfBj_uVjSZFpq6A0SXXaX]() ![HTB18j8Ud79E3KVjSZFGq6A19XXaW]() ![QQ截图20190626004921]()
![1]()
![2]()
\ ![3]()
![4]()
![10]()
![9]()
1) Please note that the input and output voltage, and load current conditions for power protection board does not exceed the electrical parameters of the allowable power consumption;
2) special attention to the load current can not work long hours between maximum continuous operating current and over-current protection current;
3) When connecting the battery ,it may not discharge. In this case, connect the charger can be restored to normal working condition;
4) Although the BMS built-in electrostatic protection circuit, but please do not hand touch when BMS in the working condition, so as to avoid damage from static electricity protection board.
Package Contents
100% Brand New
|
|
|
|
