Измеритель толщины покрытия Sndway для автомобилей, детектор краски, микрометр для отделки, автомобильный тестовый зондомер.

Измеритель толщины покрытия Sndway для автомобилей детектор краски микрометр отделки автомобильный тестовый зондомер.

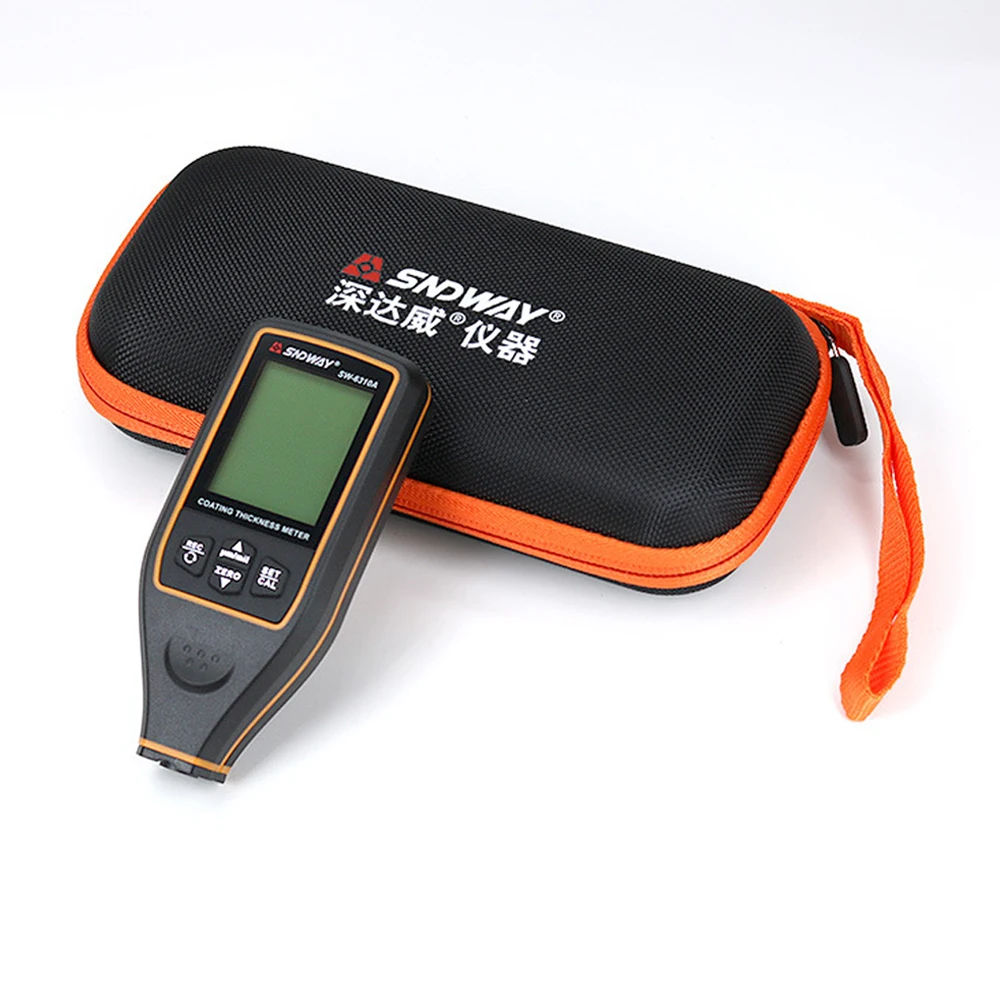

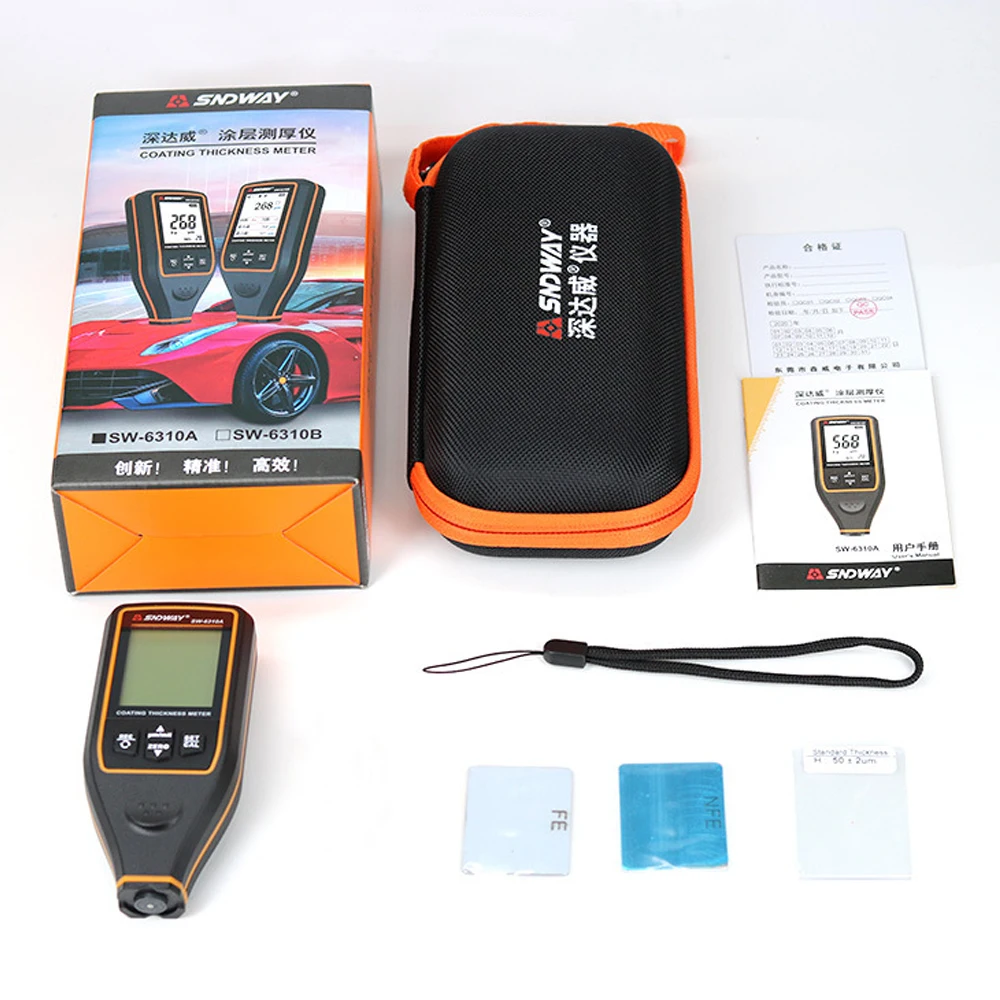

Sndway Coating Thickness Gauge Car Paint detector Refinishing Paint micrometer Automotive Coating test high-precise probe Meter

Introduction:

Based on the magnetism and the eddy current feature of metal substrate, the meter can distinguish the property of metal substrate precisely. With high-precise probe, the meter can accurately measure the non-magnetic coating thickness on magnetic substrate surface(like, the coating of painting, rubber and enamel, etc.), and the nonconducting coating thickness on non-magnetic metal substrate surface(like, the coating of painting,rubber, etc.). Researched with constant testing and improvement, the basic standard of complex environments of all kinds of major industries, the end comes to the final meter, it can measure the coating thickness accurately, rapidly and un-harmfully, suitable for all kinds of major industrial workshops, labs and outside environment.

Features:

2.0 inches large color screen
Rotatable display screen for different views of user during measuring of process.
Simple operation, directly attach to the coating and on screen shows the property and thickness.
Provide Zero and Multi-spots calibration, calibrating reliably and rapidly.
Saving the measured datum up to 8 sets and 32 units, power-off will not obliterate datum.
Warning function of upper/lower limits
Pressing for power-on, power-off automatically without any operations.
Indication of lower power

Fe means magnetic metals such as iron & steel;
NFe means non-magnetic metals, such as aluminum, alloy & non-magnetic stainless steel.

Specifications:

Items: SW-6310B
Measuring range: Magnetic material 0~1700µm; Non magnetic material 0~1700µm
Resolution: 0.1μm @ (0~99.9μm); 1μm @ (100~1700μm)
Indication error: ±(2+2%*H)μm @ (0~500μm) ±(2.5%*H)μm @ (500~1700μm)
Min measuring area: Magnetic material 25×25mm;Non magnetic material 25×25mm
Min curvature: Convexity 5mm; concave 30mm
Min substrate thickness: Magnetic material 0.2mm;Non magnetic material 0.05mm
Screen: 2.0 inches large Color screen
Memory: 8 sets  32Units
Units: mil/µm    1mil=25.4µm;1µm=0.03937mil
Battery specification: 3.7V 850mAh Li-ion
Data Export: USB
Working temp and humidity: 0˚C~50˚C, 10%~80%RH
Storage tempand humidity: -10˚C~60˚C, 10%~70%RH
Basic measurement: Single /Continuous measurement
Memory/Delete record: Yes
The screen rotation: Yes
Calibration: Zero-spot calibration/Calibration-film calibration
Limiting value measurement: Yes
Dimension: 120x52x26mm

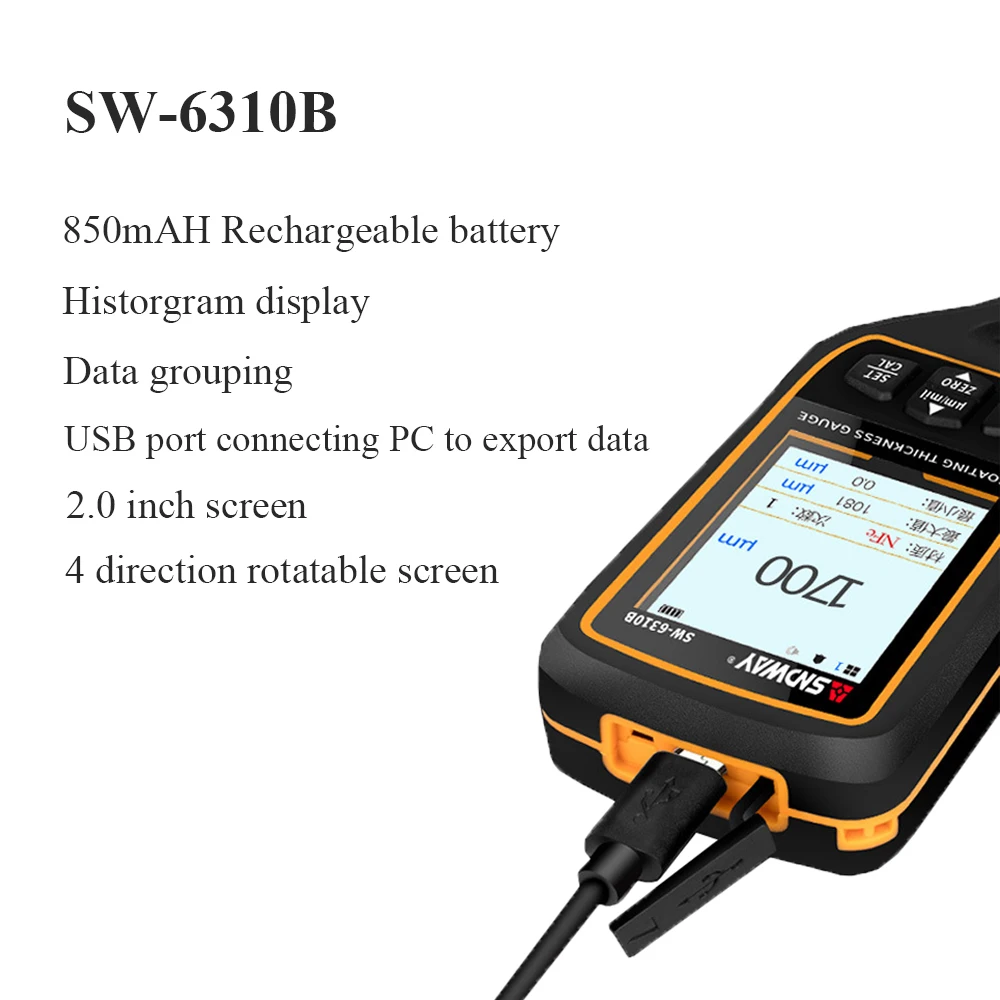

Upgrade Advantages than SW-6310A:

(1).3.7V 850mAh Li-ion battery
(2).Four directions rotatable display screen
(3).Large 2.0 inches HD color screen
(4).8set 32units data storage
(5).Histogram data analysis
(6).Measurement data grouping
(7).Data export by usb
