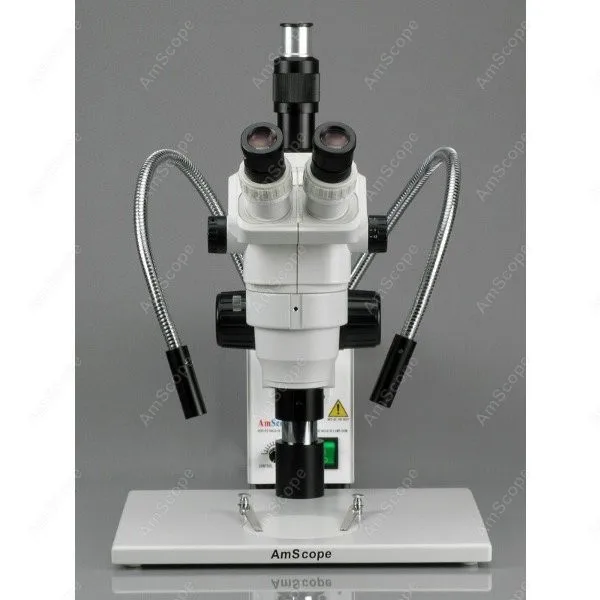

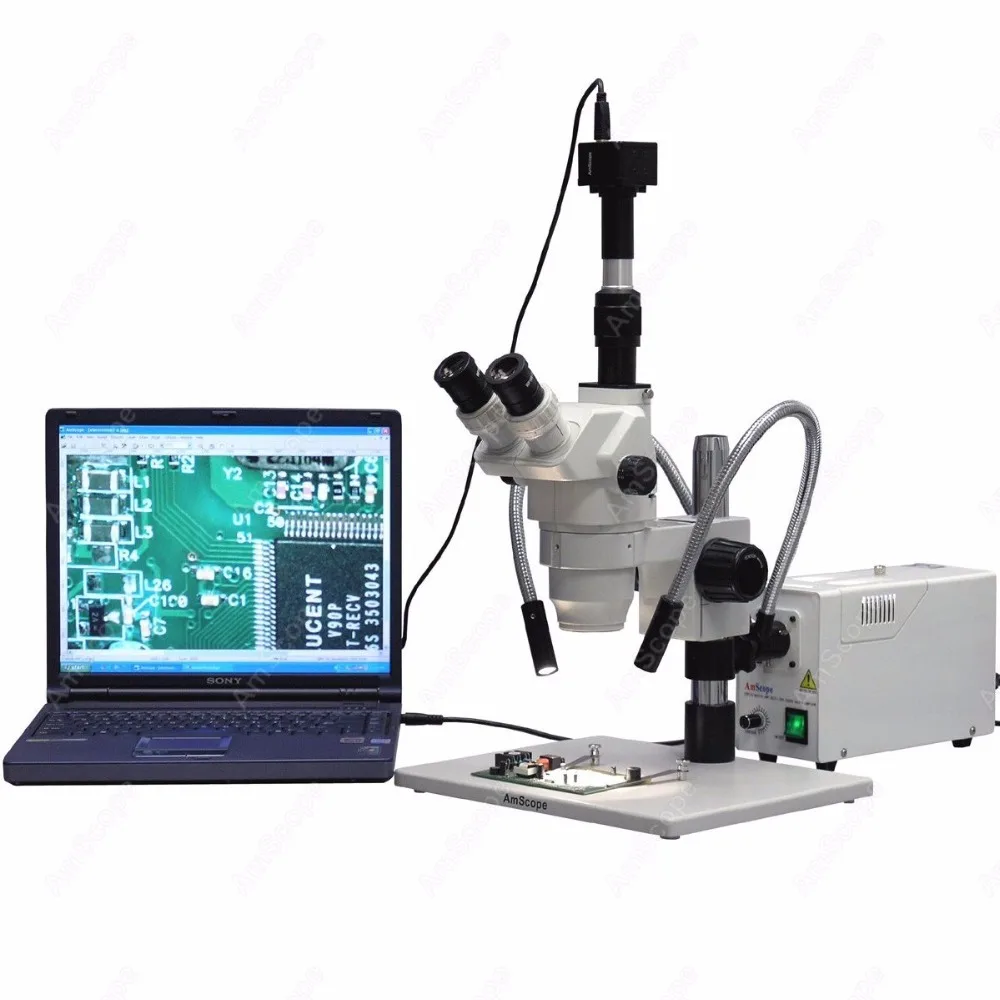

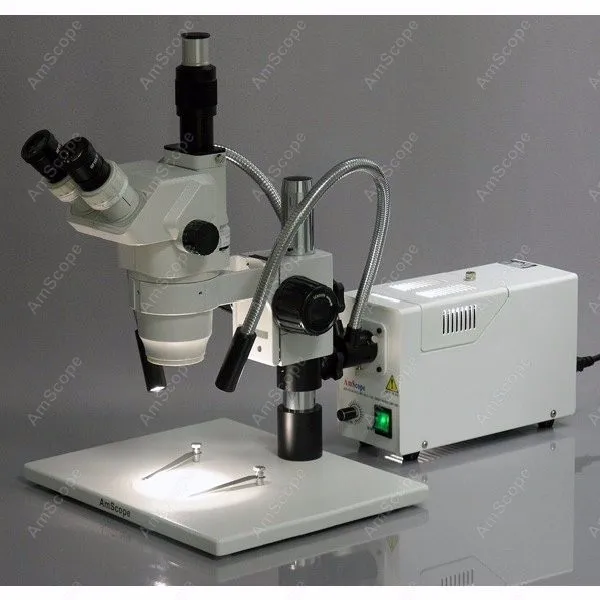

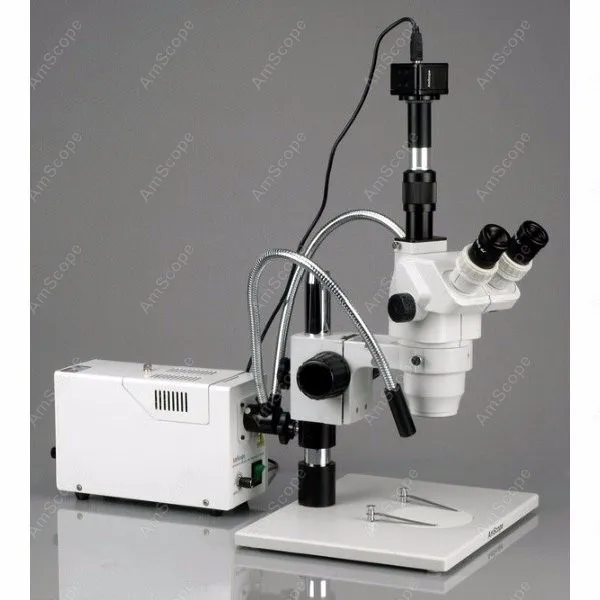

This is a turnkey package for the ultimate stereo microscopy system with extreme widefield optics and a contemporary design. It includes a 2X-225X trinocular stereo zoom head, an extra large pillar stand, a fiber optic dual gooseneck illuminator and a 1.3MP digital camera. Built with 30mm extreme widefield optical lenses the microscope offers crystal clear sharp images, extremely large magnification zoom range (112:1), and a large working distance (14"). The fiber optic dual gooseneck illuminator provides 150 Watts of bright, even and cool illumination. The digital camera captures still microscopy images, streams live videos on your computers, and is compatible with Windows XP/Vista/7/8, Mac OS X, and Linux. The 0.37X reduction lens included gives your computer screens the same field of view as your microscope's eyepiece. The user-friendly software for Windows offers advanced features including Stitching, EDF (Extended Depth of Focus), video recording, and measurement functions. Live video and still image capture can be set in different resolutions simultaneously. You can edit and process images in a manner similar to PhotoShop. This microscopy unit is perfect for researchers, gemologists, manufacturing engineers, and anyone in semiconductor and electronics industries. It comes brand new in a factory sealed box. The retail value is above $4,400.

Features:

• A great turnkey package of an ultimate inspection microscopy system with a digital camera.
• Extremely large zoom magnification range of 2X-225X
• 22mm extreme widefield eyepieces
• Trinocular head with 45 degree inclined eye tubes
• Extremely high resolution with great flatness and contrast
• Super sharp and clear images
• 30mm extreme widefield high-eyepoint eyepieces with 22mm field of view
• Sharp stereo erect images over a wide field of view
• Crystal clear original true color microscope images
• Dual eye tubes with adjustable diopters
• Extremely large working distance of 14" (350mm)
• Sturdy super large stand with a stain resistant enamel finish
• Accurate alignment reduces eye strain for longer periods of viewing
• Full optical glass elements
• Precise ground glass lenses
• Full metal chrome-plated mechanical components
• Adjustable interpupillary distance

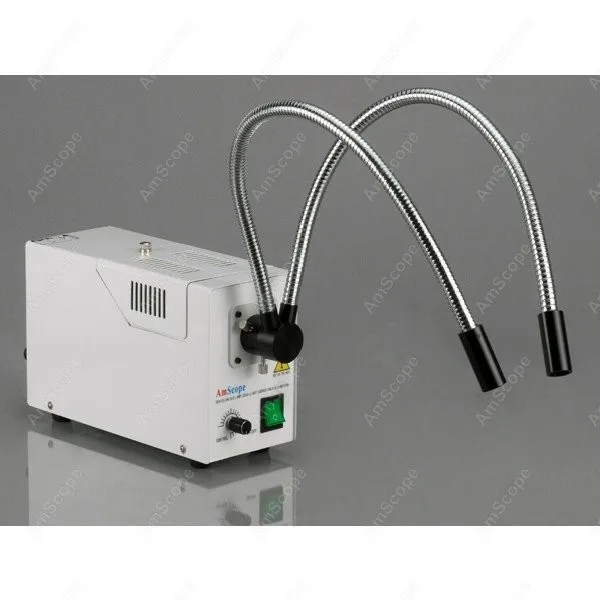

• Fiber optic dual gooseneck light
• 150W variable-intensity light source
• High intensity 21V, 150W halogen bulb
• Perfect even Quartz low heat halogen illumination
• Forced air cooling system
• 3200 degrees Kelvin lamp color temperature
• Rubber eye guards included
• Manufactured Under ISO 9001 Quality Control Standard
• Excellent Five (5) Year Factory Warranty



  Specifications:

• Head: 360 degree rotatable 45 degree inclined trinocular
• Eyepiece: 30mm super widefield high-eyepoint WH10X/22MM & WH25X/9MM
• Zoom Range: 0.2X-22.5X
• Diopter Adjustment: +/- 5dp
• Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
• Working Distance: 14" (350mm)
• Field of View: 5-3/4" (145mm) in diameter
• Stand: 12.5"x10"x0.75" (320mm x 260mm x 20mm) solid cast steel base
• Light Source: 21V, 150W halogen bulb
• Power Supply: 110V (220V version available)
• Accessories: paired eye-caps
• Shipping Weight: 60 lbs

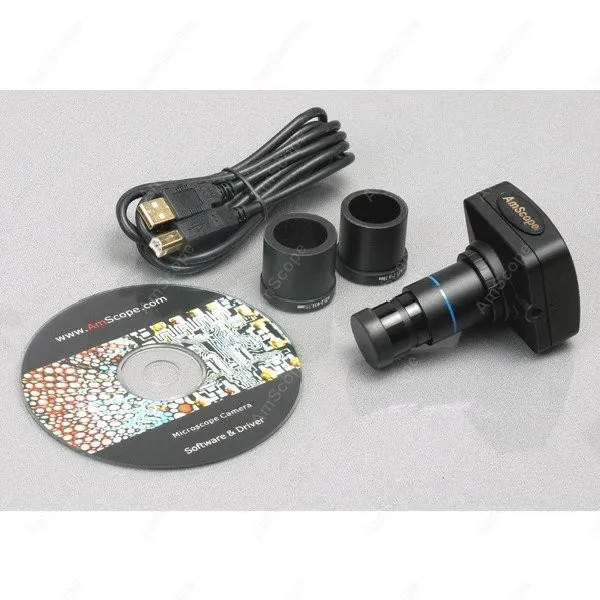

  Camera Specs:

• Sensor: Aptina MT9M111 CMOS (color)
• Sensor Size: 1/2" (6.66mm(H) x 5.32mm(V), diagonal 8.52mm)
• Resolution: 1280x1024 (approx. 1,310,000 pixels)
• Reduction Lens: 0.37X
• Pixel Size: 5.2µm x 5.2µm
• G Sensitivity: 2.1v / lux-sec (550nm)
• Frame Rate: 50fps @320x256, 26fps @640x512, 15fps @1280x1024
• Exposure: 0.14ms~2000ms, ROI Auto & Manual
• Operating System: Windows XP/Vista/7/8 (32 & 64 bit), Mac OS X, Linux
• PC Requirements: CPU equals to Intel Core2 2.8GHz or higher, USB2.0 port
• Advanced software for Windows:
  - offers Stitching, EDF, video recording and measurement functions
  - conducts measurements for lengths, angles, arcs, areas and etc.
  - gives your computer screens the same field of view as your microscope's eyepiece
  - saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
  - edit and process microscopy images in a manner similar to PhotoShop
  - live video and still image capture can be set in different resolutions simultaneously
• Life-time free software upgrades



  Packing List:

• One Trinocular Stereo Zoom Head
• Two Pairs of Super Widefield High-Eyepoint WF10X/22 and WF25X/9 Eyepieces
• Two Barlow Lenses, 0.3X and 2.0X extreme widefield
• One 3D Double-Arm Boom Stand
• One Focusing Rack
• One Pair of Eye-Guards
• One 150W Halogen Light Source
• One Fiber Optic Dual Gooseneck Light
• One 1.3MP USB2.0 Microscope Digital Camera with Reduction Lens
• One USB Cable
• Step-by-Step User's Instructions for Camera
• Adapters included
• User's Manual for Microscope

‘
