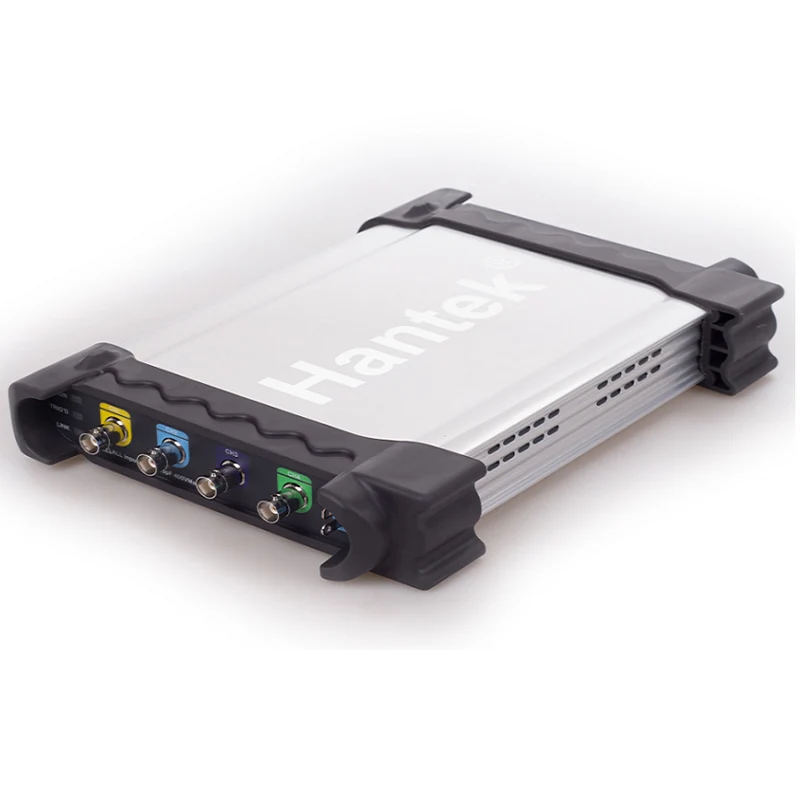

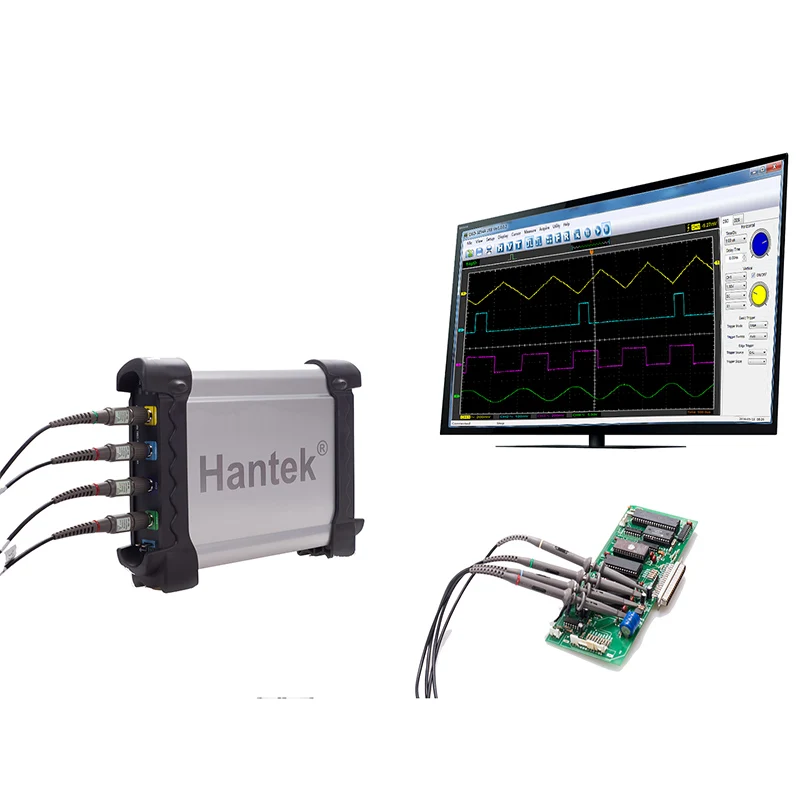

Hantek DSO3254A Digital Oscilloscope 4Channels 250Mhz USB PC Storage Automotive Osciloscopio Logic Analyzer +Signal Generator |
История изменения цены
*Текущая стоимость 57 462,01 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Sep-15-2025 | 68380.22 руб. | 71799.38 руб. | 70089.5 руб. |
| Aug-15-2025 | 67805.33 руб. | 71195.38 руб. | 69500 руб. |
| Jul-15-2025 | 56887.72 руб. | 59731.99 руб. | 58309 руб. |
| Jun-15-2025 | 66656.39 руб. | 69989.4 руб. | 68322.5 руб. |
| May-15-2025 | 58037.0 руб. | 60939.23 руб. | 59488 руб. |
| Apr-15-2025 | 65507.8 руб. | 68782.8 руб. | 67144.5 руб. |
| Mar-15-2025 | 64932.0 руб. | 68179.70 руб. | 66555.5 руб. |
| Feb-15-2025 | 64357.81 руб. | 67575.61 руб. | 65966 руб. |
| Jan-15-2025 | 63783.14 руб. | 66972.76 руб. | 65377.5 руб. |
Описание товара
|
Model |
DSO3104 |
DSO3104A |
DSO3204 |
DSO3204A |
DSO3254 |
DSO3254A |
|
|
VERTICAL |
|||||||
|
Analog Channels |
4 |
||||||
|
Bandwidth |
100MHz |
100MHz |
200MHz |
200MHz |
250MHz |
250MHz |
|
|
Rise Time |
3.5ns |
3.5ns |
1.7ns |
1.7ns |
1.4ns |
1.4ns |
|
|
Input Impedance |
Resistance: 1MΩ; Capacitance: 25 pF |
||||||
|
Input Sensitivity |
1mV/div to 10V/div |
||||||
|
Input Coupling |
AC/DC/GND |
||||||
|
Vertical Resolution |
8 bits |
||||||
|
Memory Depth |
1.6K-128M/CH |
||||||
|
Max. Input Voltage |
400V (DC+AC Peak) |
||||||
|
HORIZONTAL |
|||||||
|
Real-Time Sampling Rate |
1GSa/s |
||||||
|
Time Base Range |
2ns/div to 1000s/div |
||||||
|
Time Base Precision |
±50ppm |
||||||
|
TRIGGER |
|||||||
|
Source |
CH1, CH2,CH3,CH4,EXT,EXT/10 |
||||||
|
Mode |
Edge, Pulse, Video, Slope, Timeout |
||||||
|
Type |
Signal, Auto, Normal |
||||||
|
Auto Measurement |
Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
||||||
|
Cursors Measurement |
Horizontal ,Vertical,Cross |
||||||
|
Waveform Signal Process |
+,- , x,÷, FFT, Invert |
||||||
|
Voltage Range |
1mV to 10V/div @ x 1 probe; 10mV to 100V/div @ x 10 probe; |
||||||
|
100mV to 1KV/div @ x 100 probe; 1V to10KV/div @ x 1000 probe; |
|||||||
|
FFT |
Rectangular,Hanning,Hamming,Blackman Window |
||||||
|
Logic Analyzer |
|||||||
|
Channels |
-- |
16CH |
-- |
16CH |
-- |
16CH |
|
|
Max. Input Impedance |
-- |
200KΩ |
-- |
200KΩ |
-- |
200KΩ |
|
|
Max. Input Voltage |
-- |
-60V~60V |
-- |
-60V~60V |
-- |
-60V~60V |
|
|
Max. Sampling Rate |
-- |
250MSa/s |
-- |
250MSa/s |
-- |
250MSa/s |
|
|
Bandwidth |
-- |
10MHz |
-- |
10MHz |
-- |
10MHz |
|
|
Compatible lnput |
-- |
TTL,LVTTL |
-- |
TTL,LVTTL |
-- |
TTL,LVTTL |
|
|
-- |
LVCMOS,ECL. |
-- |
LVCMOS,ECL |
-- |
LVCMOS,ECL |
||
|
Memory Depth |
-- |
1.6K~64M |
-- |
1.6K~64M |
-- |
1.6K~64M |
|
|
Function/Arb. Waveform Generator |
|||||||
|
Waveform Frequency |
-- |
DC~25MHz |
-- |
DC~25MHz |
-- |
DC~25MHz |
|
|
DAC Clock |
-- |
2K~200MHz |
-- |
2K~200MHz adjustable |
-- |
2K~200MHz adjustable |
|
|
Channel |
-- |
1CH |
-- |
1CH |
-- |
1CH |
|
|
Waveform Length |
-- |
4K |
-- |
4K |
-- |
4K |
|
|
Vertical Resolution |
-- |
12 Bits |
-- |
12 Bits |
-- |
12 Bits |
|
|
Waveform Amplitude |
-- |
±3.5V Max. |
-- |
±3.5V Max. |
-- |
±3.5V Max. |
|
|
Output Impedance |
-- |
50 Ω |
-- |
50 Ω |
-- |
50 Ω |
|
|
Output current |
-- |
50mA |
-- |
50mA |
-- |
50mA |
|
|
Bandwidth |
-- |
25M |
-- |
25M |
-- |
25M |
|
|
Interface |
USB 2.0 |
||||||
|
Power Supply |
8--36V Wide range of input voltage,suitable |
||||||
|
Size |
255 x 190 x 45 (mm) |
||||||
|
Weight |
1Kg |
||||||
