Характеристики

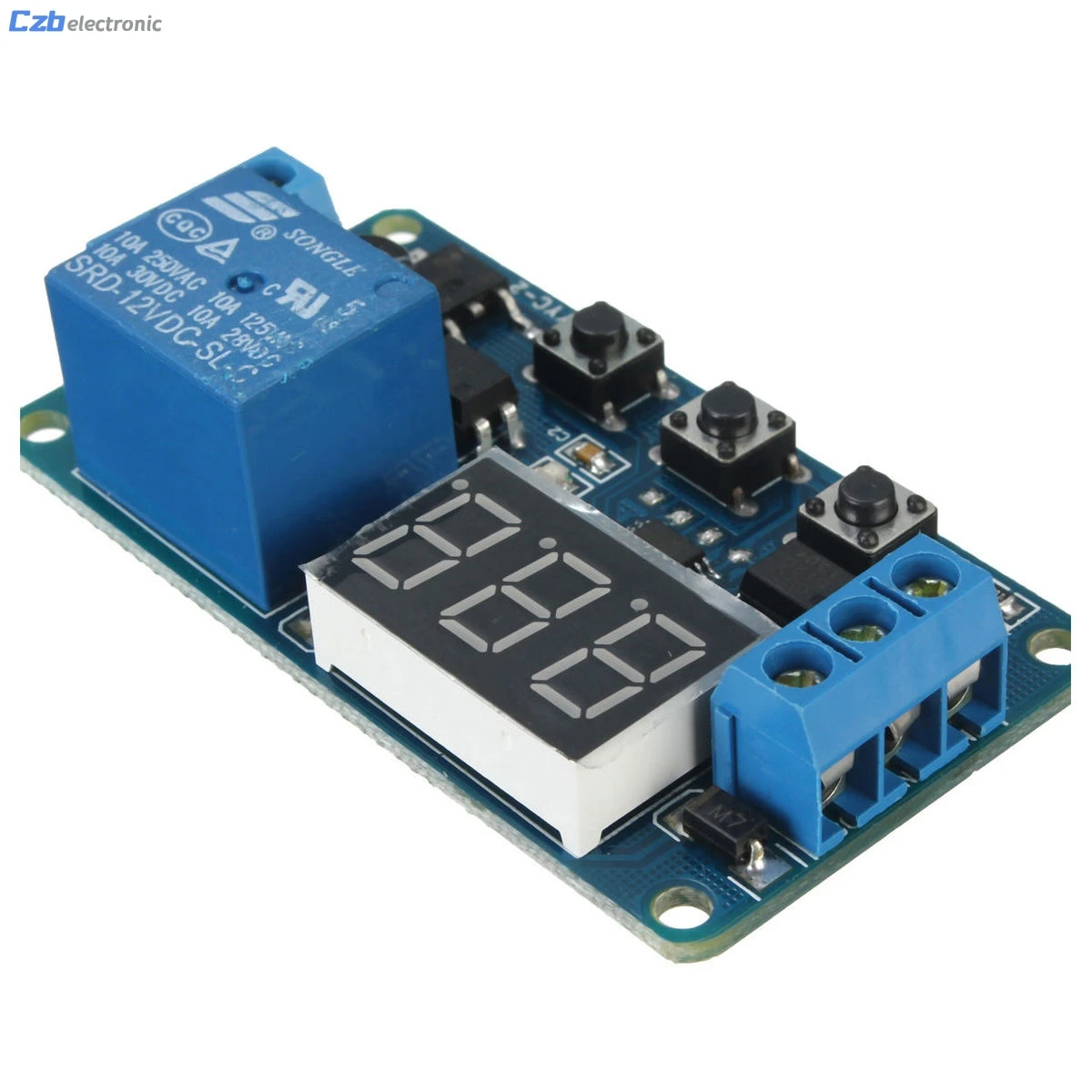

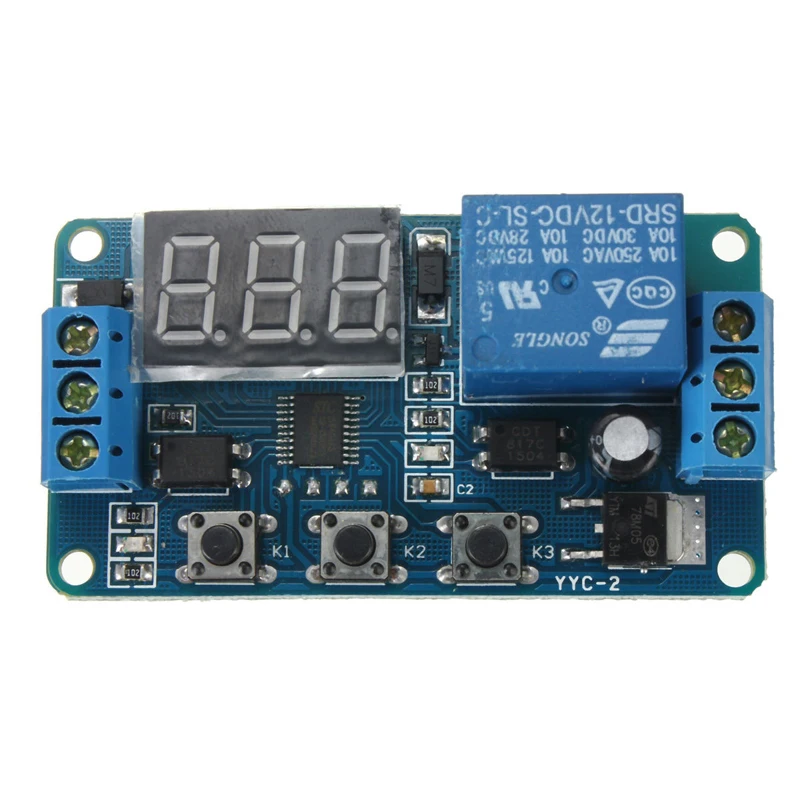

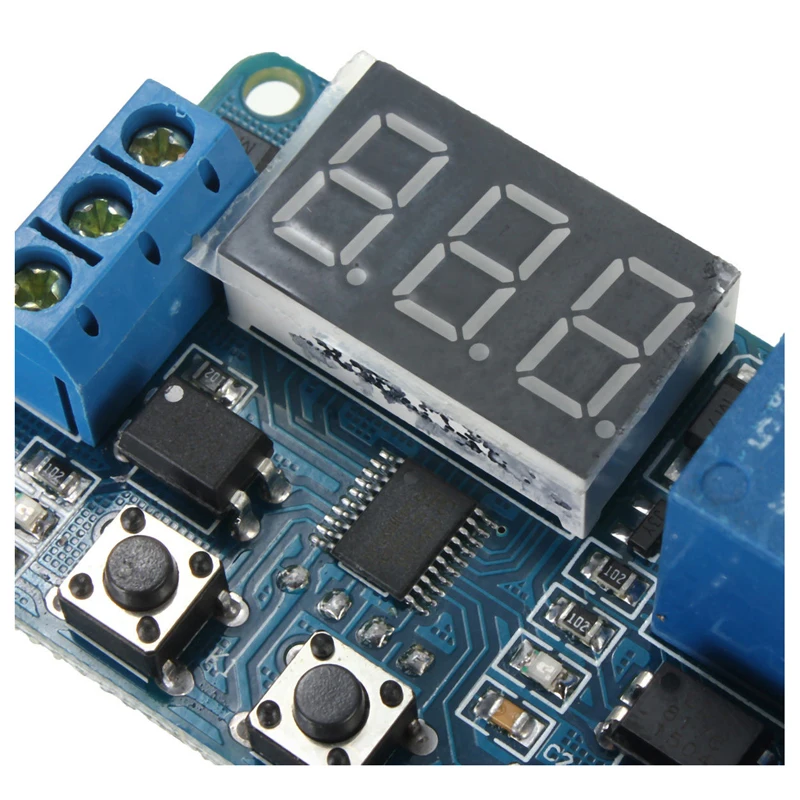

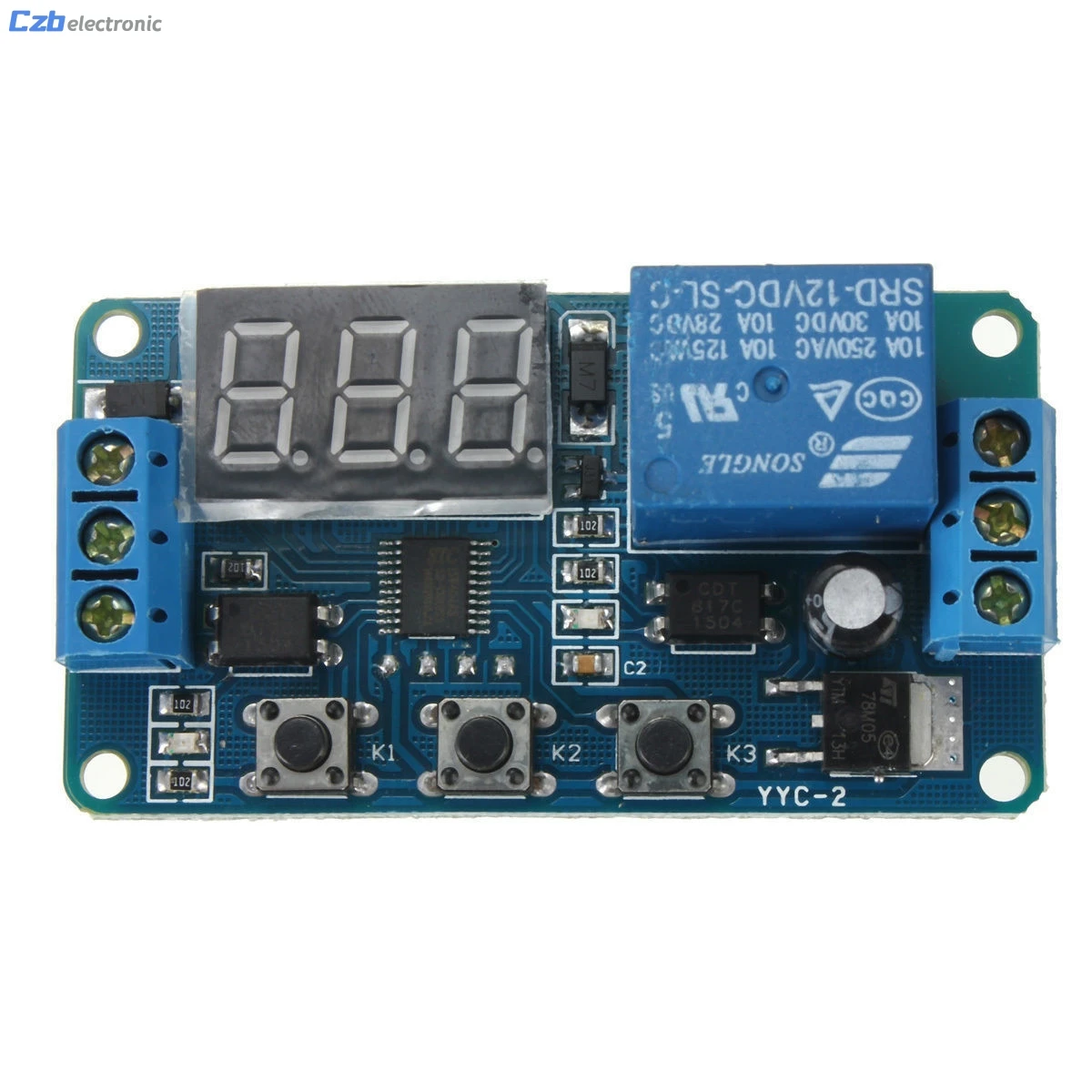

DC 12V LED Digital display Home Automation Delay Relay Trigger Time Circuit Timer Control Cycle Adjustable Switch Module | Электроника
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Sep-18-2025 | 0.31 руб. | 0.50 руб. | 0 руб. |
| Aug-18-2025 | 0.69 руб. | 0.18 руб. | 0 руб. |
| Jul-18-2025 | 0.73 руб. | 0.39 руб. | 0 руб. |
| Jun-18-2025 | 0.47 руб. | 0.54 руб. | 0 руб. |
| May-18-2025 | 0.10 руб. | 0.16 руб. | 0 руб. |
| Apr-18-2025 | 0.77 руб. | 0.9 руб. | 0 руб. |
| Mar-18-2025 | 0.87 руб. | 0.56 руб. | 0 руб. |
| Feb-18-2025 | 0.34 руб. | 0.90 руб. | 0 руб. |
| Jan-18-2025 | 0.68 руб. | 0.26 руб. | 0 руб. |
Описание товара
Set parameter after power for perdurable memories.
Signal terminal voltage signal can be maintained for a longtime.
To ensure the stability of industrial grade board, class PLC.
Size: 64.2mm x 34.8mm x 18.5mm/ 25.28" x 13.7" x 7.28"
Working mode selection:After power on,long press K12 seconds later into the select function mode,P1-1~P1-4 for choose.
P1-1 operating modes:a signal to trigger relay,time is up,the relay disconnect users,You can set relay time T,click K2 the hundred digital tube starts flashing,then press K3,the hundred digital change;click K2 ten digital tube starts flashing,then press K3,ten digit changes;click K2
bit digital tube starts flashing,then press K3,single-digit change;then click K2,digital pipe does not blink,then press the K3,shifting the decimalpoint,the decimal pointin abitindicates 0-999minutesin ten represents 0 to 99.9 seconds withou tadecimal poin trepresents 0-999
seconds;goodchoice,bringing the time setting is completed.
P1-2 operating modes:Asignal trigger ,digital countdown begins,X seconds after,there lay open Y seconds,then close.
Users can set the relay time X,Y;P1-1different time settings similar to the blue lights that set
the relay time,blue light indicates setting relay off time.
P1-3 operating modes:Open X seconds,disconnect Yseconds,infinite loop.Users can set the relay timeX,Y;time setting similar to P1-2.
Relay Specifications:AC 220V 10A or DC 30V 10A.
Quiescent Current:20mA,Operating Current:50mA.
Working voltage:10~16V(if other ranges can be customized).
Signal voltage:4V~20V(if other ranges can be customized).
Life:about 100,000 times
Working temperature:-40~85'C.
Package Includes:
1 x DC12V Delay Timer Control Switch Module
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/-1-3cm.
