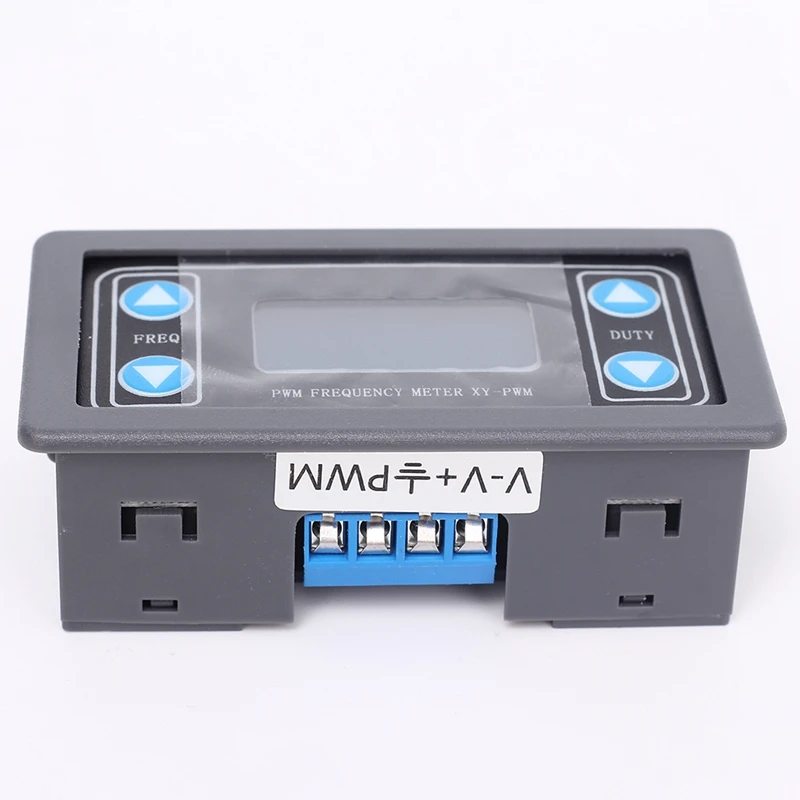

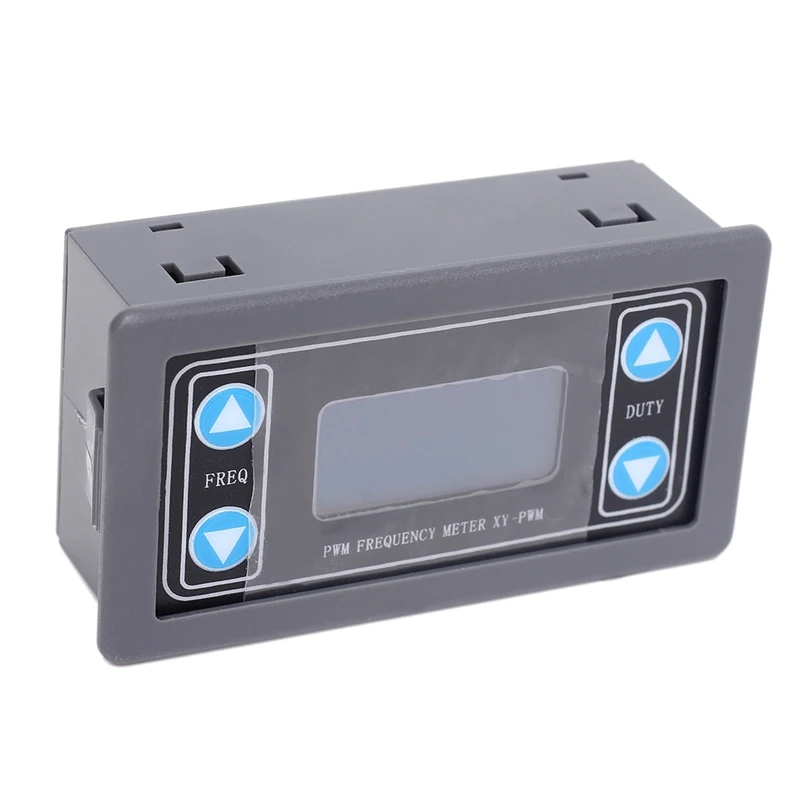

HHO-1HZ~150KHZ Генератор сигналов с цифровым дисплеем PWM импульсной частоты с возможностью регулировки коэффициента заполнения квадратной волны прямоугольного генератора.

HHO-1HZ~150KHZ Генератор сигналов с цифровым дисплеем PWM импульсной частоты возможностью регулировки коэффициента заполнения квадратной волны прямоугольного генератора.

Brand NameFGHGFOriginMainland ChinaCertificationNONEDIY SuppliesELECTRICALDisplay Size2.9 Inches & UnderMeasurement unitpiece/piecesEach pack11 009,70 ₽-23%1 009,70 ₽-23%777,40 ₽777,40 ₽there is store discountAdd to CartBuy now777,40 ₽loader

Reviews

• Engelbert T.20 March 2023·Show original

  All the best, very good quality and function.

  Show more

Description

For example:Display ‘100’ means PWM output frequency is 100Hz;Display ‘1.01’ means PWM output frequency is 1.01KHz;Display ‘54.1’ means PWM output frequency is 54.1KHz;Display ‘1.2.4’ means PWM output frequency is 124KHz;

Set PWM frequency:‘F101’:Set frequency is 101Hz.‘101’ can by replace by 001~999;‘F1.05’:Set frequency is 1.05KHz.‘1.05’ can by replace by 1.00~9.99;‘F10.5’:Set frequency is 10.5KHz.‘10.5’ can by replace by 10.0~99.9;‘F1.0.5’:Set frequency is 105KHz.‘1.0.5’ can by replace by 1.0.0~1.5.0;

Frequency set range:Enter the settings interface when short press any button ‘FREQ+’ or ‘FREQ-’ in the normal running status to select frequency range.Automatically switch frequency range.Pay attention to the position where the decimal point moves when the button is pressed.Display ‘XXX’.

No decimal point,The minimum frequency is 1Hz.The frequency range is 1Hz ~ 999Hz.Display ‘X.XX’.The decimal point is the penultimate, The minimum frequency is 0.01KHz.The frequency range is 1.00KHz ~ 9.99KHz.Display ‘XX.X’.The decimal point is the third last,The minimum frequency is 0.1KHz.The frequency range is 10.0KHz ~ 99.9KHz.Display ‘X.X.X’.The decimal point is fully lit,The minimum frequency is 1KHz.The frequency range is 1KHz ~ 150KHz.

Duty cycle set range:Enter the settings interface when short press any button ‘DUTY+’ or ‘DUTY-’ in the normal running status to select duty cycle.Automaticallyswitch frequency range.Duty cycle range is 0.00%-100%.

Use steps:Connect to power supply;Short or long press button ‘FREQ+’ or ‘FREQ-’ to set frequency;Short or long press button ‘DUTY+’ or ‘DUTY-’ to set duty cycle;Connect to load.UART communication and parameter settingsThe system supports UART data upload and parameter setting functions (TTL level);

UART: 9600, 8, 1

LCD high definition display;Support UART;Support frequency adjustment;Support duty cycle adjustment;High precision detection;

Support power-down memory function;

1-Channel PWM output.

Work voltage:DC 3.3V-30V;Frequency range:1Hz~150KHz;Frequency accuracy:2%;Duty cycle range:0.00%-100%;Output Current:About 5-30mA;

Output amplitude:Same to input voltage;

Operating temperature:-20 Celsius~70 Celsius

Set PWM duty cycle:‘DXXX’:Set duty cycle is XXX. ‘XXX’ can be 000-100.E.g:‘D051’ means PWN duty cycle is be set as 51%.

Read set parameter:Send ‘read’ and then get parameter.Return value:Return ‘DOWN’:Set success.Return ‘FALL’:Set fail.

Application:

Square wave signal generator, generating square wave signal for experimental development;Used to generate a square wave signal that controls the motor driver;Generate adjustable pulses for use by the MCU;Dimmer;Speed governor;

colour:gray

Material:plastic

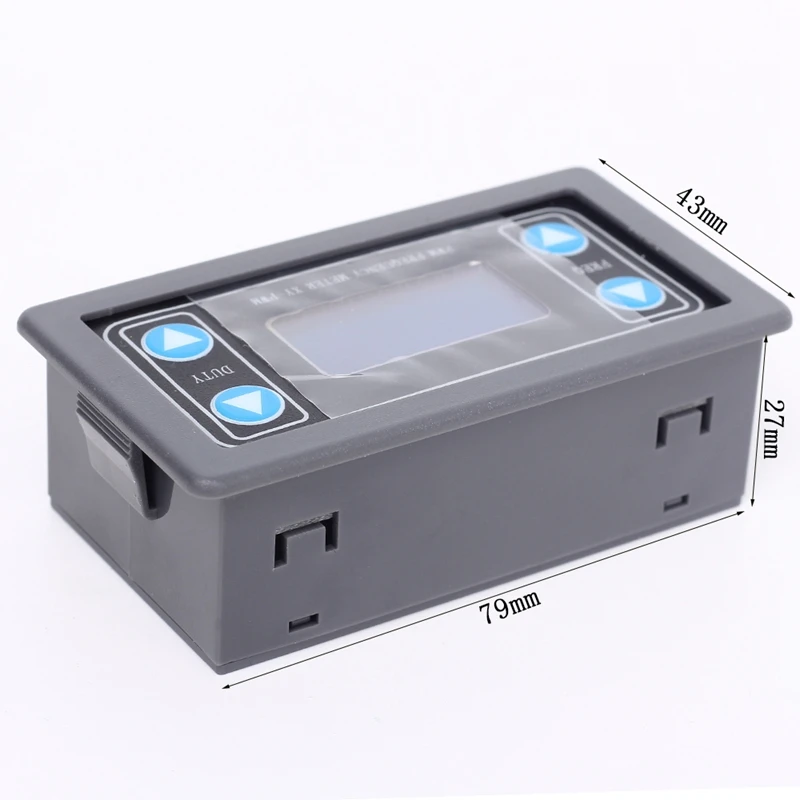

size:4.3*2.7*7.9CM

Package Contents:

1*Signal Generator

Note:

It's 1-channel PWM output signals are the same.They can not adjust independently.

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
