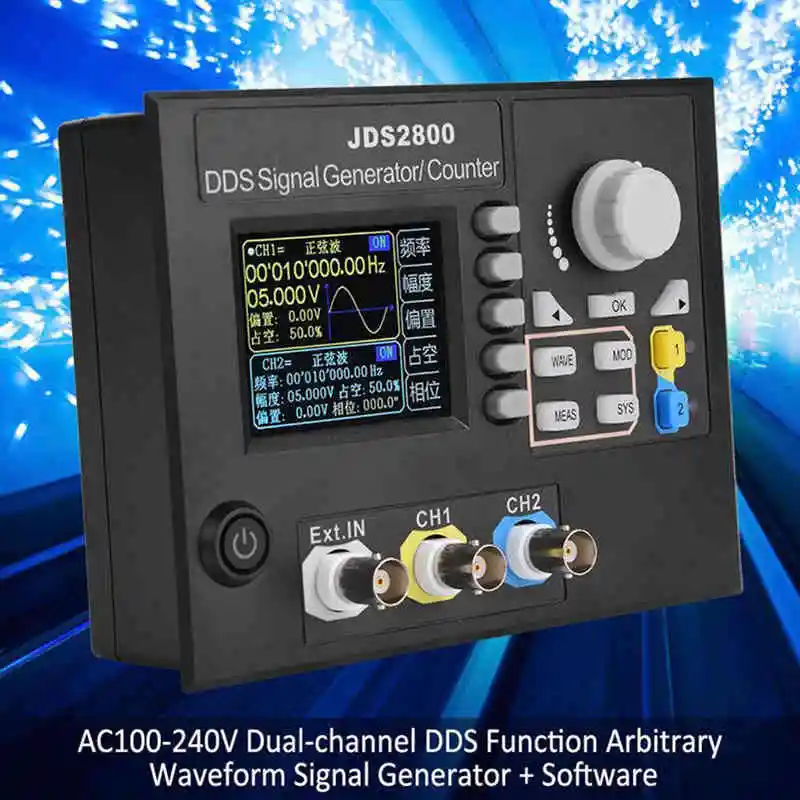

JDS2800 series Dual-channel Function Signal generator combines multiple functions in one, such as Function Signal Generator, Arbitrary Waveform Generator, Pulse Generator, Sweep, Counter and Frequency Meter, etc. The instrument adopts the Direct Digital Synthesizer(DDS) technology and provides stable, precise, pure and low distortion signals. It's a great testing or measuring instrument for electronics engineers, electronic laboratory, teaching and researching.

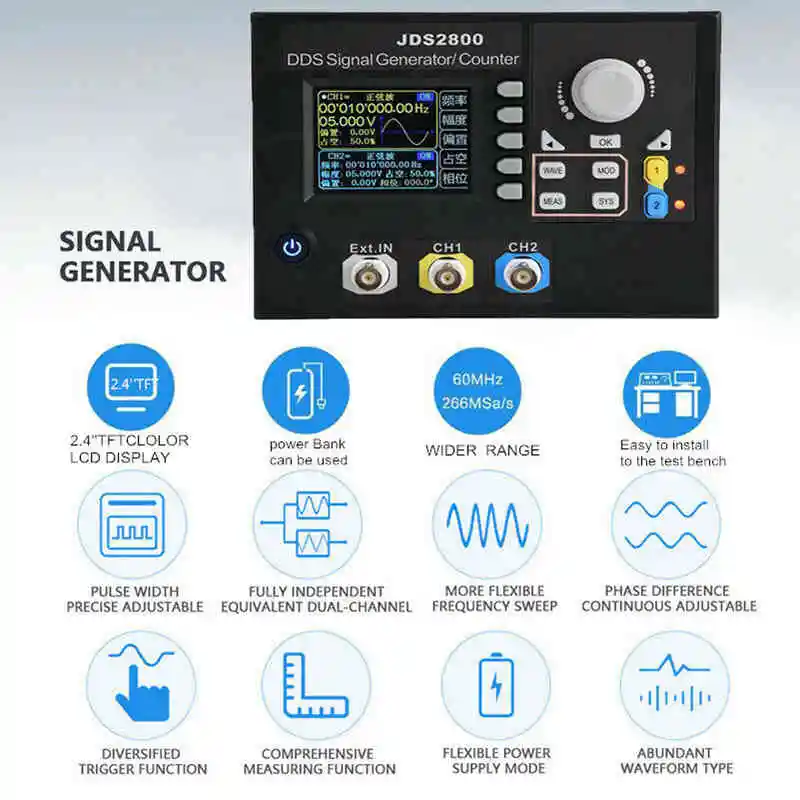

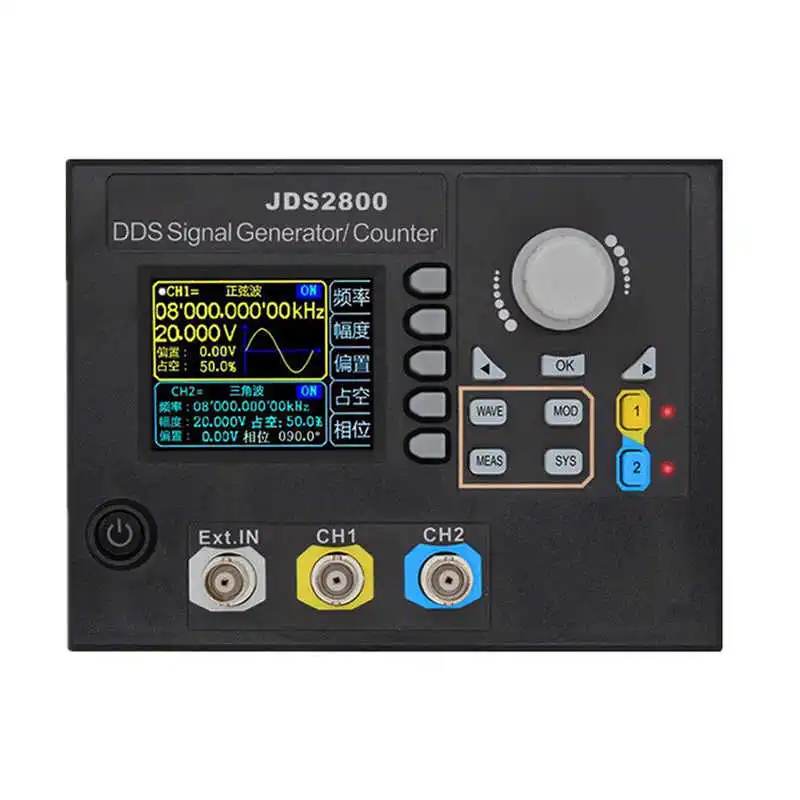

1. Adopt 320*240 2.4 inch TFT color LCD display, simultaneously display parameters of CH1 and CH2; Ability to reproduce patterns of custom waveform; 2. Use soft silicone keys instead of traditional patch keys, high sensitivity and convenient for operation; 3. Max. output frequency(sine wave) up to 60MHz, 266MSa/s sampling rate and 14bits vertical resolution. 4. Completely independent dual channels output, synchronizing operation and adjustable phase difference.
5. Great improvement for square wave performance, square frequency range up to 25MHz with no distortion. 6. 60 groups of arbitrary wave storage function, memory depth of each group is 2048*14bits; 7.High frequency accuracy and resolution: frequency accuracy up to 10(-6) magnitude, total range frequency resolution is 0.01uHz. 8. High amplitude resolution: the minimum amplitude resolution can reach 1mV, amplitude range is 0Vpp~20Vpp
10.Sweep function: linear sweep and logarithmic sweep functions; 0.1s-999.9s sweep time, forward, backward and roundtrip sweep directions. 11.With pulse trains burst output function: allow the unit output 1~1048575 arbitrary pulse trains. 12.Measurement functions: can measure signal frequency, cycle, positive/negative pulse width and duty cycle; 1Hz~100MHz frequency range. 13.-9.99V~9.99V DC offset range, offset resolution: 0.01V. 14.With digital signal output function, CMOS output range 0~10V
15.Storage feature: can store 100 groups of parameters set by the user and extract at any time Counter function: with DC and AC coupling modes. 16.Arbitrary wave editing function: user can edit arbitrary wave on PC and then download to output from the instrument. 17.Communication function: the PC can be used to control the instrument. 18. With output short-circuit protection: all signal output can work 60s under load short-circuit condition
Plug Type:EU Plug,it applies to Indonesia, Germany, France, Spain, Italy and so on.
Plug Type:US Plug,it applies to Canada, India, Japan, Mexico, Thailand, the United States, the Philippines and so on.
Voltage: AC100-240V
Type: 60MHz with a converter adapter
Frequency specifications:
Sine frequency range: 0~60MHz
Square frequency range: 0~25 MHz
Triangle-- frequency range: 0~25 MHz
Pulse frequency range: 0~6 MHz
TTL digital frequency range: 0~6 MHz
Arbitrary wave frequency range: 0~6 MHz
Square rise time:≤10nS
Pulse width adjustment range: 25nS- 4000S
Frequency accuracy:±20 ppm
Frequency stability:±1 ppm/3h
Waveform vertical resolution: 14 bits
Waveform sampling rate: 266 MSa/s
Waveform length: 2048 points
Sine- Harmonic suppression: ≥45dBc(Less than 1 MHz);≥40dBc(1 MHz~20 MHz)
Sine- Total harmonic distortion: Less than 0.8%(20 Hz~20 kHz,0dBm)
Square and Pulse- Overshoot (Square): ≤5%
Square and Pulse- Duty-cycle range(Pulse):0.1- 99.9%
Ramp wave-Linearity: ≥98%(0.01 Hz~10 kHz)
Package Contents:
1 * DDS Signal Generator
1 * CD
1 * USB Data Cable
1 * BNC-BNC Cable
1 * BNC-Clip Cable
Only the above package content, other products are not included.

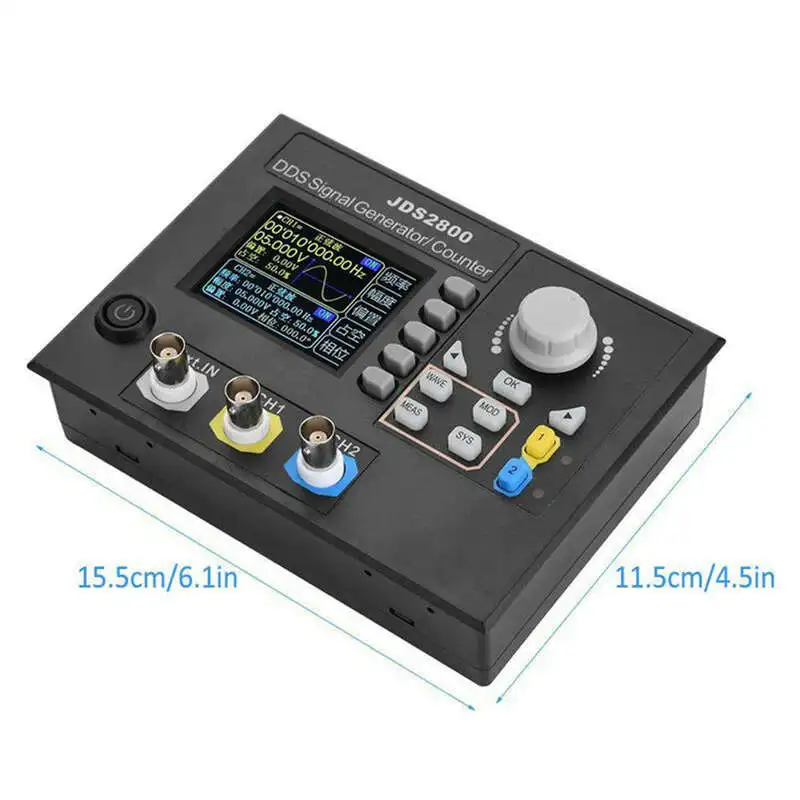

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
