Описание товара
Apollo lake J4205 CPU 1.50-2.60GHz frequency TDP 10W onboard 4GB ddr3 + 4GB RAM slot 9-36v 6*com 2lan industrial motherboards
Bullet Points:
◆ Apollo lake series processor J4205,1.50-2.60Ghz, TDP 10W;
◆ Onboard 4G Memory;
◆ 24bit dual channel LVDS ;
◆ Support 8-36V wide voltage;
◆ Size:154.8 x 117.4 mm;
Specification:
|
Processor |
CPU |
Apollo lake series processor J4205,1.50-2.60Ghz, TDP 10W; |
|
CPU Package |
BGA |
|
|
Chipset |
Apollo lake Single Chip |
|
|
BIOS |
EFI BIOS |
|
|
RAM |
Technology framework |
Single channel DDR3 1066/1333/1600/1866MHz |
|
Capacity |
Integrated 4GB DDR3 |
|
|
RAM Socket |
1x RAM slot ,4GB DDR3 |
|
|
Video |
Graphic controller |
Intel HD Graphics |
|
Dual LVDS |
LVDS Support dual channel 24bit LVDS,Resolution maximum:1920*1200 |
|
|
VGA |
VGA support Resolution maximum:2048x1536 |
|
|
HDMI |
Support Resolution maximum:4096*2160 |
|
|
Double display support |
VGA+HDMI VGA+LVDS LVDS+HDMI Synchronous or asynchronous display |
|
|
Three Display support |
LVDS+VGA+HDMI Synchronous or asynchronous display |
|
|
I/O Panel |
Ports |
1*VGA 1*HDMI 1*USB3.0 3*USB2.0 1*RJ45 Lan, 1*LINE OUT |
|
Network |
CONTROLLER |
2*Intel I211AT Gigabit Ethernet LAN,RJ45 ports |
|
AUDIO |
CONTROLLER |
Realtek HD ALC662 Audio((line-in,line-out,Mic) |
|
Super I/O |
CONTROLLER |
IT8786E |
|
HARDWARE MONITORING |
Watchdog timer |
0-255sec, sample code optional |
|
Cooler |
Aluminum+copper heat sink with Fan or Fanless |
|
|
Input/Output Interface |
USB |
8*USB2.0,Max. Supported +5V/1A |
|
Serial ports |
6*com |
|
|
LPT |
1*LPT pin |
|
|
PS/2 |
1*PS/2 Pin Headers |
|
|
|
||
|
GPIO |
8bit,sample code, Free defination input or output ,3.3V@24mA |
|
|
EXPANSION BUS |
Mini-PCle |
1*Mini-PCIe slot,Support PCIe and USB device |
|
STORAGE |
SATA |
1*SATAIII interface(Maximum transmission rate to 6gb/s) |
|
M-SATA |
1*M-SATA Socket,support SANDISK protocol(Maximum transmission rate to 6gb/s) |
|
|
NGFF |
1*NGFF interface |
|
|
|
||
|
POWER SUPPLY |
Power Type |
Wide Voltage 8-36V |
|
Power consumption |
20W |
|
|
WORKING ENVIRONMENT |
Working temperature |
-20℃ ~ +60℃ |
|
Storage temperature |
-40℃ ~ +85℃ |
|
|
Working humidity |
0% ~ 90%(non-condensing) |
|
|
Storage humidity |
0% ~ 90%(non-condensing) |
|
|
MEASURE |
Size |
154.8 x 117.4 mm |
|
Weight |
0.5KG |
|
|
CERTIFICATION |
|
CE,ROSH,FCC |

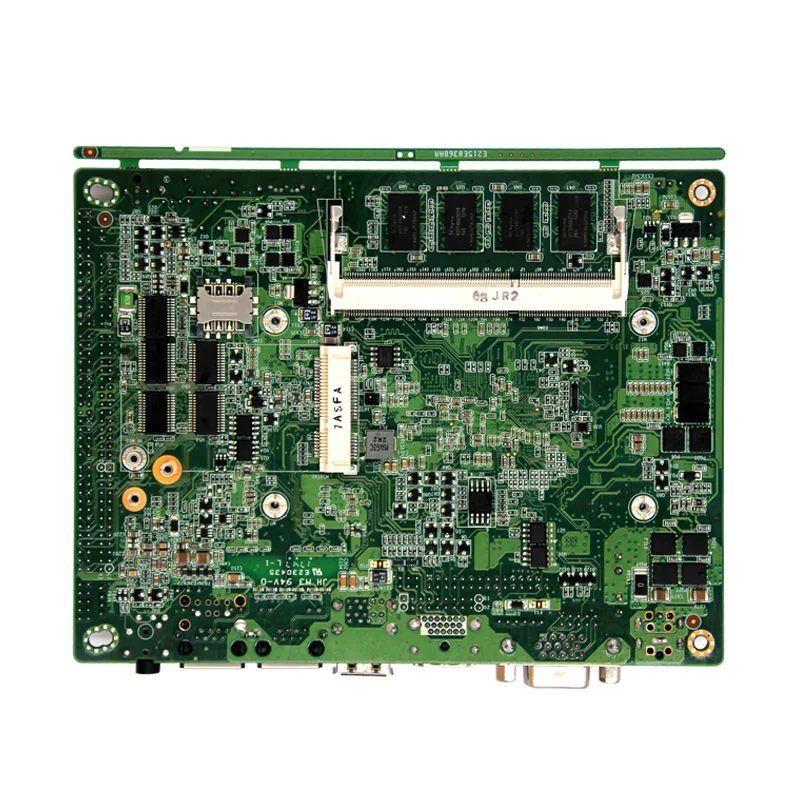

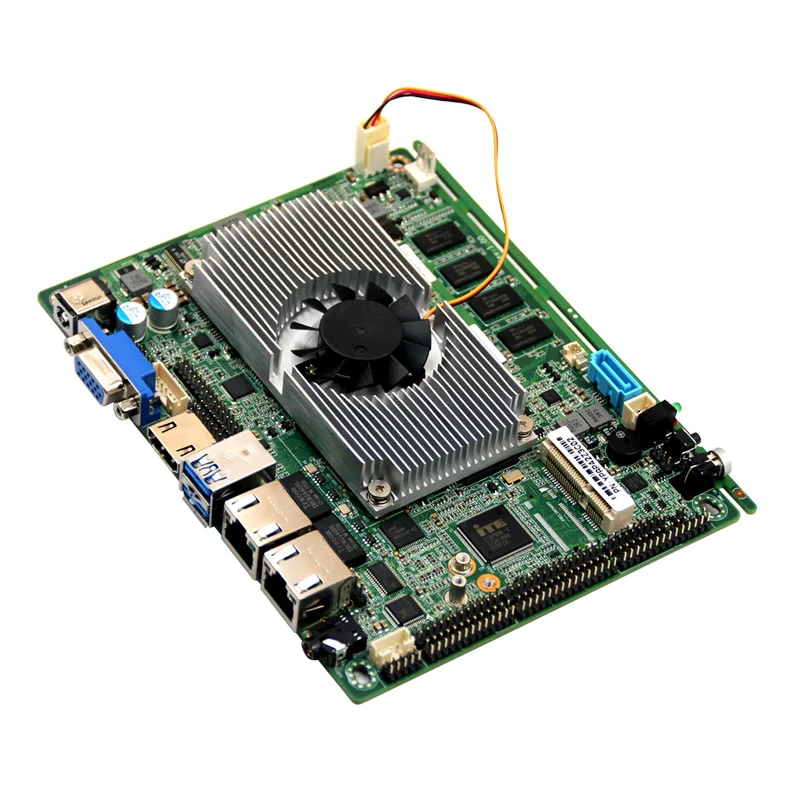

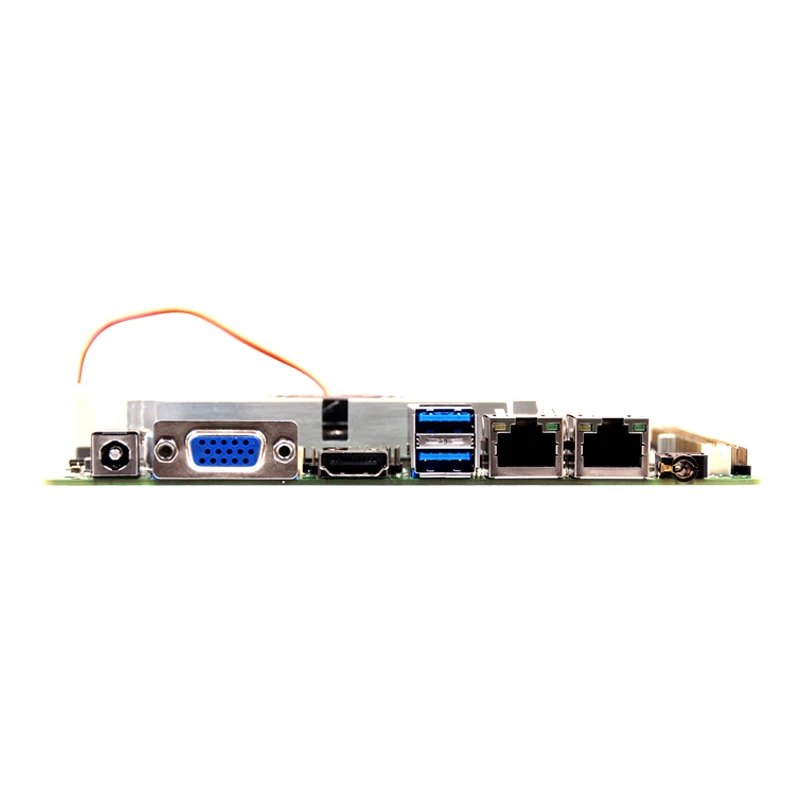

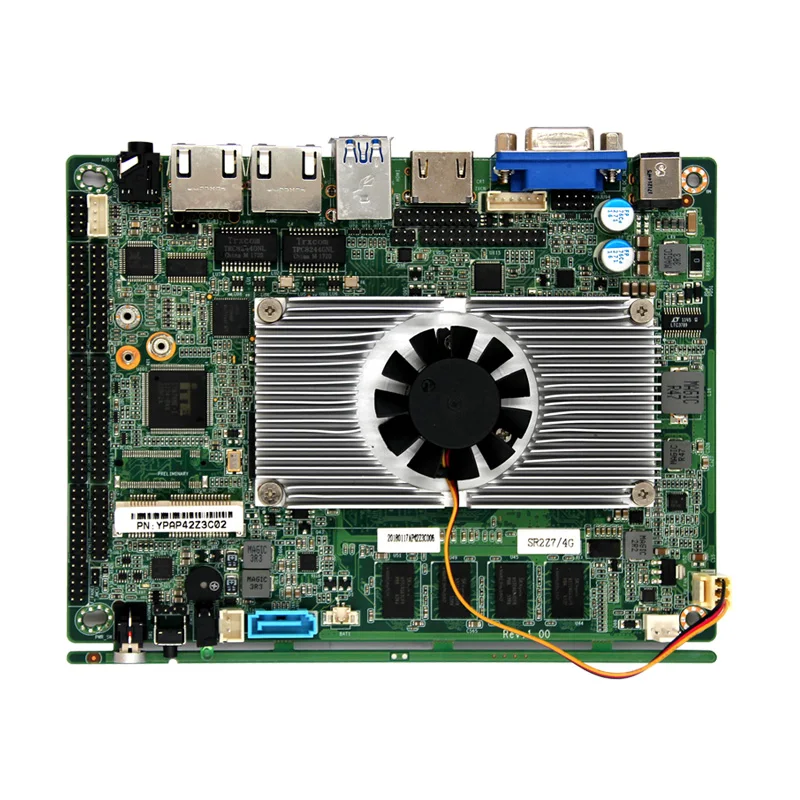

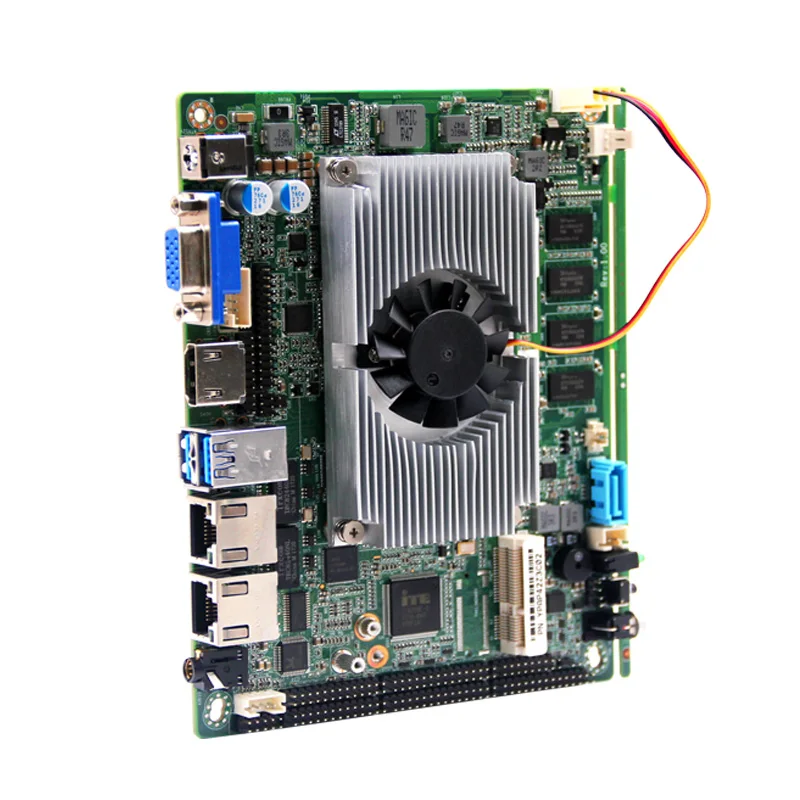

Products picture:
