Описание товара

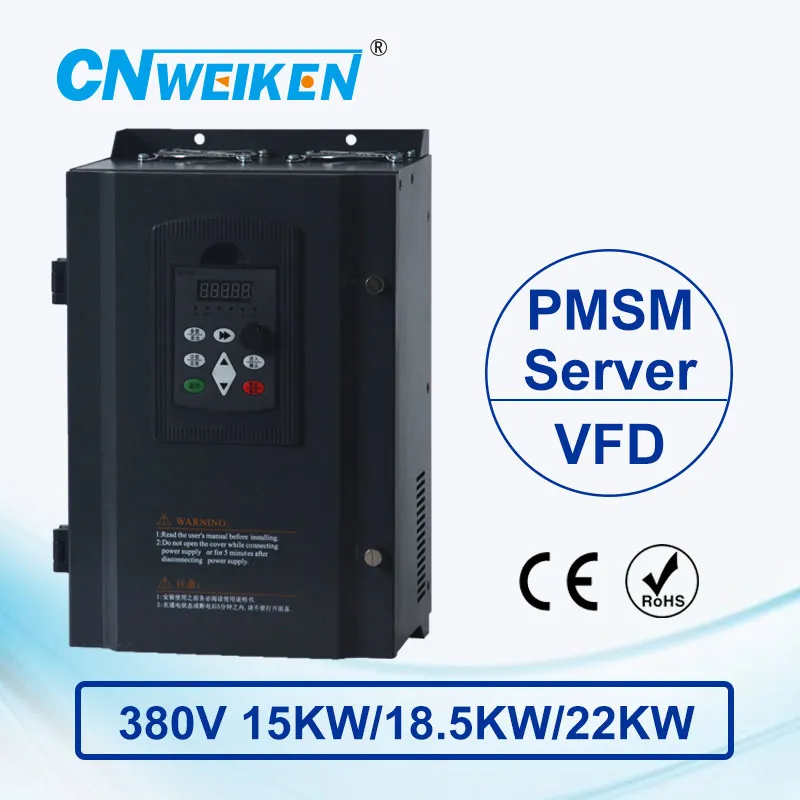

wk600B Vector Control frequency converter 15kw 18.5kw 22kw Three to Three-phase 380V Permanent Magnetic Synchronous Motor Drive
Type Selection Table
| 380V/15KW | 380V/18.5KW | 380V/22KW | |
| Model NO. | WK600B-0150-G3TB | WK600B-0185-G3TB | WK600B-0220-G3TB |
| Input voltage | 3 phase 380V±10% 50Hz/60Hz | ||
| Output voltage | Three phase 0-380V 0-500Hz | ||
| Power | 15KW/20HP | 18.5KW/25HP | 22KW/30HP |
| Rated current | 32A | 36A | 45A |

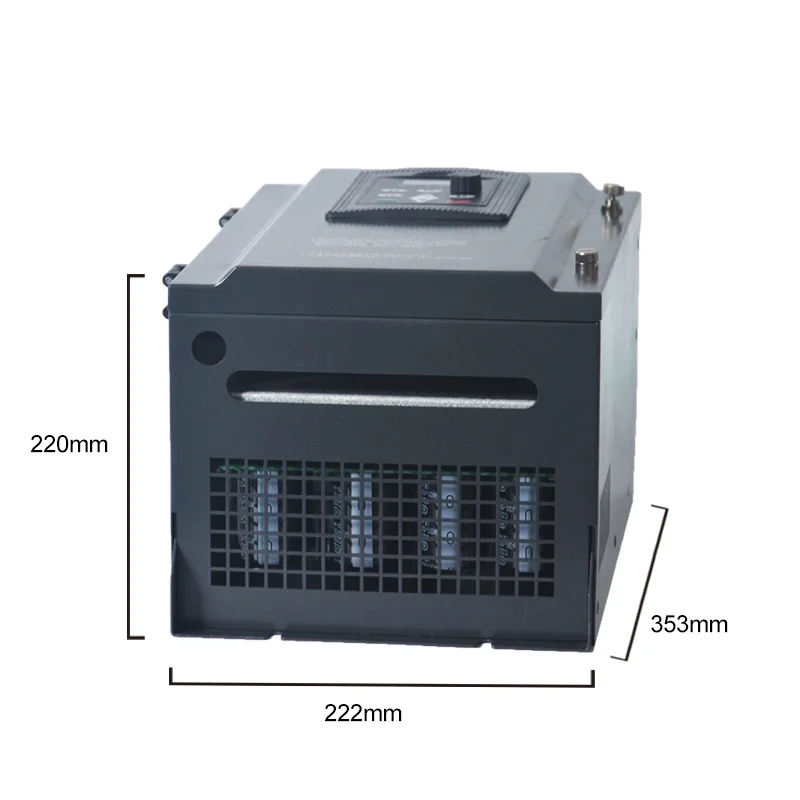

| Shape size(mm) | 345*230*200 | ||
| packing size(mm) | 385*300*290 | ||
| Weight | 12KG | 12KG | 12KG |
Type selection instructions:
1. Please read the product instructions carefully, choose the type according to the function and power you need, and avoid the damage caused by wrong wiring;

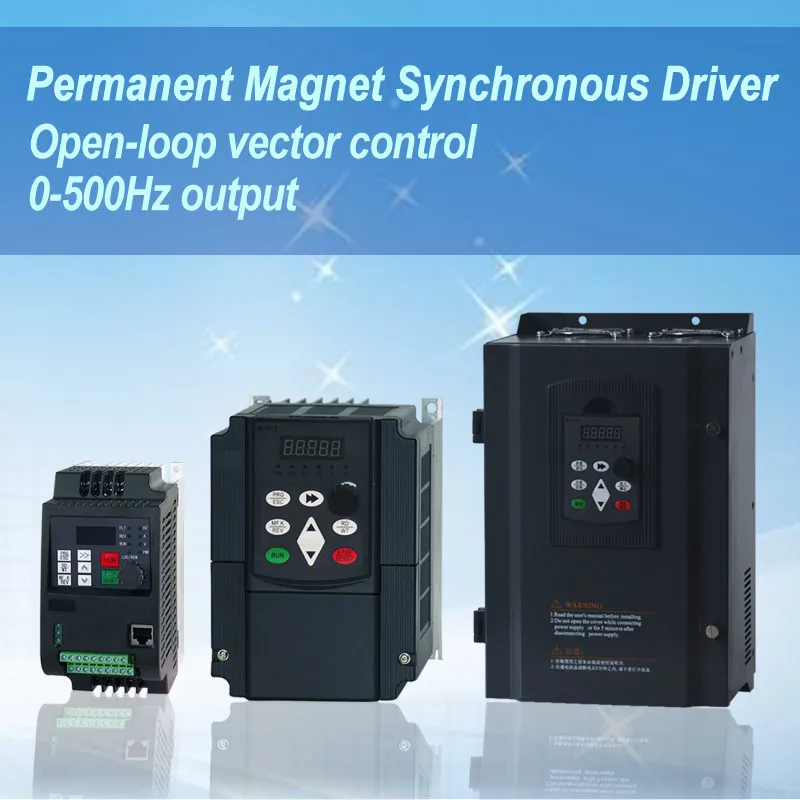

2. This product is a special frequency converter for three-phase AC permanent magnet synchronous motor. Normal three-phase asynchronous motor can not be used. Please pay special attention to it.;
3. This product does not support PG card, only supports open-loop vector control of PMSM, and does not support closed-loop vector control with encoder. Please pay special attention again.;
4. If you don't know how to choose the type, you can also contact us to give you some suggestions.;
Packing list
Packaging list:
machine * 1, streamlined version of product manual * 1 (including warranty card), extension line * 1 (keyboard introduction, need to be purchased separately), product qualification certificate * 1
Supplementary Note:
A. If you need detailed version of product manual, you can contact us to send it to you free of charge.
B. If there is no paper product manual in the packing case, it is because of product changes or upgrades. Please contact us for the latest and accurate electronic product manual.
RECOMMENDED ACCESSORIES

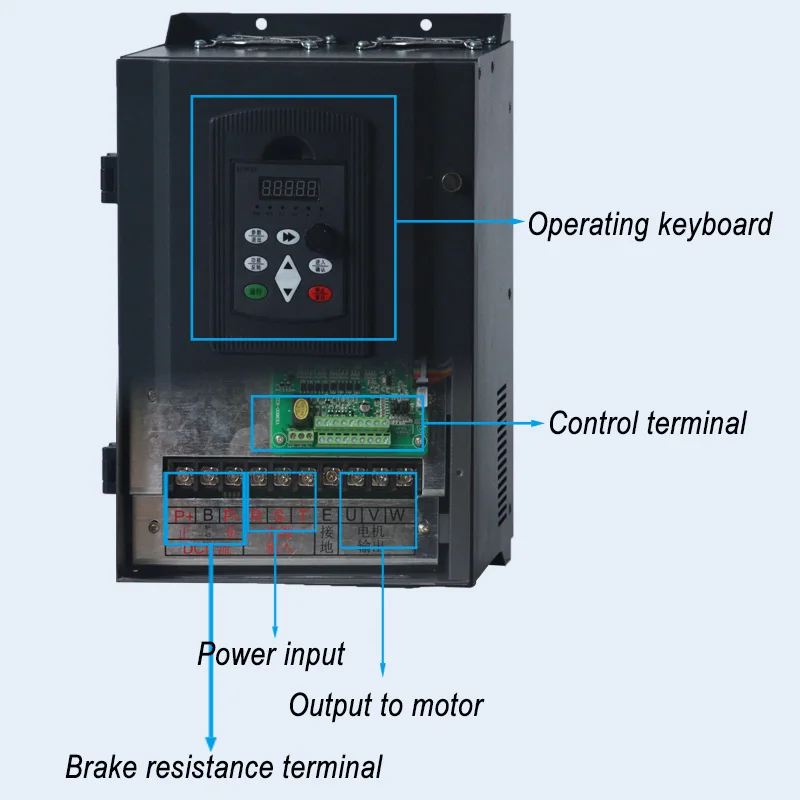

wiring diagram
R, S, T are input terminals of three-phase power supply of frequency converter （220v：S, T are input terminals of single phase power supply of frequency converter.
U, V, W are output terminals of frequency converter, and connected three-phase asynchronous motor. P and P B are connection terminals of brake resistance.
WHY DO YOU CHOOSE US?
I. Products and Technology
• Our products adopt the third generation vector technology and have excellent performance.
A. 0.25Hz can provide 150% starting torque.
B. Torque response speed less than 20 ms.
C. Providing Torque Limitation to Protect Equipment Safety.
• Our products have powerful functions.
A. Current limiting function—Avoiding Frequent Over-current Alarm of Frequency Converter.
B. Power dip ride through—Instantaneous power outage time converter will not shut down.
C. Simple PLC Programming—It can achieve up to 16-segment speed operation.
D. Multiple Protection of Motor—Short-circuit, phase-absence, over-current, over-voltage, under-voltage, over-heat, over-load protection, etc.
• Our products have a comprehensive configuration.
A. Built-in brake unit—Brake function can be realized by matching brake resistance
B. 18 functional terminals—Hundreds of functions can be realized through different combinations
C. Standard RS485 communication—It can communicate and monitor remotely with PLC or PC.
D. Relay output—More complex linkage control functions can be realized.

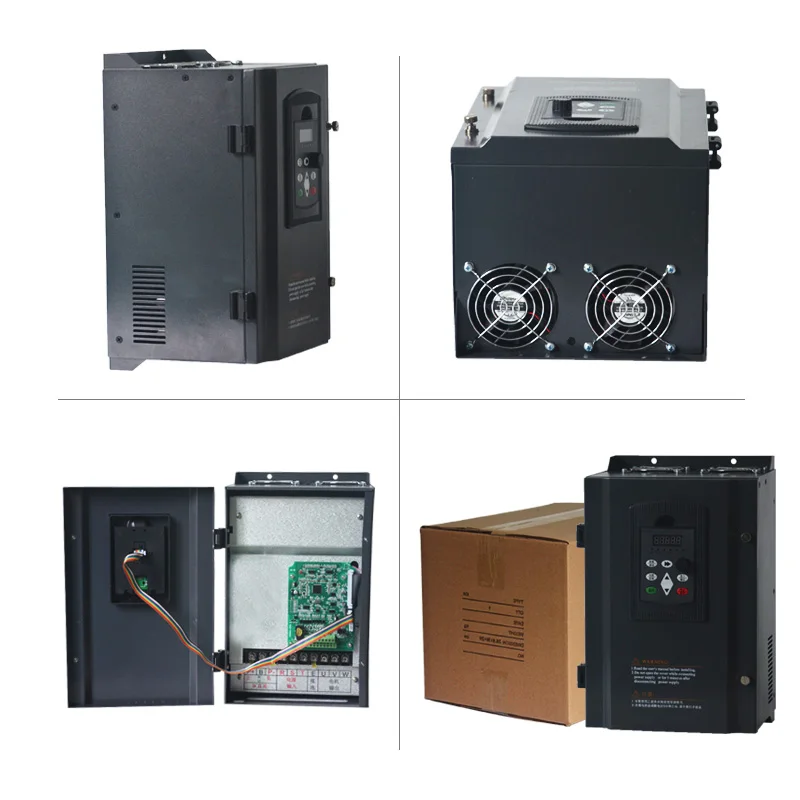

• Details of our products.
- 5-digit tube display
- High quality Components
- DC Heat Dissipating Fan
- Isolated aluminium heat dissipation base
• Our product technology
A. Terminal wiring diagram of our products
B. Technical specification for our products
| Item | Description | |
| Standard functions | Maximum frequency |
-Vector control: 0-500Hz - V/F control: 0-500Hz |
| Carrier frequency |
0.8kHz ~8.0kHz The carrier frequency is automatically adjusted based on the load features. |
|
| Input frequency resolution | Digital setting: 0.01 Hz Analog setting: Max. frequency x 0.025% | |
| Control mode | Sensorless vector control (SVC) Voltage/Frequency (V/F) control | |
| Startup torque | 0.25 Hz/150% (SVC) 0 Hz/180% (FVC) | |
| Speed range | 1:200 (SVC) | |
| Speed stability accuracy | ±0.5% (SVC) | |
| Torque control accuracy | ±2% (FVC); ±5% for 5 Hz above (SVC) | |
| Torque boost | Customized boost 0.1 % to 30.0 % | |
| V/F curve | Straight-line V/F curve Multi-point V/F curve Square V/F curve Complete V/F separation Half V/F separation | |
| Ramp mode | Straight-line ramp S-curve ramp | |
| Four separate acceleration/deceleration time settings in the range of 0.0s to 6500.0s. | ||
| DC injection braking | DC injection braking frequency: 0 Hz to max. frequency DC injection braking active time: 0.0s to 36.0s. | |
| Current level of DC injection braking: 0.0% to 100.0%. | ||
| Jog running | Frequency range of jog running: 0.00 to 50.00 Hz | |
| Acceleration/Deceleration time of jog running:0.0s to 6500.0s | ||
| Onboard multiple preset speeds | The system implements up to 16 speeds by using simple PLC function or by using digital input signals. | |
| Onboard PID | The system implements the proportional integral-derivative (PID) function in the closed-loop control. | |
| Automatic voltage regulation (AVR) | The system maintains a constant output voltage automatically when the grid voltage changes through the permissible range. | |
| Overvoltage and overcurrent stall control | The system limits the output current and voltage automatically during operation to prevent frequent or excessive trips. | |
| Overcurrent fast prevention | The function helps to avoid frequent overcurrent faults. | |
| Torque limit and control | The system limits the torque automatically to prevent frequent overcurrent tripping during operation. | |
| Torque control is applied in vector control. | ||
| Individualized Functions | Power dip ride- through | Load feedback energy compensates for any voltage reduction, allowing the drive to continue to operate for a short time during power dips. |
| Overcurrent fast prevention | The function helps to avoid frequent overcurrent faults. | |
| Virtual I/O | Five groups of virtual digital input/outputs (X/DO) support simple logic control. | |
| Timing control | Time range: 0.0 to 6500.0 minutes | |
| Dual-motor switchover | The drive have two groups of motor parameters and can control up to two motors. | |
| Multiple field buses | The drive supports four field buses: Modbus, PROFIBUS-DP, CANlink, and CANopen. | |
| Motor overheat protection | Option: The optional input/output (I/O) extension card allows AI3 to receive a signal from the motor temperature sensor input (PT100, PT1000) to implement motor overheat protection. | |
| Multiple encoder types | The drive supports a range of different encoder types: Differential encoder, open-collector encoder, and resolver. | |
| User programmable function | Option: The optional programming card supports secondary development in a programming environment compatible with the Inovance programmable logic controller (PLC). | |
| Advanced background software | Software in the drive allows users to configure some operating parameters, and provides a virtual oscilloscope display that shows system status. | |
| RUN | Running command | Allows different methods of switching between running commands: Operating panel (keypad & display); terminal I/O control; and serial communication |
| Main frequency reference setting channel | Supports up to 10 frequency reference setting channels and allows different methods of switching between frequency reference setting channels: | |
| Digital setting | ||
| Analog voltage reference Analog current reference Pulse reference Communication reference | ||
| Auxiliary frequency reference setting channel | Supports up to 10 auxiliary frequency sources, and allows fine tuning of the auxiliary frequency and main & auxiliary calculation. | |
| Input terminals | Standard: | |
| Six digital input (X) terminals, one of which supports up to 100 kHz high-speed | ||
| pulse inputs. | ||
| Two analog input (AI) terminals, one of which supports only 0 to10 V input, and the other supports 0 to 10 V and 0 to 20 mA current input. | ||
| Output terminals | Standard: | |
| Single high-speed pulse output terminal (open-collector) for a square-wave signal output | ||
| In the frequency range 0 to 100 kHz Single digital output (DO) terminal Single relay output terminal | ||
| Single analog output (AM) terminal that supports either a current output in the range 0 to 20 mA or a voltage output in the range 0 to 10 V. | ||
| Display | LED display | It shows parameter values. |
| LCD display | It is optional and shows parameters in Chinese or English. | |
| Copy | The LCD operating panel can be used to copy parameters quickly. | |
| Key locking and functions election | Keys on the control panel can be locked or partially locked electronically to prevent accidental operation. | |
| Protections | Phase loss protection | Input phase loss protection Output phase loss protection |
| Instantaneous overcurrent protection | Stop when 250% of rated output current is exceeded. | |
| Overvoltage protection | Stop when the DC bus voltage is above 820 V. | |
| Overvoltage protection | Stop when the DC bus voltage is below 350 V. | |
| Overheat protection | Protection triggered when the AC Drive bridge gets overheated. | |
| Overload protection | Stop after running at 150% of rated current for 60 seconds. | |
| Overcurrent protection | Stop when 2.5 times of rated current of the AC drive is exceeded. | |
| Braking protection | Braking unit overload protection Braking resistor short-circuit protection | |
| Short-circuit protection | Output phase-to-phase short-circuit protection Output phase-to-ground short-circuit protection | |
| Installation location | Install the AC Drive where it is indoors and protected from direct sunlight, dust, corrosive or combustible gases, oil smoke, vapor, ingress from water or any other liquid, and salt. | |
| Environment | Altitude | Below 1000 m |
| If the altitude exceeds 1000 m, de-rating by 1% for per 100 m increase Max. 3000 m (Note: The maximum altitude for 0.4 to 3 kW drives is 2000 m. For use at altitude over 2000 m, contact Inovance.) | ||
| Ambient temperature: | -10℃ to +40℃ | |
| If the ambient temperature is not in this range, de-rating by 1.5% per 1℃ increase. | ||
| Max. temperature: 50℃ | ||
| Humidity | Less than 95% RH non-condensing | |
| Vibration | Less than 5.9 m/s2 (0.6 g) | |
| Storage temperature | -20℃ to +60℃ | |
