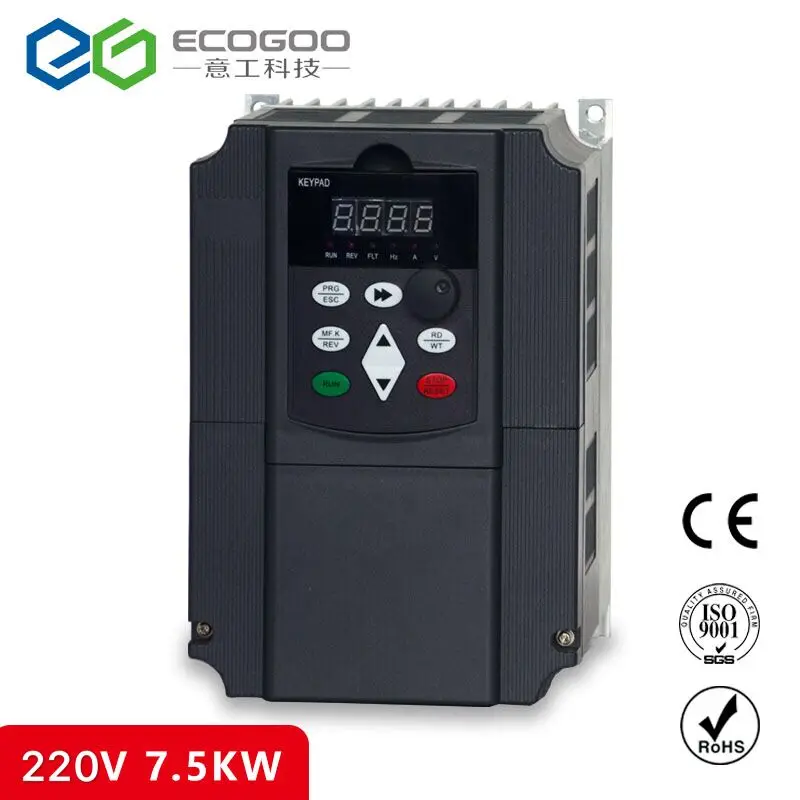

7.5kw Inverter 220V Single Phase Input and 380V 3 Output Frequency Converter Adjustable Speed VFD For Spindle Motor | Обустройство

7.5kw Inverter 220V Single Phase Input and 380V 3 Output Frequency Converter Adjustable Speed VFD For Spindle Motor | Обустройство

VFD inverter 7.5KW 220v input 380V output HY07D523B-T 7500W variouble frequency driver

Specification:

Product name: General 220V to 380V AC motor frequency inverter VFD

Rated power:7.5kw 10HP

Output frequency:0-400HZ

Input voltage:1 phase 220V

Output voltage:3 phase 380v

Adapter motor: no more than 5.5kw 7.5HP AC motor

+Advantages of  Frequency inverters

We have sophisticated engineers, scientific producing workmanship and management team with rigorous quality control systems , frequency inverter are equipped with advanced features as below:
01 V/F control, vector control  and output torque control;
02 Built-in RS-485 communication interface
03 Compact size, easy to install;
04 With a speed potentiometer and external panel;
05 Built-in synchronous control and proportional synchronization control;
06 16 speed control modest,Can run automatically;
07 Can choice multiple running commands or frequency channel;
08 Can be achieve Part or all of the keys locked(Analog potentiometer unlock);
09 Relay normally open or closed and two high configuration output have 100 kinds of ways optional;
10 6 digital opto-isolated inputs, 100 kinds of ways optional;
11 3 analog input, 1 analog output channel;
12 Having textile pendulum frequency function, It can be widely applications for many kinds of textile
      equipment;
13 Built-in user timer / counter;
14 Built-in PID regulation function to facilitate the realization of closed loop control of the temperature,
      pressure and tension.
15 At zero speed time,can be achieve output 0-100% of Adjustable torque,With zero speed brake
      function,instead foreign inverter application on freight elevator and crane.
