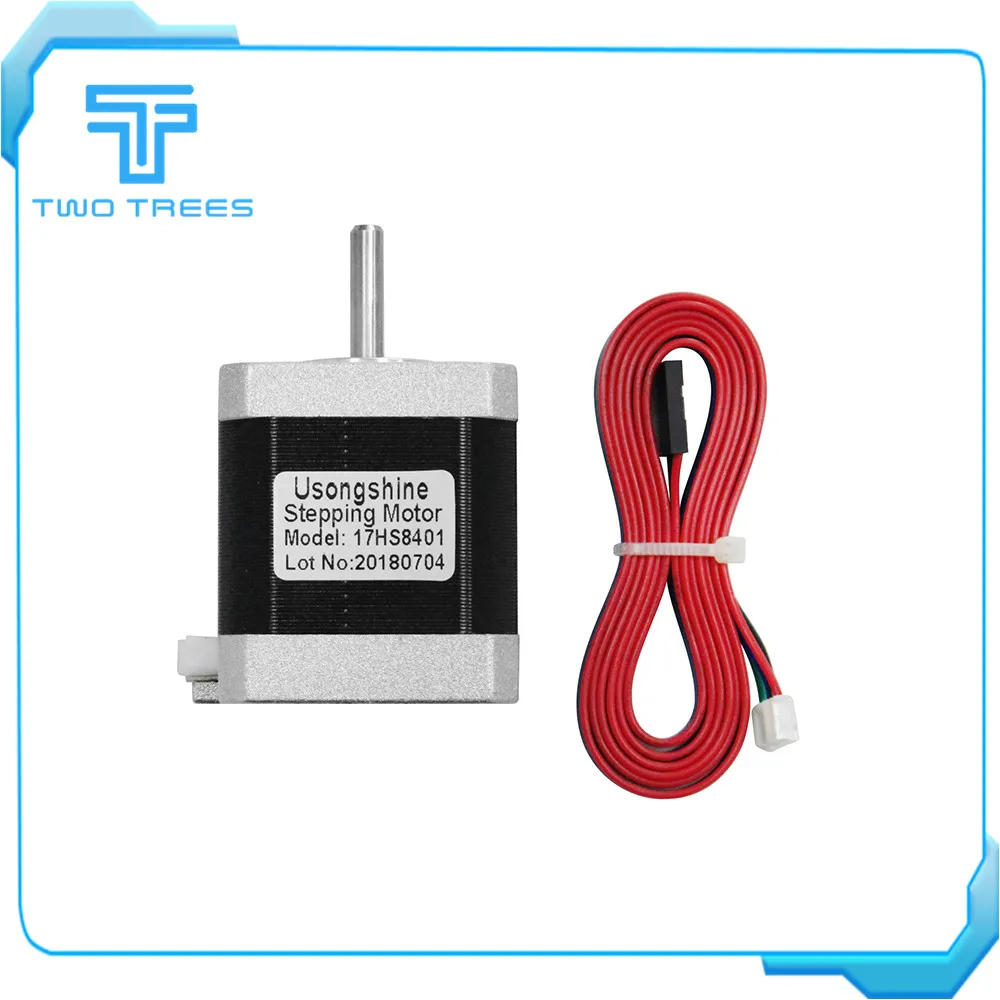

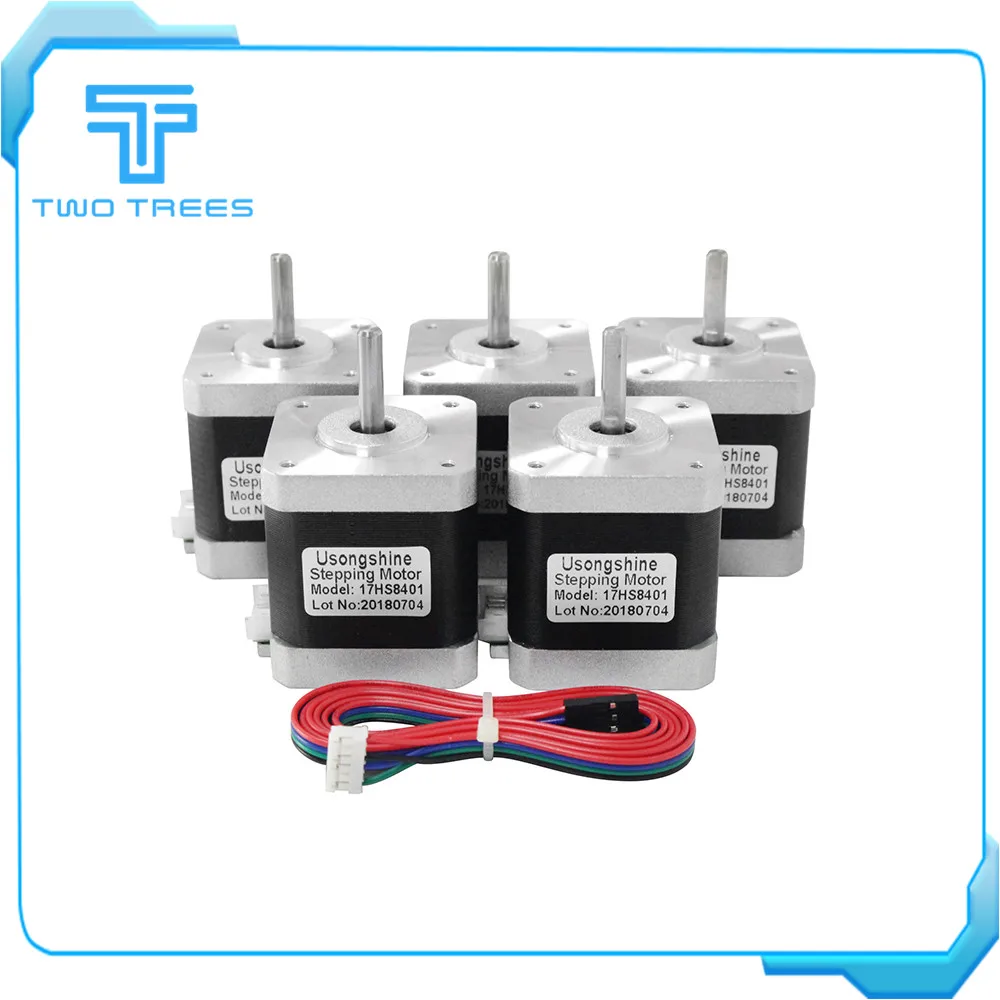

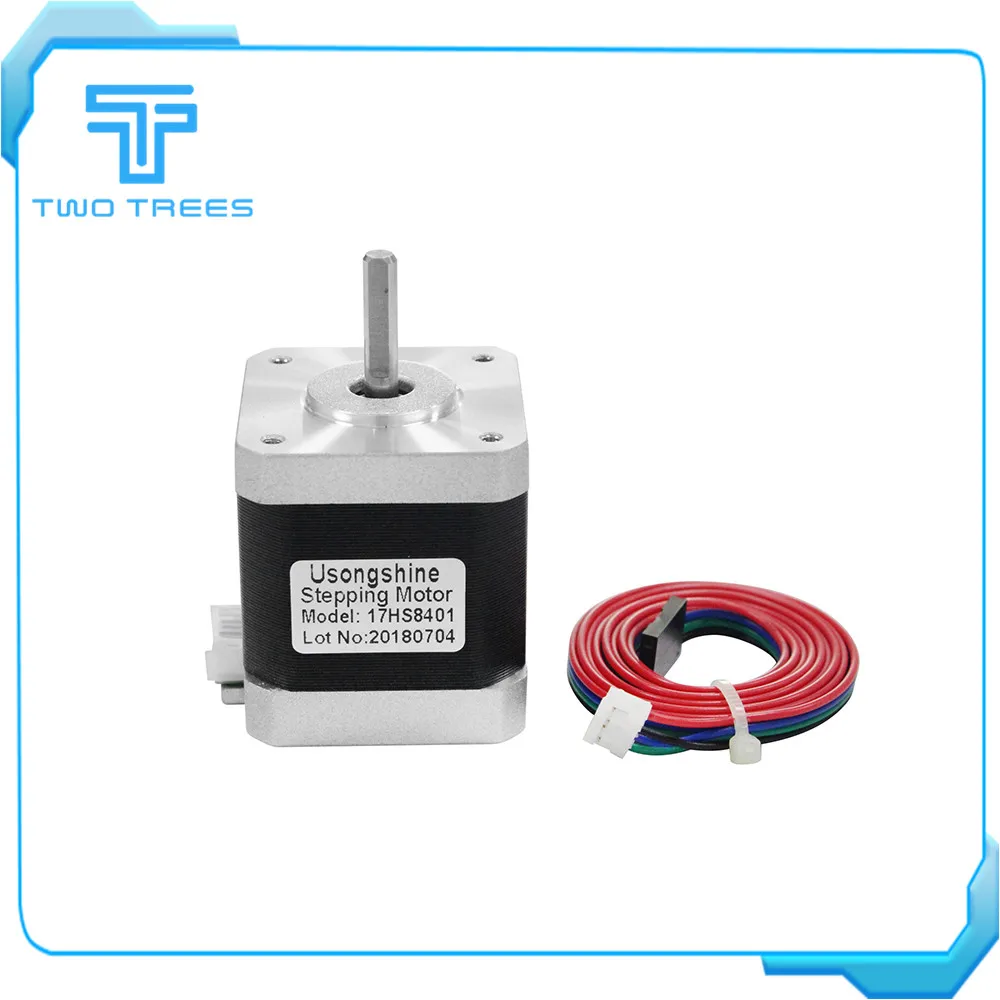

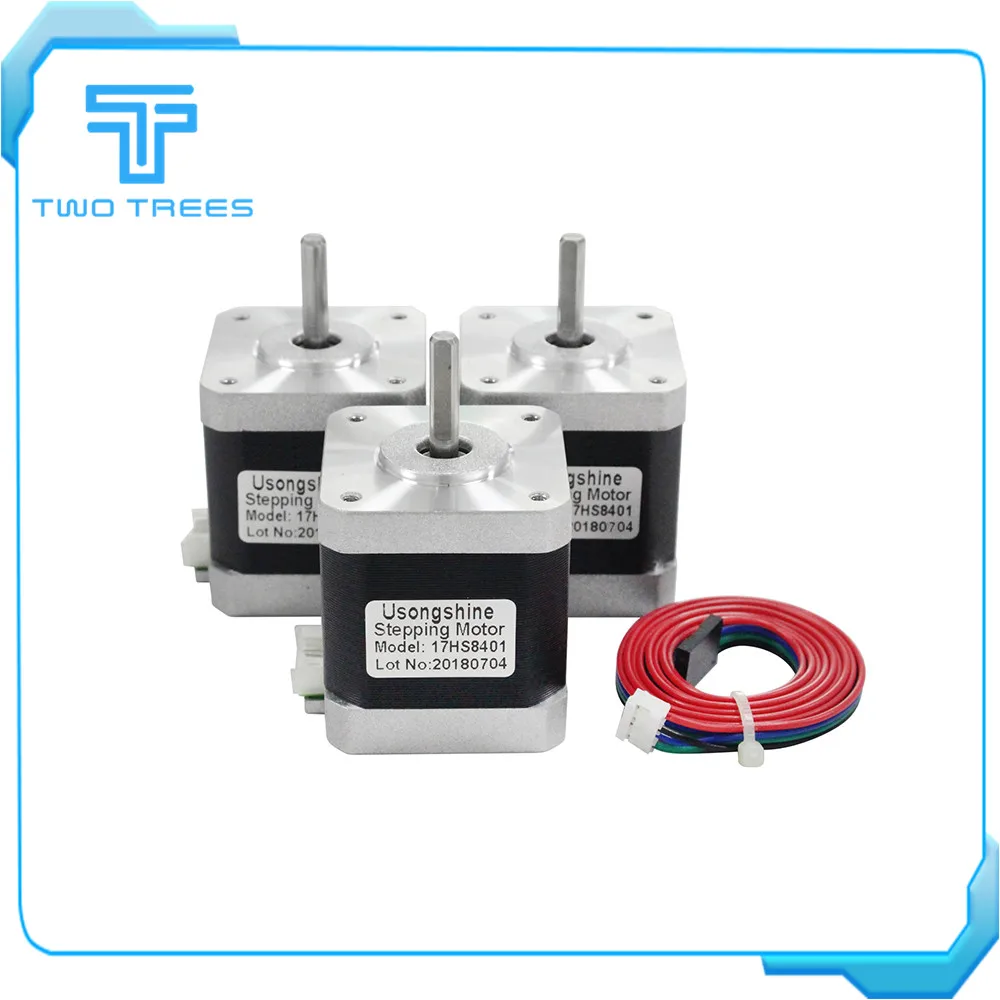

Usongshine 5pcs/lot Nema17 Stepper Motor 42 motor 48MM Nema 17 42BYGH 1.7A (17HS8401) 4-lead for 3D printer CNC XYZ | Компьютеры и

Usongshine 5pcs/lot Nema17 Stepper Motor 42 motor 48MM Nema 17 42BYGH 1.7A (17HS8401) 4-lead for 3D printer CNC XYZ | Компьютеры и

Model : 17HS8401

Step Angle :1.7

Motor Frame Size : 41.5mm * 41.5mm * 47mm  (Length*Width *Height )

Shaft : 22mm(Lenght)  5mm(Diameter)

Outlet way : 4Pin plug line

General Specification:

Step angle accuracy: +/ - 5%(full step,not load)

Resistance accuracy: +/ - 10%

Inductance accuracy: +/ - 20%

Temperature rise: 80deg Max(rated current,2 phase on)

Ambient temperature ----------—20deg ~+50deg

Insulation resistance:100MΩ Min,500VDC

Insultion Strength--------500VAC for one minute

Note:We can manufacture products according to customer's requirements.

Red: A+

Blue: A-

Green: B+

Black: B-
