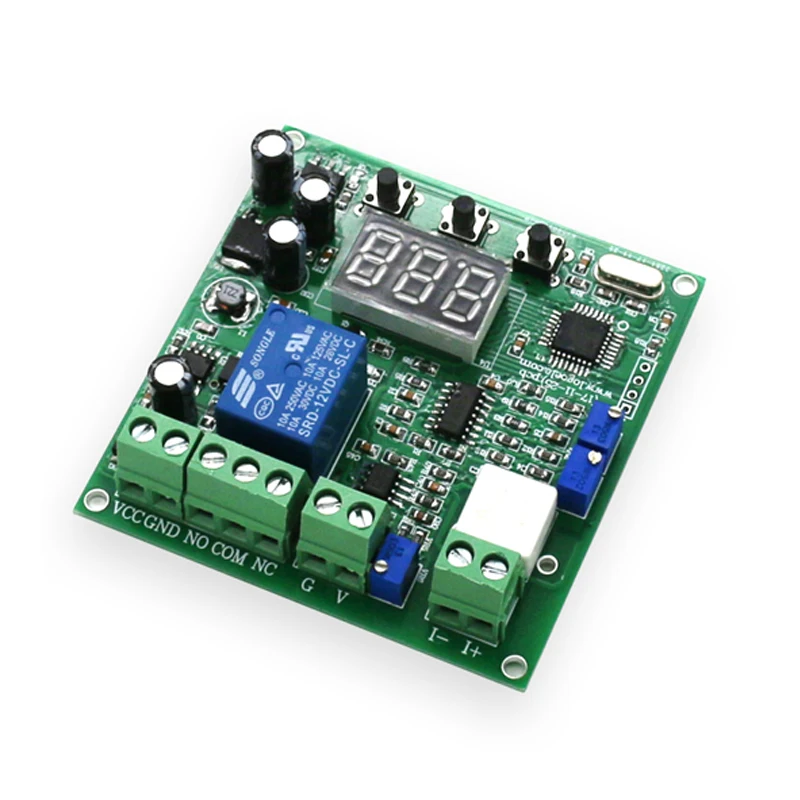

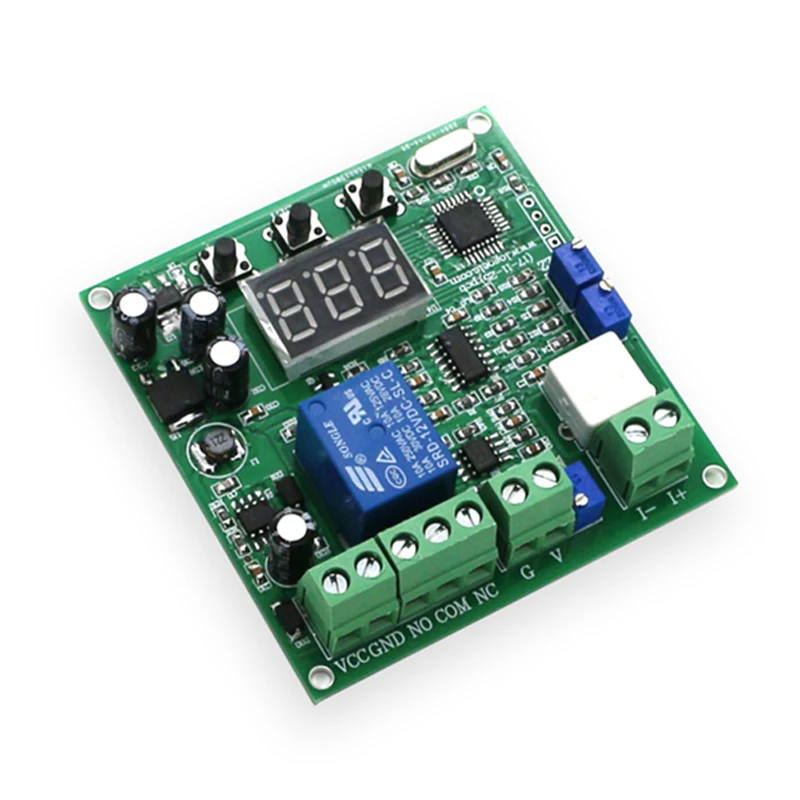

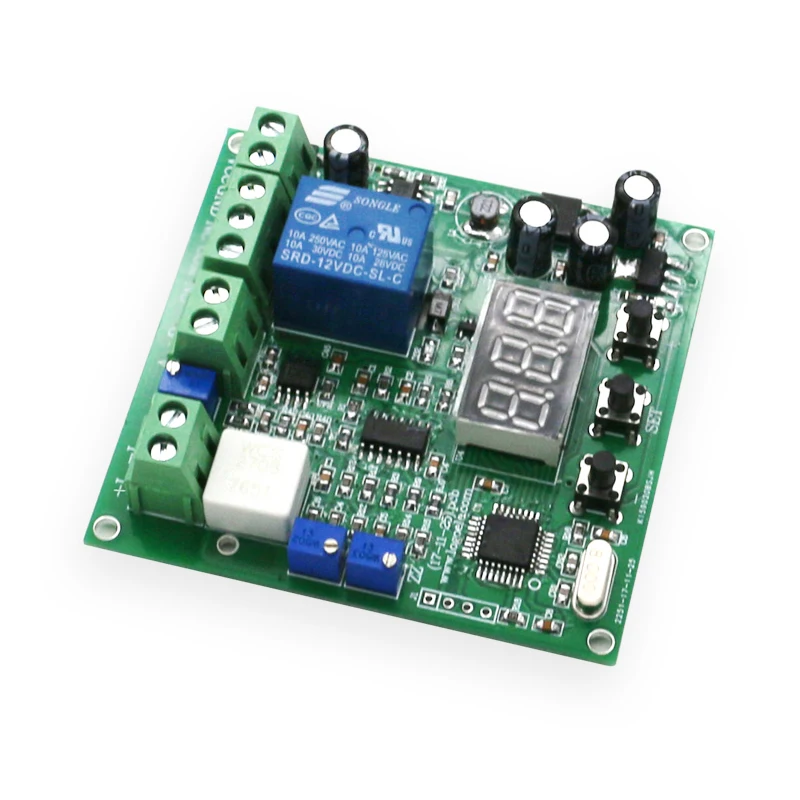

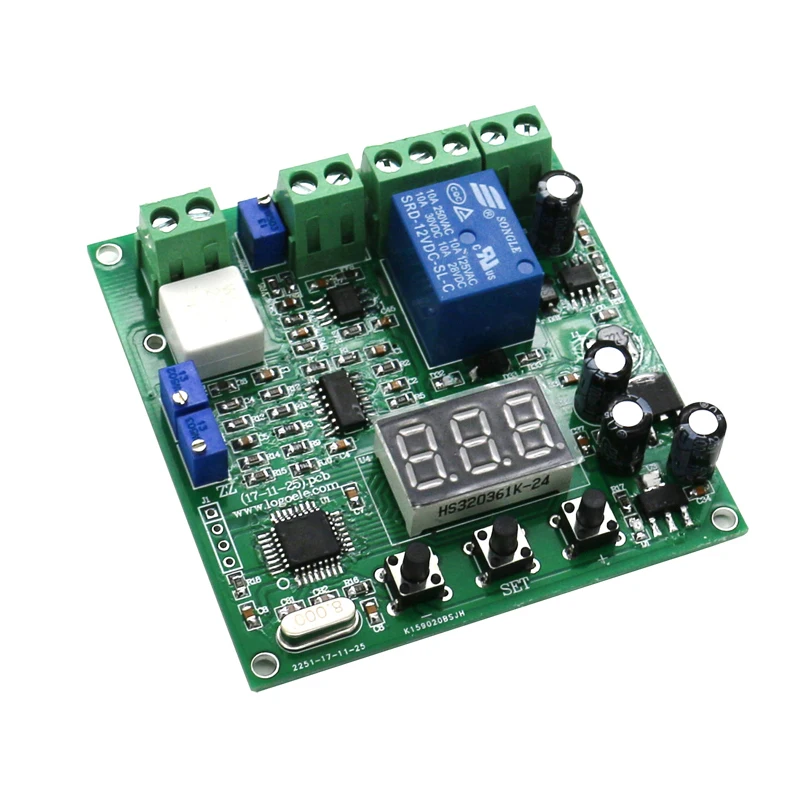

DC Current Detection Sensor Module Overcurrent Protection Linear Output Delay DC 0-5A

Product Description:

Operating voltage (DC)		Min	Type	Max
		15V	24V	30V
Working current	When testing current	-	36mA	40mA
	Relay action	-	65mA	70mA
examination range		-	DC 0-1A	-
			DC 0-5A
Measurement error		±1%F*S	±2.0%F*S	±2.5%F*S
Isolate the voltage	DC 0-1A	-	DC 300V	DC 1000V
	DC 0-5A		DC 300V	DC 1000V

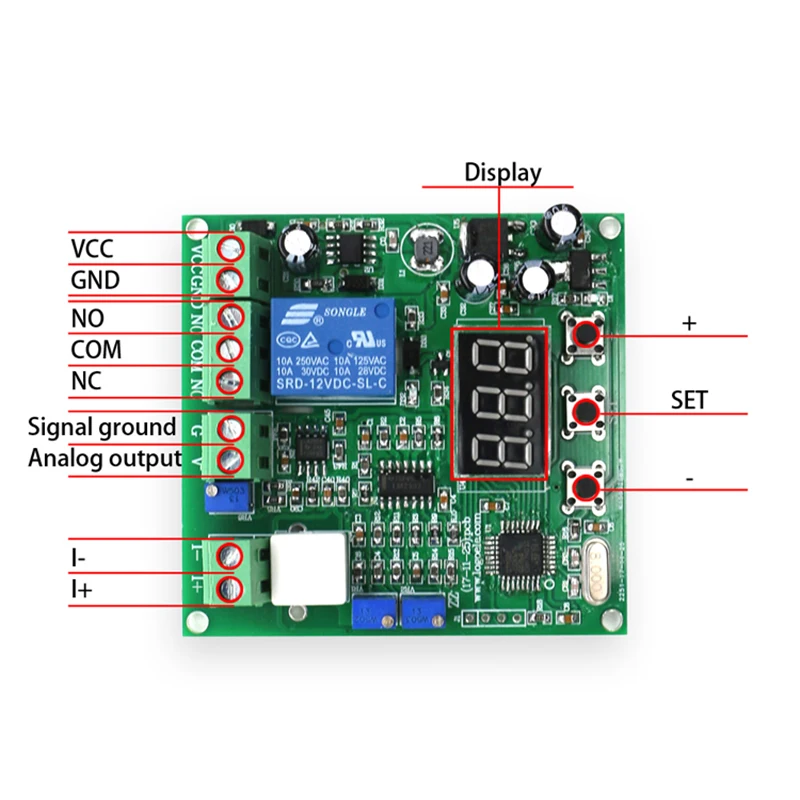

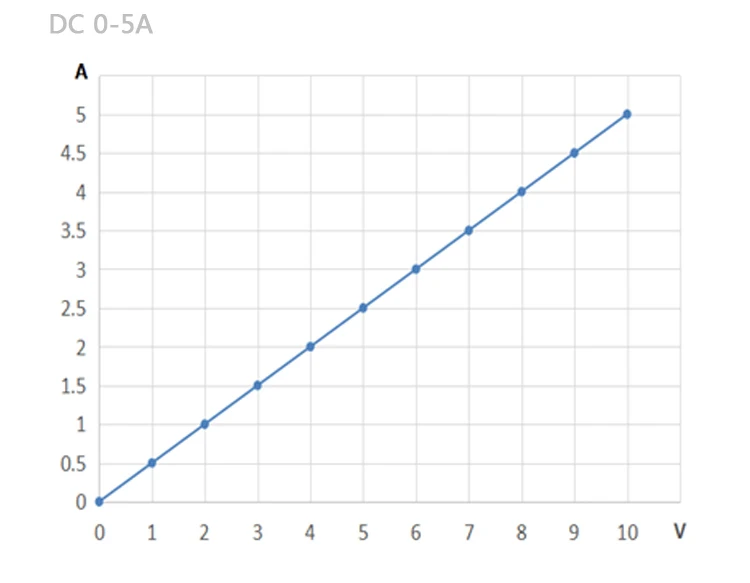

  1, working environment Temperature range: 0-65 ℃ Humidity range: 10 ~ 95% RH (non-condensing)   2, the output mode: ① analog signal: 0-10V(see DC 0-5A ) ② switch signal: the relay output, the fastest response time (300mS) ③ delay time setting: delay time setting range: 0-99.9S, the module default: 3S   3, size (error range ± 1mm): Only module: 71.5mm * 69mm * 23mm With base: 89mm * 71.5mm * 50mm   4, the installation method: Module only: Positioning the mounting hole.  With base: C45 standard rail   5, the threshold current and delay time setting method: ① Press and hold the SET key 3-5S to release, the digital tube enters the threshold current setting state, the last digit of the digital tube is flashing. ② Set the threshold current by pressing the + key or - key, and press the SET key to perform the transposition (ie flashing forward one digit) ③ After the setting is completed, press and hold the SET key 3-5S to release, the digital tube returns to the initial interface (000), which means the setting is successful. ④ Press and hold the SET button, the module will automatically enter the time setting interface, the setting method refer to 6.2 and 6.3. (The time setting default interface is shown as: 03.0)





Package include:

1 *  DC Current Detection Sensor Module
