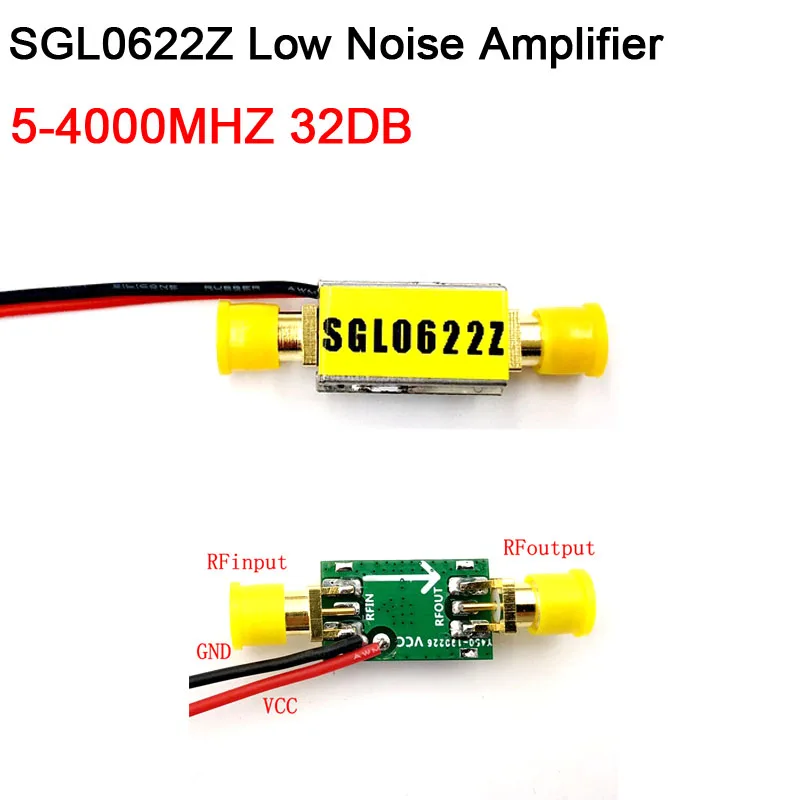

DYKB SGL0622Z 5 МГц до 4000 32 дБ LAN малошумный мощный Радиочастотный усилитель с высоким

First, the module parameters
1, power supply: 3.3V (15mA)
2. Gain: 32DB@1GHz

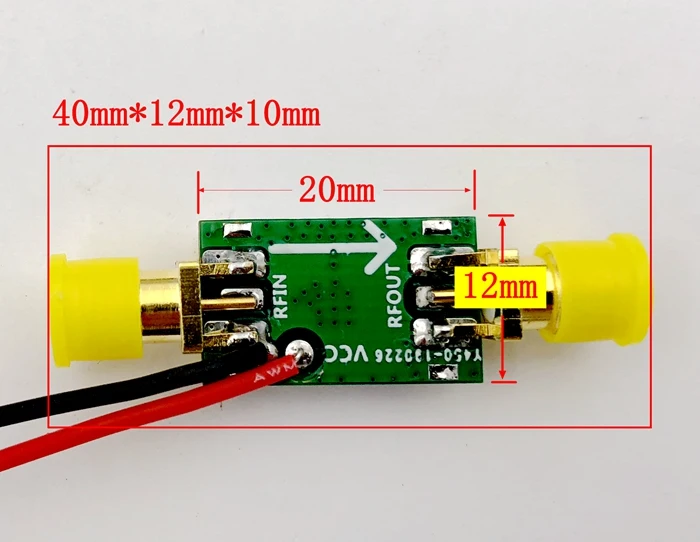

3, size:

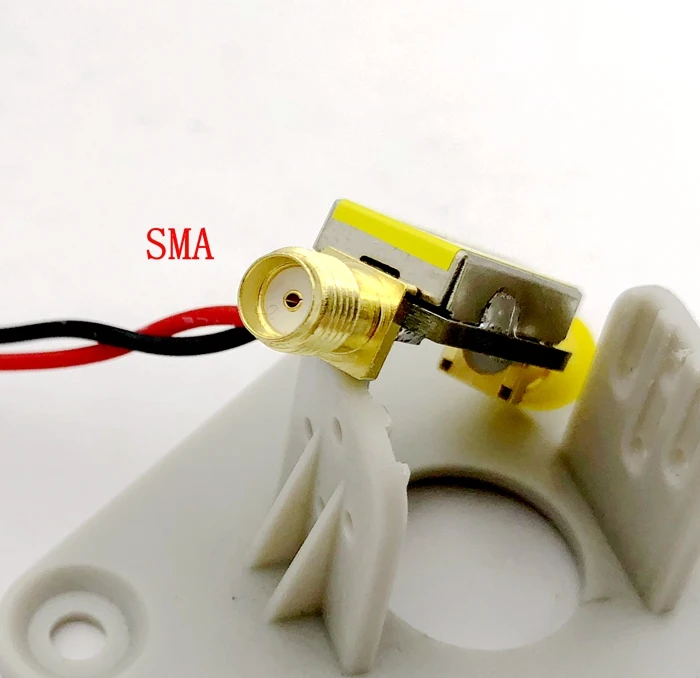

Length * width * height (40mm * 12mm * 10mm) This size is included in the protruding SMA interface
     Length * width * height (20mm * 12mm * 6mm) does not contain SMA interface
4, noise figure: 1.4dB@1.575MHz
5, P1dB=6dB@1.575MHz
6, working frequency: 5-4000MHz
7, input and output impedance: 50Ω
8, noise figure: 1.4dB (typical)



Package Contents
100% Brand New
1 XRF Broadband Power Amplifier
