Описание товара
Descriptions:
1.The instrument uses an active crystal oscillator as the reference, and the frequency accuracy can reach the order of 10-6.

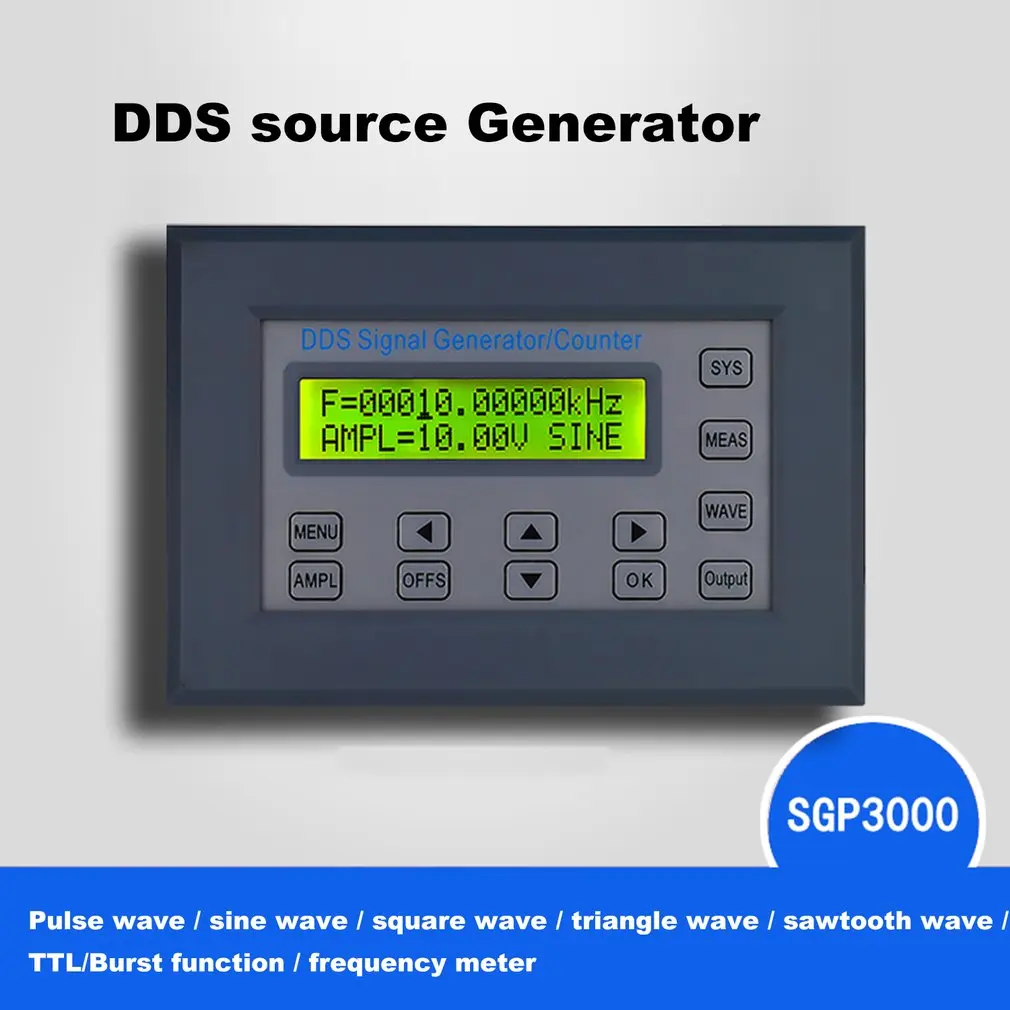

2.SGP3000 series DDS signal generator is a signal generator product that Feiyi Technology introduced in 2015, which is cost-effective and convenient for customer system integration assembly.

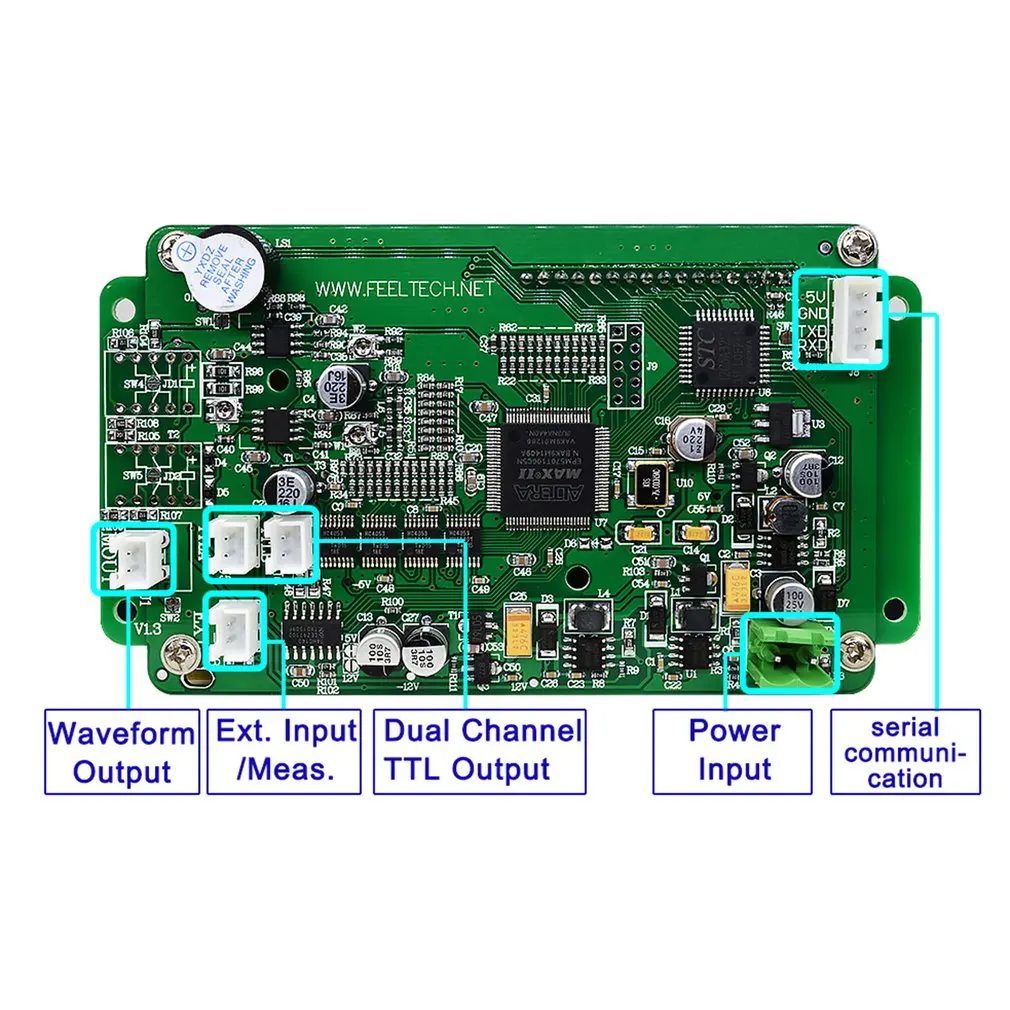

3.The instrument uses large-scale FPGA integrated circuit and high-speed MCU microprocessor, and the internal circuit is active. The crystal is used as a reference and the signal stability is high.

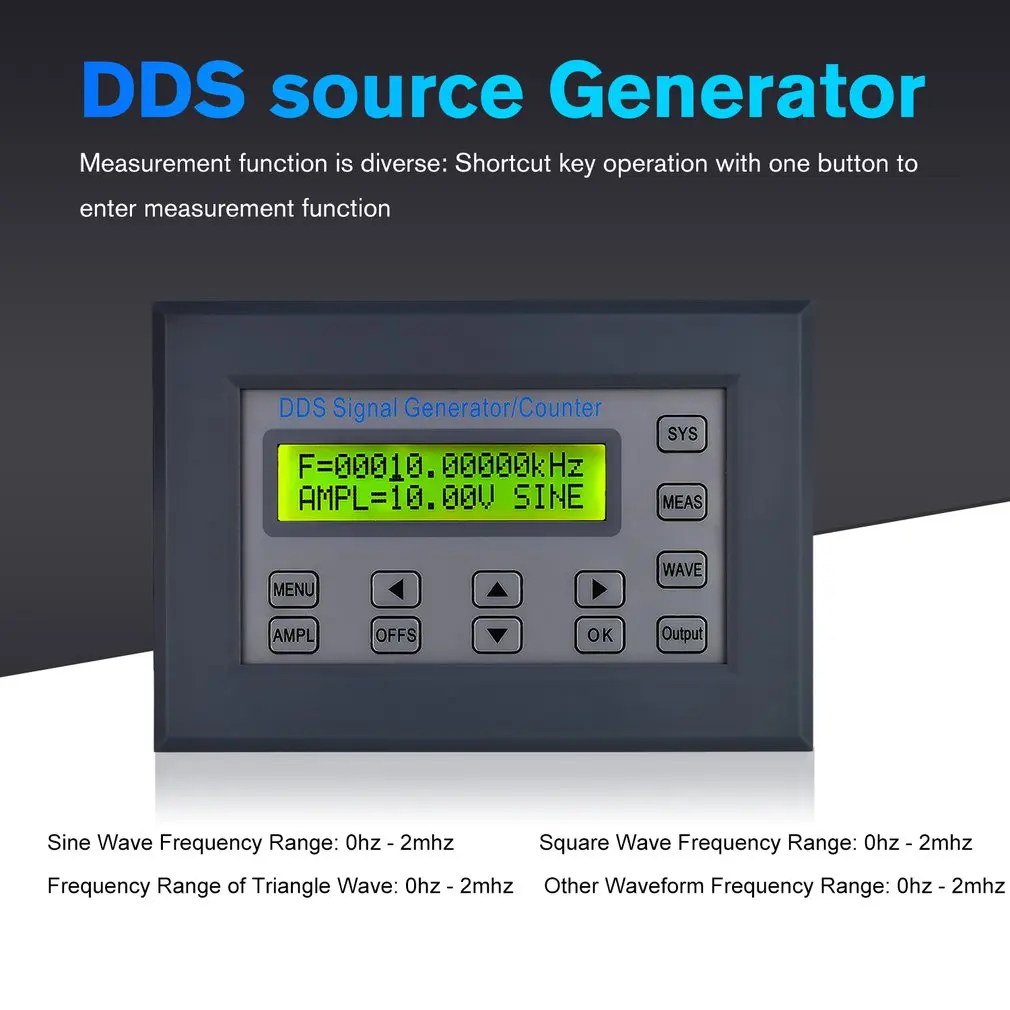

4.The surface mount technology greatly improves the anti-interference and service life of the instrument. The display interface adopts LCD1602 liquid crystal display, which is divided into upper and lower lines.
5.The upper line shows the current frequency, and the lower line shows other parameters or functions that are variable. The instrument has great advantages in signal generation, waveform scanning, parameter measurement and use.
6.It is an ideal test and measurement equipment for electronic engineers, electronic laboratories, production lines and teaching and research.
Specifications:
Brand Name: FellTech
Product Name: DDS source Generator
Type: US
Material: Plastic&Metal
Color: Black

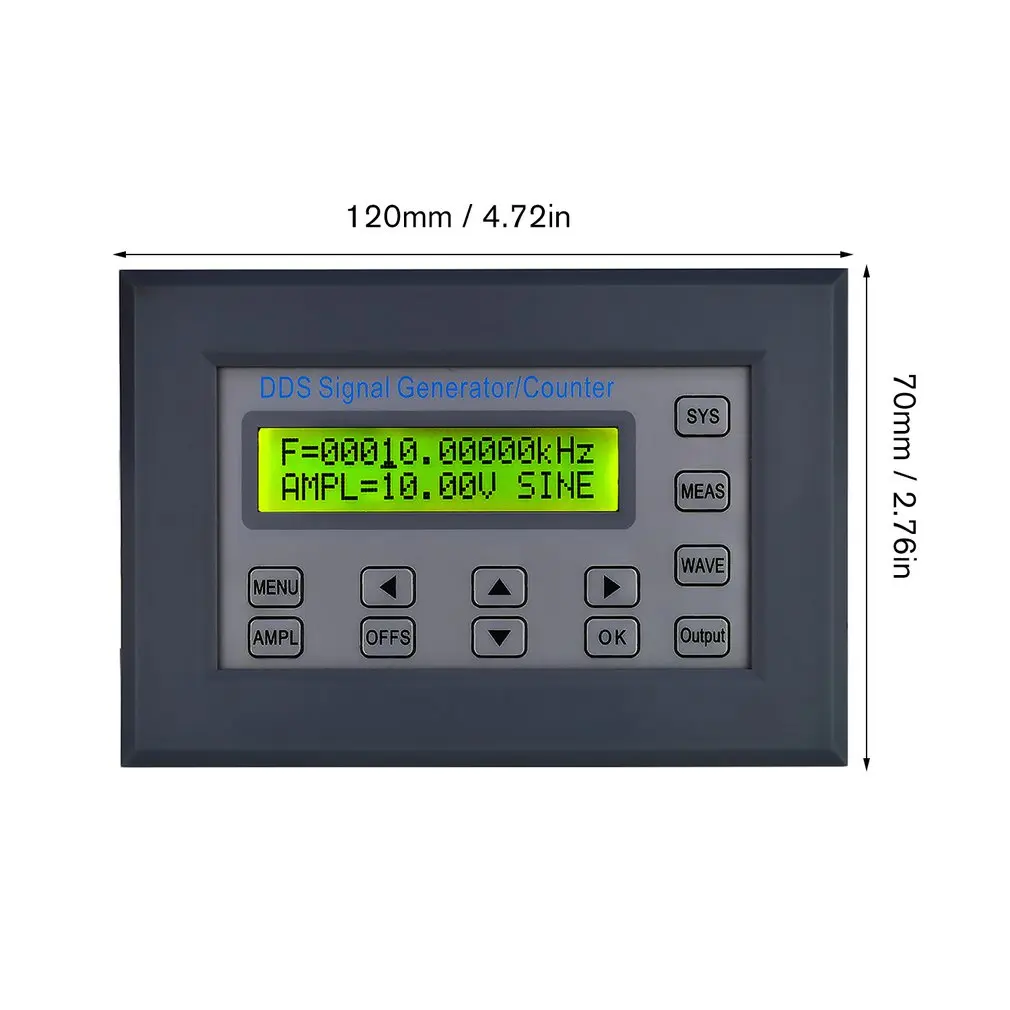

Size: 120x70x30mm/4.72x2.76x1.18in
Model Number: SGP3015S
Sine Wave Frequency Range: 0hz - 15mhz
Square Wave Frequency Range: 0hz - 5mhz
Frequency Range of Triangle Wave: 0hz - 5mhz
Other Waveform Frequency Range: 0hz - 5mhz
Output Amplitude: 0~20vp-p (no Load)
Output Impedance: 50Ω±10%
Dc Offset: ±10v
Frequency Resolution: 0.01hz (10mhz)
Frequency Accuracy: ±5×10-6
Frequency Stability: ±2×10-6/3 Hours
Sinusoidal Distortion: ≤0.8% (reference Frequency 1khz)
Triangle Wave Linearity: ≥98% (0.01hz~10khz)
Square Wave Rise and Fall Time: ≤30ns
Square Wave Duty Cycle Range: 1%~99%
Package Informations:
Package Size: 160x100x60mm/6.3x3.94x2.36in
Package weight: 350g/12.35oz
General Box Package

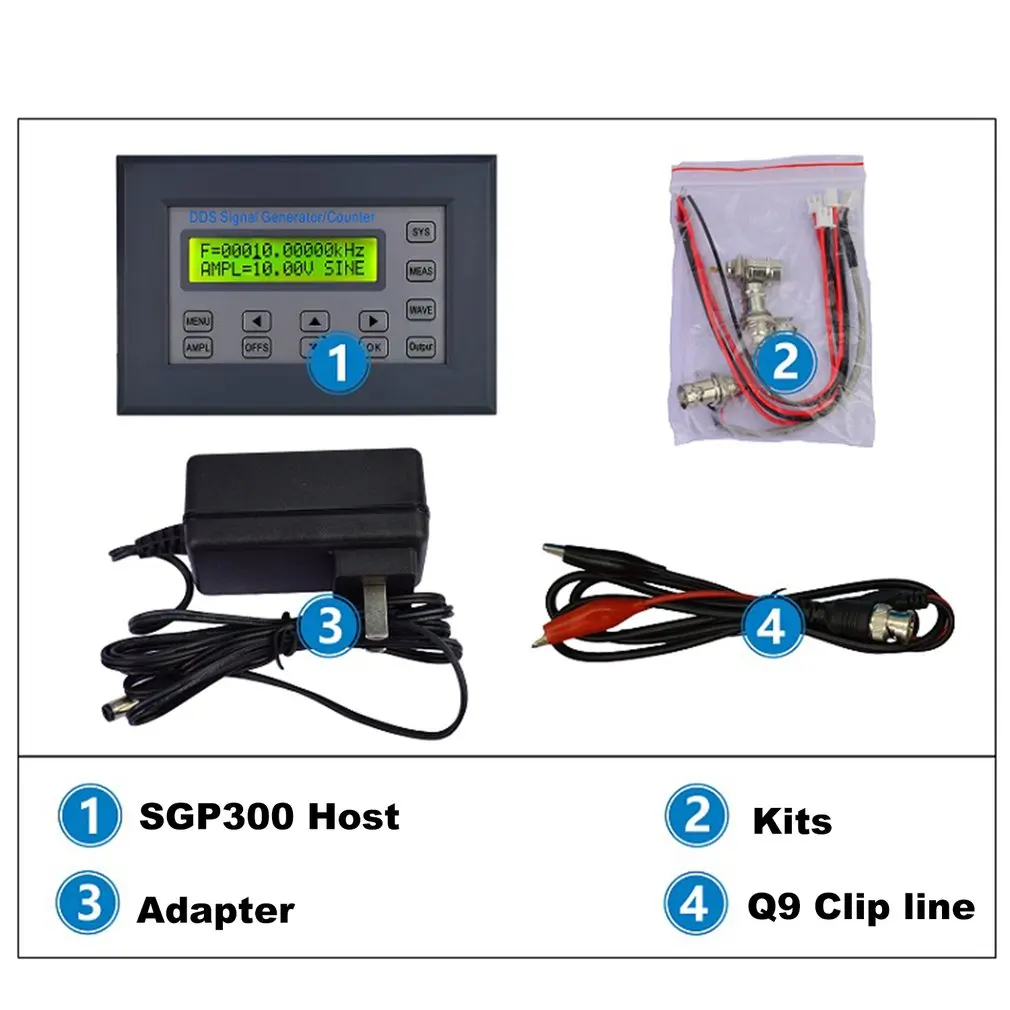

Package Included:
1 x DDS source Generator

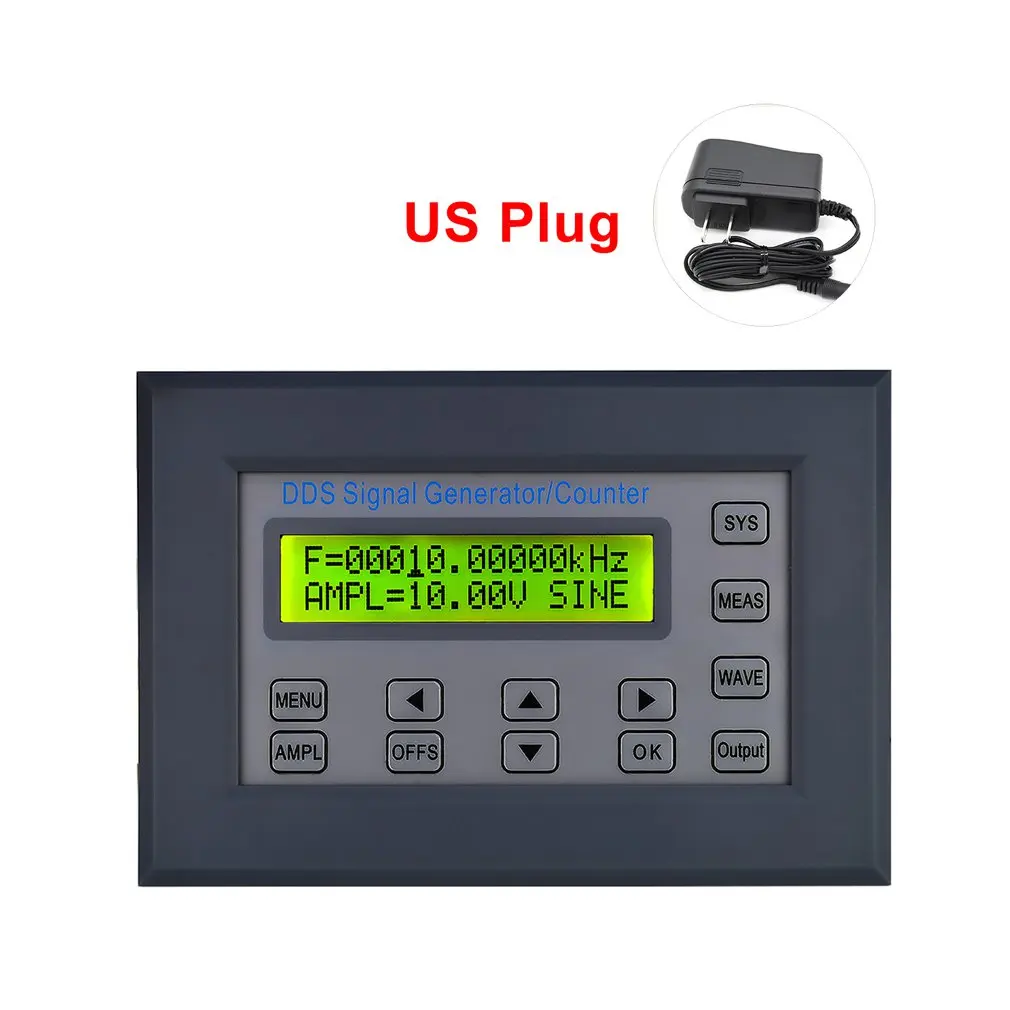

1 x Adapter
