1PC 20mm 2.4Mhz Ultrasonic Atomizer Mist Maker Fogger Air Humidifier Accessories | Бытовая техника

1PC 20mm 2.4Mhz Ultrasonic Atomizer Mist Maker Fogger Air Humidifier Accessories | Бытовая техника


Features:
Made of high quality material, durable, anti-corrosion, anti-aging and high hardness, great effect and serve you for a long time.
With electronic high-frequency oscillation ( 2.4MHz), the liquid water molecules are processed into flowing mist and release a large amount of negative ions, which reacts with smoke, dust and the like floating in the air to cause precipitation.
It also can effectively remove harmful substances such as formaldehyde, carbon monoxide and bacteria, so that the air can be purified and the disease can be reduced, keep your and your family's health.
Low impedance, waveform is stable, high electromechanical conversion efficiency and low dielectric loss, this atomizer saves more energy than heated atomization.
Suitable for industry, warehousing, family, hotel and so on.

Specification:
TYPE A:Material: Ceramic, Wire
Diameter: Atomizer: 2cm/0.79in; Sealing ring: 2.5cm/0.98in
Nominal frequency: 2.4MHz
Adjustable frequency difference： 0.01MHz
Temperature frequency difference: 0.01MHz
Total frequency difference: 0.02MHz
Load capacitance: 2200pF
Load Resonance Resistor: 350Ω
Excitation level: 250mW
Reference temperature: 26℃
Insertion loss: 3dB
Stopband attenuation: 2dB
Input impedance: 0.2kΩ
Output impedance: 0.2kΩ
Color: As picture shown
Quantity: 1 Pc

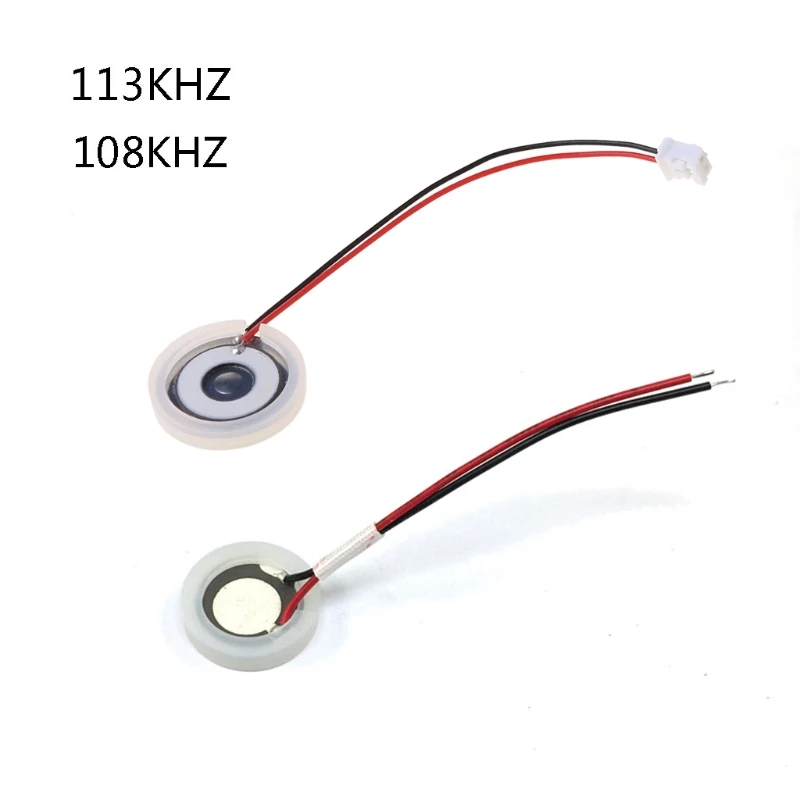

 TYPE B:Made of high quality ceramic, it is solid, durable and anti-aging, long service life.It features high frequency that provides fine mist to you, high working efficiency.Its diameter is 20mm, easy to install and replace.Great tool of humidifiers.Mist maker disc only, other accessories demo in the picture is not included!Material: Ceramic, MetalOptional nominal frequency: 113/108 KHzAdjust the frequency difference: 0.003 MHzTemperature frequency difference: 0.003 MHzTotal frequency difference: 0.003 MHzLoad capacitance: 3200pFLoad resonance resistance: 60ΩExcitation level: 0.5mWReference temperature: 26℃/78.8℉Insertion loss: 3 dBStopband attenuation: 2dBInput impedance: 0.2kΩOutput impedance: 0.2kΩDia.: app.2cm/0.79inColor: WhiteQuantity: 1 Pc TYPE C:Description:100% brand new and high qualityDimensions: 16mmDimensions（With the Aprons）app：20mmVoltage：5-12VResonant frequency: 108KHzResonant impedance: 52%Static capacitance: 1700±5%pFAtomization quantity: ≥150cc/hrsSuitable Profiles: USB HumidifiersThe working conditionsMaximum working voltage: less than or less than 60VThe maximum working temperature: 85 ℃ or lessNote:16mm diameter is to remove the size of the pastic RingOn the atomization of the film 2 wires, because the batch is not the same, sometimes red and black, sometimes yellow and blue, the other does not affect the useSize for manual measurement, there may be a 0 to 2 cm error, belongs to the normal phenomenon.And due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you! Package includes：1pc x D16mm Ultrasonic Humidifier Accessories (no retail package) TYPE D:Dimensions: 16mmDimensions（With the Aprons）app：20mmVoltage：12-36VResonant frequency: 1.7MHzResonant impedance: 52%Static capacitance: 1700±5%pFAtomization quantity: ≥150cc/hrsThe working conditionsMaximum working voltage: less than or less than 60VThe maximum working temperature: 85 ℃ or lessNote:16mm diameter is to remove the size of the pastic RingOn the atomization of the film 2 wires, because the batch is not the same, sometimes red and black, sometimes yellow and blue, the other does not affect the useSize for manual measurement, there may be a 0 to 2 cm error, belongs to the normal phenomenon.And due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you! TYPE E:Dimensions: 16mmDimensions（With the Aprons）app：20mmVoltage：12-36VResonant frequency: 2.4MHzResonant impedance: 52%Static capacitance: 1700±5%pFAtomization quantity: ≥150cc/hrsThe working conditionsMaximum working voltage: less than or less than 60VThe maximum working temperature: 85 ℃ or lessNote:16mm diameter is to remove the size of the pastic RingOn the atomization of the film 2 wires, because the batch is not the same, sometimes red and black, sometimes yellow and blue, the other does not affect the useSize for manual measurement, there may be a 0 to 2 cm error, belongs to the normal phenomenon.And due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Note:
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:
Quantity: 1 Pc
