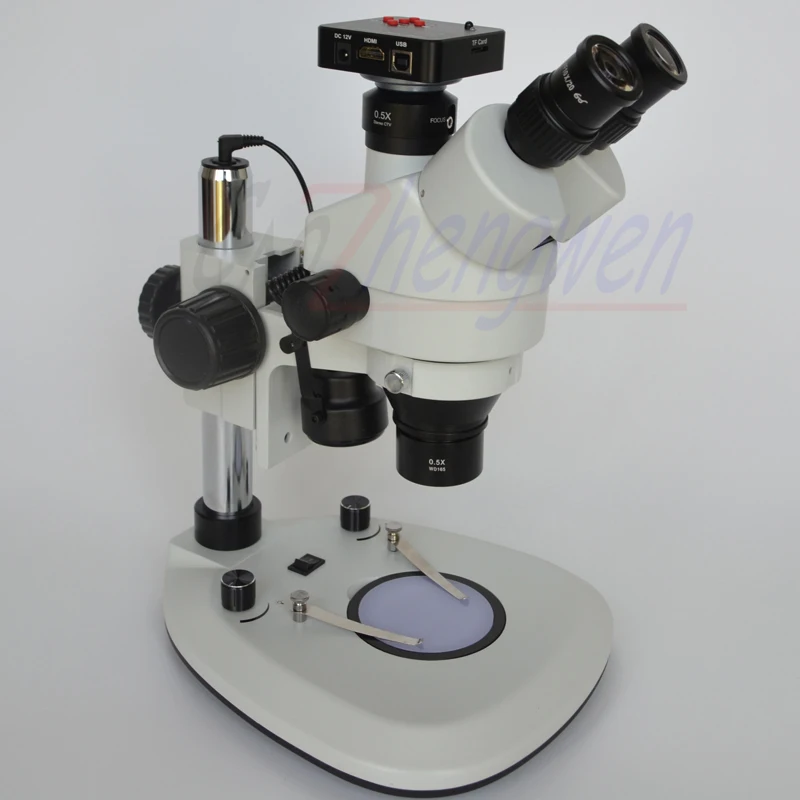

Track Pillar Stand Microscope 3.5X-90X Simul Focal Trinocular Microscope with Dual LED Lights + 38MP HDMI camera

It is Simul Focal Model Microscope, 2 eyepiece and camera can work in the same time with excellent sharp image.

Features:

• Contemporary LED incident (top) cool lighting and LED reflecting-plate bottom illumination
• Brightness-adjustable with separate dimmer controls
• 3.5X-90X large zoom range continuous magnification
• 45 degree inclined 360 degree swiveling trinocular head with SUPER widefield eyepieces
• 0.5X new Camera adaptor including ,it can connect with Camera directly
• High-eyepoint design for easy observation including eyeglass wearers
• One pair of 30mm SUPER widefield eyepiecese
• High resolution with great flatness and contrast
• Sharp stereo erect images over a SUPER widefield of view
• Crystal clear original true color images
• Both ocular-tubes with adjustable diopter
• Metal track stand finished with stain resistant enamel
• Accurate alignment ensuring a fatigue-free long time viewing
• Full optical glass elements
• Precise ground glass lenses
• All metal mechanical components
• Adjustable interpupillary distance
• Rubber eyeguards included

//pt.aliexpress.com/item/4000163461984.html?spm=a2g03.12010612.8148356.38.7618b768uyNA9r

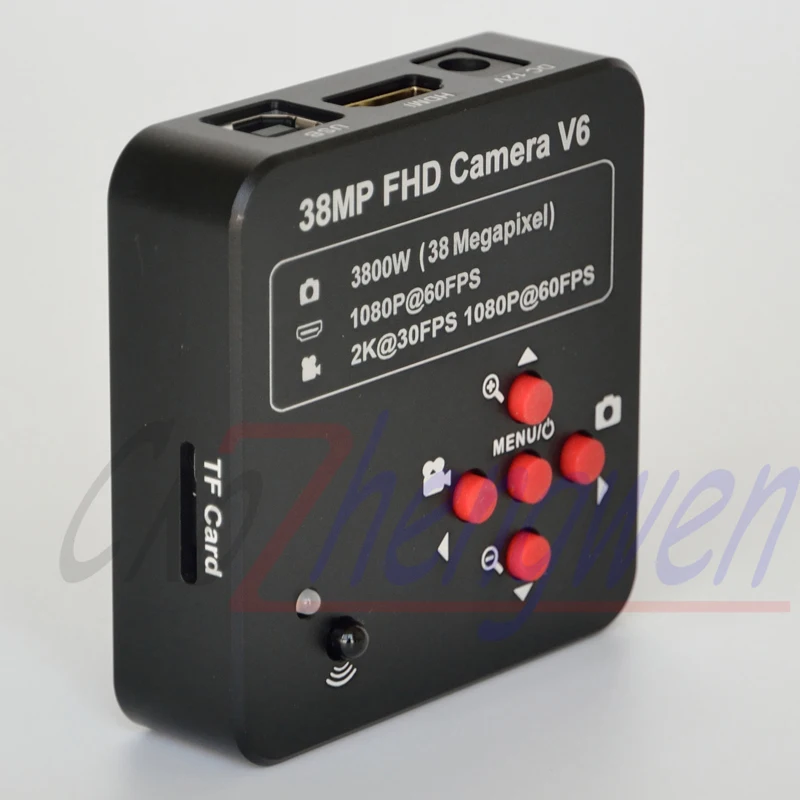

Camera Features:

Model: Camera with HDMI+ USB2.0 two output

Image resolution: 38 MegaPixel Panasonic CMOS sensor- sensor 1/2.3’’

Video format: MP4(for TF card)

Video recorder: 2K@30FPS, 1080P@60FPS

HDMI Video resolution: 1920*1080 @ 60FPS

USB Video resolution: 1920*1080@30FPS; 1280*720@30FPS; 640*480@30FPS without software driving

White Balance: Auto/Manual

Light: Auto/Manual

Exposure: Auto/Manual, value adjustable

Color: Color

Morror: Left/right,Up/Down

Freeze: Support

OSD: English/Chinese

Brightness control:Auto/manual

Color:R/G/B adjustable

Film and record:Support

Cross cursor:Support multi-color, size adjustable

Transverse and vertical line:

Different color,Line: different color, cross line 8 , cross line with ruler 2ea

HDMI interface:Standard HDMI output (Type A)

USB interface:Standard usb2.0 interface (Type B)

Input Voltage: DC 12V

Microscope Specifications:

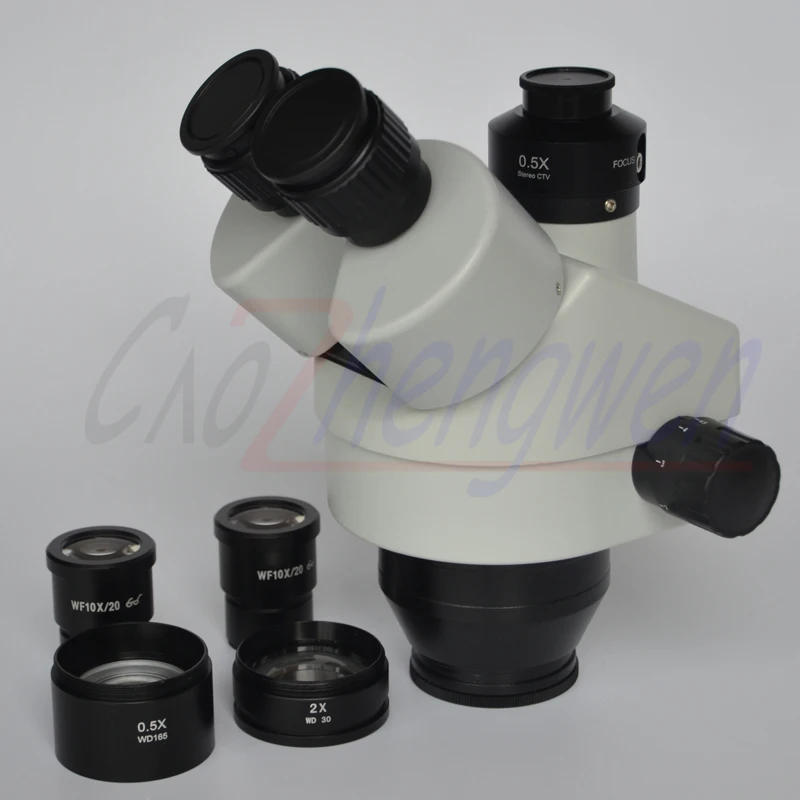

• Head: 45 degree inclined 360 degree swiveling trinocular
• Eyepiece: 30mm super wide field high-eyepoint WF10X/20
• Barlow lens :SZM0.5X 165mm & SZM2.0X 30mm
• Camera Adaptor : new 0.5X CTV included
• Objective: 0.35-9.0X
• Zoom Range: 26:1
• Diopter Adjustment: +/-5dp
• Interpupillary Distance: 55-75mm
• Working Distance: 6.5" (165mm)
• Frosted Glass Plate: 3-3/4" (95mm) in diameter
• White/Black Plastic Plate: 3-3/4" (95mm) in diameter
• Incident (Top) Illumination: LED light
• Transmitted (Bottom) Illumination: led light
• Power Supply: 110V/60Hz (220V/50Hz version available)
• Accessories: dust cover, eye-guards and clips

Packing List:


• One Trinocular Stereo Zoom Head
• One Pair of Super Widefield High-Eyepoint 10X Eyepieces
• ​One piece 0.5X barlow lens
• ​One piece 2.0X barlow lens
• ​One piece 0.5X Camera Adaptor
• One piece 38MP camera with adaptor

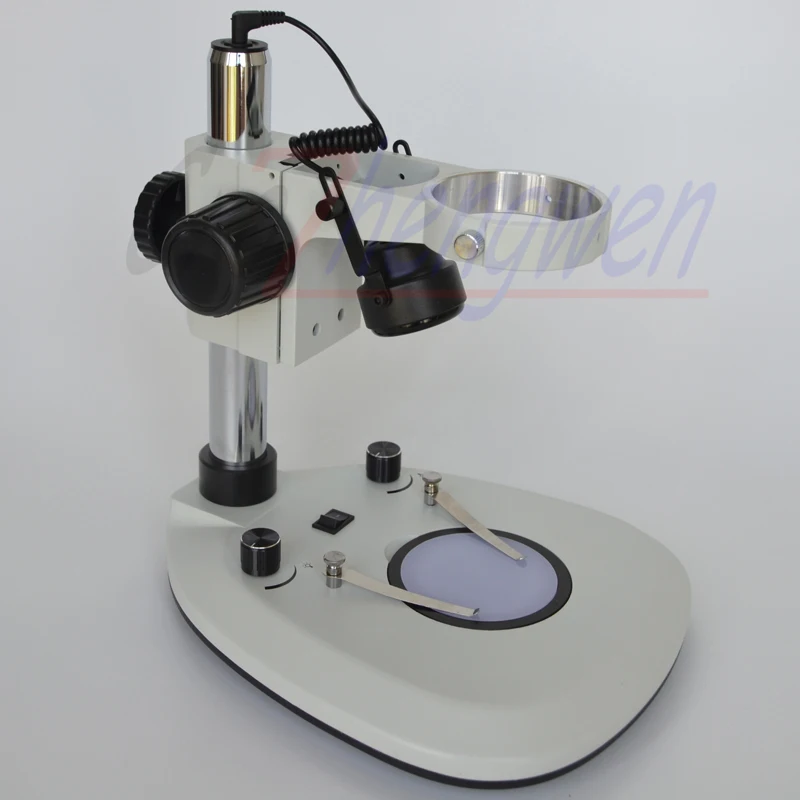

• One Pillar Stand with Bottom Light
• One Focusing Rack
• One LED Top Light
• One Frosted Round Glass Plate
• One White/Black Round Plastic Plate
• One Pair of Clips
• One Pair of Eye-guards
• One Power Cord
• One Dust Cover
• User's Manual

Optical Data:
