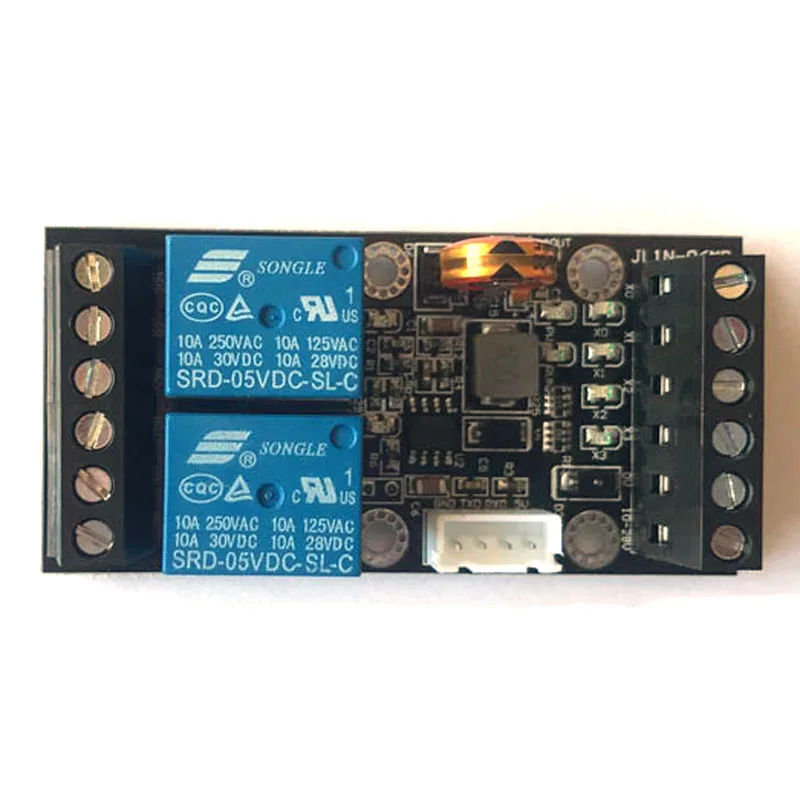

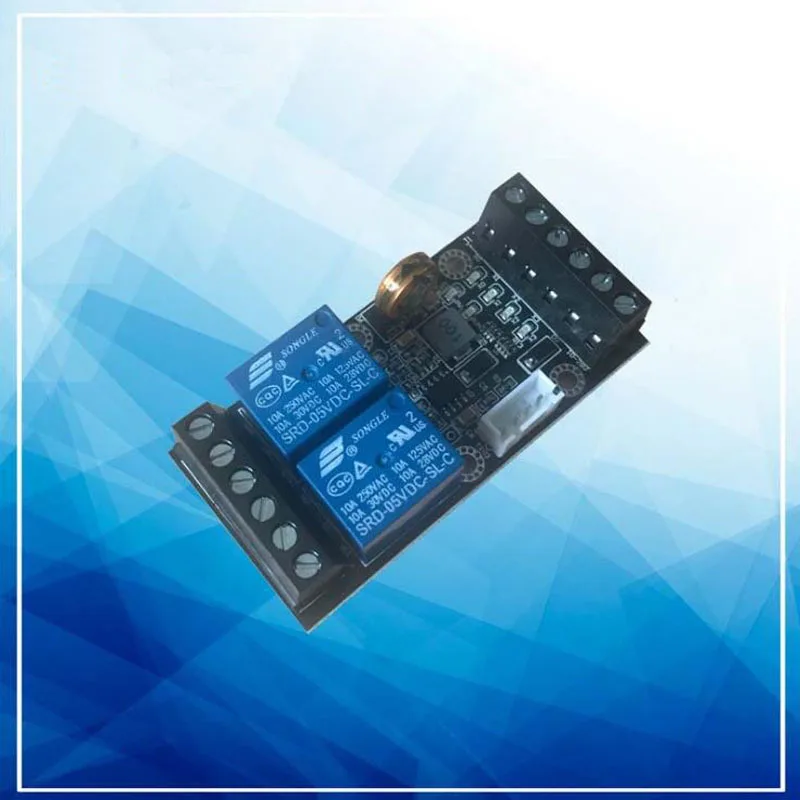

Specification:Model FX1N-06MRProduct Name: Industrial Control BoardOutput type: relay outputInput points: 4 pointsOutput points: 2 pointsSupply voltage: 4VDCOutput current: DC 24V AC 220VAnalog input: 1ADAnalog output: 1DAMemory capacity: 2000 step stepper motor supportConnect text screen: supportConnect the touch screen: supportProgramming software: GxDeveloper GX Works2 Programming mode : RX programming software GX Developer or GX Work2 programming ladder.

Mitsubishi GX-Developer8.52 Chinese programming software download address: pan.baidu.com/s/1nty5XXn

PLC data download address: pan.baidu.com/s/1eRNhn3O

* Input high-speed pulse C235, C251C is compatible with Mitsubishi FX1N.

*Y0 Y1 can send up to 10K pulses, and the function is compatible with Mitsubishi FX1N.

* Input point is 1C type SRD relay output, rated current is 5V, wide supply voltage 10-28DC, can directly drive DC solenoid valve, AC solenoid valve, AC contact solenoid valve, AC contactor, AC motor and so on.

Precautions for use:

1. When the computer uses Mitsubishi GX Deveioper programming software, it needs to be connected to this programming port by using USB-TTL level conversion board.

2. The board has one AD built in, corresponding to the internal data register D5030; one DA, corresponding to the internal data register D5101, when the two channels of AD are needed, the DA can be changed to AD. When D5080 is 1, the DA changes at this time. For AD, the AD signal is input from the DOU-T pin signal. The input range is 0-3.3V. To change to 0-10V, add 2 resistors (10K 5.1K) to divide the voltage. Adding a statement MOV K1 D5080 to the program will convert the DA to AD and the AD data register to D5032.

3. When the PLC is connected to the touch screen or text, an external 232-TTL module is required to connect.

Xiao Yan: Some customers report that the download process is slower. The default download program length is 8000. Actually, most customers write programs that do not exceed 2000 steps. Therefore, you can set the download speed in GX or WORKS software. Increase the magnification. Setting method: After the + sign in the data list of the program data, the PLC parameter will appear. Double-click the PLC parameter to display the setting interface. In the parameter setting interface, the memory capacity can be set from 2000 to 2000.

This product currently supports command set

Basic sequence instructions: LD, LDI, OUT, AND, ANI, OR, ORI, LDP, LDF, ANDP, ANDF, ORP, ORF, ORB, ANB, MPS, MRD, MPP, MC, MCR, INV, PLS, PLF , SET, RST, OUT, RST, NOP, END, CALL, CJ, FEND, SRET, STL, RT

Data processing instructions: ZRST, DECO, ENCO, ADD, SUB, MUL, DIV

High-speed processing instructions: SPD, PLSY, PWM, PLSR, HSCS, HSCR

Positioning command; PLSV, DRVI, DRVA

Convenient instructions: ALT, INCD

Contact comparison instruction: LD=, LD>, LD<, LD<>, LD ≤, LD ≥, AND=, AND>, AND<.AND<>, AND ≤, AND ≥, OR=, OR>, OR <.OR<>, OR≤, OR≥

All instructions support 32-bit instructions and trigger instructions
