Описание товара

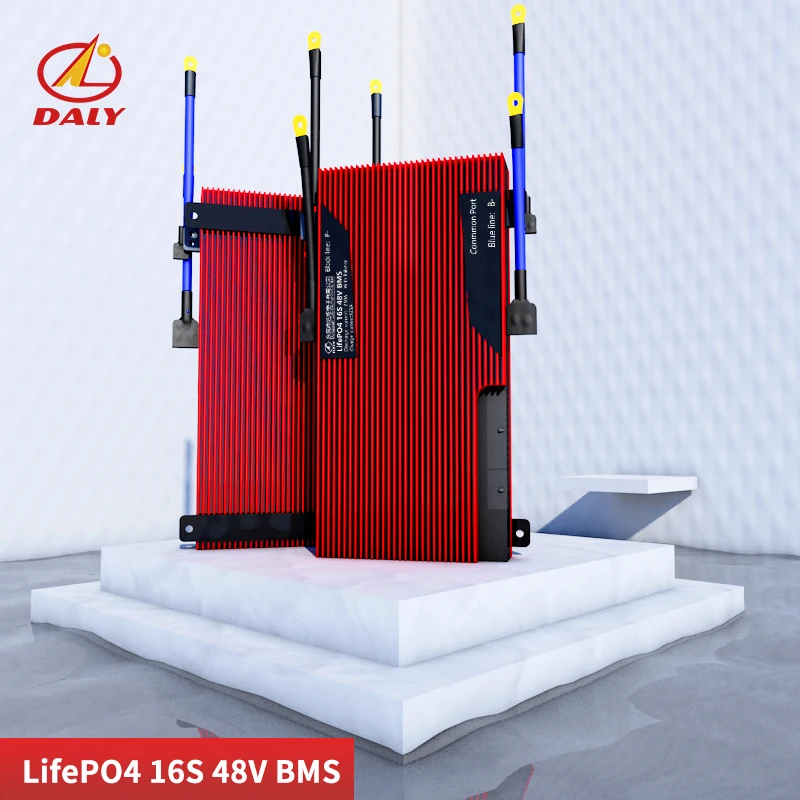

Daly 3.2V LifePo4 16S 48V 80A 100A 120A 150A 200A 400A 18650 BMS battery protection board with balanced lithiumion lithium battery module
Model: DL16S
common Version : common port for charge/discharge
separate Version : separate port for charge/discharge
We can customize any PCB from 1S to 30S lithium batteries with different current.
1. Overview

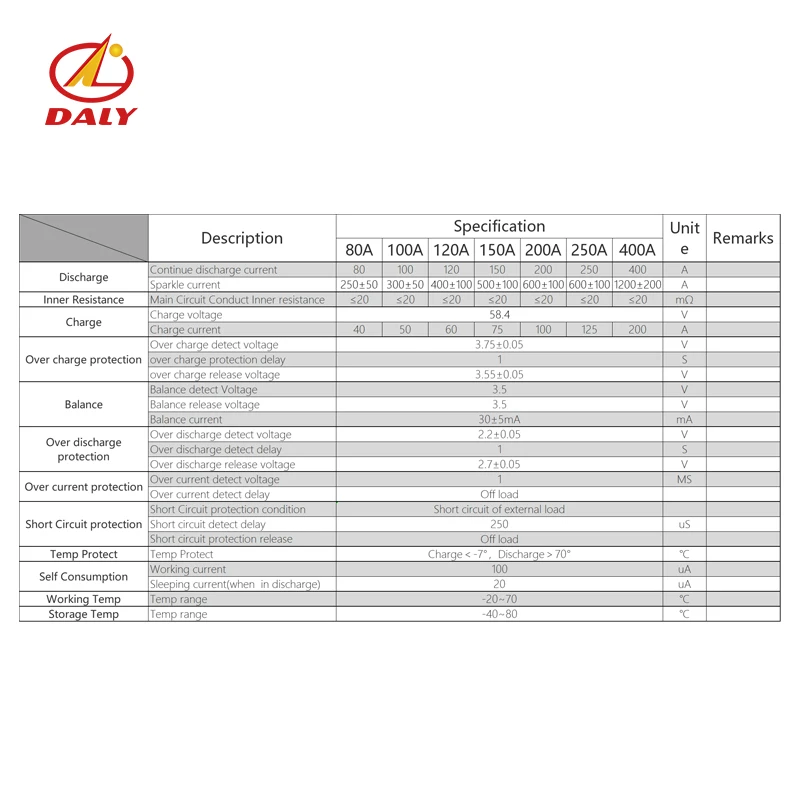

◆DL16S 48V 80A 100A 120A 150A 200A PCB is used for 16 series 48V LiFePO4 battery pack.
◆We can design it for various lithium batteries like LiFepo4, LiMn2O4, and Li-polymer etc.
◆The main functions are: over charge protection, over discharge protection, over current protection, short-circuit protection, temperature protection etc.
◆According to the customer request we can develop PCM in different sizes and structures.
◆BMS manufactured by high quality Mos and IC imported . Keep your battery long cycle serivce life time.
2. Advantage
◆Use top quality (A-level) protective integrated circuit IC, from the solution of Seiko of Japan.
◆Strong load ability, constant discharge current 80A 100A 120A 150A 200A , use high voltage resistance, low inner resistance power Mosfet. The heat sink will greatly help cooling.
◆IC itself has power balancing function. The circuit is simple and reliable.
◆Typical voltage detection for each cell. So each battery will be prevented over charged or over discharged. Over current and short circuit protection function is very reliable.Long time short circuit of the load won’t affect the PCB and the battery.Temperature protection during charging and discharging.
◆Extreme low power consumption. The consumption of the whole device is less than 50uA.
◆PCB use high anti-corrosion, high water resistance, high impedance ESD conformal Coating.
Packing List

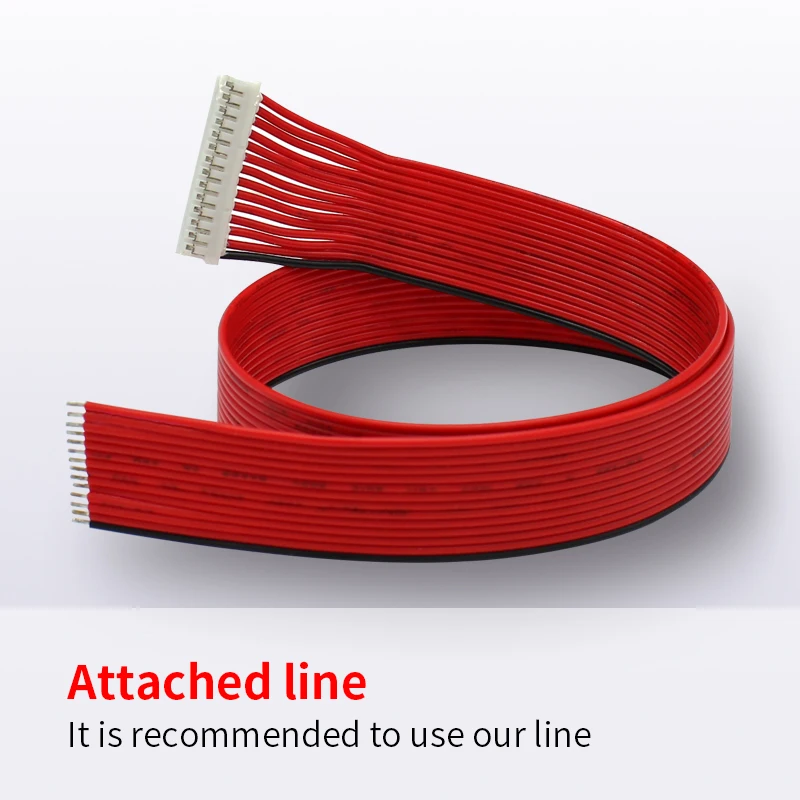

1.BMS 2.Antistatic Bag 3.Wiring Cable 4.Wiring diagram 5.Packing Box
Applied to electric tools, electric scooters, motorcycles, electric motorcycles, electric tricycles, and electric vehicles and so on.
One-stop solution, Lithium / LiFePo4 battery packs, accept customized, OEM sevices, Any questions please contact us!
We will respond within 1 business day or less.

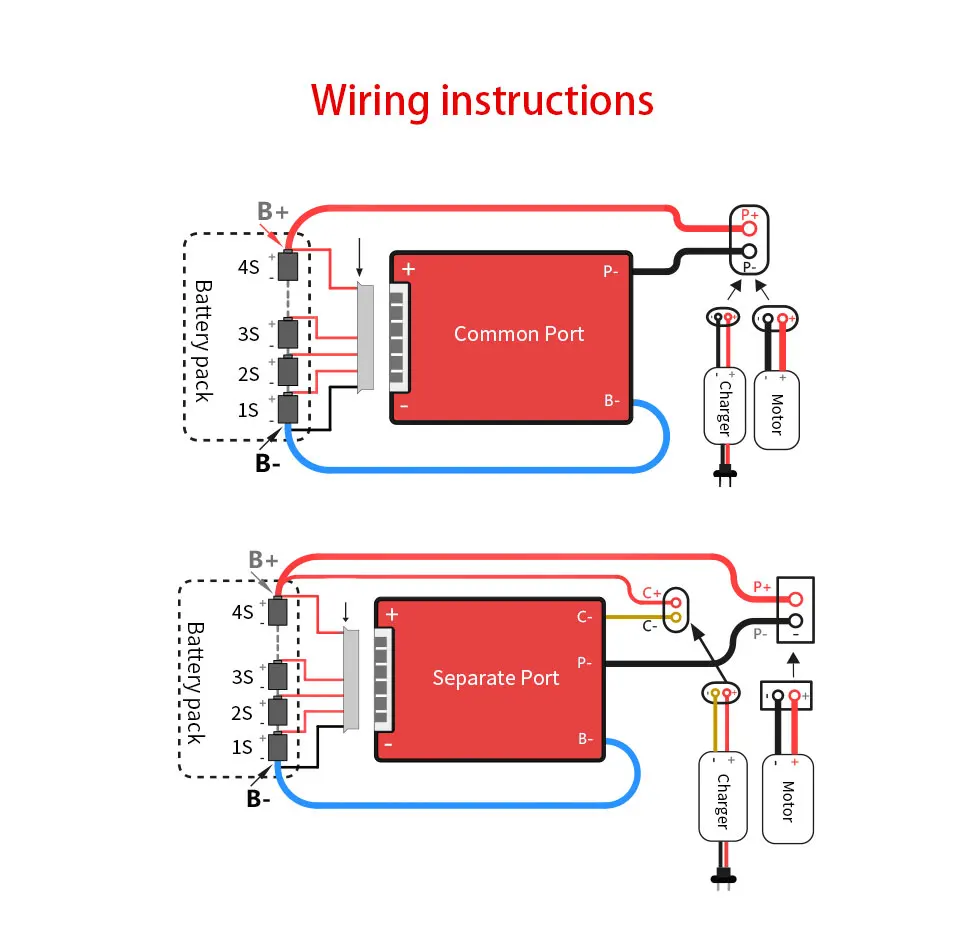

1.What is the common port and separate port? what is the difference?
We take 13S48V16A BMS as an example, common port 16A means your charge cathode and discharge cathode are connected in the same point end(our P-), charge cathode and discharge cathode are used in the common connection
