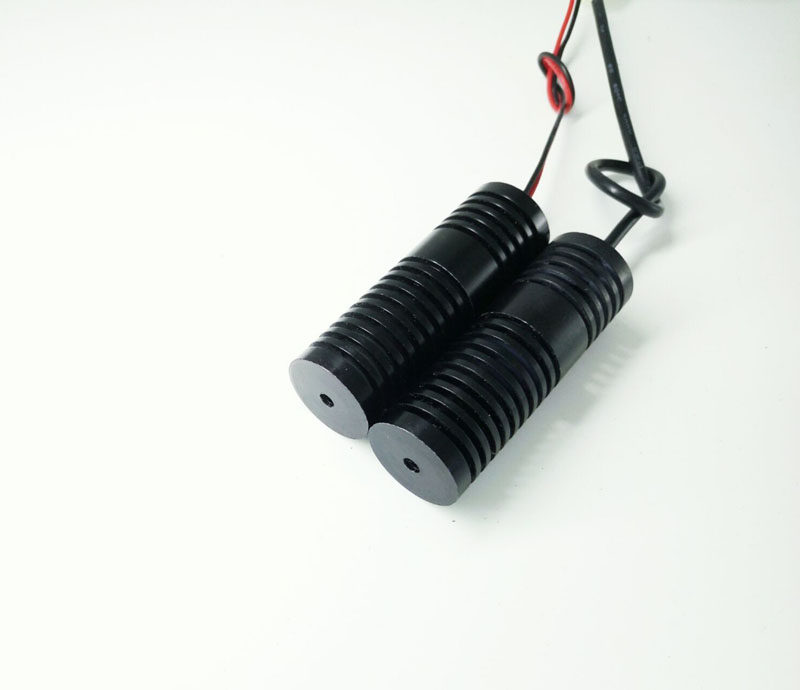

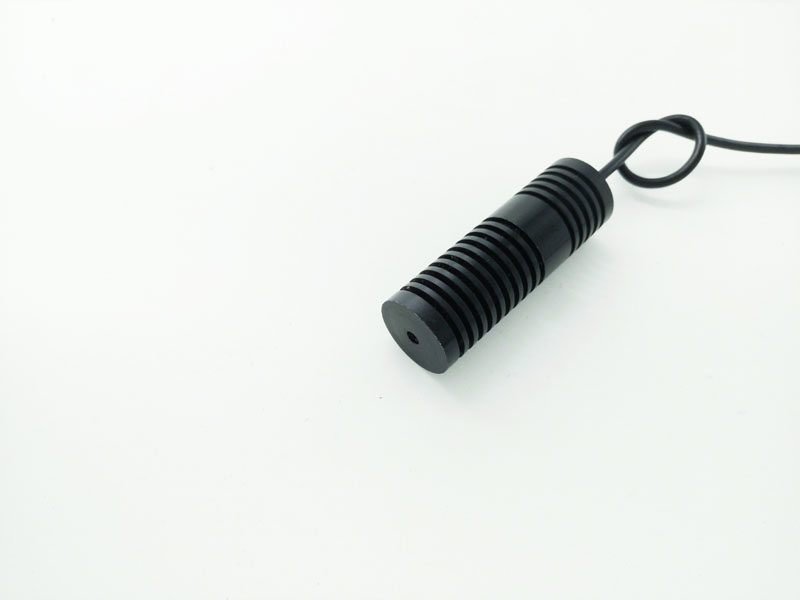

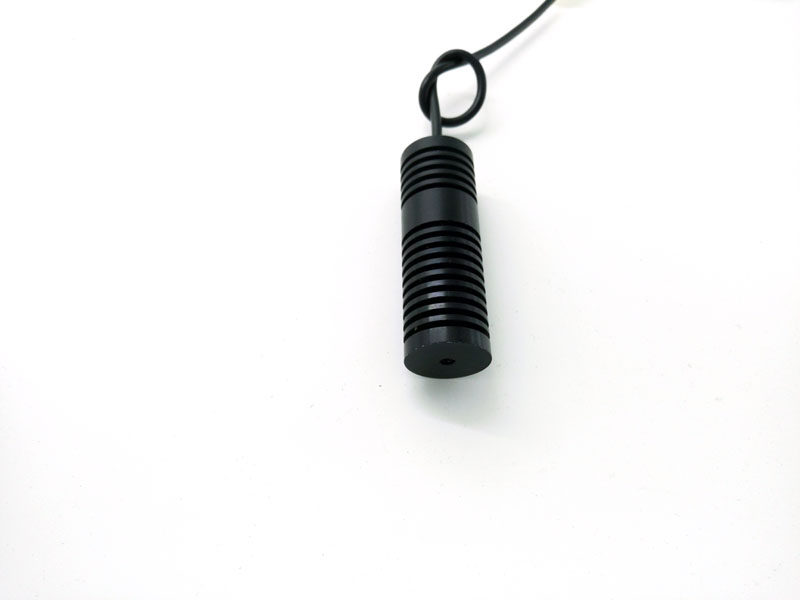

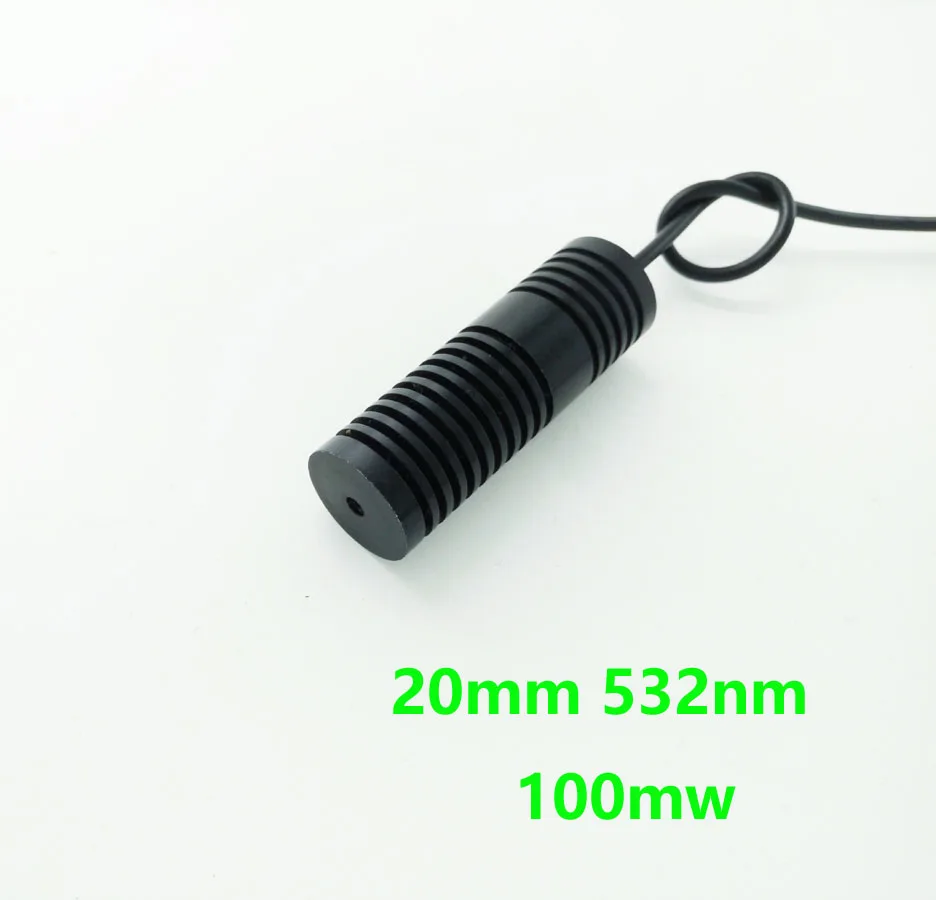

532nm green light module 100mw high power laser stable good heat dissipation | Инструменты

532nm green light module 100mw high power laser stable good heat dissipation | Инструменты

Any module of any part or specification can be modified.

Below are some of the standard laser modules that we need to know to suggest the best adaptation solution. You can also describe the laser application and working environment and your requirements, our laser design team will let you know our recommendations and workable solutions from the most cost effective laser modules of the highest quality.

We divide a laser diode module structure into four main parts:

a laser diode

An optical lens

Laser drive circuit

a casing part

1: laser diode

   We can provide the main wavelengths of optics: 405nm, 450nm, 515nm, 520nm, 532nm, 635nm, 650nm, 670nm, 780nm, 808nm, 850nm, 980nm, 1550nm

2: Optical lens

   Below are the basic optical specifications that we need to agree upon before any laser module production. Beam collimation, main features: divergence angle, laser spot size

We can also customize some special lenses:

3: laser drive circuit

The drive circuit module of the laser can be APC (Automatic Power Control) or ACC (Automatic Current Control). The APC control laser module will automatically adjust the input current to a constant value of the output optical power. The ACC control laser module will use another way to input current with a constant value, and the output power may vary.

In addition to the CW mode (continuous wave mode), our laser module can input a TTL modulation. It can be fixed at a certain operating frequency (Hz) or a specific duty cycle, or can be alternated by external PWM input.

4: Customized shape and size

The length of the laser module ruler (diameter and / or laser module casing) can be customized according to your needs, we will evaluate and provide technical drawings for you.

The laser module housing can be designed in a variety of shapes and materials, the surface can be used in different operating environments, and the anode can be customized for electrical isolation. The design of the housing can also help you to use it as an internal component in different environments. Provides the best protection.

我们还提供各种各样的定制产品。 我公司不仅是激光模组制造商而且还可以提供光学、光电子集成解决方案从设计到生产。如果您在我的店铺找不到想要的规格,请直接咨询客服或者电话询问询问18575627891并简要描述您的需求. 我们将在第一时间回复您

任何部分或规范的每个模组都可以修改。
下面介绍的一些规范的激光模块,我们需要知道你能建议最佳改编的解决方案。 你也可以描述激光的应用程序和工作环境及你的要求,我们的激光设计团队将让你知道我们的建议和可行的解决方案,从最成本有效的最高质量的激光模组。

我们把一个激光二极管模块结构分为4个主要部分:
一个激光二极管
一个光学镜头
一激光驱动电路

一外壳部分

1：激光二极管

  我们可以提供光学主要的波长：405nm、450nm、515nm、520nm、532nm、635nm、650nm、670nm、780nm、808nm、850nm、980nm、1550nm

2：光学镜头

  下面是基本的光学规格,我们需要达成一致之前任何激光模块生产。光束准直,主要特点:发散角、激光光斑大小

     我们还可以定制一些特别的镜头：

3：激光驱动电路

激光器的驱动电路模块可以是APC(自动功率控制)或ACC(自动电流控制)。 APC控制激光模块将自动调节输入电流为输出光功率的恒定值。 ACC控制激光模块将用另一种方式输入电流有一个恒定的值,而输出功率可能会有所不同。

除了CW模式(连续波模式),我们的激光模块可以输入一个TTL调制。 它可以固定在一定的运行频率(赫兹)或一个特定的工作周期,或通过外部PWM输入可以交替等功能

4：外形及尺寸定制

激光模组尺的寸(直径和/或激光模块套管)的长度可以根据您的需要定做,我们会为您评估和提供技术图纸。
激光模块外壳可以设计成各种形状和不同的材料,表面可以使用在不同的操作环境中，可以定制阳极处理电气隔离等一些差异，外壳的设计还可以帮助你在不同的环境中使用为内部组件提供了最好的保护。
