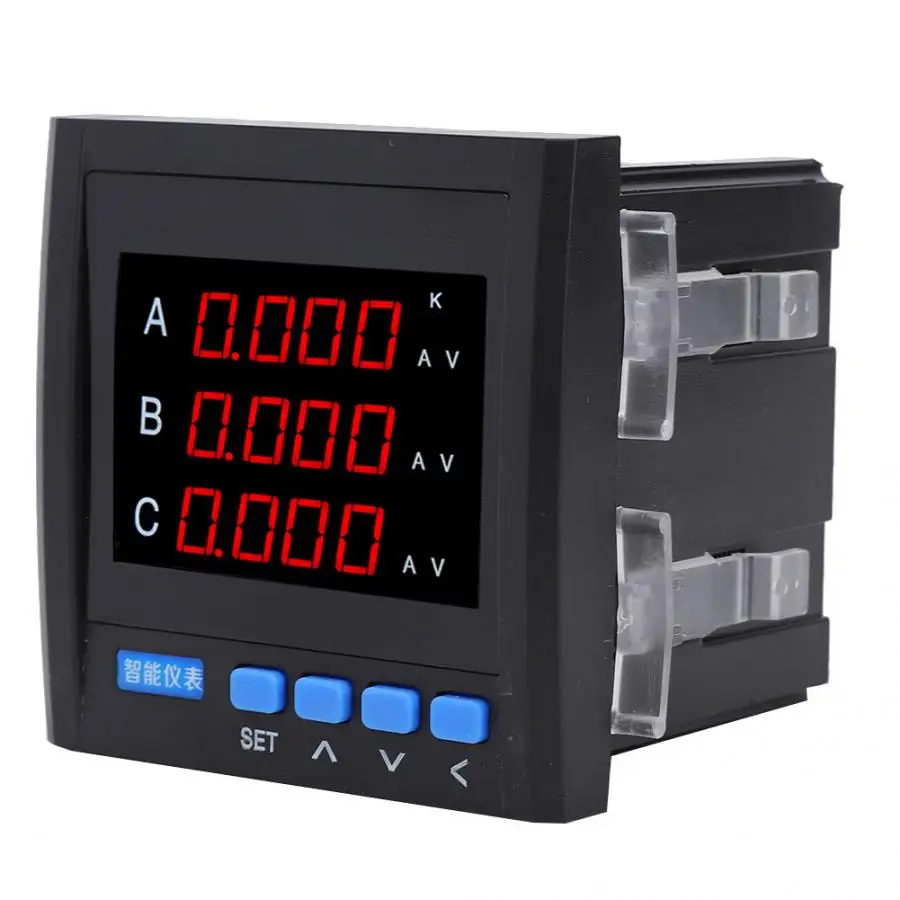

3-Phase Multifunctional Segment LCD /LED Digital Electricity Volt Power Meter RS485 Communication 220V

Feature:

Specification:

Condition: 100% Brand New
Item Type: Power Meter
Shell Material: ABS
Network: 3 phase 3 wires(3P3L), 3 phase 4 wires(3P4L)
Voltage:
Rated Value: AC220V
Overload: Duration: 1.2 times, Instantaneous: 2 times /5s
Power Consumption: ≤2VA (per phase)
Impedance: >500 kQ
Measurement Accuracy: True RMS lateral value (RMS) accuracy 0.2 level
Current:
Rated Value: AC1A and AC5A (for use with transformer above 5A)
Overload: Duration: 1.2 times, Instantaneous: 10 times /5s
Power Consumption: ≤1VA (per phase)
Impedance: <20mQ
Measurement Accuracy true RMS (RMS) accuracy 0.2 grade
Frequency: 45Hz-65Hz
Accuracy: 0.1Hz
Display Mode: Segment code LCD or LED digital tube display
Measurement Accuracy: Four-quadrant measurement, active energy level 1.0, reactive energy level 2.0
Pulse Output: Active energy and reactive energy two pulse outputs, optocoupler relay
Pulse Constant: 3200
Communication Mode: RS485 S485ModBus-RTU
Baud Rate: 1200bps, 2400bps, 4800bps, 9600bps, default is 9600bps
Switch Output: Upper and lower alarm the same relay output, at most 4 more
Transformer Output: Current output: DC0-20mA, DC4-20mA, accuracy 0.5
Voltage Output: DC0-5v, 0-10v, accuracy 0.5
Switch Input: 4-way passive dry contact input mode
Range: AC220V 50Hz
Power Consumption: ≤5VA
Operating Temperature: -10℃-55℃
Operating Humidity: 25%RH< humidity ≤9%RH, no condensation, no corrosive gas
Atmospheric Pressure: 86kpa-106kpa
Withstand Voltage: Input/power >2KV, input/output >2KV, power/output >1KV
Insulation: Input, output, power on the housing >50MQ
Color: Black
Size: Approx. 9.6 x 9.6 x 9.3cm / 3.8 x 3.8 x 3.7in
Weight: Approx.467g / 16.4oz

Package List:
