Motherboard test card For Laptop/Desktop Analyzer Diagnostic Card Mini PCI-E PC PCI Board Test Tester Debug Post | Компьютеры и офис

---

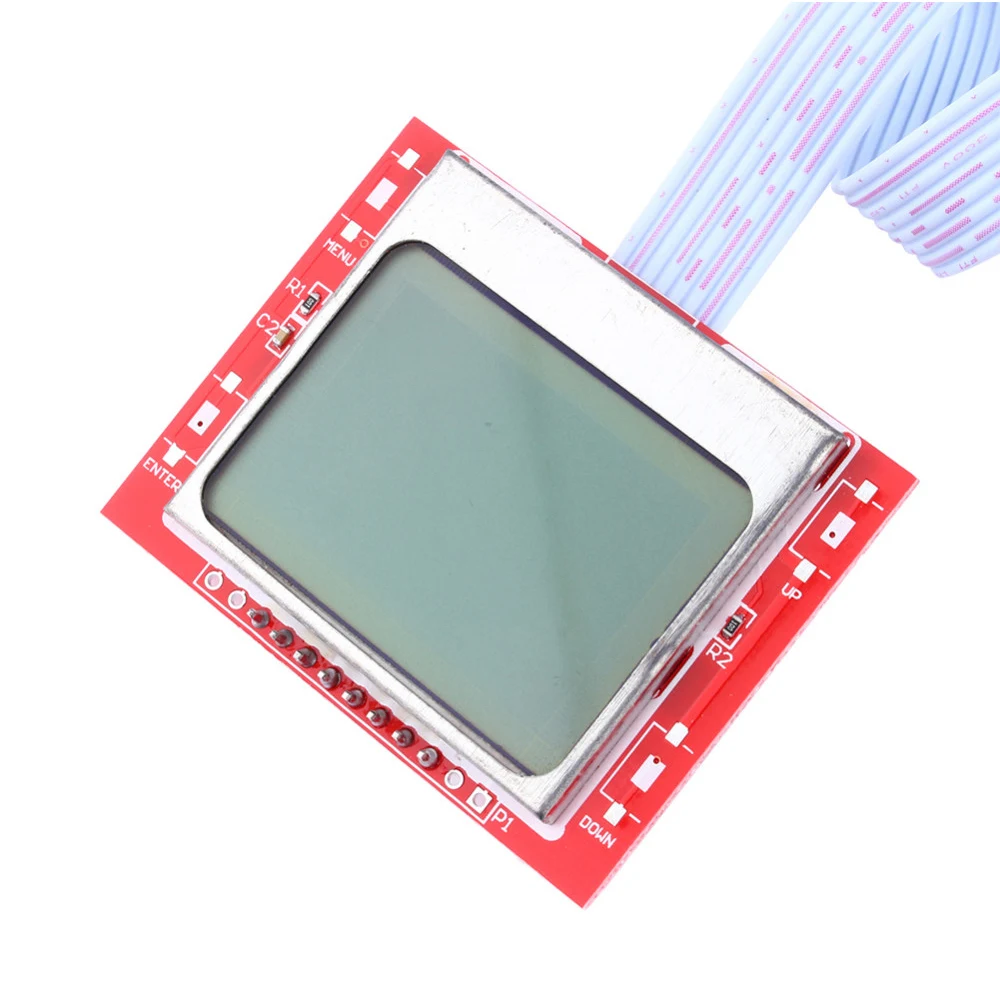

The new version of the PTi8 diagnostic card (the new version is a screen!) comes with an extension cable, 360-degree free viewing angle, no longer have to worry about the chassis block! Free removal of the motherboard! Innovative and practical combination.    This diagnostic card is compatible with the fault codes of three BIOS types: AMI, Award, and Phoenix. It can be switched by BIOS key (power-down save, upgrade version-specific).   Special note: When using, choose the BIOS according to the motherboard you need to test, and set the corresponding BIOS on the diagnostic card. For example, if the motherboard is an "AMI" type BIOS, set the "AMI" type BIOS on the diagnostic card.   Product Description:   The diagnostic card is fully compatible with the PCI slots of all motherboards and has passed rigorous testing of many mainstream motherboards (including branded and compatible).   Support notebook motherboard interface type:   (1) MiniPCIe   (2) MiniPCI   (3) LPC   Diagnostic card Mini PCI-E interface Mini PCI-E is a new type of interface that notebook motherboards are gradually using. Compared to the Mini PCI interface, the Mini PCI-E interface takes up less space. The diagnostic card uses the following pins of the Mini PCI-E interface: PIN-8, PIN-10, PIN-12, PIN-14, PIN-16, PIN-17, PIN-19. Currently, since not all notebook manufacturers support this pin definition standard, not all notebook motherboards currently support this interface.

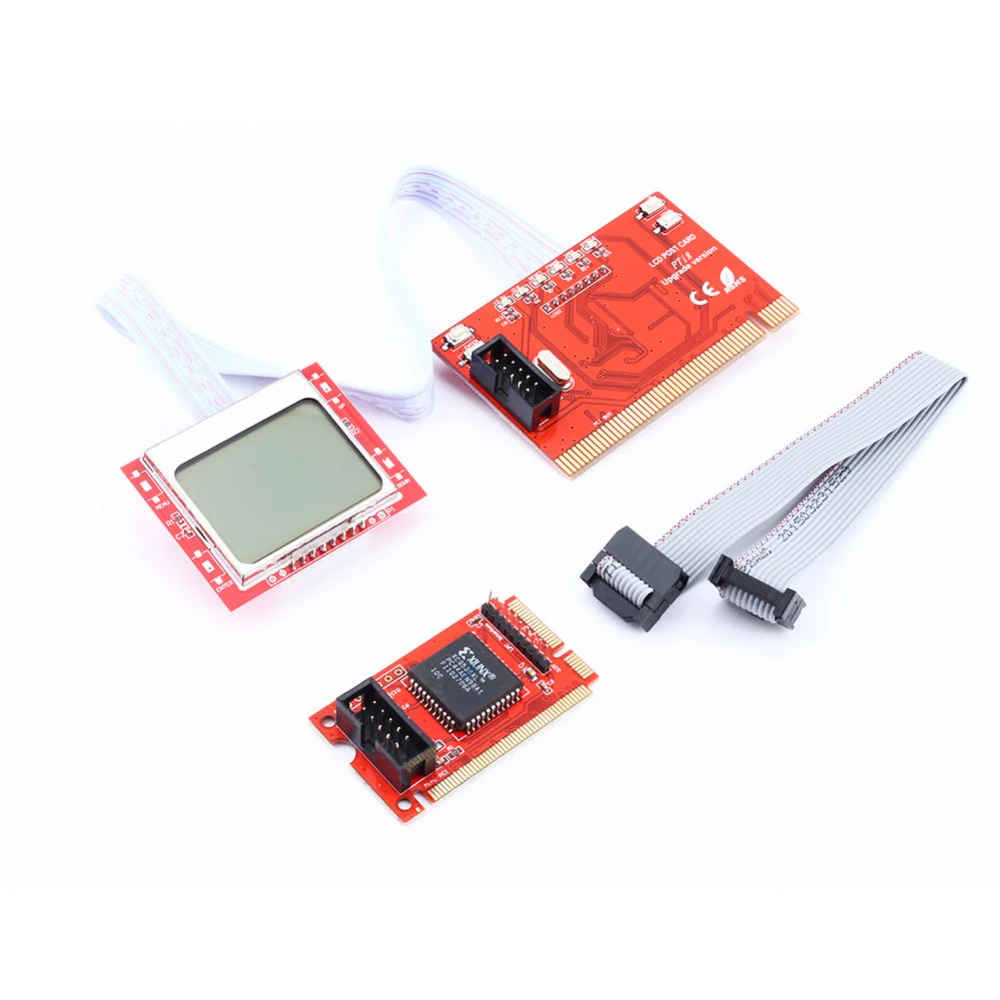

Package Contents:

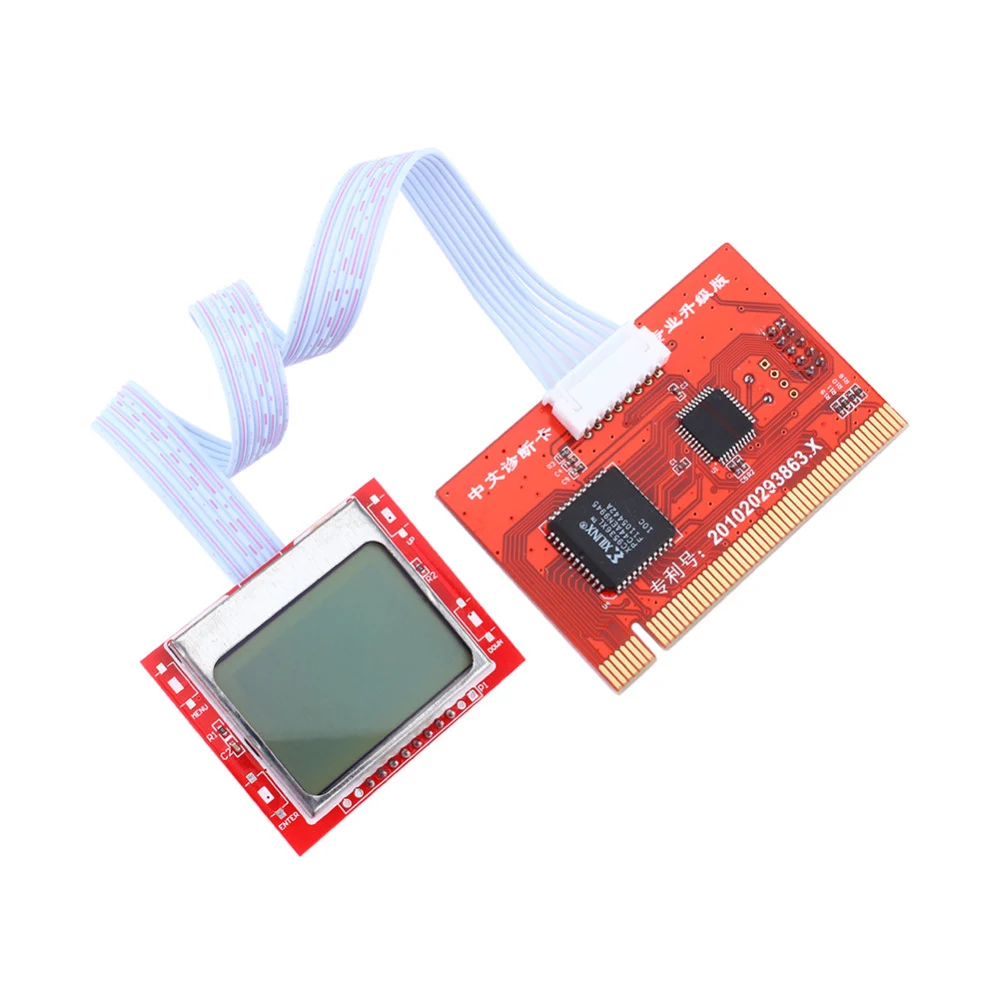

1 x Diagnostic Debug Card support Desktop PCI with extention LCD Display
1 x Diagnostic Card support Laptop Mini PCI / Mini PCI-E / LPC

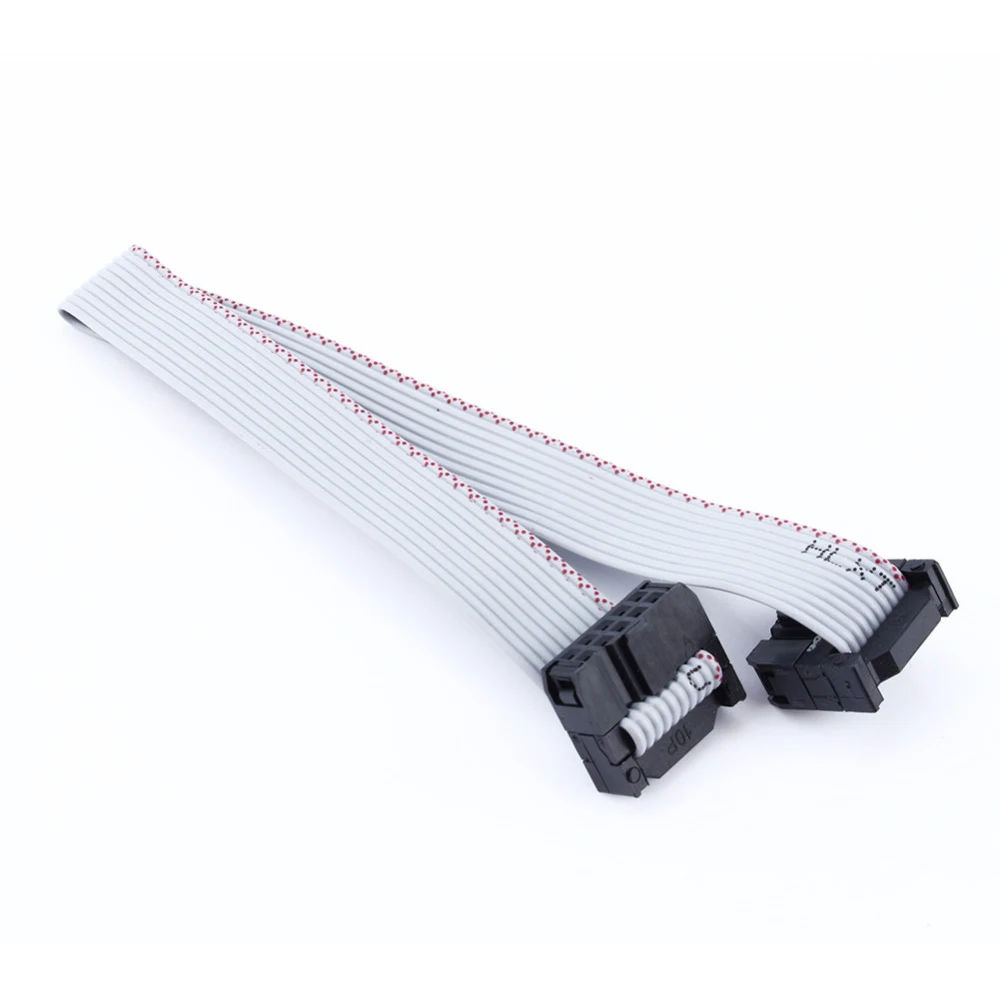

1 x Cable for Laptop diagnostic card
