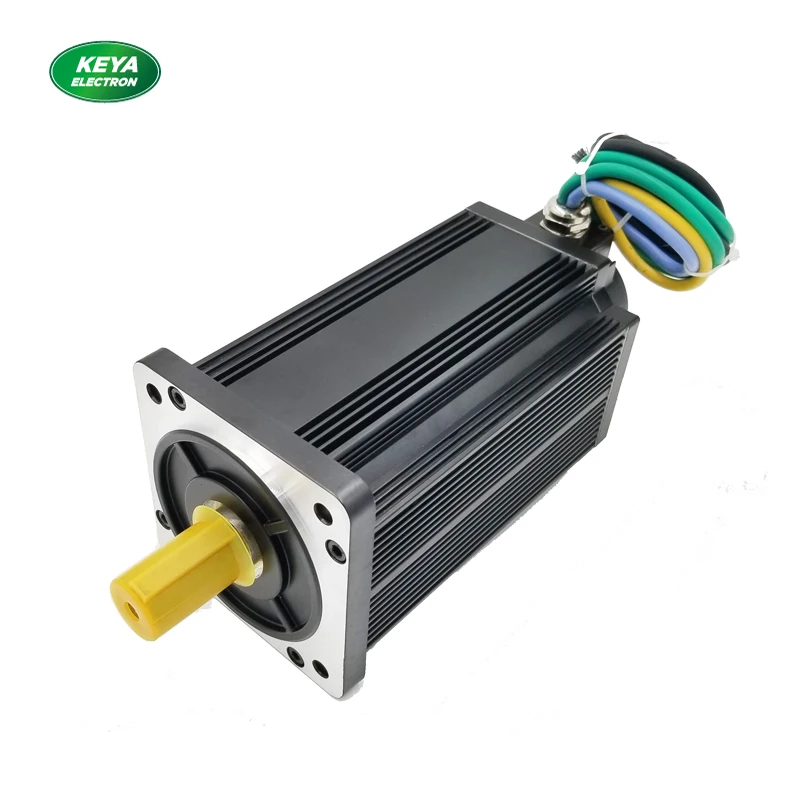

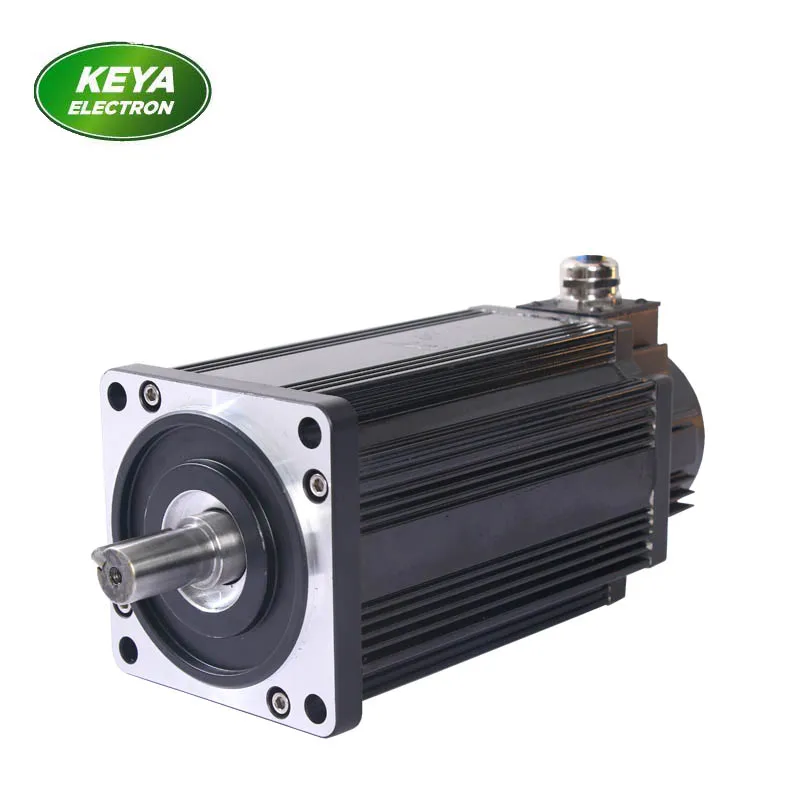

high torque 48v 1.2kw brushless dc gear motor for tank robot chassis

*High Torque to inertia ratio&up to 25000Nm/kgm² *Fast dynamic response, time constant <20ms *Wide speed adjusting&feedback up to 1000:1 *Steady speed precision up to 0.5% *High overload, 3 times overload *Small volume and light weight *Silent, the lowest noise is only 45dB(A) *Protected with IP55, Class F insulation brushless dc servo motor

SPECIFICATION

Product Name: high torque 48v 1.2kw brushless dc gear motor for tank robot chassis Rated voltage: 48V Rated power: 1200W Rated speed: 2500RPM Rated currrent: 33A Rated torque: 4.5N.m Peak torque: 15.7N.m Motor length: 246mm, without shaft Motor shaft diameter: 19mm Encoder: 2500ppr, Optical Brake: If you need brake, kindly advise Support: If you need any help on the 24v 48v brushless dc motor 200w 400w 500w 800w 1kw 1.2kw 1.5kw 2kw 3kw, kindly contact Nancy freely.

DETAILS IMAGES

BLDC SERVO MOTOR CONNECT CABLE SPECIFICATION

DC SERVO MOTOR FOR SALE DRAWING

BRUSHLESS DC SERVO MOTOR WITH GEAR BOX

We can provide matched gearbox speed reducer for the dc servo motors, if you need that, kindly let me know. Gearbox: Worm gearbox, Planetary gearbox, Right angle planetary gearbox, Helical Hypoid gears.

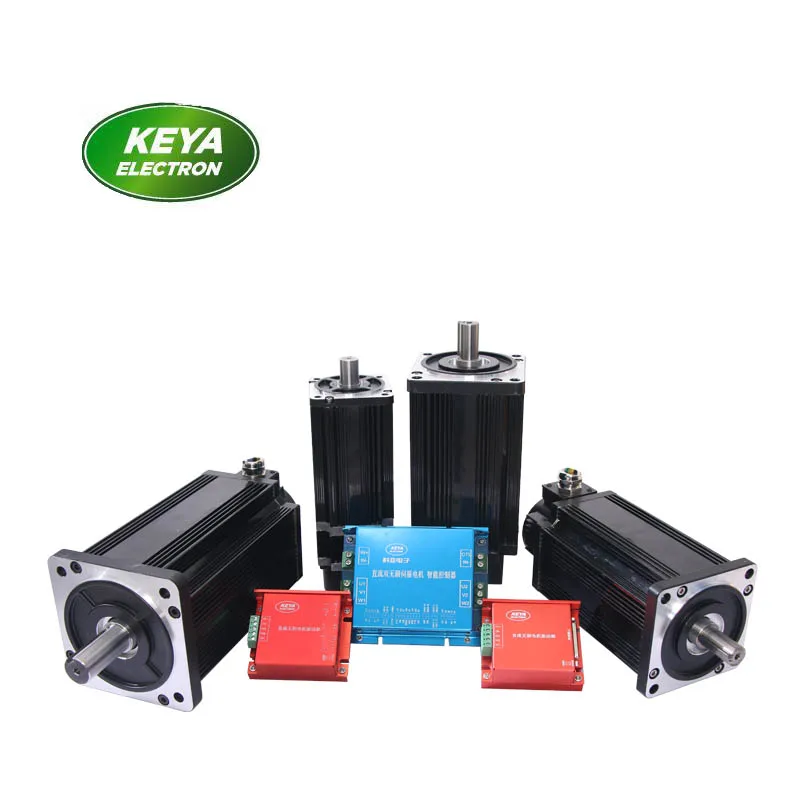

BRUSHLESS DC CONTROLLERS FOR DC SERVO MOTORS

We also can provide the matched driver （single channel bldc driver, dual channel brushless dc controller for your choice） for the high torque 48v 1.2kw brushless dc gear motor for tank robot chassis. Control signal: RS232, CAN open, PWM, CLK, RC, 0-5V, 0-2.5V-5V If you need support, please contact us by Email (sales@jnky.com).

PRODUCT USAGE

24v 48v dc servo system be widely used in mobile robot, for example, crawler robot chassis, inspection robot, automatic guided vehicle, fire fighting robot, self-guided vehicle high torque 48v 1.2kw brushless dc gear motor for tank robot chassis We have dual channel bldc servo controller, built in differential method, support electronic differential, you can control 2 motors at same time, save your cost for secondary development.

Related brushless dc servo motors

Frame: 80*80mm, 110*110mm, 130*130mm Voltage: 24V 48V Power: 100W 200W 400W 500W 800W 1KW 1.2KW 1.5KW 2KW 3KW Speed: 1500RPM, 3000RPM 48v 1.2kw brushless dc gear motor for tank robot chassis

PACKING

Standard export carton for bldc motors high torque 48v 1.2kw brushless dc gear motor for tank robot chassis

COMPANY INTRODUCTION

Jinan Keya Electron Science and Technology Co., Ltd, founded in 2001, has been trading in the research &development, manufacturing and sales of BLDC motor and control system for 15 years. Company set technology, talent, management and other resources advantages, to effectively integrate, has maintained a healthy, stable and rapid growth. Our company has adopted ISO9001:2015 quality management system certification, products through the CE certification. More than 3000 large and medium-sized domestic equipment manufacturers designated as supporting products, and exported to the United States, Europe, Southeast Asia and other countries. Product range: Motor: bldc motor, brushless dc motor, dc servo motor, 24V 48V bldc motor, high torque servo motor. pmdc motor Controller: dc controller, bldc controller, dual channel brushless dc controller, mobile robot controller Product application scope: Mobile robot, self guided robot, AGV, automatic guided vehicle, trackless vehicle,crawler vehicle chassis, electric platform vehicle,industrial platform

FAQ

1. Q: What are your main products? A: We produce various kinds of bldc servo motor and driver. 2. Q: How long have you been in this field? A: More than 15 years in this field. 3. Q: Do you have your own R&D team? A: Yes. R&D is our core competitiveness, continuous innovation is just what we are seeking for all the time. Some of our engineers have more than 20years experience in the industry, and we also cooperate with colleges, scientific research institutions and large enterprises. 4. Q: How soon can you deliver the goods? A: That depends on the exact model you order. For regular products, usually we will prepare some units in stock, we can deliver them within 3 working days. 5. Q: Can you make the product according to customer’s requirements? A: Yes, welcome costom-made products. 6. Q: What is your payment term? A: You can pay by TT, Paypal, Western Union.
