FB-U09-G

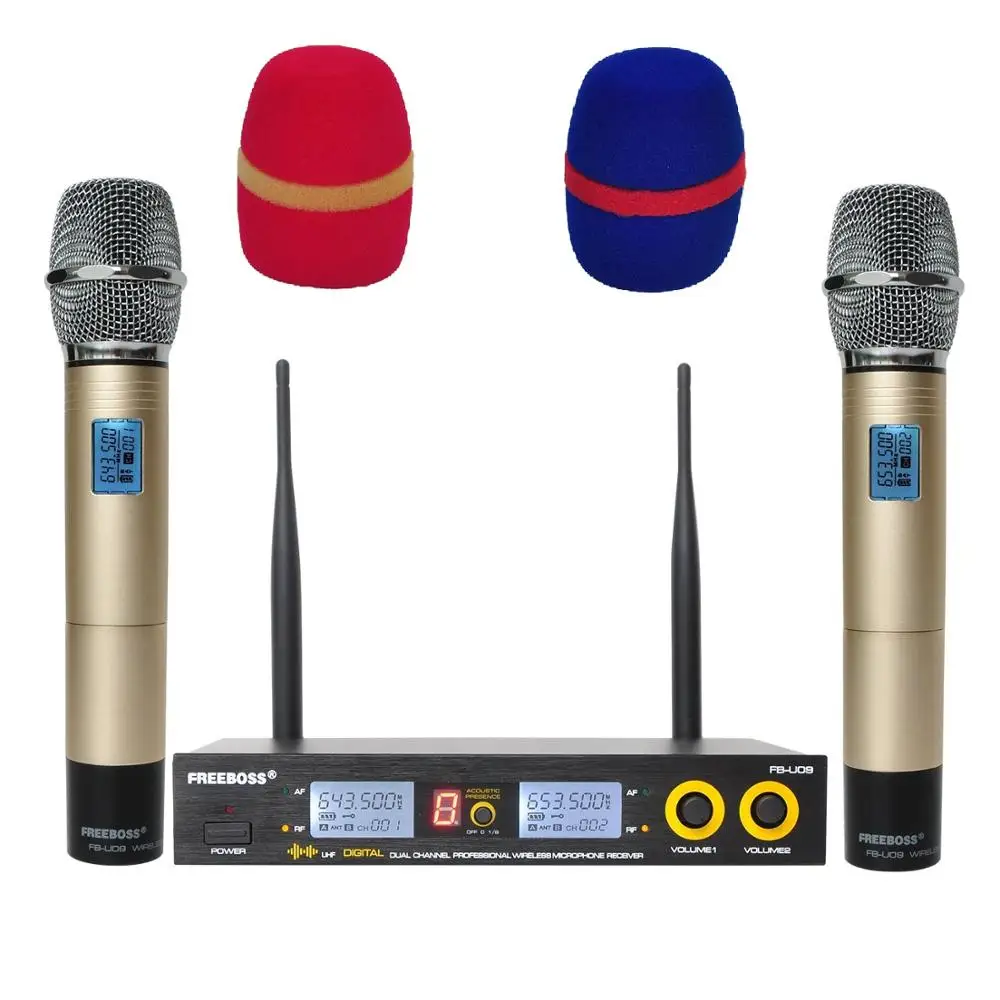

Freeboss FB-U09-G Dual Way Digital UHF Fixed Frequency Wireless Microphone with 2 Metal Handhelds in Gold Color

1. Key Point:

    1) UHF Band Fixed Frequency

    2) Transmitter: 2 pcs Metal handhled microphones

    3) Receiver: Metal Box,ON/OFF Knob,Individual Volume Knob, AF/RF Indicator

    4) Special digital launch receiving circuit, strongly improve S/N ratio, high fidelity reduction pick up sound.

    5) Digital transmit receive encryption,stop all external signal interference.

    6) Set special arbitrary selection of 8 kinds effects sound output,suitable for all kinds occasions and

        performance activities.(0: standard  1: Boost  2: Treble  3: Pop  4: Rock  5: Classic  6: Jazz
        7: Dance  8: R&B)

    7) Two XLR individual outputs and one 1/4"" Mixed output.

    8) Range: 30-50 meters , Suit for karaoke, speaking, party, etc.

    9) battery: 4*AA

8Kinds effects:

​

Working Range:

2.Product Description:

• Stability: 0.005% (-10-50)

• Deviation: 40KHz

• S/N: 96db

• Distortion:0.5%@1KHz

• Frequency Response: 30Hz-20KHz

• ​

3. Receiver :

Receiver front panel function:

1.) Power Switch:

   A)  Link the power adapter to receiver power socket,then link the power adapter to 220V power.

   B)  Press the receiver power button,power indicator is on,the receiver is on "working" status.

2.) AF Led Indictaor

     when RF indicator is on, microphone A/B power is on

   A) Microphone A/B pick up the sound, the AF light is on

   B) no sound is picked up, the AF light is off.

3.) RF Led Indictaor

    ​when the receiver is on "working" status,

   A) Microphone A/B no power, left/right RF light is off

   B) Microphone A/B is on, left/right RF light is on

4) Backlit Screen:  the screen will not change.

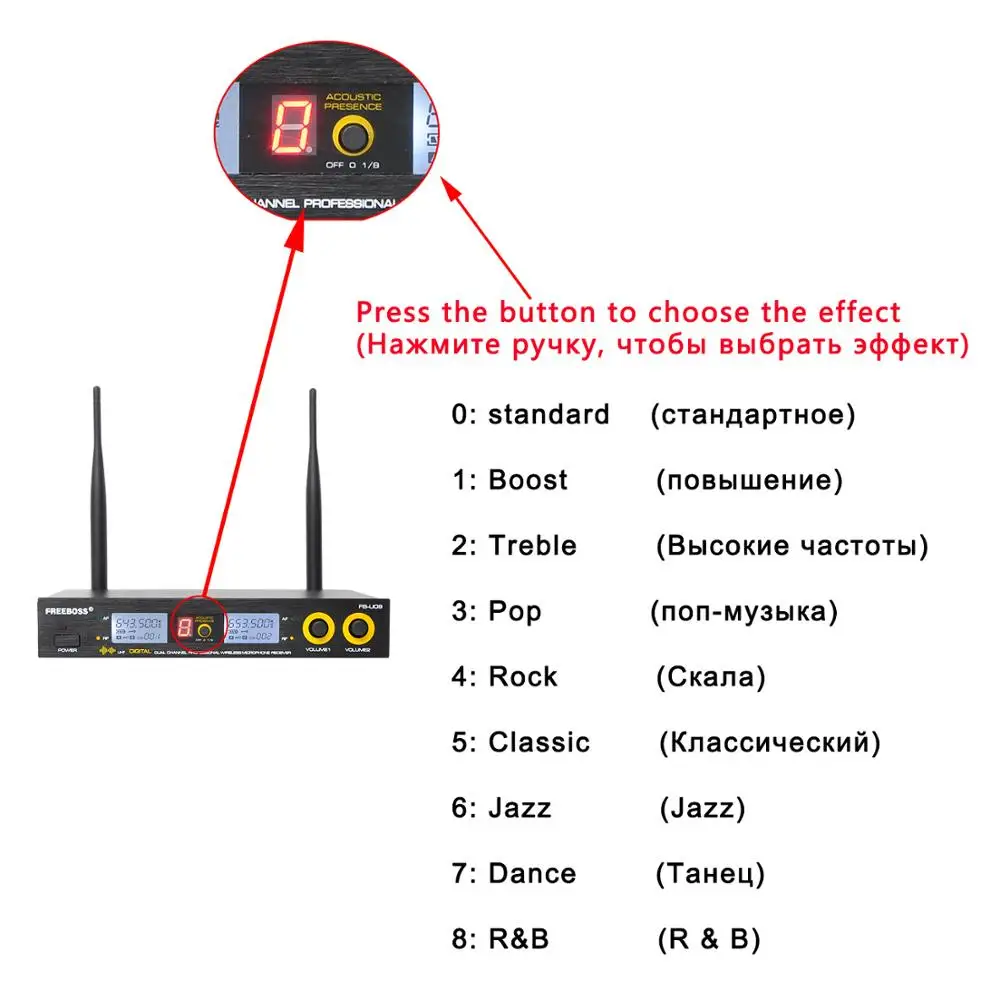

5.) Effect Screen:

     Display the number of the present effect.

6.) Effect Choose Button:

     Press the button, the number will change from 0 to 8. You can choose the effect according to the number. (0: standard  1: Boost 2: Treble 3: Pop 4: Rock 5: Classic 6: Jazz 7: Dance 8: R&B)

7.) Volume Knob:

     clockwise: volume from low to high

     anticlockwise: volume from high to low.

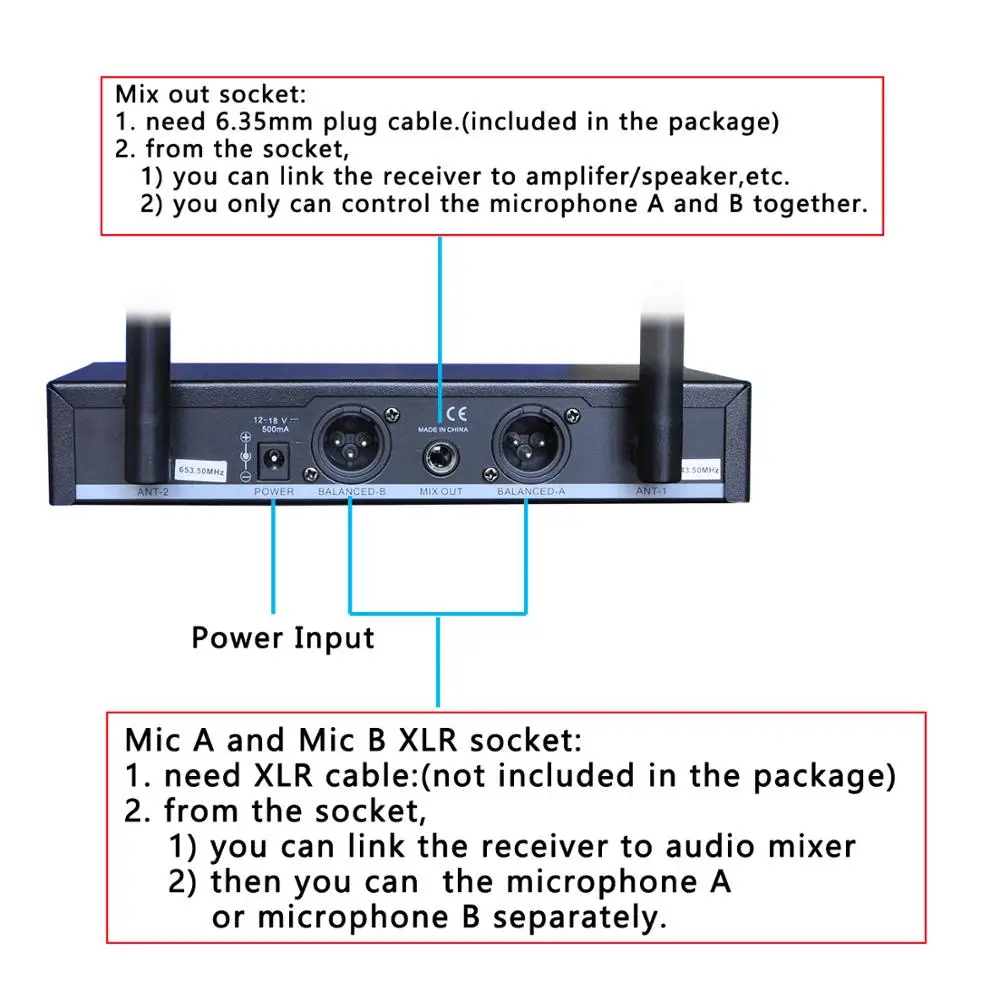

Receiver back panel function:

1) Mic A and Mic B XLR socket:

A.) Need XLR cable:(not included in the package)

B.) From the socket,

a) you can link the receiver to audio mixer

b) then you can controld the microphone A  or microphone B separately.

2) Mix out socket:

A.) Need 6.35mm plug cable.(included in the package)

B.) From the socket,

a) you can link the receiver to amplifer/speaker,etc.

b) you only can control the microphone A and B together.

Power adapter:

1) EU PLUG

2) US PLUG

3) PLUG adapter

4. Transmitter:

• Capsule: Professional Audio Dynamic Capsul

• Transmitting power:<=10dbm

• Frequency stabilization:+-0.005%

• Battery Two-pieces battery of 1.5

Material:

Metal handheld, Comfort and smooth handling experience with elegant appearance.

Microphone head

Polygon design to prevent rolling.

Cartridge:

1) Type: Moving coil

2) Polar pattern: Cardioid

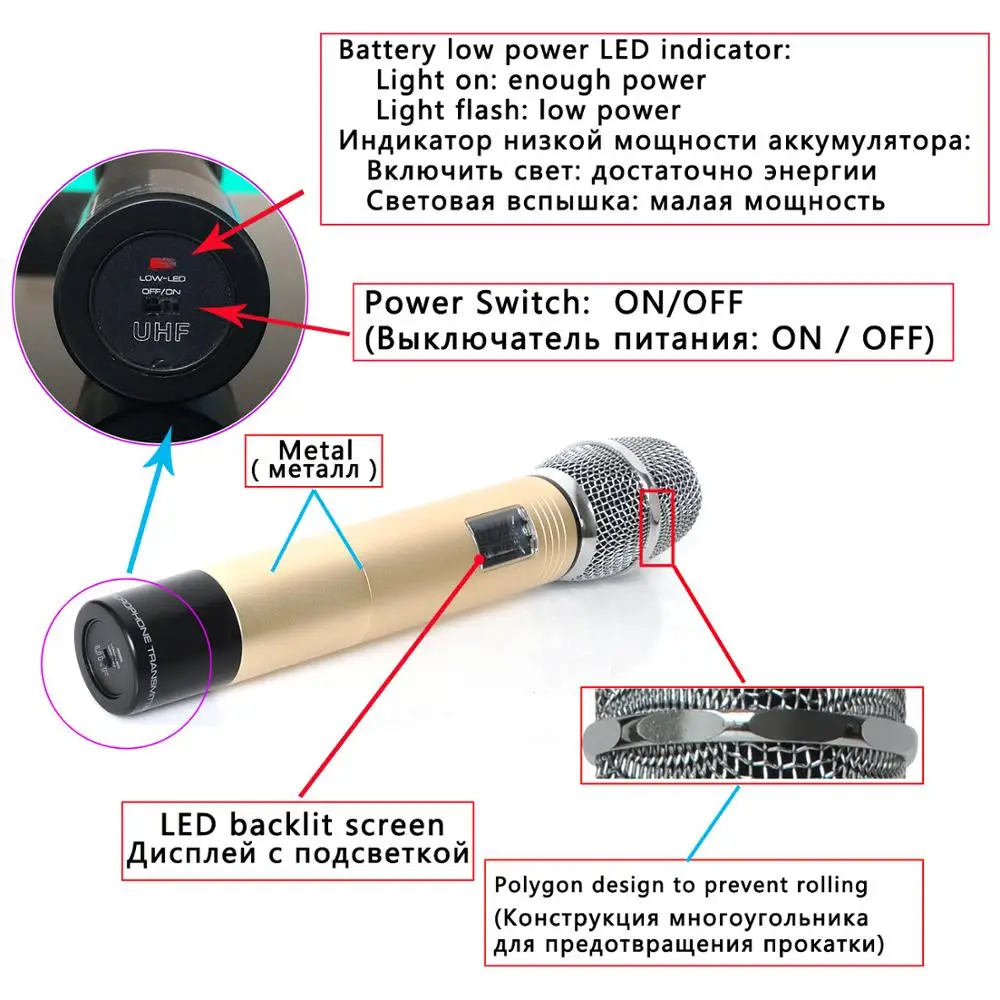

Low-LED:

Battery low power LED indicator:

     1)Red led light on: enough power

     2)Red led light flash: low power

Remark:

We would like to give our customers 2 windscreens as gift to thanks for your kind support.

5. Application

​

1) Microphone                   2pcs

2) Receiver                        1pc

3) Audio cabel                   1pc

4) Power adapter              1pc

5) Owner's manual            1pc

Please Note:

Please confirm the frequency is ok for you.

  1) 6.35 plug cable to audio mixer (there is one piece cable in the package)

 2) 6.35 plug cable to audio mixer (there is one piece cable in the package)

 3) 6.35 plug cable to amplifier (there is one piece cable in the package)

4) 6.35 plug cable to amplifier (there is one piece cable in the package)

5) 6.35 plug cable to amplifier speaker (there is one piece cable in the package)
