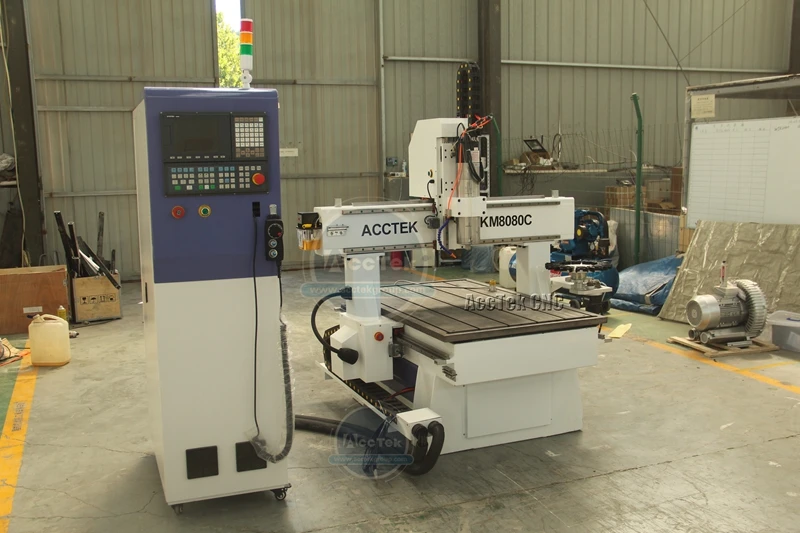

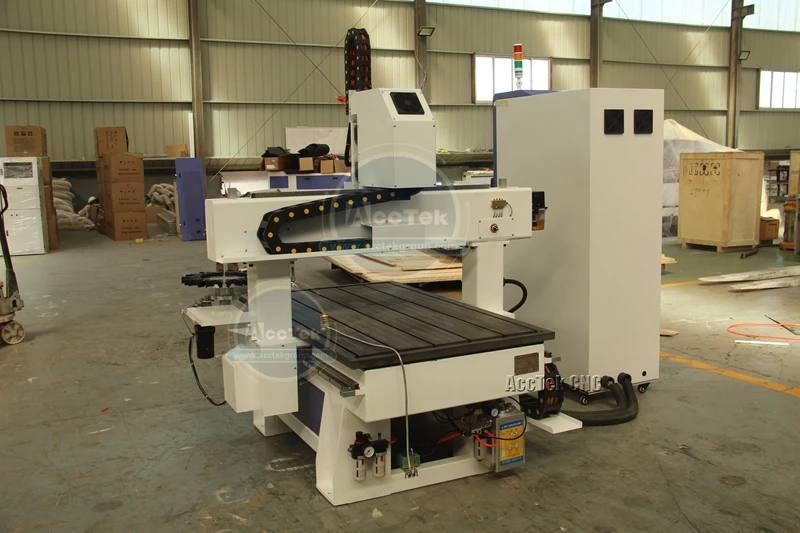

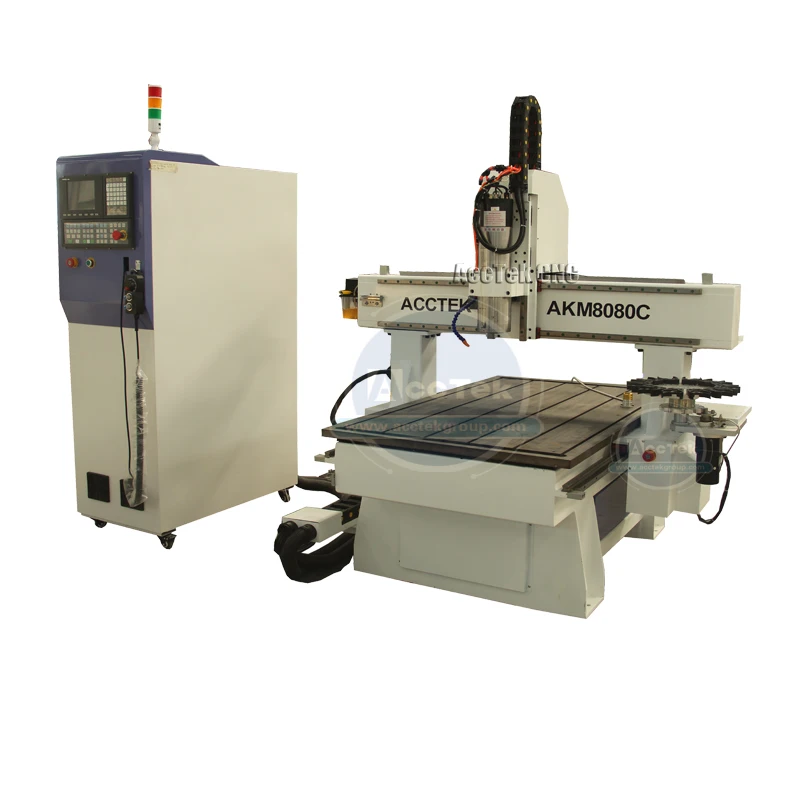

Heavy duty structure jinan AccTek 4th axis cnc router ATC 8080 moulding CNC machine | Инструменты
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Apr-04-2026 | 0.8 руб. | 0.78 руб. | 0 руб. |
| Mar-04-2026 | 0.79 руб. | 0.24 руб. | 0 руб. |
| Feb-04-2026 | 0.7 руб. | 0.73 руб. | 0 руб. |
| Jan-04-2026 | 0.8 руб. | 0.18 руб. | 0 руб. |
| Dec-04-2025 | 0.40 руб. | 0.14 руб. | 0 руб. |
| Nov-04-2025 | 0.50 руб. | 0.14 руб. | 0 руб. |
| Oct-04-2025 | 0.94 руб. | 0.69 руб. | 0 руб. |
| Sep-04-2025 | 0.25 руб. | 0.33 руб. | 0 руб. |
| Aug-04-2025 | 0.95 руб. | 0.49 руб. | 0 руб. |
Описание товара
Professional mold CNC router machine for metal
No find the CNC you like? Try to click CNC name as following.

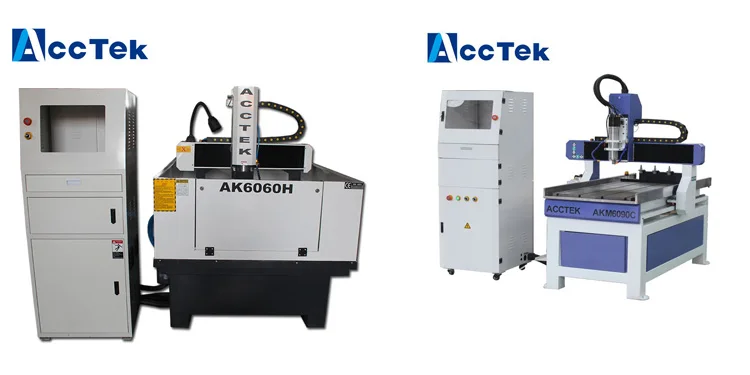

Semi-closed Metal Molding CNC MINI ATC Desktop CNC Router
MINI CNC Router Economical Molding Desktop CNC Router
Other working sizes can be customized.
special size.Please contact Whatsapp:+8613066019927 Jack Ma
Mold CNC Parameter| Model | Professional CNC router mould machine |
| Structure/machine body | Whole cast iron T-slot table/welding Steel |
| X Y Z working size | 800*800*200mm |
| X Y Z rail | HIWIN Linear square guide rail |
| X Y transmission | Helical gear racks |
| Z transmission | Taiwan TBI Ball screw |

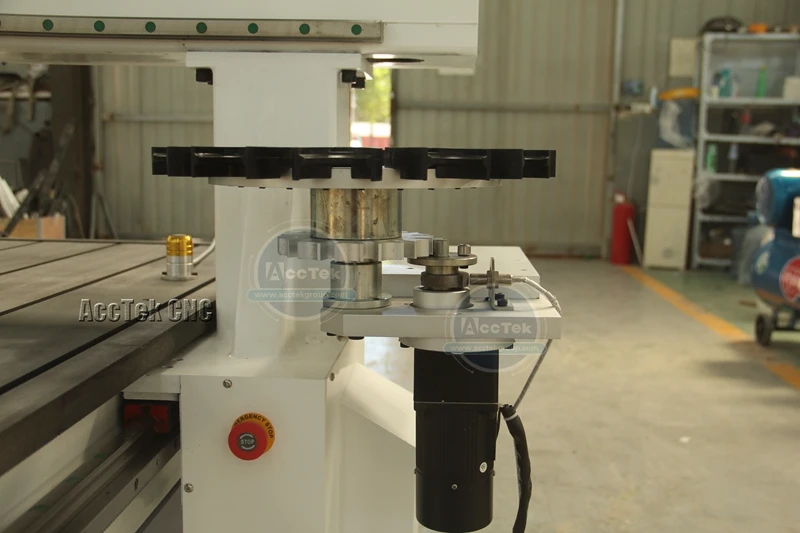

| Spindle | 7.5kw ATC water cooling spindle for tapping |
| Spindle speed | 0-24000rpm |
| Motor | Delta servo motor |
| Driver | Delta servo driver |
| Inverter | Delta inverter |
| Voltage | 220V/380V±10% 50HZ/60HZ 3/1phase |
| Collets | BT30/40 |
| Filter | Yes |
| Lubrication | Auto oiling system |
| Max. speed | 60m/min |
| Max. working speed | 30m/min |
| Repeat reposition accuracy | ±0.005mm |
| Max. cutting thickness | <=20mm |
| Software | Artcam/Ucancam/Type 3 |
| Control system | Taiwan Syntec system |
| Command | G-code |
| N/G weight | 650/750KG |
|
Optional
|
#Italy 9.0KW air/water cooling spindle #DSP control ,Nc-studio,SIEMENS system #Japan YASKAWA servo motor and driver #Special working size #Rotary axis |

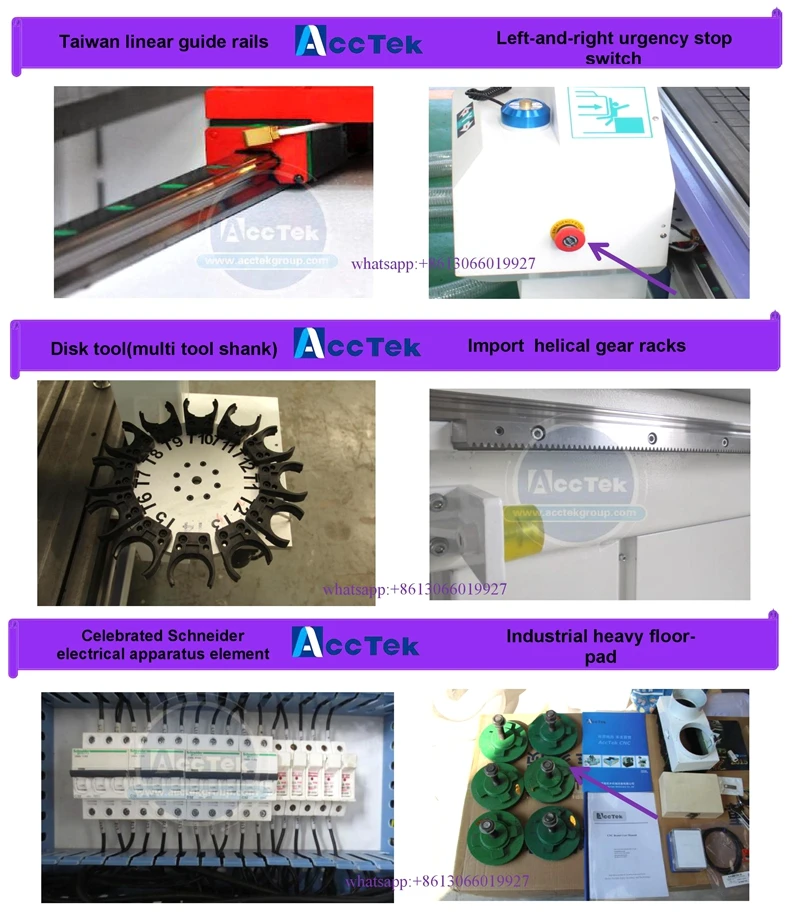

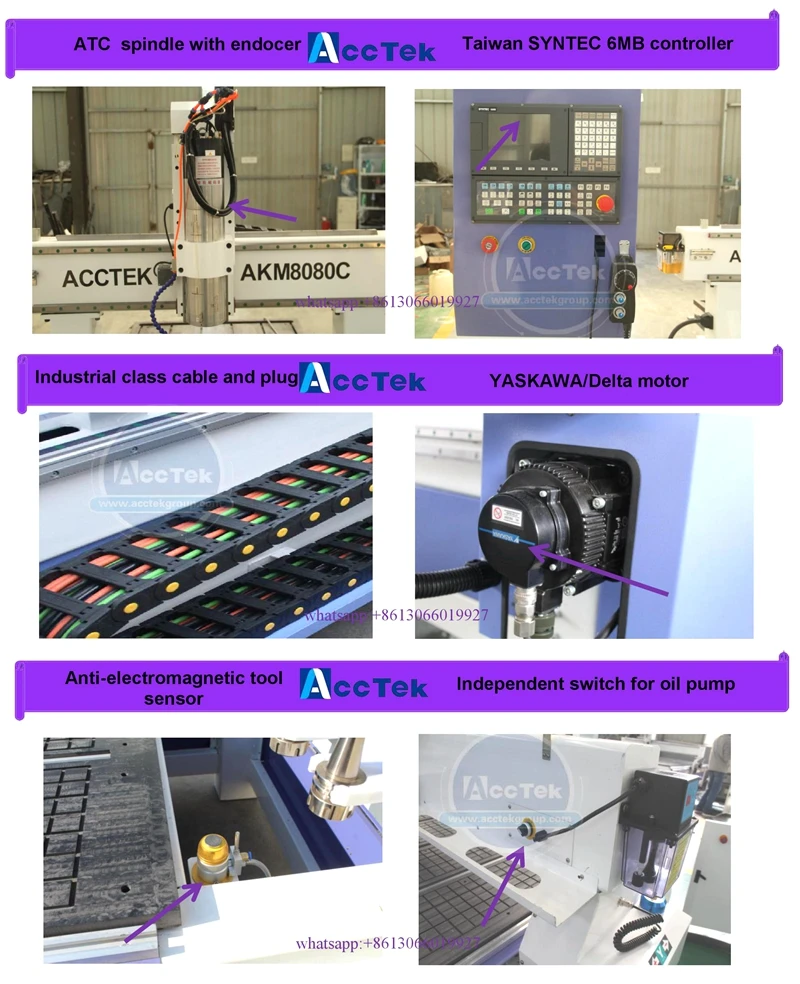

CNC Details

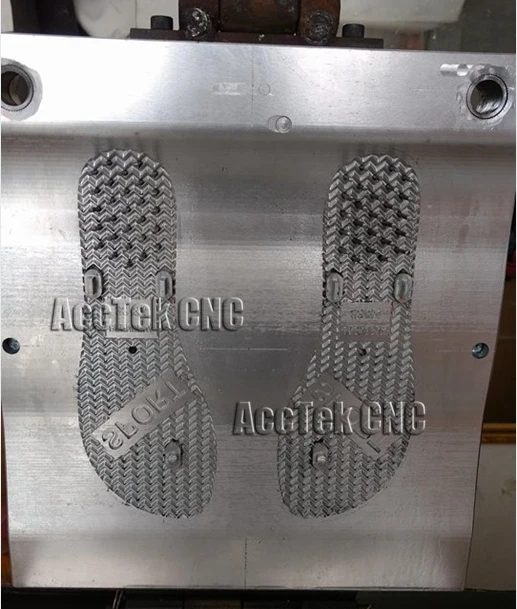

1. It is suitable for engraving, milling, and drilling compactly all sorts of materials such as steel, copper, aluminum, and plastics.
2. Our wood CNC milling machine can widely apply to automotive, injection mold, ironware mold and engrave mold industries.
3. Specially designed for engraving and milling molds, eyeglasses, watch, panel,
badge, brand, graphics and words of three-dimensional and outside surface's
sleeking of large size.
Rather careful and professional packing way for machine protection.
1. Film. Put PE film on the machine and some spare parts, then put bubble wrap to the machine.
2. Free-fumigation wooden case with steel tube support on wooden cover. The humidity-proof paper above the wooden plate. This kind of package could protect the machine very well from dust and humidity etc.
Guarantee:
24 months for the whole machine.You will also get technical support and service all the lifetime.
Payment:
Secure online payment options include e-Checking, credit card and T/T. Your payment is secured by Alibaba.com's anti-fraud system.
Technical support:
1. Our technician can give you remote guide online(Skype or WhatsApp) if any question.
2. English version manual and operation video CD disk
3. Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/skype/tel etc
One world, one family
Skype:Jackma006 Whatsapp:+8613066019927 Wechat:13066019927 E:export13"at"acctekcnc.com
