POE World Gigabit 1 port PoE injector with 60W power supply for POE+802.3at hight powered device | Безопасность и защита

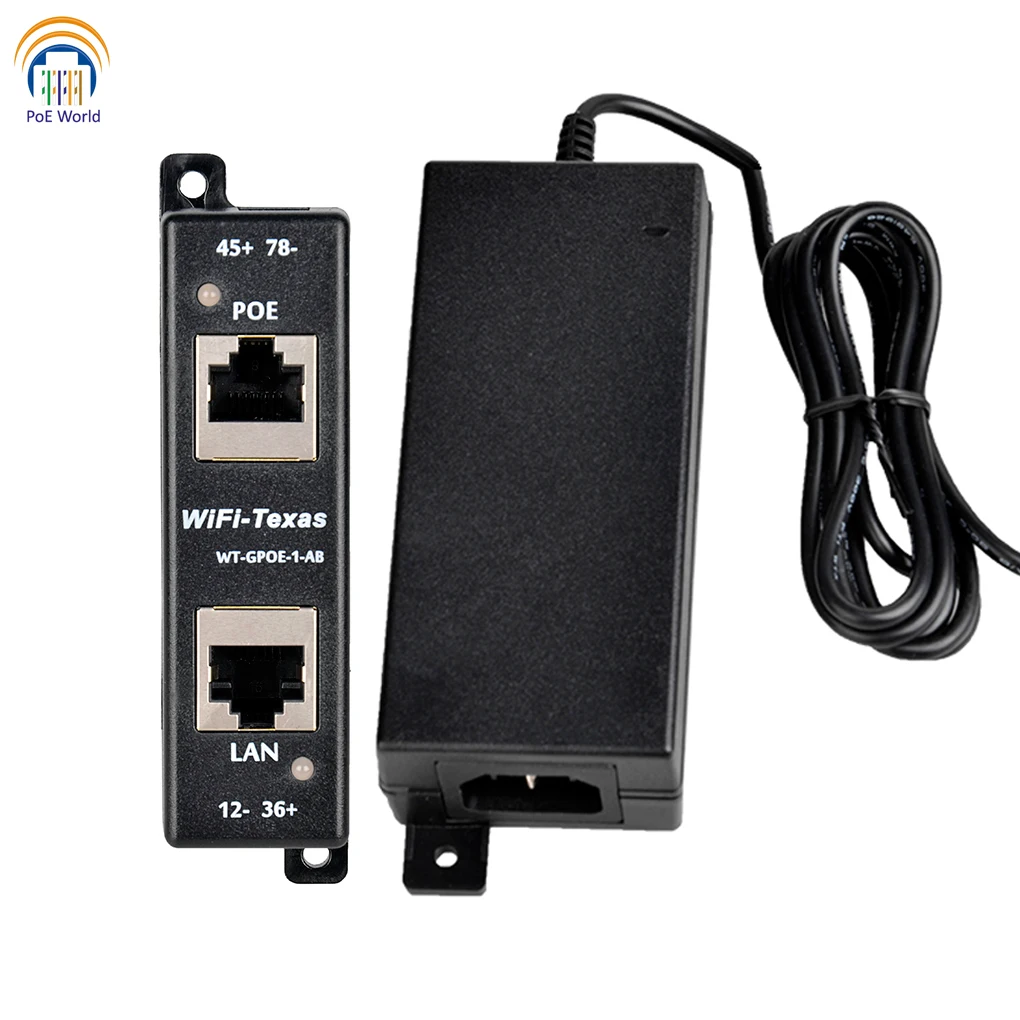

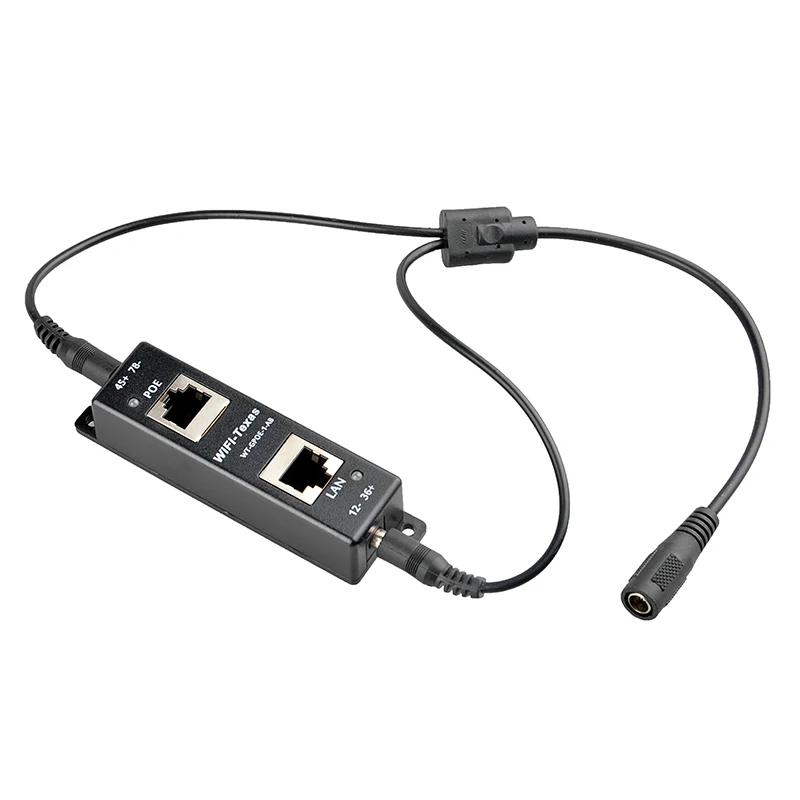

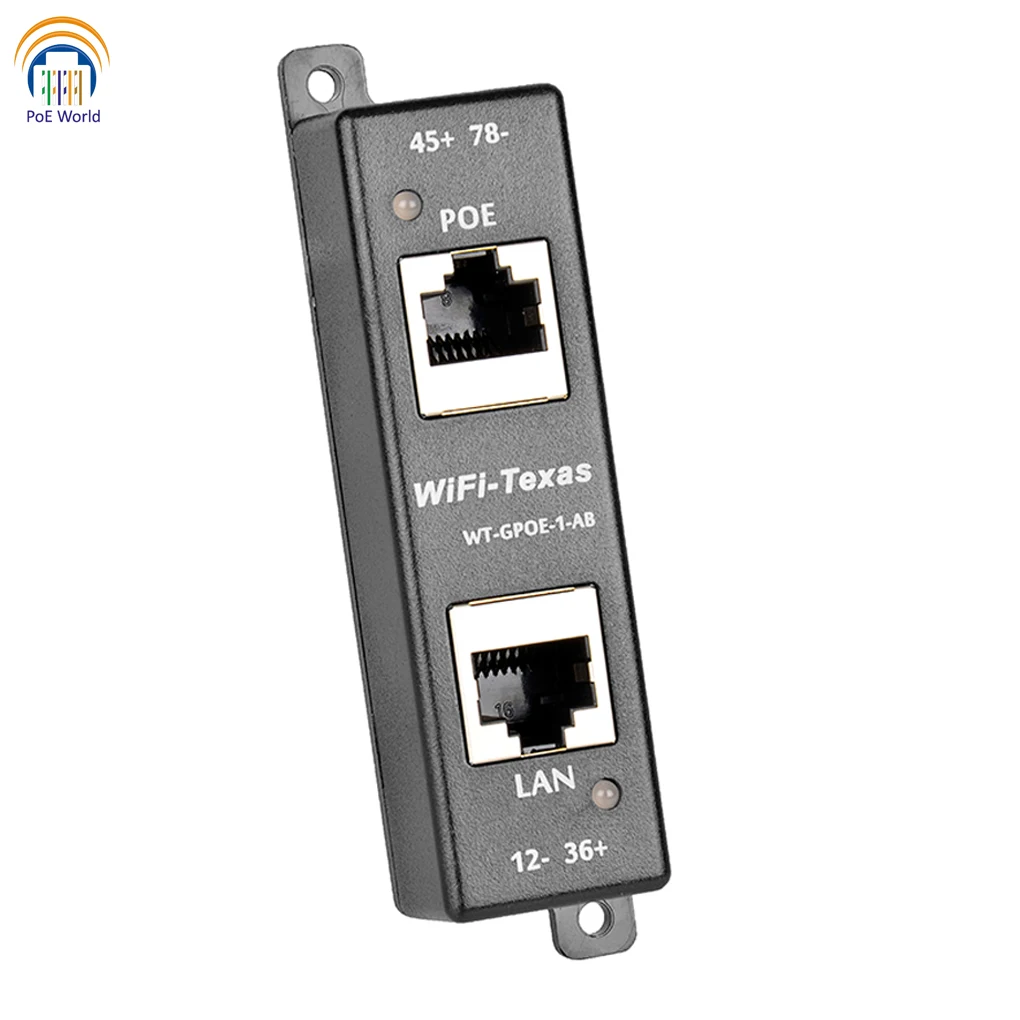

POEGI001AB Gigabit 1 port PoE injector with 60W power supply for POE+802.3at for hight powered device

Overview

This device is a very cost effective injector at gigabit rates. When used as an injector it inserts the DC voltage at the source location. The DC voltage is then carried over the active data pairs in the network cable. The same device can be used as a passive splitter to extract two voltages from the ethernet cable while operating at gigabit speeds

Gigabit PoE injector or splitter, dual mode A and B, power on all 4 pairs, reversable polarity, polarity indicator LED.

Included Power supply (48Volt 60Watt ):  for up to 60 watts total

Use with IP security cameras, phones, wireless access points and other devices that accept passive 802.3af or PoE+

Specification

> 1 Port Gigabit Ethernet

   -Injector or Splitter

   - 1 Shielded RJ-45 LAN

   -1 Shielded RJ-45 Lan+PoE

   -10/100/1000 data rates

> Size: 100*25*22mm

> Wall Mount-Stackable

> Dual 650 ma automatic resettable fuses

   -one for each mode

> use with any ethernet switch-PoE or Non-PoE switches

> Mode A operation

   -pin1-2(-)

   -pins 3-6(+)

> Mode B Operation

   -pins 4-5(+)

   -pins7-8(-)

> Power is always on

   -no auto-negotiation

   -powers 802.3af/802.3at devices "passively"

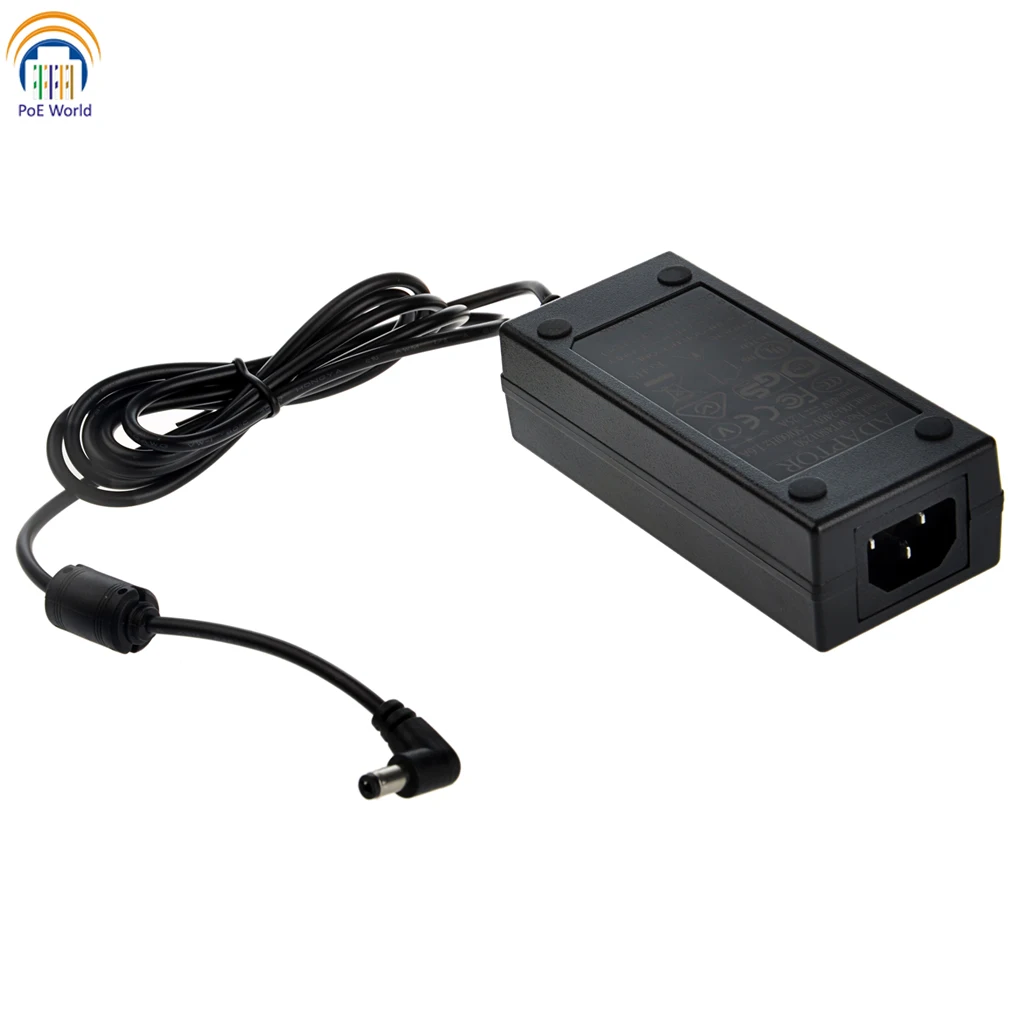

> Included the power supply--48Volt 60Watt

• 100 to 240 volt AC input power supply

• with 48 volt 60 watt output 1.25 amps max

• 2.1mm x 5.5mm DC power plug

• CE and ROHS approval

• 48v 60watt power supply

• 100 to 240v, 50/60 hz

• Max power: 60 watt

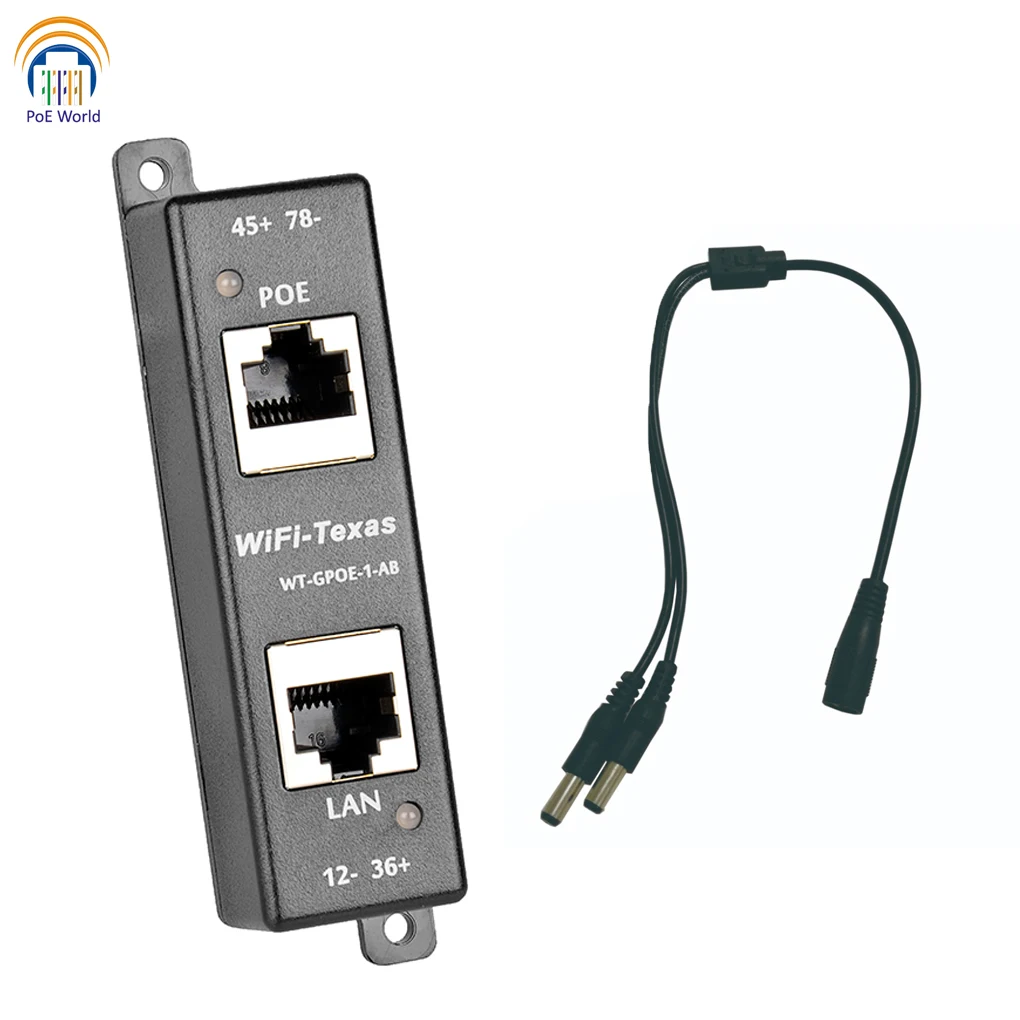

Package:

1 * 1 Port Gigabit PoE injector Mode AB

1 * 48V60W power supply

1 * Power cord

1 * Y Cable
