Pure sine wave Off Grid Solar Hybrid Inverter 5kva5KW 48VDC80A can work witout batteries | Обустройство дома
История изменения цены
*Текущая стоимость US $550.00 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Sep-16-2025 | 655.68 руб. | 688.62 руб. | 671.5 руб. |
| Aug-16-2025 | 649.98 руб. | 681.51 руб. | 665 руб. |
| Jul-16-2025 | 545.84 руб. | 572.30 руб. | 558.5 руб. |
| Jun-16-2025 | 638.50 руб. | 670.46 руб. | 654 руб. |
| May-16-2025 | 556.51 руб. | 584.41 руб. | 570 руб. |
| Apr-16-2025 | 627.11 руб. | 658.64 руб. | 642.5 руб. |
| Mar-16-2025 | 622.6 руб. | 653.53 руб. | 637.5 руб. |
| Feb-16-2025 | 616.76 руб. | 647.74 руб. | 631.5 руб. |
| Jan-16-2025 | 611.81 руб. | 642.15 руб. | 626.5 руб. |
Описание товара

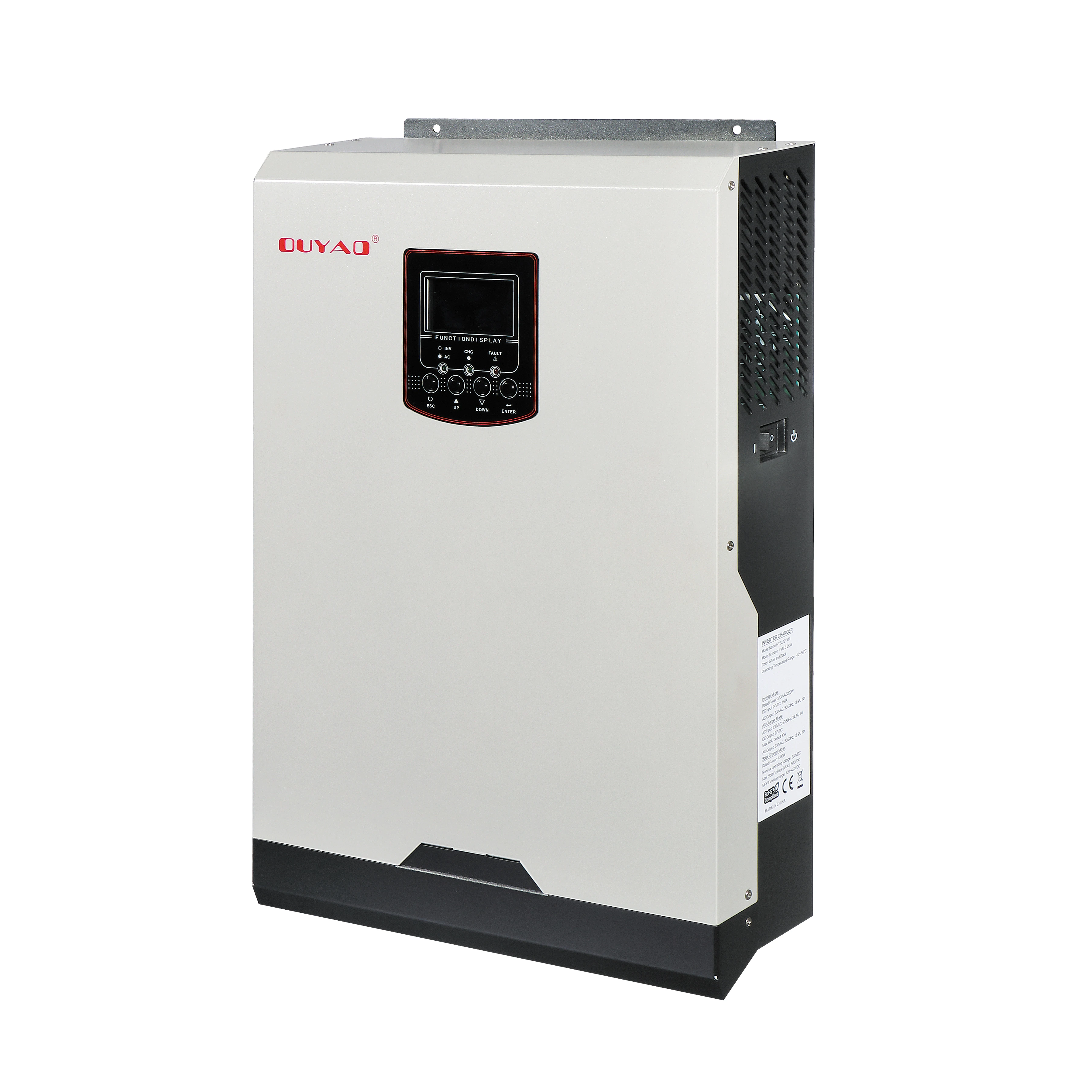

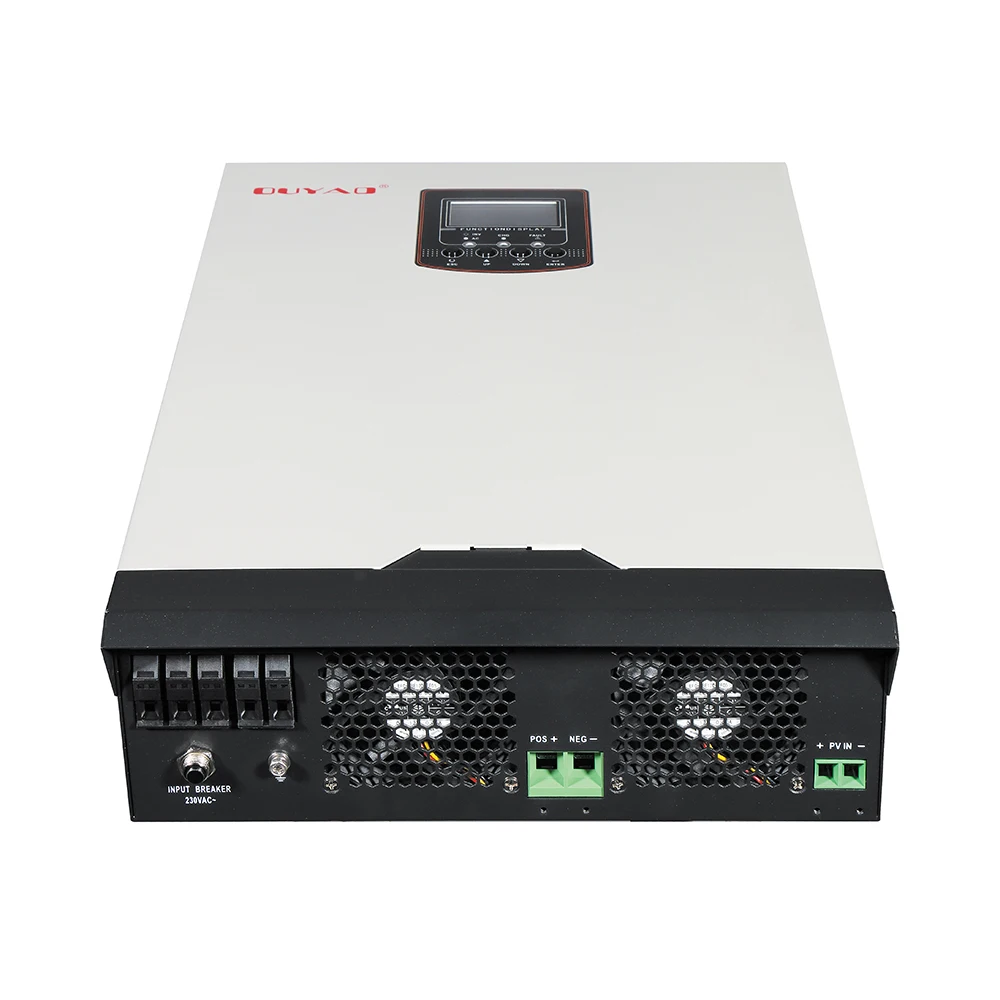

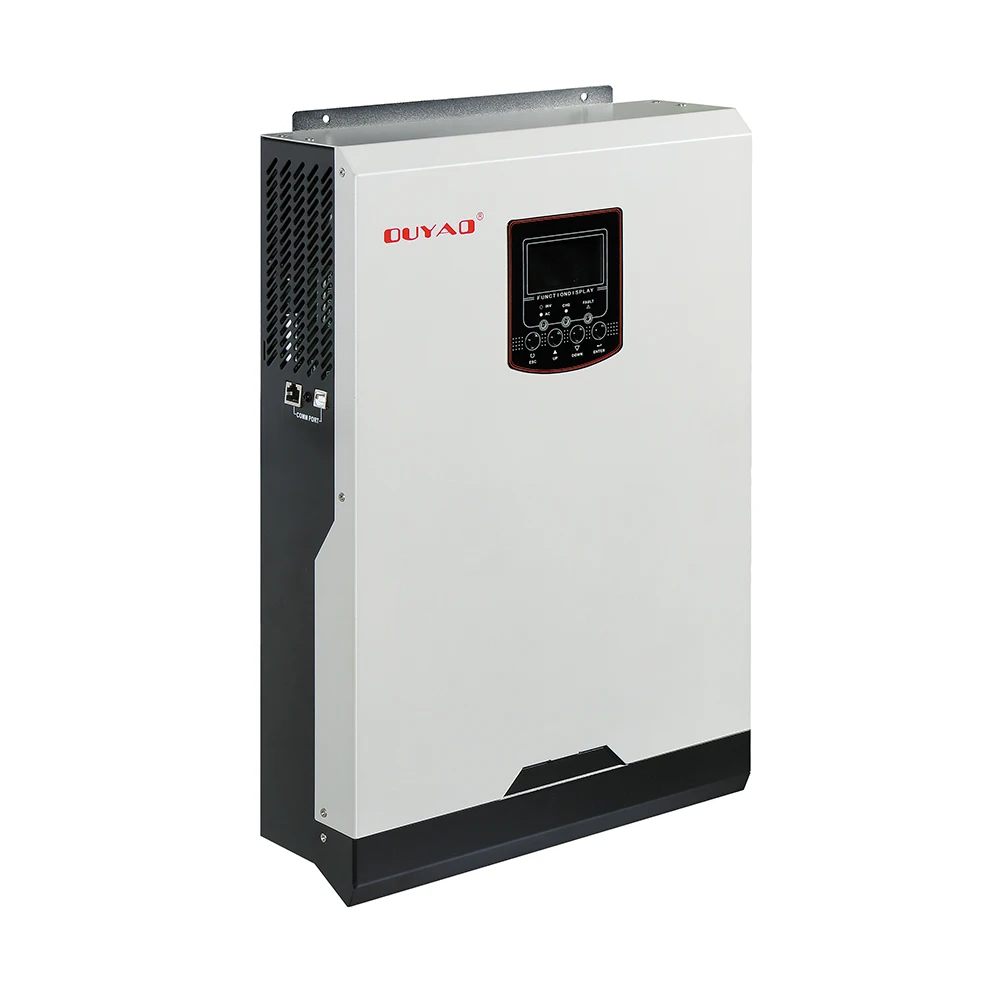

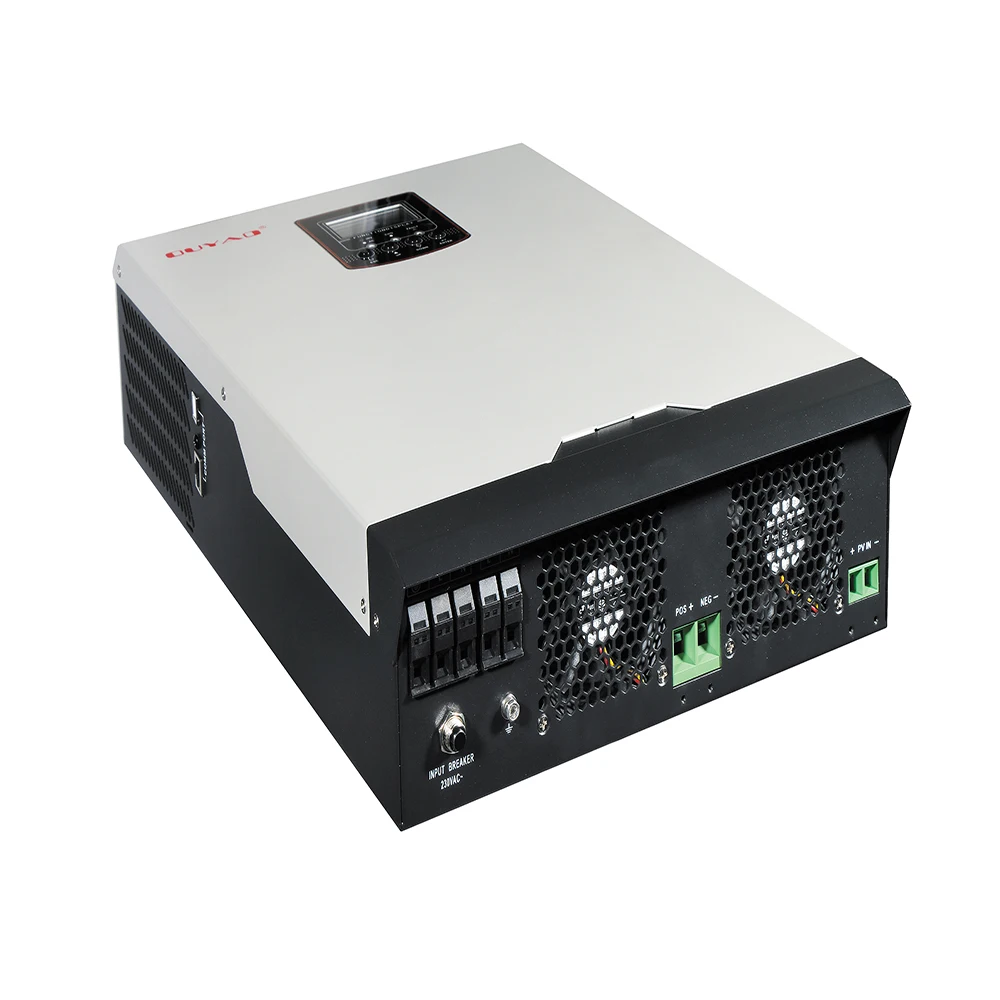

Pure sine wave Off Grid Solar Hybrid Inverter 5kva5KW 48VDC80A can work witout batteries
Introduction:
VM II SERIES solar inverter is the perfect go-to solution for off-grid, backup power for homes , small business and it also delivers a value added , easy to install system that provides efficient power globally for every need
Features:
* High effciency pure sine wave inverter(PF=1);Wide PV input range (120V dc -500V dc) 80A MPPT SCC; Intelligent 3stage 80A AC battery charger.
* Surges to 2X continuous power for 5 seconds for motor loads.
* Intelligent functionality enables utility and solar input prioritization.
* Wide ulility input range (90Vac _280Vac) for unreliable grid even in the most challenging environments.
* Field serviceable with replacement boards and spare parts.
* Monitor, troubleshoot, or communication with USB/RS 232.
* System configures quickly into compact, wall-mounted system.
Specification:
|
Model |
HY5032VM II |
|
RATED POWER |
5000VA / 5000W |
|
230VAC |
|
|
Voltage |
230 VAC |
|
Selectable Voltage Range |
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliance) |
|
Frequency Range |
50 Hz/60 Hz (Auto sensing) |
|
OUTPUT |
|
|
AC Voltage Regulation (Batt. Mode) |
230 VAC ± 5% |
|
Surge Power |
10000VA |
|
Efficiency (Peak) |
90%~93% |
|
Transfer Time |
10 ms (For Personal Computers) ; 20 ms (For Home Appliances) |
|
Waveform |
Pure sine wave |
|
BATTERY |
|
|
Battery Voltage |
48 VDC |
|
Floating Charge Voltage |
54 VDC |
|
Overcharge Protection |
63 VDC |
|
SOLAR CHARGER & AC CHARGER |
|
|
Max. PV Array Open Circuit Voltage |
500VDC |
|
Max. PV Array Power |
4000 W |
|
MPP Range @operating Voltage |
120~450VDC |
|
Max. Solar Charge Current |
80 A |
|
Max. AC Charge Current |
60 A |
|
Max. Charge Current |
80 A |
|
PHYSICAL |
|
|
Dimension, D x W x H (mm) |
100 x 300x 440 |
|
Net Weight(kgs) |
10 |
|
Communication Interface |
USB/RS232 |
|
ENVIRONMENT |
|
|
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
|
Operating Temperature |
-10° C to 50° C |
|
Storage Temperature |
-15° C to 60° C |
Drawing:

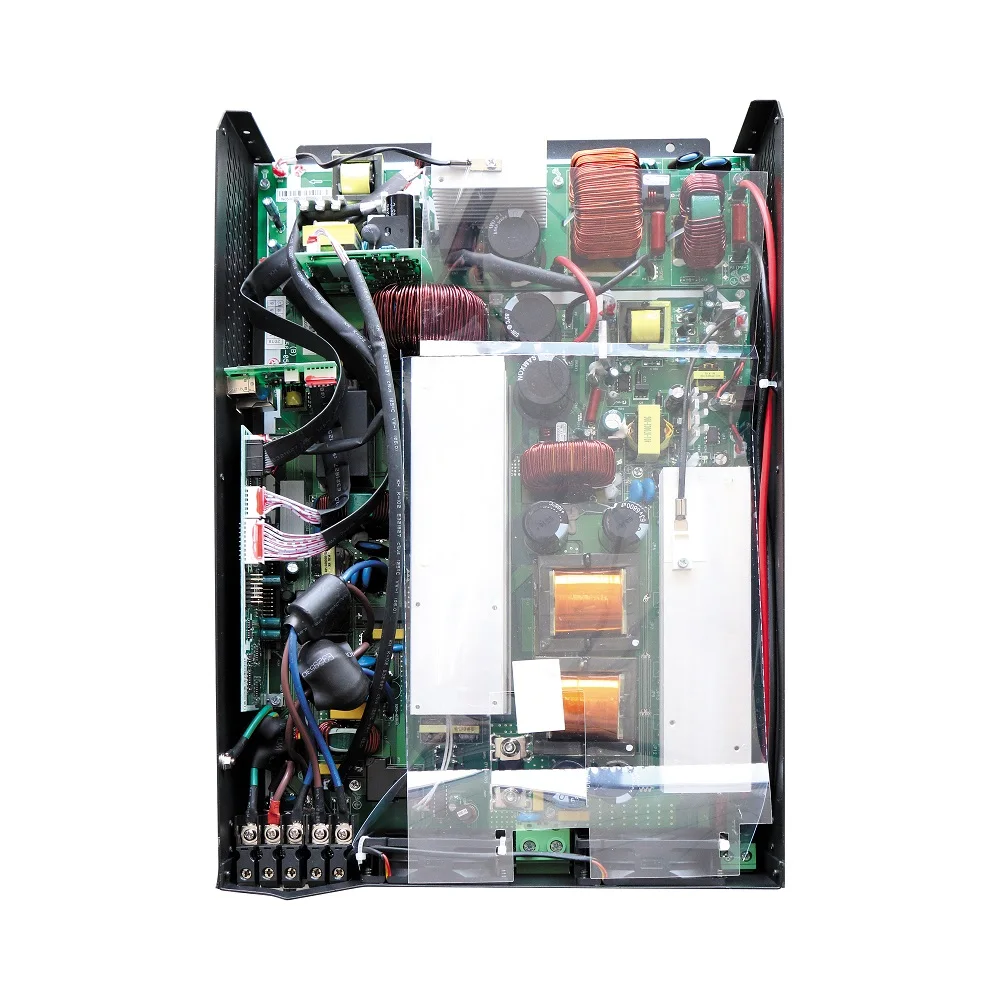

Products Detail:
Package:
Project Case:
Production line:
Factory power &Certifications:
FAQ:
1, Why choose our company?
Our company had set up at 2007, have 11 years experience in inverter field.
In addition, we use alibaba platform for 11 years as superior supplier.
2, What qualifications and strengths does your company have?
Our company won the "Government authorized Hi-Tech Enterprise certificate " in November 2015(Remark: This is a national level comprehensive strength certificate).
3,What is your company's technology research and development capabilities?
Our company have a dedicated R&D department with 20 senior technicians.
Our company got the honor from Guangdong province department of science and technology as
“Guangdong province smart wind&solar hybrid power system engineering technology research center”( remark: This is a provincial-level technical research and development strength certificate)
4,What quality certification system did your products passed ?
Our products all passed ISO9001, CE, IEC,CQC Career Health and Safety Management System certificates.
5,How do you guarantee the quality of the product?
We provide 2 years warranty for the inverter, and provide 2% PCB board as spare parts.
In addition, for core distributors we will train technical maintenance personnel and provide free components and equipment to build service stations in the local area.
6,What is the goods lead time?
Inverter quantity less than 30pcs, lead time 3days; quantity more than 30pcs, lead time 25 calendar days.
7, If I want to be your distributor, what is the condition? What benefits and benefits can I get as your distributor?
When you can order more than 50,000 US dollars at a time, we can sign a distributor agreement with you. Being our distributor, we will give you a very favorable price (the specific price is determined according to the signing agreement); We can provide enough technical support, establish local service stations to provide repair equipment and components.
