G-Penny Machine110v / 220v 1.5kw VFD Variable Frequency Drive 2.2kw vector Inverter Motor Speed Control 0-1000Hz on.Машина G-Penny110v / 220v 1.5kw VFD Переменный частотный привод 2.2kw векторный инвертор Скорость управления двигателем 0-1000 Гц включено.

G-Penny Machine110v / 220v 1.5kw VFD Variable Frequency Drive 2.2kw vector Inverter Motor Speed Control 0-1000Hz on.Машина G-Penny110v Переменный частотный привод векторный инвертор Скорость управления двигателем 0-1000 Гц включено.

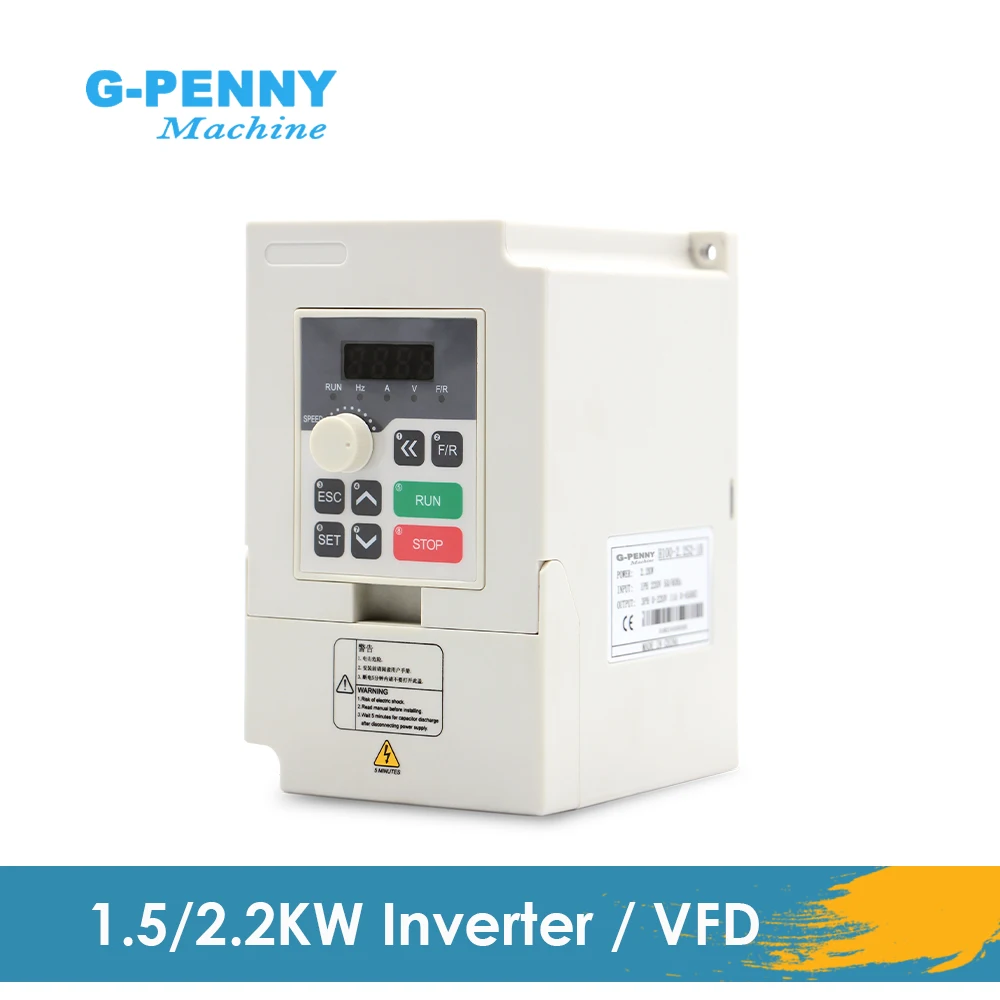

1 pcs x G-Penny Machine 1.5kw/2.2kw 110v/220v Variable Frequency Drive VFD Vector Inverter

(H100 inverter is not a boost inverter)

Power: 1.5KW

Input Voltage: 110v/220v

Curent: 14A(110V) / 7A(220V)

Output Voltage: 0~110v/220v

Input Frequency: 50/60 Hz

Output Frequency: 0-1000 Hz

Input Phase: 1 phase

Output Phase: 3 phase

Warranty: 1 year from the date you purchased

Power: 2.2KW

Input Voltage: 110v/220v

Curent: 12.5A(110V) / 11A(220V)

Output Voltage: 0~110v/220v

Input Frequency: 50/60 Hz

Output Frequency: 0-1000 Hz

Input Phase: 1 phase

Output Phase: 3 phase

Warranty: 1 year from the date you purchased

1. The outer plastic shell of the inverter is made of ABS flame retardant raw material, which is flame retardant and not easy to break.

2. The inverter cooling fan is a domestic first-line brand Huaxia Hengtai, the air volume is more than 20% higher than that of ordinary fans, and the service life is more than 5 years.

3. There is an independent cooling air duct inside the inverter, which can form an independent space and effectively prevent dust, water mist, etc. from entering the circuit board.

4. With MODBUS485 communication function, built-in braking unit.

5. Built-in PID setting, speed tracking, multi-function relay output, multiple fault protection, multiple state feedback torque control, analog setting.

6. The capacitor brand used in the inverter is Taiwan loose control, the temperature resistance is 105 degrees, and the temperature resistance of ordinary capacitors is 80 degrees.

7. The maximum output frequency of the inverter can reach 1000HZ,

8. Currently has CE certificate, CSA certification program has passed, in certification.

9. Heavy load and high torque, 1HZ can reach full torque.

10. Up to 16-stage speed control can be achieved.

Some questions about inverter

DO NOT set up the inverter by yourself if you don't know how to, or it will make both the spindle and inverter burn easily.

Please contact us, we have manuals, videos and pictures to help you.
