Характеристики
Ультразвуковой толщиномер / ультразвуковой измеритель толщины Цифровой ширины приборы TM210Plus.
История изменения цены
*Текущая стоимость 16613.04 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Aug-15-2025 | 21099.14 руб. | 21521.42 руб. | 21310 руб. |
| Jul-15-2025 | 17111.80 руб. | 17453.8 руб. | 17282 руб. |
| Jun-15-2025 | 20766.65 руб. | 21181.61 руб. | 20973.5 руб. |
| May-15-2025 | 20600.67 руб. | 21012.15 руб. | 20806 руб. |
| Apr-15-2025 | 16447.23 руб. | 16776.54 руб. | 16611.5 руб. |
| Mar-15-2025 | 20268.59 руб. | 20673.21 руб. | 20470.5 руб. |
| Feb-15-2025 | 20102.10 руб. | 20504.86 руб. | 20303 руб. |
| Jan-15-2025 | 19936.43 руб. | 20335.35 руб. | 20135.5 руб. |
Описание товара
Brand NameTMTECKModel NumberTM210PlusOriginMainland ChinaWith Backlight Or NotYESMeasurement unitpiece/piecesEach pack1Place of OriginChina (Mainland)Display128X64 LCD with LED backlightMeasuring range0.75mm~300.0mm (0.03inch~11.8 inch)Sound velocity1000m/s~9999m/s (0.039~0.394in/usCommunicationUSB serial portOutline Dimensions150mmX74mmX32mmWeight238 gCOLORblack16 613,04 ₽16 613,04 ₽loaderReviews
5,0
1 review10000All stars
Eduardo K.11 January 2022Show more
Description

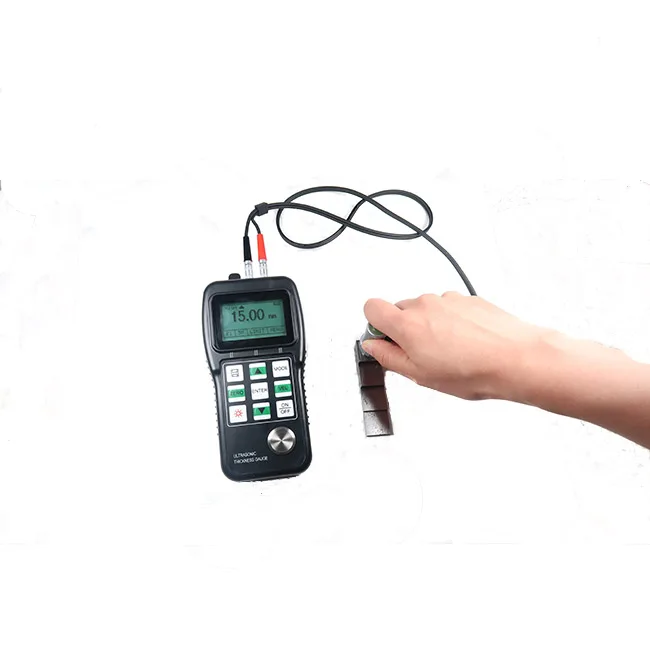

TM210Plus Ultrasonic Thickness Gauge can easy to test the cast iron material
1.Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.
2.Transducer models are available for special application, including for coarse grain material and high temperature applications.
3.Probe-Zero function, Sound-Veloctiy-Calibration function.
4.Two-Point Calibration function.
5.Coupling status Indicator showing the coupling status.
6.Battery information indicates the rest capacity of the battery. Ultra-low power consumption, it is can continue working 100 hours.
7.Auto sleep and auto power off function to conserve battery life.
8.Usb port with Protective Membrane and datapro software to process the memory data on the PC.
9.Optional thermal mini-printer to print the measured data via USB port.
10,Adjust gain function ,can easy to test the cast iron material,
Specifications
|
Display: 128×64 LCD with LED backlight. |
|
Measuring range: 0.75mm~300.0mm (0.03inch~11.8 inch) |
|
Sound velocity: 1000m/s~9999m/s (0.039~0.394in/µs |
|
Display resolution:0.01mm or 0.1mm (lower than 100.0mm) |
|
0.1mm (more than 99.99mm) |
|
Accuracy: ±(0.5%Thickness +0.02)mm, depends on Materials and conditions |
|
Units: Metric/Imperial unit seletable. |
|
Lower limit for steel pipes: |
|
5MHz probe: F20mm´3.0mm(F0.8´0.12 inch) |
|
10MHz probe: F20mm´3.0mm(F0.6´0.08 inch) |
|
Power Source: 2pcs 1.5V AA size, batteries.100 hours typical operating time(LED backlight off). |
|
Communication: USB serial port |
|
Outline Dimensions: 150mm×74mm×32mm |
|
Weight: 238 g |
|
Four measurements readings per second for single point measurement, |
|
Memory for up to 5 files(up to 100 values for each file) of stored values |
Configuration
|
|
No |
Item |
Quantity |
Note |
|
Standard Configuration |
1 |
Main body |
1 |
|
|
2 |
Transducer |
1 |
Model: TM-08 |
|
|
3 |
Couplant |
1 |
|
|
|
4 |
Instrument Case |
1 |
|
|
|
5 |
Operating Manual |
1 |
|
|
|
6 |
Alkaline battery |
2 |
AA size |
|
|
12 |
DataPro Software |
1 |
|
|
|
13 |
Communication Cable |
1 |
|
|
|
Optional Configuration |
7 |
Transducer: TM-12 |
|
Appendix A |
|
8 |
Transducer: TM-06 |
|
||
|
9 |
Transducer: HT5 |
|
||
|
10 |
Mini thermal printer |
1 |
|
|
|
11 |
Print cable |
1 |
Probe optional for ultrasonic thickness gauge
|
Model |
Freq. MHz |
Diam. Min. |
Measuring range |
Lower limit |
Description |
|
TM-12 |
2 |
14 |
3.0mm-300.0mm (in steel) |
20 |
For thick, highly attenuating, or highly scattering materials |
|
TM-08 |
5 |
8 |
1.2mm-230.0mm (in steel) |
￠20mm×3.0mm |
Normal measurement |
|
TM-08/90 |
5 |
8 |
1.2mm-230.0mm (in steel) |
￠20mm×3.0mm |
Normal measurement |
|
TM-06 |
7 |
6 |
0.75mm-80.0mm (in steel) |
￠15mm×2.0mm |
For thin pipe or small curvature pipe wall thickness measurement |
|
HT-5 |
5 |
13 |
3mm-200mm (in steel) |
30 |
For high temperature measurement (up to 300℃) |
|
HT5-2 |
5 |
13 |
3mm-200mm (in steel) |
30 |
For high temperature measurement (up to 550℃) |
