Описание товара

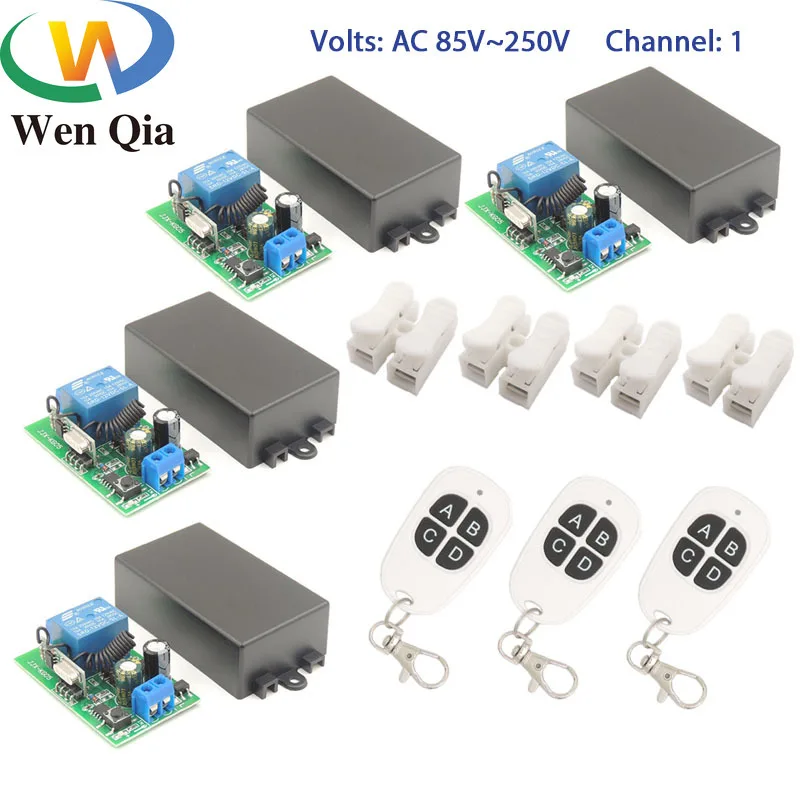

Wenqia smart switch 433Mhz RF Remote Control AC 85-220V 1 Ch Relay Receiver and Transmitter meanwhile control for Light/Fan/Led
Product Application Area
Products can be used in homes, farms, factories, offices, laboratories, supermarkets and so on.
Remote control Electric curtain \ Water pump \ Fan \ Lamp \ LED light \ bulb \ ventilation device \ Signal transmission
Remote control motor positive and negative rotation \ motor switch \ DIY
If you have any questions, please feel free to contact us.
Programming

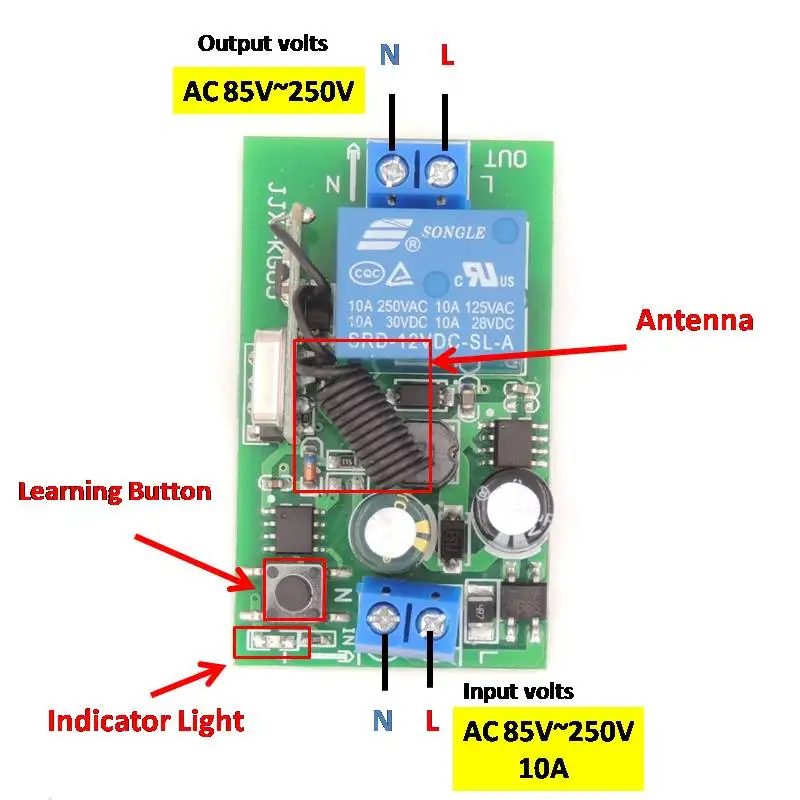

The relay receiver board has 3 operation modes, you can program as your requests.
- 1. Momentary Mode:
Description : Press and hold on button "A" , relay will turn on; Release the button, this relay will turn off.
Program :
1. Press the learning button(on the Receiver) once. Wait for 3 seconds;
2. Press one button on the remote control. Wait for 3 seconds. Succeed.
- 2. Toggle Mode:
Description : Press button "A", relay will turn on; Press button "A" again, this relay will turn off.
Program :
1. Press the learning button(on the Receiver) twice. Wait for 3 seconds;
2. Press one button on the remote control. Wait for 3 seconds. Succeed.
- 3. Latched mode:
Description : Press button "A", relay will turn on; Press button "B", this relay will turn off.
Program :
1. Press the learning button(on the Receiver) triple. Wait for 3 seconds;
2. Press button "A" on the remote control. Wait for 3 seconds.
3. Press button "B" on the remote control. Wait for 3 seconds. Succeed.
Note: Reset the receiver before you want to change the operating mode of one remote control.
- Reset:
Press the learning button (on the Receiver) 8 times. The existing data will be deleted succeed.
Note:
1. After reset, all the remote controls cannot work any more.
2. Before using the relay receiver board, please stretch the antenna on it slightly to increase the signal reception range.
Relay Receiver Board Parameter
--Working voltage : AC 85V~250V--Quiescent Current : <5MA
--Max current : 10Amp
--Max load : 2200W
--RF frequency : 433MHz
--Pin : L \ N
--Working temperature : -30~+80
--Receiving Sensitivity : >97dbm
--Amount of storage remote controls : 25 pieces
--Support encoding : 1527 Leaning code /2262 fixed code
--RF Operating mode : ASK superheterodyne wireless reception
--Receiving range : Open space is more than 50 meters
--Remote operating mode : Momentary Mode / Toggle Mode / Latched Mode

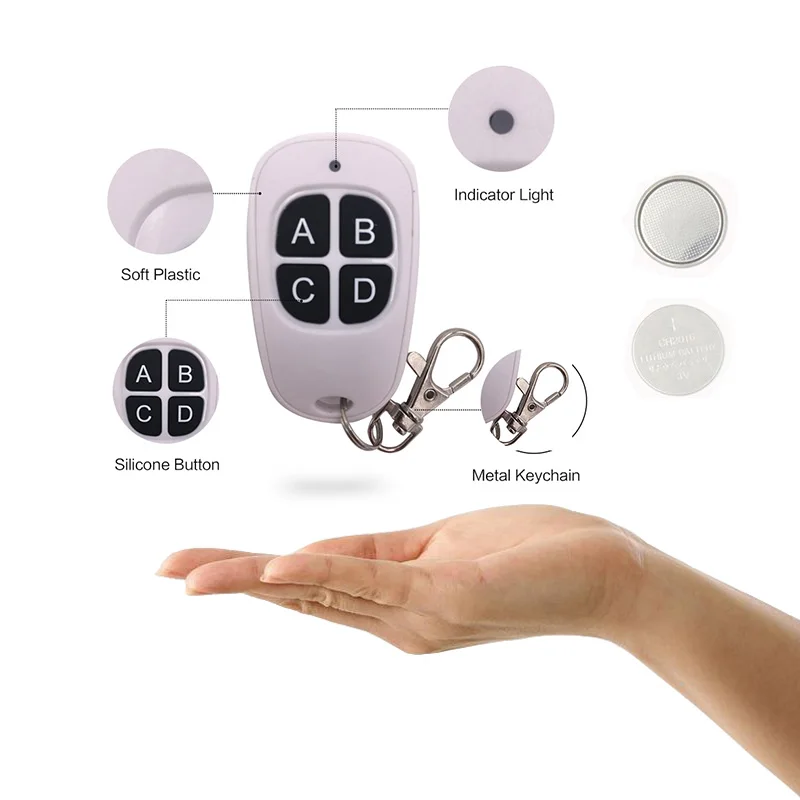

Transmitter Parameter
--RF frequency : 433MHz
--Support encoding : 1527 Leaning code
--Transmitting range : Open space is more than 50 meters
--Battery : 2pcs * CR2016 ( include )
Receive DetailsRelay Reciever ( include shell )
DetailsControl
Remote Control ( include battery )
Terminals

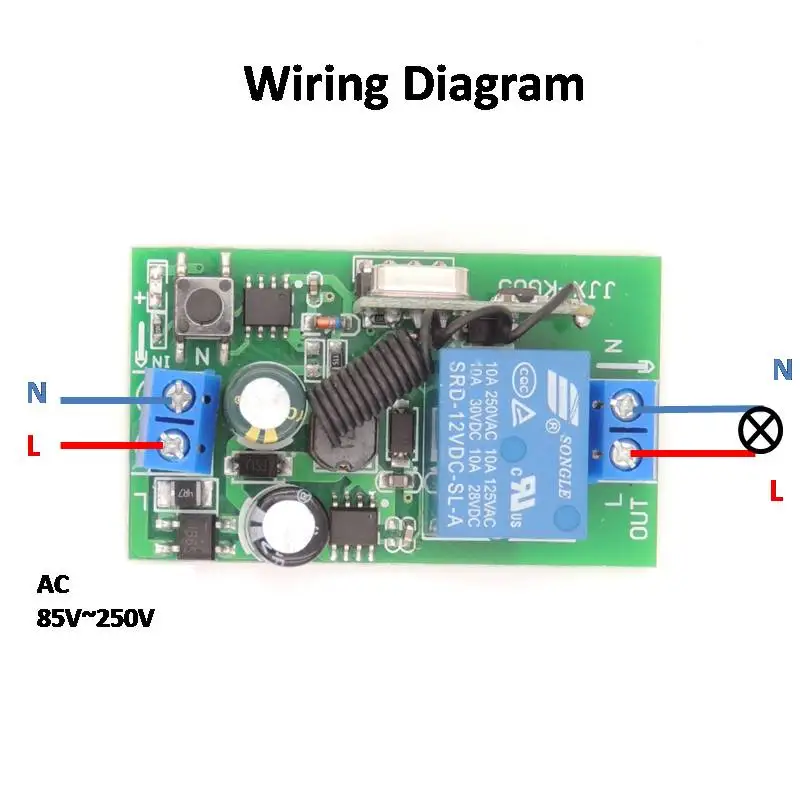

1 Wiring diagram

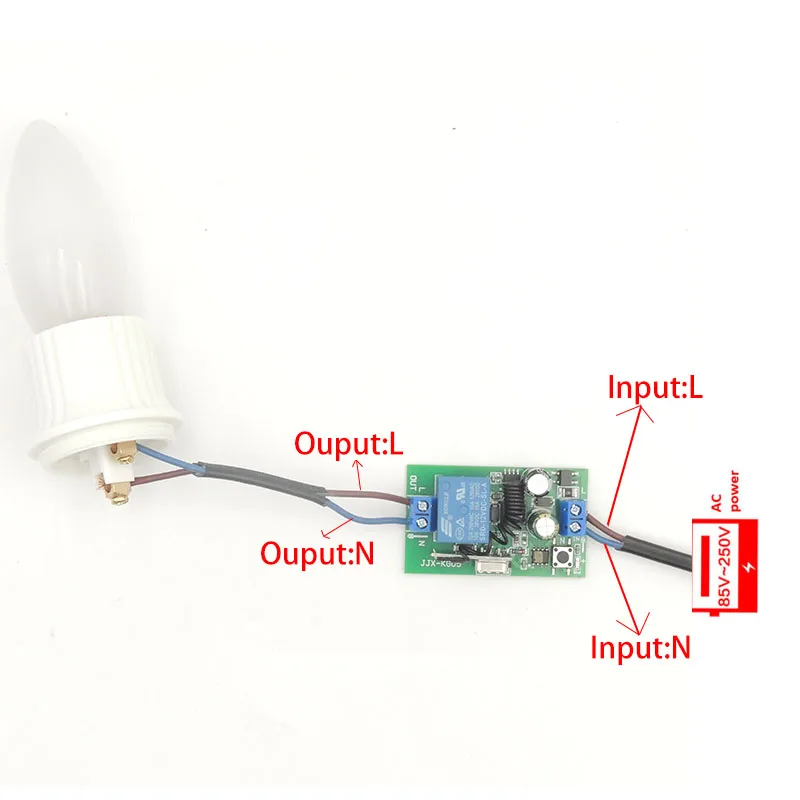

FOR Light/Home appliance
Application Scenario
The products are all producted by our own factory , Our factory can support OEM and ODM, welcome to consult.
