Цифровой осциллограф Hantek 6204BD Portable Oscillograph 200 МГц, 4 канала с генератором сигналов 25 МГц через USB2.0 на ПК.

Цифровой осциллограф Hantek 6204BD Portable Oscillograph 200 МГц 4 канала с генератором сигналов 25 через USB2.0 на ПК.

Brand NameHantekModel NumberHantek6204BDDIY SuppliesELECTRICALBand Width200MHzDigital Channels4IS Battery DemountableNoMax Waveform Capture Rate30,000wfm/sReal Time Sampling Rate1GSa/SMeasurement unitpiece/piecesSold insell_by_pieceEach pack1Package weight1.500Package size - length (cm)25Package size - width (cm)18Package size - height (cm)10Memory Depth64KVertical Resolution8BitBandwidth Limit20MHzTrigger ModeEdge, Pulse, Video, AlternativeWeight0.9KG19 079,97 ₽19 079,97 ₽Add to CartBuy now19 079,97 ₽

Delivery to Moskva g

Free Return return for any reason within 15 days

Delivery

Description

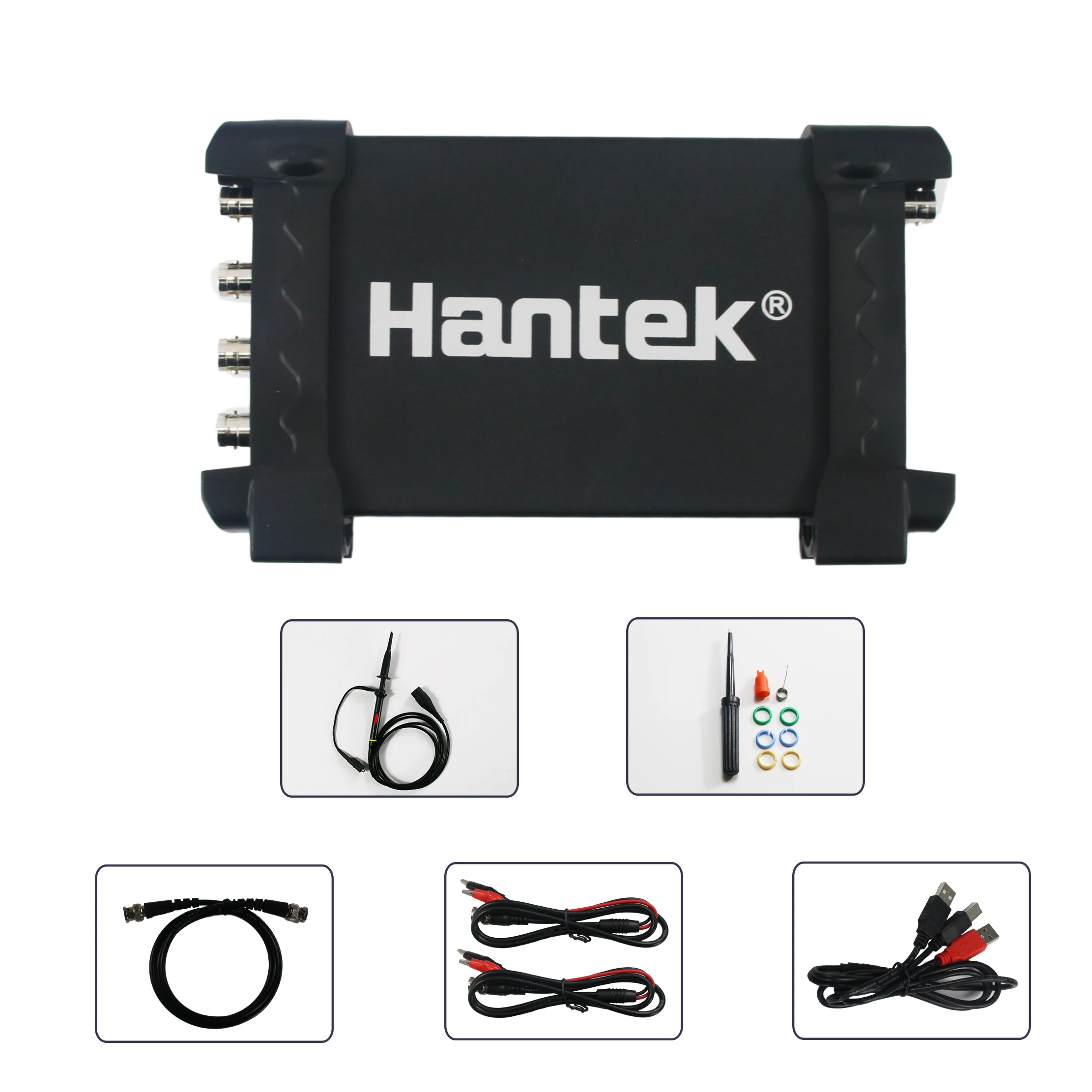

Hantek Hantek6204BD Digital Oscilloscope Portable Oscillograph 200MHz 4CH​ Osciloscopio USB2.0 PC With 25MHz Signal Generator

Feature

1.4CH oscilloscope & function/Arb. waveform generator. 2.The performance of this model could even better than the performance of benchtop oscilloscope. It has 4 independent analog channels, 1GSa/s real-time sampling rate, 2mV-10V/DIV input sensitivity, and 250MHz bandwidth. 3.Function/Arbitrary Waveform Generator: 200MSa/s DDS, 12bits of vertical resolution, built-in variety of standard waveforms, arbitrary waveform easy to edit, which is convenient to reappear sensor and other irregular signal. 4.Pass/fail test, resourceful trigger function, dynamic cursor tracking, waveform record and replay function. The operation interface is similar to banchtop oscilloscope, easy to operate with high cost performance. 5.USB2.0 Interface, plug and play device. 6.Good mechanical design with small size which is easy for carrying. The outer case is made by the same material with iPad - Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved. 7.Fit for the portable computers, table PC, and repairing/fixing of production line. Suitable for business trip use. 8.Software support: Windows10, Windows 8, Windows 7 9.The waveform data could be output to EXCEL,BMP,JPG as time and voltage category. 10.More than 20 kinds of automatic measurement function, PASS/FAIL Check function, fit for engineering application. 11.Serial bus triggering and decode, Bus protocol information can be quickly and intuitively displayed in table form. 12.Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display. 13.FFT spectrum analyzer 14.One computer could connect with multiple oscilloscopes, expand the channel number easily. 15.USBXI standard interface, easy to insert into USBXI case to constitute assembling instrument. 16.Provide secondary development library DLL; Provide Labview\VB\VC developing examples. Package including 1 x 6204bd usb oscilloscope; 2 x oscilloscope probe;(Note:Just 2pcs probes in the package,if you want to buy more,please contact with us directly!!!) 2 x BNC - clip cable; 1xBNCTOBNC; 1 x usb cable; 1 x CD (driver / manual... inside)
