versions to choose:
A: Quad Core 1GB 16GB Version:
Android 10.0+Quad Core +1G Ram+16G Rom+2.5D +IPS+Mirror link+Video Output
B: Quad Core 2GB 32GB Version:
Android 10.0 +Quad Core + 2G Ram+32G Rom+2.5D +IPS +DSP +Mirror link
+ AHD-1080P Video input
C: Octa Core 2GB 32GB Version:
Android 10.0+Octa Core +2G Ram+32G Rom +2.5D +IPS+DSP+4G NET+Mirror link
D: Octa Core 4GB 64GB Version:
Android 10.0+Octa Core + 4G Ram+64G Rom+2.5D +IPS +Amplifer IC TDA 7851
+DSP + Carplay+4G Network + AHD-1080P Video input + Video Output +RDS
+Mirror link
E:PX6 4GB 64GB Version:
Android 10.0 +PX6 Core(Higher Speed Than Octa Core) +4G Ram+64G Rom
+2.5D +IPS+DSP+Amplifer IC TDA 7850+Mirror link +Video Output
4G Network Frequency band and Chip :
LTE FDD: B1/B3/B8
LTE TDD: B38/B39/B40/B41
WCDMA: B1/B8 TD-SCDMA:B34/B39
BC0 CDMA2000 1X/EVDO
GSM: 900/1800
4G Network currently working countries are:
Romania, Moldova, Japan, Vietnam, United States, Russia, Singapore, Indonesia,
United Kingdom, Ecuador, South Korea, Portugal, Brazil, Philippines, Togo, Qatar,
Burkina Faso
|
Detailed Parameters:
A Quad Core 1BG 16GB Version / B Quad Core 2GB 32GB Version:
Systems and Hardware Parameters
1.CPU: Intel ATOM 4 Quad Core
2.Main Frenqency: 1.3GHz*4
3.OS: Android 10.0 System
4.RAM: 1G/2 DDR3
5.ROM: 16G/32G
6.Support 2 USB input
7.Support 1080P hardware decoding and all format of audio play
8.Support USB interface camera , USB DVR
9.Support Mirror Link ( android and iPhone )
10.Built-in GPS navigation
11.Bluetooth built-in,support voice call and A2DP, can play stereo music through Bluetooth from your Phone
12.Built-in WIFI,support wireless internet and hot-spot sharing
13.Support Car rear View Camera
14.Support WIFI, USB plugins the huge mobile hard disk
15.Support capacitive screen multi-touch screen.More sensitive touch response
16.TEF6621 stereo, FM dual range receiver
17.Support bluetooth phonebook search,A2DP , OBD2,mouse,handle , keyboard and external auxiliary equipment
18.Low radiation interference,enjoy the much better radio reception
19.Support Steering wheel control
C Octa Core 2GB 32GB Version：
Systems and Hardware Parameters
1. Operation system:Android 10.0
2. CPU: Octa Core A7/2.0G Main Frenqency
3. GPU: Double Mali400 Support OpenGL ES 2.0/VG 1.1
4. RAM: 2G
5. ROM: 32G
6. Amplifer IC TDA 7388
7. Screen :9"/10" IPS + 2.5D Screen
8. Solution:800X480/1024*600/1024X768/1280X480/1280X800
9. Amplifier Power supply: 4*45W
10. Video/Picture Format:Mpeg1, Mpeg2, Mpeg4 SP/ASP GMC, XVID, H.263, H.264,BP/MP/HP, WMV7/8, WMV9/VC1 BP/MP/AP, VP6/8, AVS, JPEG/MJPEG
11. Audio Formart:MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV
12. Positioning system:Support GPS/BPS/Glonass/ Galileo positioning system
13. WIFI/4G :Build in WIFI/4G
14. DVR: CVBS OR USB Camera /Support 1080P Video recoder
15. HD Camera Input: Support BT656 / MIPI
16. DSP Audio : 12S Port,Support extra DSP
17. Bluetooth: WT200 4.0

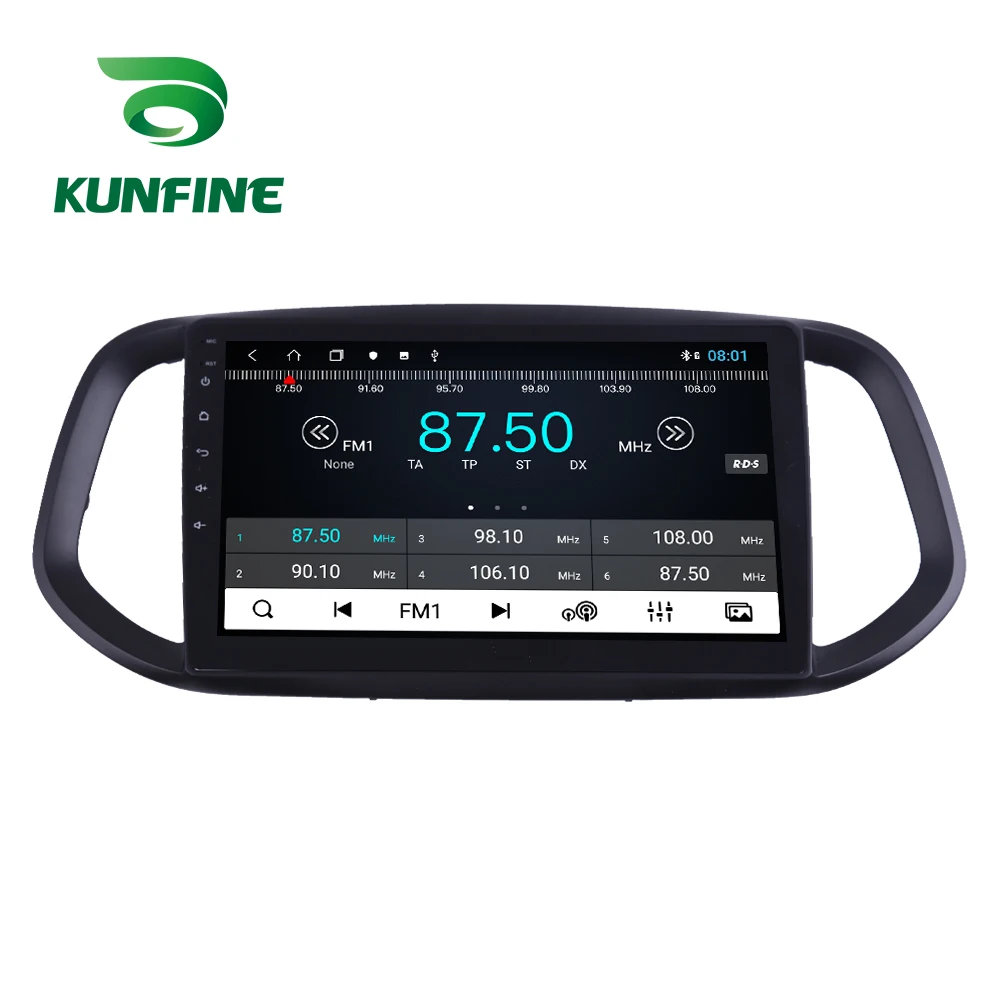

Radio Parameters:
1. Frenqency Range: FM:87.5MHz-108.0MHz
2. Frenqency Range: AM: 522KHz-1620KHz
3. Country: China.Europe.Eastern.Europe.Russia.USA1.USA2.Japan
D: Octa Core 4GB 64GB Version
Systems and Hardware Parameters
1.Operating System Android 10.0
2.CPU: Intel Octa-core CPU,GPU Mali T820 MP2,AtomX86 architecture,clocked at 1.872GHz
3.RAM 4GB/DDR3
4 .ROM 64GB
6.Screen size 9/10 inch
7.Display IPS Display
8.Touch screen 2.5D G+G capacitive touch screen）
9.Support resolution 1280*600
10.IC/PA TDA7851
11. Radio IC NXP6851

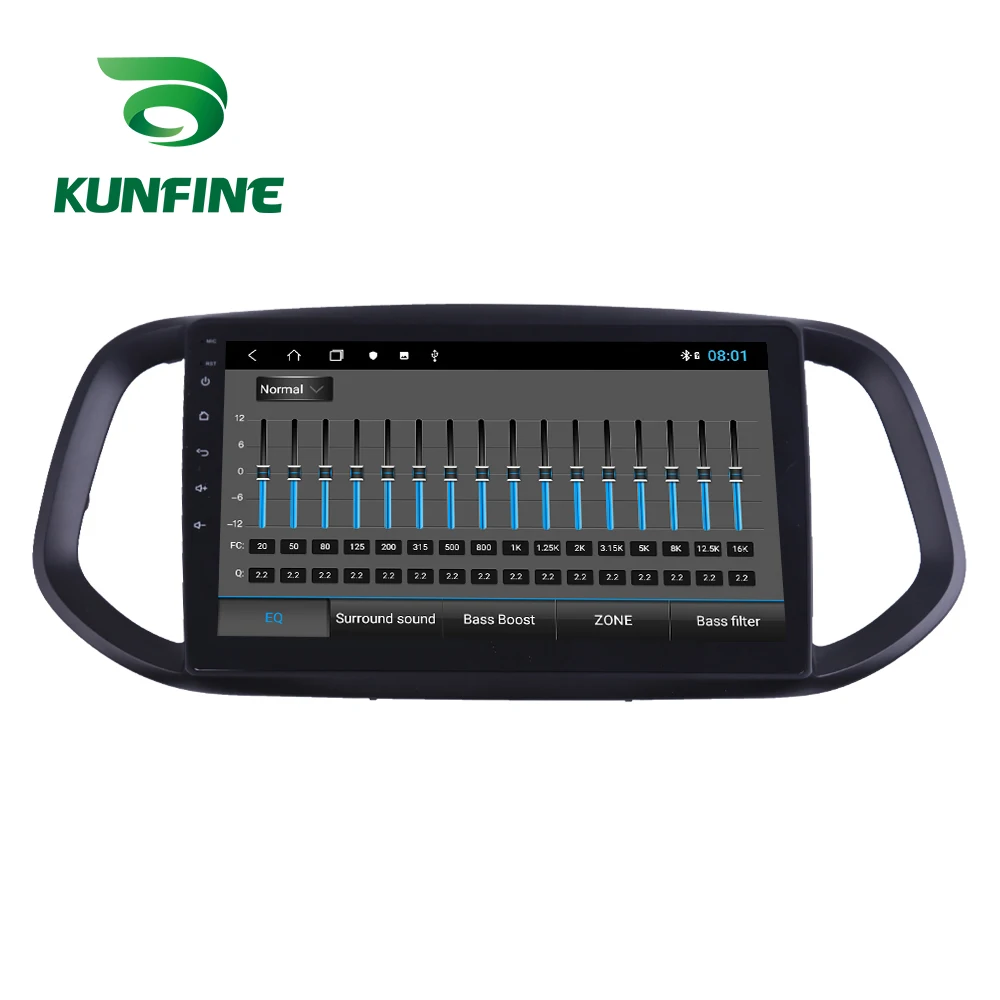

12. DSP : High-fidelity,low-noise DSP with 32-band EQ,surround sound,independent adjustment of front and rear sound）
13.Support audio formats : MP3,WMA,WAV,OGG,FLAC,APE, ACC , etc media formats（Support 1080P multimedia video playback,lossless music playback）
14.Support video formats : MP4,FLV,TS,3GP RMVB,MKV,MOV,WMV,AVI,MPG, MPEG ,etc.video formats, supports 1080p HD video（MPEG-1,MPEG-2,MPEG-4,H.263,H.264,AVS,VC-1,VP8,MVC）
15.Operating temperature ●-30～+75℃
16.Built-in GPS and GLONASS dual satellite positioning
17.Radio: AM frequency range: 522-1620 (Europe), 530-1710 (America), 522-1620 (Russia) FM frequency range: 87.5-108 (Europe), 87.5-107.9 (America), 65.0-108.0 (Russia)
18.RDS Radio: Yes''
19.WIFI（bluetooth WIFI） : Built-In Microphone in the control panel for hands free calling function

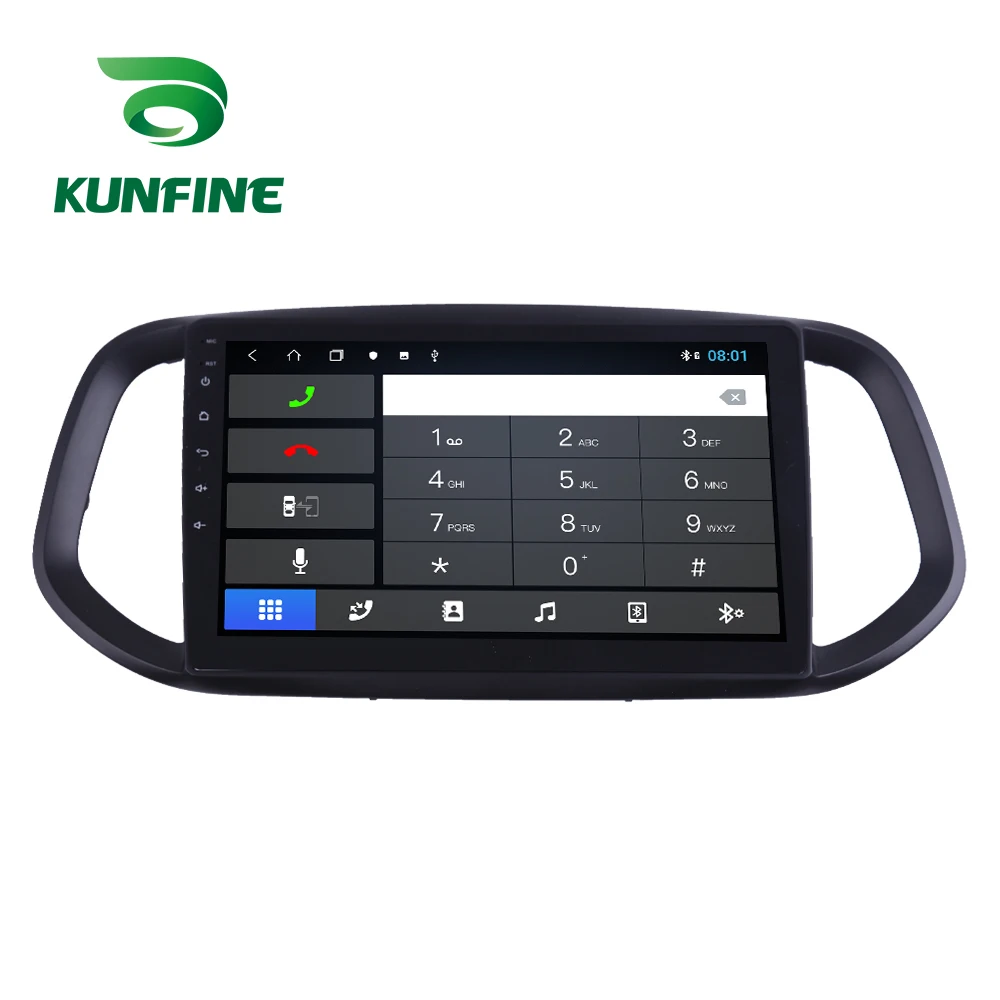

20.Support Bluetooth audio player/Phone Book function
( Attention : This function can only be realized when the mobile phone supports Bluetooth Audio Output/Contacts Output)''
21.Built in mic
22.USB/SD:SD/USB MAX 32B,
23.Subwoofer: support subwoofer audio output
24.Audio output: 3 channels of audio output
25.EQ: Max audio output: 4x50W
26.display: It can play 1080P HD video and play 3D game smoothly
2 7.AUX Vedio Out
28.Network 4G TD-LTE /FDD-LTE/TD-SCDMA/HSPA（+）/WCDMA/HSPA（+）/GSM/GPRS/EDGE
29.WIFI: built in wifi ,you can use the hotsport wifi from your cellphone,
30.Support RCA type reverse camera input,automatically switch to rear camera when reversing the car.
31.TPMS Support USB tire pressure,serial tire pressure）
32.DVR Support USB/RCA Video input DVR
33.Video input Support AHD,TVI video input
34.Video output Support 1 channels of video output
35.Mirror-link support phone mirroring Link
36.For android phone ,use USB connection ,you can mirror and control on the unit ;For the iPhone ,use wifi connectioin ,you can just mirrror on the unit ,can not control.''
37.Steering wheel control :Support Change the track, volume, etc. conveniently without taking your hands off the steering wheel, which makes your driving much safer.
E:PX6 4GB 64GB Version：
Note To All Buyer:
This Price isn't including the Car Play Function , If you need ， please Pay Extra Money.
Pay The Car Play Function Money Thorugh This Link:
/item/33045194455.html?spm=5261.ProductManageOnline.0.0.743d4edfDUEvx9
Systems and Hardware Parameters
♦.OS : Android 10.0 system
♦.CPU : RK-PX6 Cortex A72
♦.RAM : 4GB DDR3
♦.Flash : 64GB
♦.Built in WIFI
♦.Built in DVR function (directly connect USB camera)
♦.Built in dual way mirror link function
♦.Connect external OBD (optional )
♦.Connect external 3G modem (optional )
♦.Capacitive multi-touch screen
♦.Screen resolution: 1024*600
♦.Built-in Bluetooth for mobile hands-free.
♦.Built in GPS function
♦.DVB-T, ISDB, ATSC are optional
♦.steering wheel control function
♦.Radio receiving: FM/AM can be stored 30 stations. Build in RDS .
♦.Video: MP4,H.264,WMV,AVI,RM/RMVB,VOB and more
♦.Audio: MP3,WMA,WAV and more
♦.USB card port: support MP4,DIVX,JPEG,MP3 and WMA playback
♦.Car backing display: Car reverse camera input (switch automatically)
♦.AV output/input : 2 video out, 4audio output, 2video input ,2 audio input
♦.Subwoofer output 4*50W
♦.Compatible with DVD,DVD-R,DVD-RW,HDVD,DVCD,MP3,MP4,CD-R,CD-RW,VCD,DIVX,WMA etc.
♦.Maximal power:4X50W maximum power output
OSD Language:
English/ Russian/ French/ German/ Spanish/ Italian/ Arabic/ Portuguese/Turkish/Thai/Polish/Hebrew .... etc over 20 kinds language
Standard Function :
GPS + Radio+Bluetooth + Phone book+ Mobile phone charging+ USB + WiFi + Mirror Link
Advantages:
1. The Deckless Car DVD Player supports 3G/Wifi and Bluetooth: You can enjoy Online Entertainment (support online video(HD), TV, movie, music, radio, YouTube, Yahoo, MSN...) and Online Communication (Web Chat, Twitter, Face book, Google+, Gtalk, Gmail and other services), surfing online and watch video on this vehicle multimedia player , give you more fun when you driving .
2. The GPS navigation supports VOICE PROMPT: Including the newest map of your country. With the voice navigation, you never will be lost on travelling, bring safety to you and your family.
3. Car Stereo: large memory make the latest android system smooth and steady. This car radio supports digital TV, Car rear view camera,DVR,OBD....More optional functions give you better experience.
4. Mirrorlink is built-in the car multimedia player: you can operate mobile APPs on the screen of head units with wireless connection, more convenient.
5. The Deckless Car DVD unit is Plug and Play: The device will come with all necessary cables, it is easy to install and no need to cut cables , and support 1 year warranty.
Please contact us or click on below hyperlink IF YOU NEED any one of Follow Optional Functions :
Optional Parts
Digital TV Receiver
DVR
OBD
Rear View Camera
DAB Box
TPMS
3G Dongle
Package Contains :
1 x Car Multimedia player with plastic frame
1 x GPS antenna
1 x Power Cable
and other necessary cables
|
