Wenqia 433MHz Universal Remote Control Switch DC12V 4CH Relay Receiver and Transmitter for Car lift plate\Garage gate Controller |

Wenqia 433MHz Universal Remote Control Switch DC12V 4CH Relay Receiver and Transmitter for Car lift plate\Garage gate Controller |

  Transmitter Parameter  --RF frequency : 433MHz
--Support encoding : 1527 Leaning code
--Transmitting range : Open space is more than 500 meters
--Battery  :  2pcs * CR2016  ( include )
  Programming  The relay receiver board has 3 operation modes, you can program as your requests.

- 1. Momentary Mode:(Usually Use for Car lift plate / Light / LED / lamp bulb)
Description : Press and hold on button "A" , relay will turn on; Release the button, this relay will turn off. Same effect as other buttons.
Program :
1. Press the learning button(on the Receiver) once. Wait for 3 seconds;
2. Press one button on the remote control. Wait for 3 seconds. Succeed.

- 2. Toggle Mode:(Usually Use for Car lift plate / Light / LED / lamp bulb / Garage / Gate/Motor)
Description : Press button "A", relay will turn on; Press button "A" again, this relay will turn off. Same effect as other buttons.
Program :
1. Press the learning button(on the Receiver) twice. Wait for 3 seconds;
2. Press one button on the remote control. Wait for 3 seconds. Succeed.

- 3. Latched mode:   (Usually Use for Garage / Gate/Motor/Light / LED / lamp bulb)Description :  Press button "A", relay "1" will turn on;   Press button "B", relay "2" will turn on, at the same time relay "1" will turn off.
Program :
1. Press the learning button(on the Receiver) triple. Wait for 3 seconds;
2. Press button "A" on the remote control. Wait for 3 seconds. Succeed.
Note: Reset the receiver before you want to change the operating mode of one remote control.

-  Reset:
Press the learning button (on the Receiver) 8 times. The existing data will be deleted succeed.

Note:
1. After reset, all the remote controls cannot work any more.
2. Before using the relay receiver board, please stretch the antenna on it slightly to increase the signal reception range.
  Product Application Area  Products can be used in homes, farms, factories, offices, laboratories, supermarkets and so on.
Remote control garage door \ Electric door \ house door \ shutter door \ expansion door \ gate door \ road gate
Remote control Electric curtain \ Water pump \ Fan \ Lamp \ LED light \ bulb \ ventilation device \ Signal transmission
Remote control motor positive and negative rotation \ motor switch \ DIY
If you have any questions, please feel free to contact us.

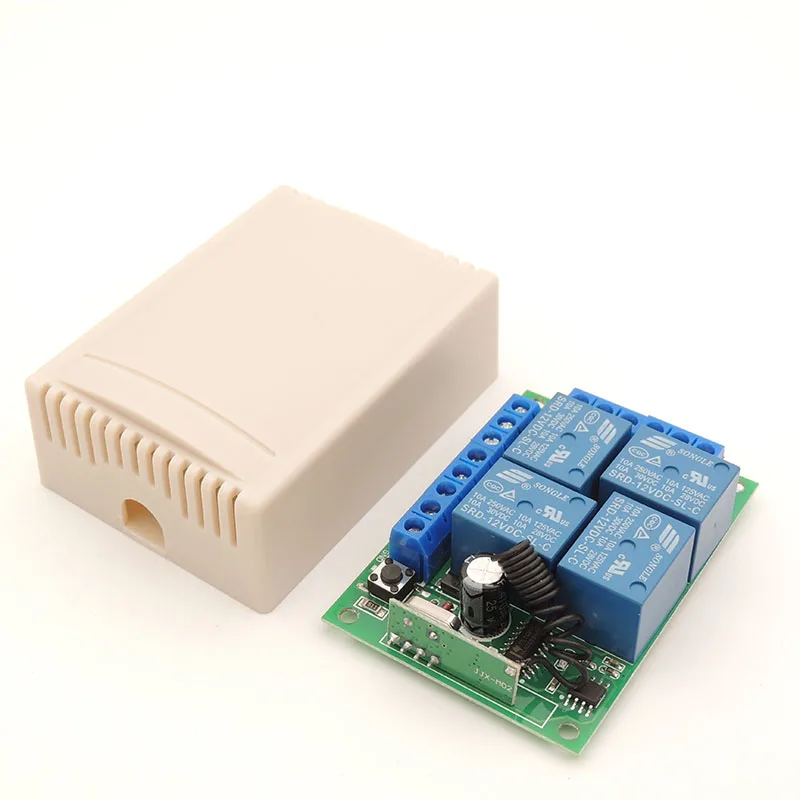

  Package include  Relay Reciever ( include shell )

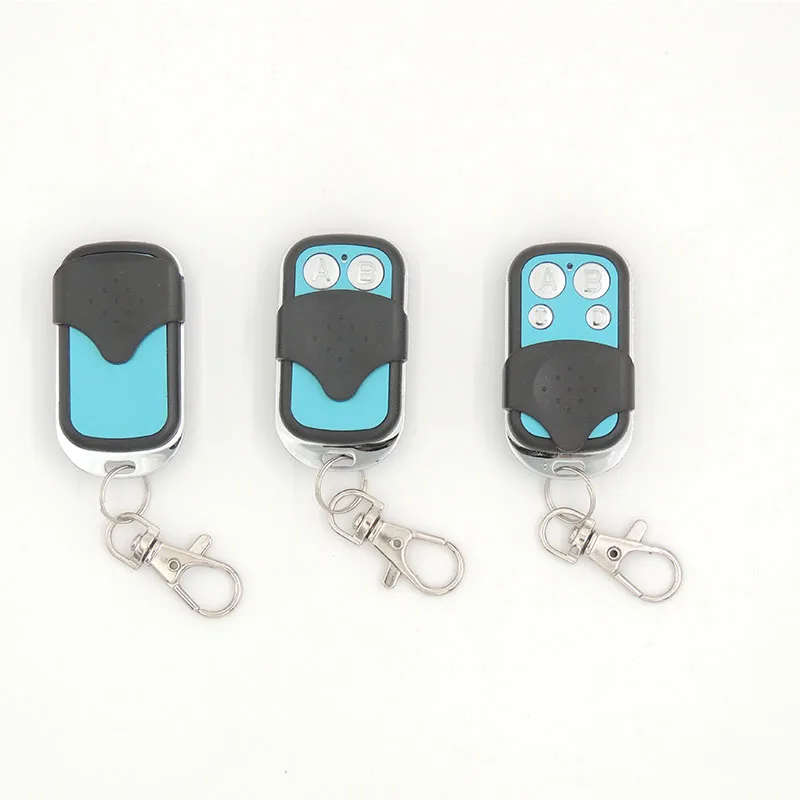

Remote Control  ( include battery )
Product Manual
The quantity depends on the option you selected

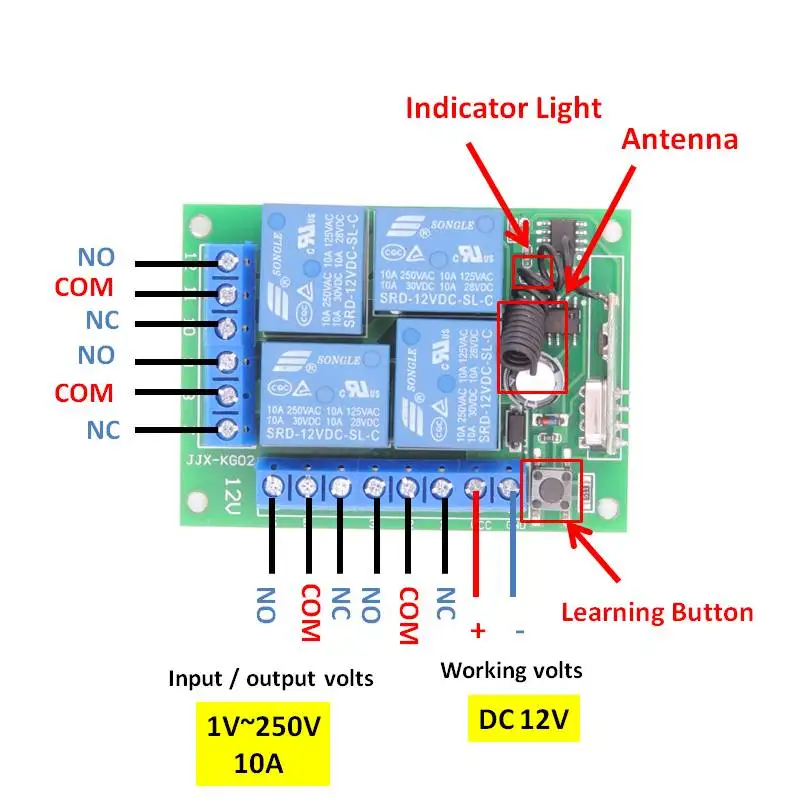

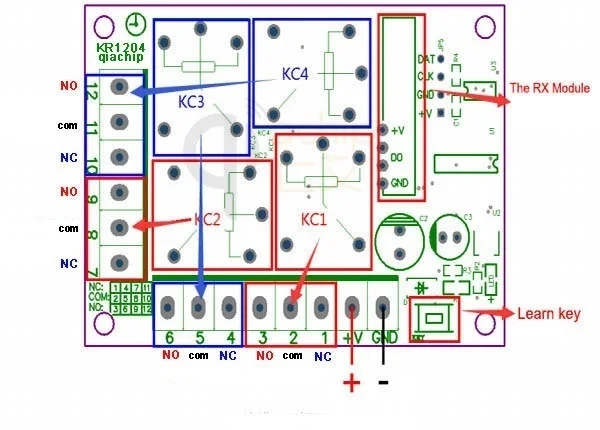

 Receive  Details

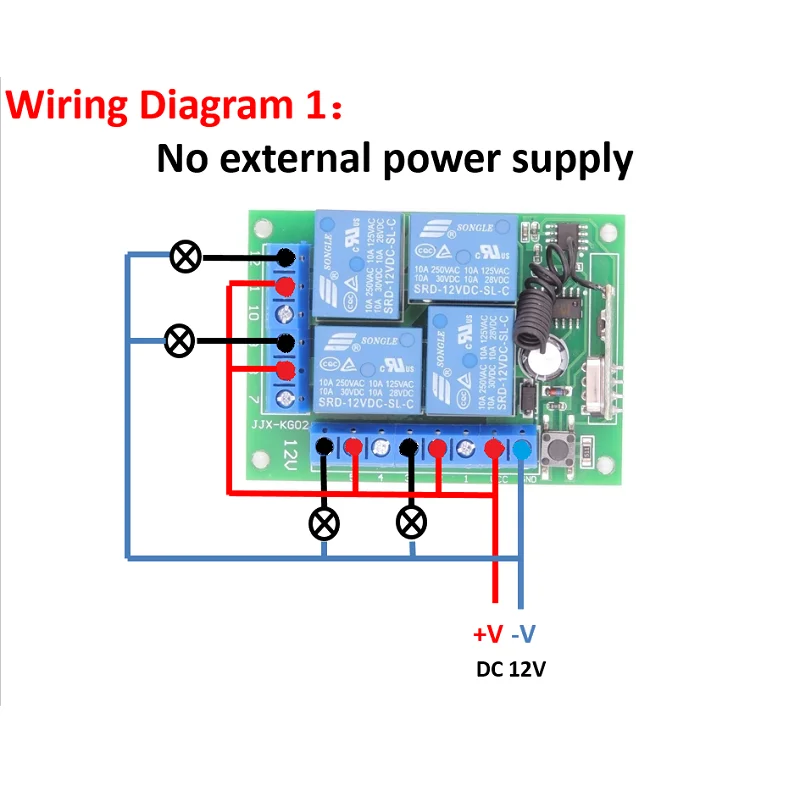

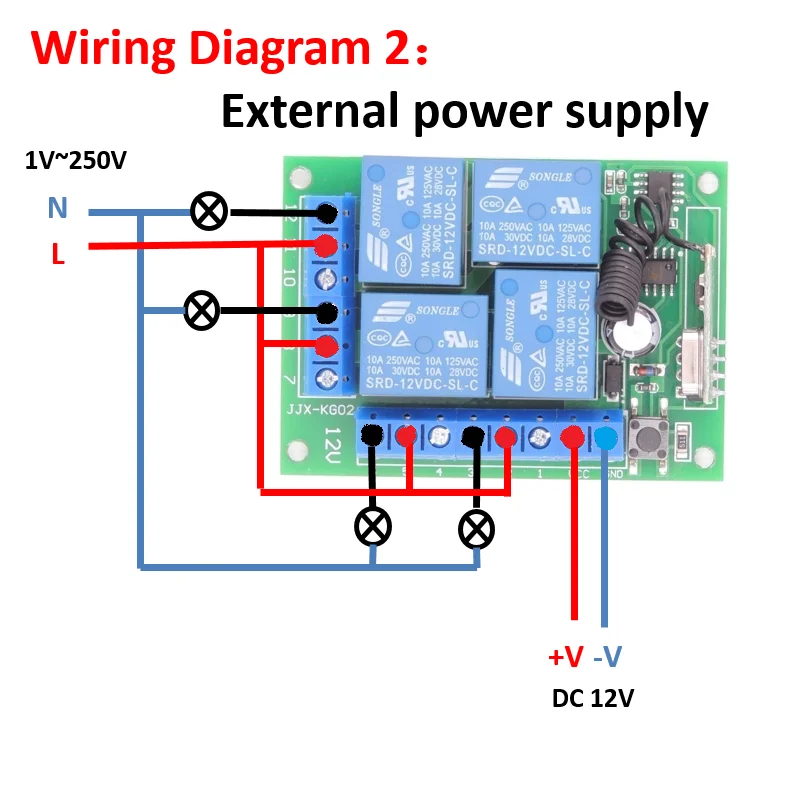

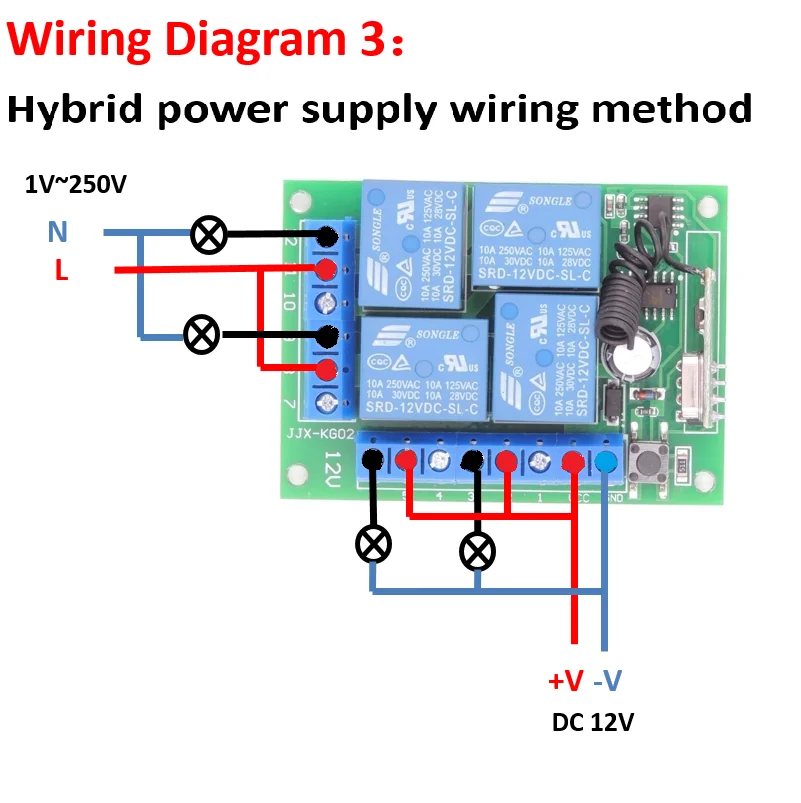

   3  Wiring diagramS

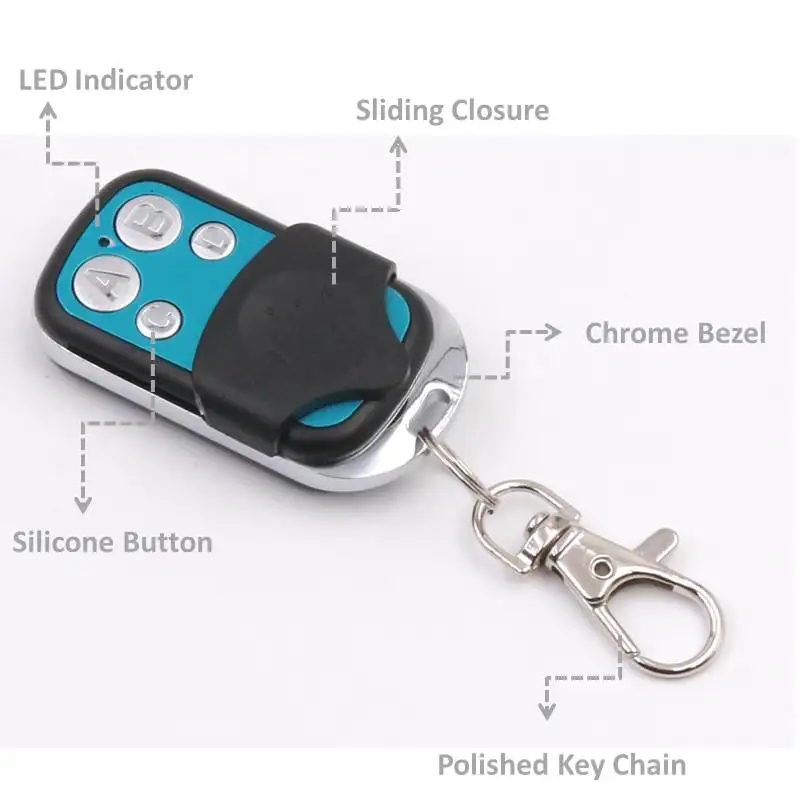

    Control  Details

The products are all producted by our own factory , Our factory can support OEM and ODM, welcome to consult.
