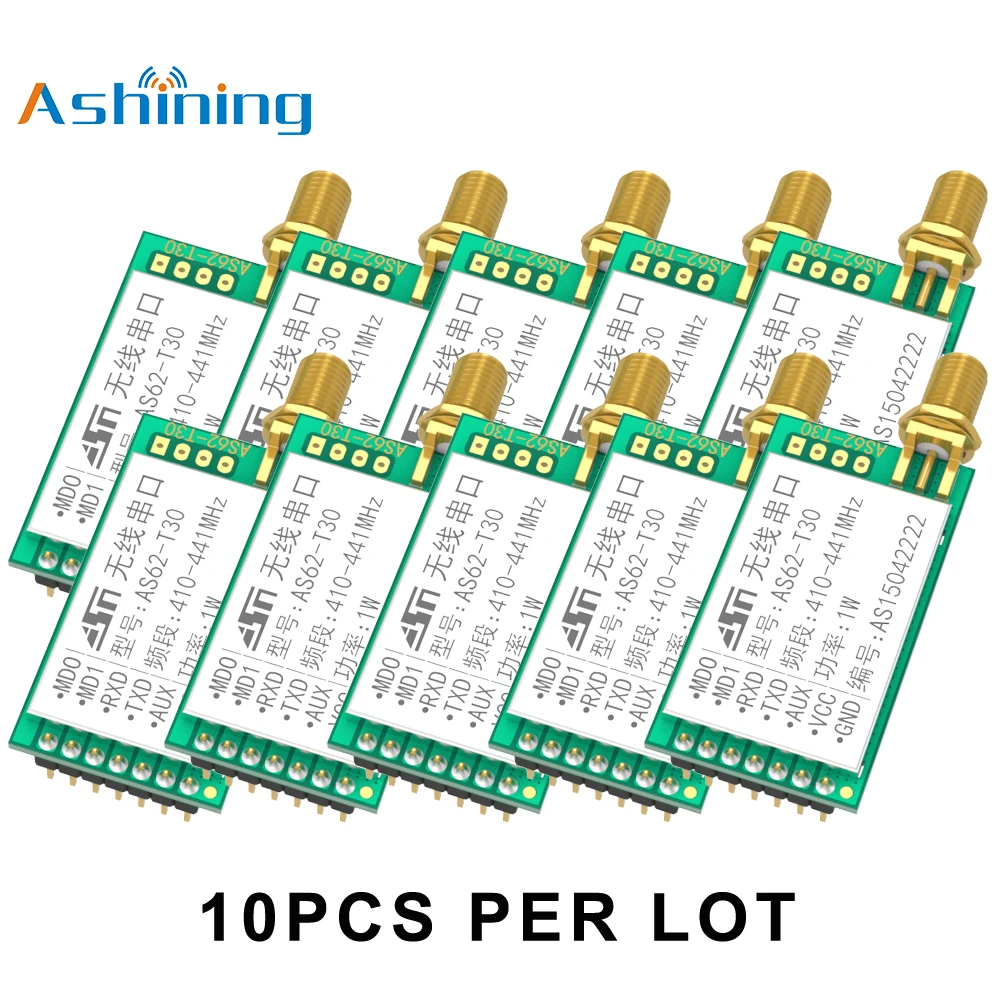

10pcs 433mhz 500mW LoRa Sx1278 AS62-T30 Wireless Long Range Transmitter Receiver RF Module FEC | Мобильные телефоны и
История изменения цены
*Текущая стоимость 15 825,83 / lot уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-03-2026 | 20098.9 руб. | 20500.21 руб. | 20299 руб. |
| Feb-03-2026 | 16300.50 руб. | 16626.68 руб. | 16463 руб. |
| Jan-03-2026 | 19781.0 руб. | 20177.87 руб. | 19979 руб. |
| Dec-03-2025 | 19623.90 руб. | 20015.90 руб. | 19819 руб. |
| Nov-03-2025 | 15667.7 руб. | 15980.48 руб. | 15823.5 руб. |
| Oct-03-2025 | 19307.68 руб. | 19693.82 руб. | 19500 руб. |
| Sep-03-2025 | 19148.0 руб. | 19531.91 руб. | 19339.5 руб. |
| Aug-03-2025 | 18990.36 руб. | 19370.58 руб. | 19180 руб. |
Описание товара

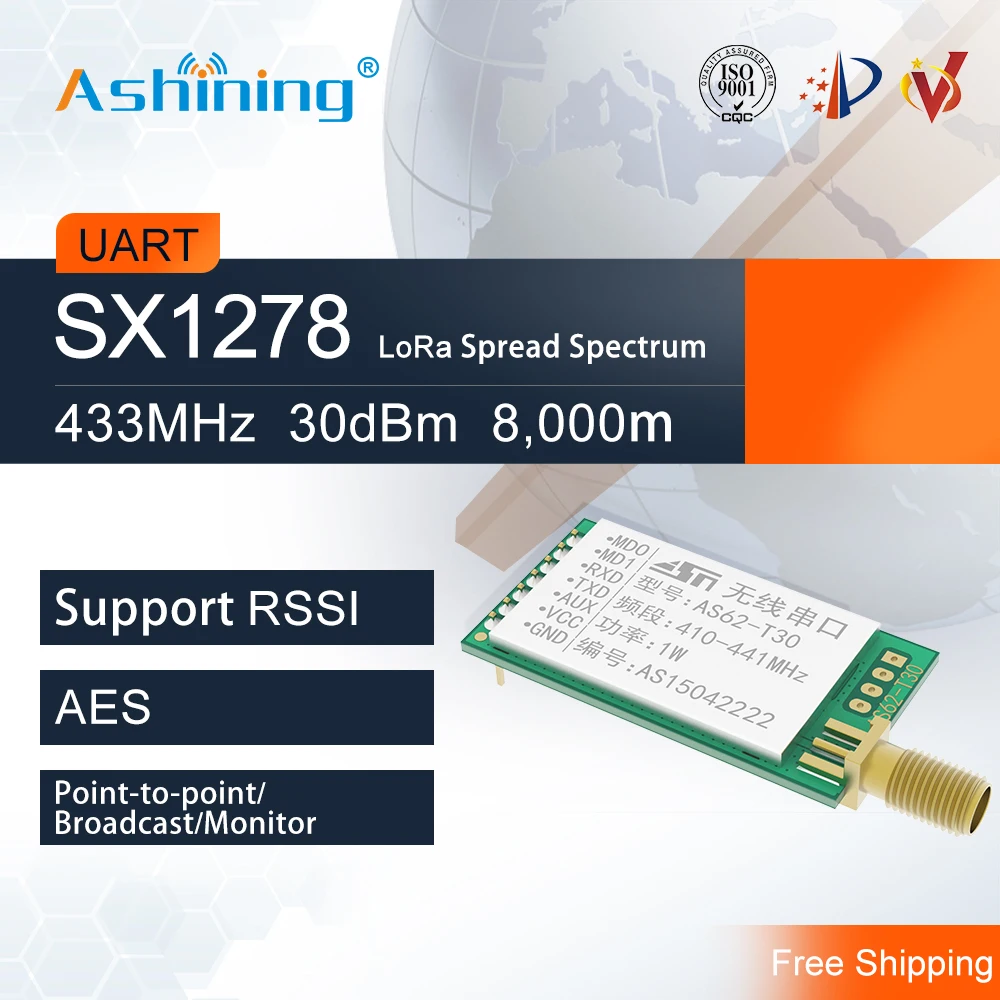

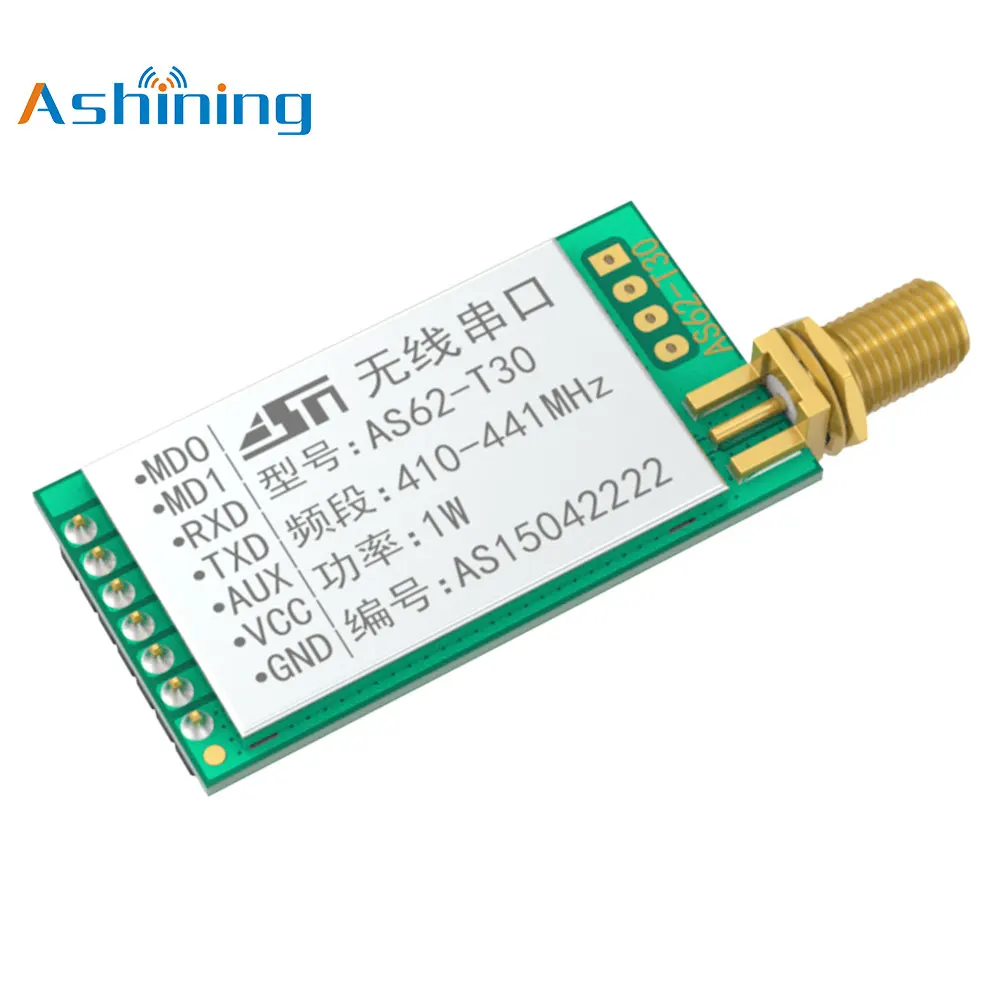

AS62-T30 is a 1W industrial wireless data transceiver with high stability, operates at 433MHz. The module adopts imported RF SX1278 and Lora spread spectrum. It adopts an efficient loop error correction algorithm, which has high coding efficiency and strong error correction capability, which greatly improves the anti-interference and high stability of the module. It has four operation modes and can be switched freely in the run time. In power saving mode, the current consumption is extremely low, ideal for applications of ultra-low current consumption.
Electric Parameter| No. | Parameter Name | Parameter values details |
|---|---|---|
| 1 | Module Size | 23 * 43mm (not including antenna or SMA junction) |
| 2 | Source of the devices | All imported components from Japan, USA, Germany |
| 3 | Production craft | lead-free, electrostatic bag packaging |
| 4 | Interface mode | 1 * 7 * 2.54 mm, plug in packaging, you can use the universal board and DuPont line |
| 5 | Operating frequency | 410 - 441MHz, 1MHz step by step, factory default: 433MHz |
| 6 | Supply Voltage | 2.5V-5.5VDC, meet a variety of system requirements. ( if the voltage is smaller than 3.6V, the transmission power will decline, which has little impact on the receiving performance) |
| 7 | Communication level | Maximum 3.6V, The difference between the recommended and supply voltage is less than 0.7V to reduce power consumption |
| 8 | Measured distance (3.0VDC) | About 8000m test conditions: sunny, open, the maximum power, Antenna gains 5dBi, higher than 2m, 2.4 K air rate |
| 9 | Transmission power | Maximum 30dBm, about 1W, 4levels adjustable (0-3), increase or deduct about 3dBm each level. |
| 10 | Air rate |
6 levels adjustable (0.3kbps, 1.2kbps, 2.4kbps, 4.8kbps, 9.6kbps, 19.2kbps) |
| 11 | Sleep current | 1.5uA (MD1 =1, MD0 = 1) |
| 12 | Transmitting current | 485.33mA@50mW (voltage 5V) |
| 13 | Receiving current | 17mA (mode 0, mode 1) |
| 14 | Communication Interface | UART serial port, 8N1, 8E1, 8O1, from 1200 to 115200 a total of 8 baud rates |
| 15 | Driving means | UART serial port can be set to push-pull / pull-up, open-drain |
| 16 | Transmitting length | Internal ring fifo cache 256 bytes, the internal automatic subcontract sending. Some airspeed and baud rate combinations can send infinite length packets. |
| 17 | Receiving length | Internal ring fifo cache 256 bytes, the internal automatic subcontract sending. Some airspeed and baud rate combinations can send infinite length packets. |
| 18 | Module address | 65536 configurable addresses (easy to network, support for broadcast and fixed transmission) |
| 19 | RSSI support | Built-in intelligent processing |
| 20 | Receiving sensitivity | -130dbm @ 2.4Kbps (receiving sensitivity has nothing to do with serial port baud rate and delay time) |
| 21 | Antenna type | SMA-K antenna |
| 22 | Operation temperature | -40℃ to +85℃ |
| 23 | Operation humidity | 10%-90% relative humidity, no condensation |
| 24 | Storage temperature | -40℃ to +125℃ |
Chengdu Ashining Technology Co., Ltd. is a high-tech company focusing on wireless communication and applications, setting research and development, production, sales, and service as one, and professionally researches develop and produces 2.4G, 433M, 470M, 915M, 169M ... band wireless communication products. Ashining particularly emphasizes technological innovation and product quality and has received a number of patents and products certification. To save customers' valuable development time and make products more stable, our FAE team fully support for each customer by providing services of high quality. Chengdu Ashining technology company has a complete and scientific quality Control system, regards quality, belief, innovation, beyond as our developing concept, and wins the recognition of the industry by honesty, quality, service, and strength.
Our products have been widely used in consuming electronics, industrial control, medical, security alarm, outdoor collection, intelligent home, highways, property management, water electricity gas meter reading, power monitoring and other applications.
Package
To ensure the goods are safe when shipping, we normally pack them with antistatic bags, antistatic sponge and corrugated carton.
For sample orders, we use express, while for batch orders, express, air shipping and sea shipping is available for your choice.
