Wifi Converter IP Box 4-Wired Analog Signal Video Door Phone To Intercom System TuyaSmart App Support |

Description

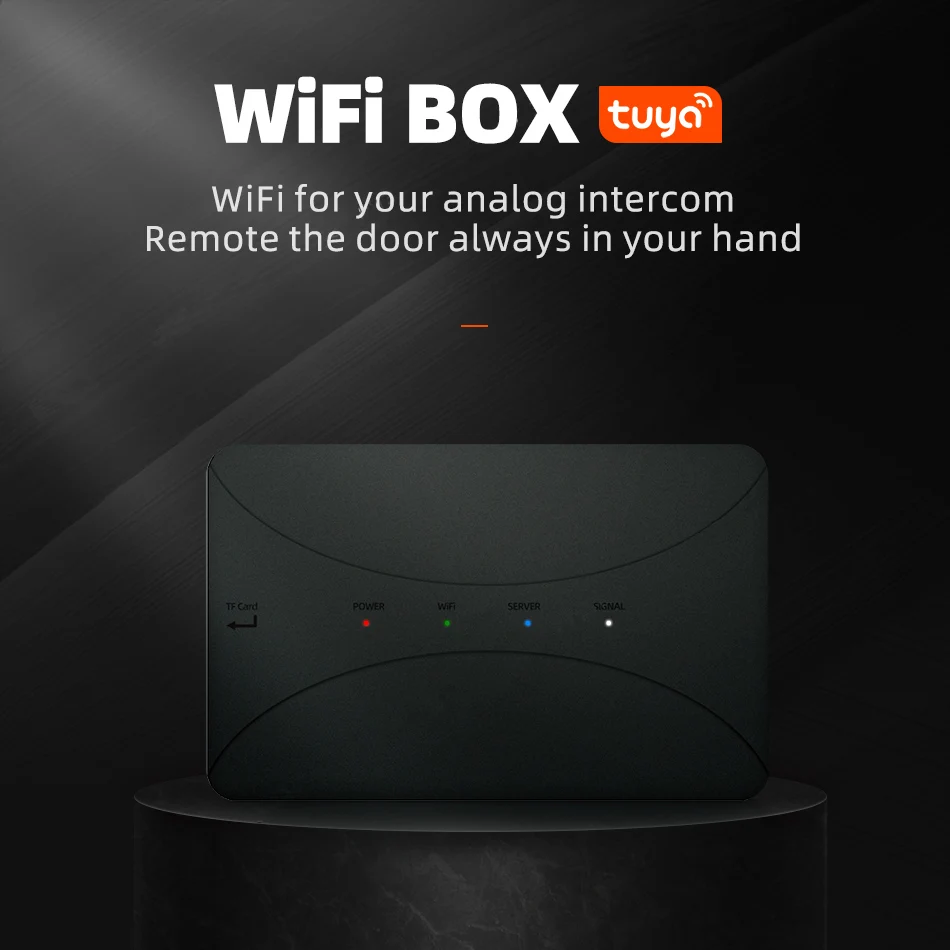

This is a Wifi Converter.

It can convert your existing 4-Wired Analog Video Door Phone system to IP Wifi Video Intercom System, after converted, the IP intercom system will support "TuyaSmart" APP, support remote unlock, monitor the door from your smart phone.

Revolution of traditional wired intercom system

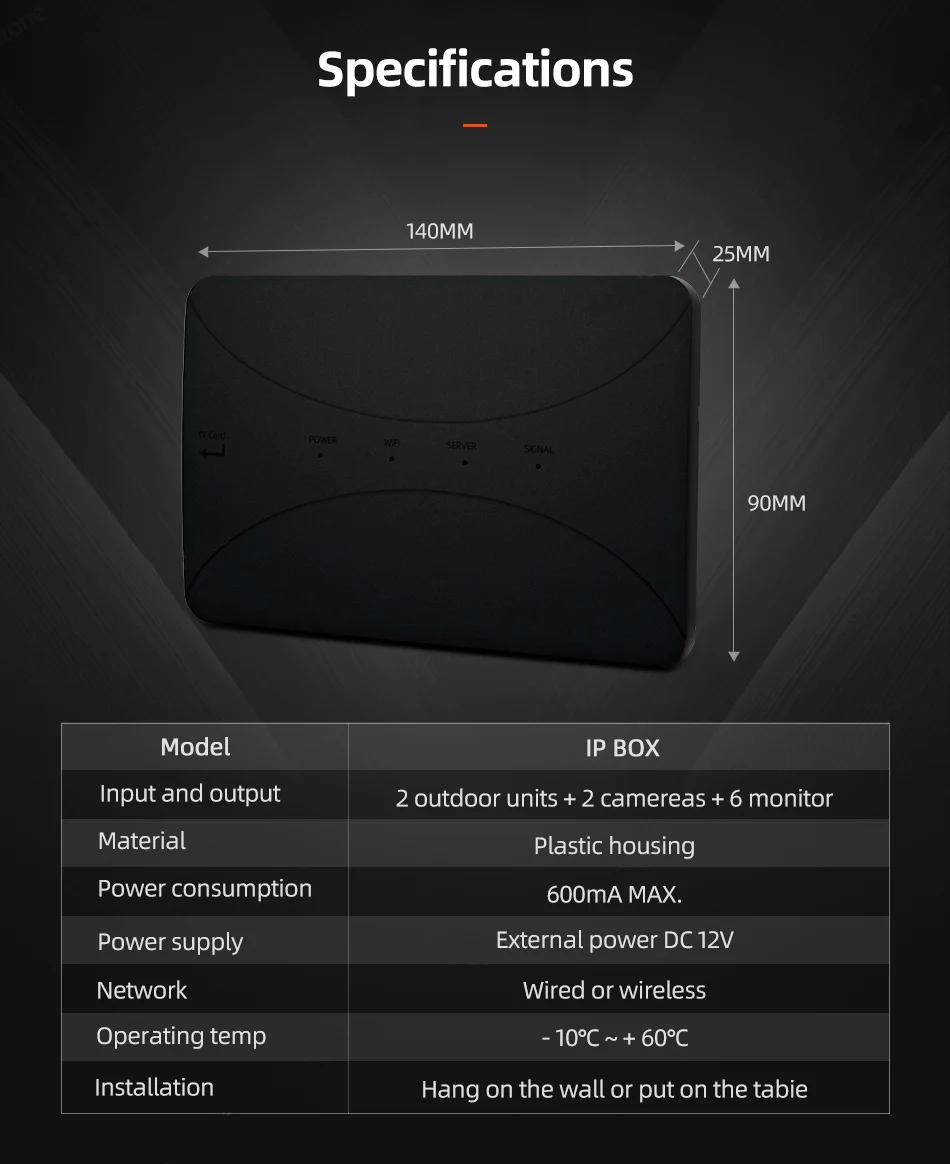

• WiFi IP Box Specifications
•

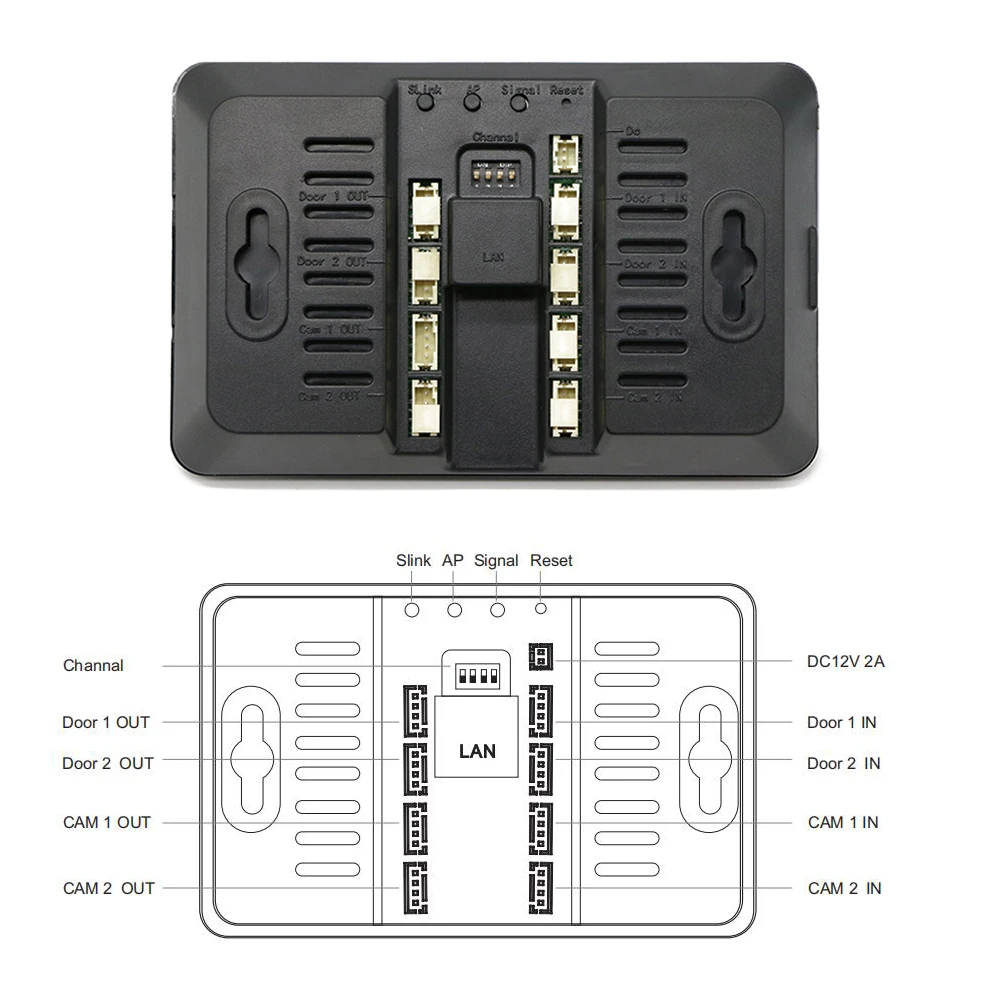

• Buttons Instruction:
•
• Slink button: Switch the confifiguration network mode to WiFi quick connect mode. The switch is valid only when the SERVER light is not always on. Short press the SLINK button to restart the WiFi box. After the restart, the WiFi light (green light) flflashes slowly, and switches successfully.
•   AP buttoon: Switch the network confifiguration mode to WiFi hotspot network confifiguration mode. The switch is valid only when the SERVER light is not always on. Press the AP button brieflfly to restart the WiFi box. After the restart, the SERVER light (blue light) flflashes slowly, and the WiFi hospot is generated, and switches successfully. Mobile WiFi hotspot SSID: “doorbell” password “12345678”.  SIGNAL button: Setup PAL manually, short press SIGNAL button to switch the channel, long press SIGNAL button confifirm and exit from setup.
•   RESET button: Long press with 5s, the device will enter into factory setup, and restart the WiFi box again.

Support Tuya Smart APP, Controlling your smart Phone

-You never miss a vistor anytime & anywhere

App Download And Register

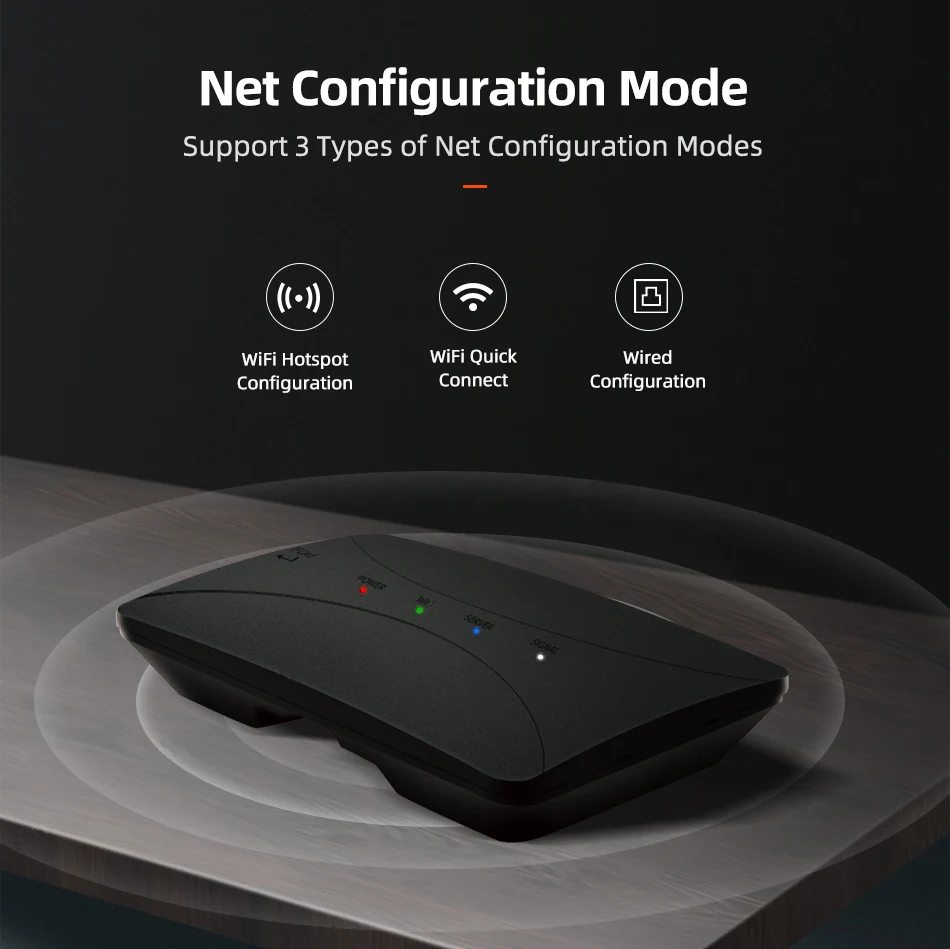

Three types of Net Confifiguration Modes

(each configuration's step will mention in manual book)

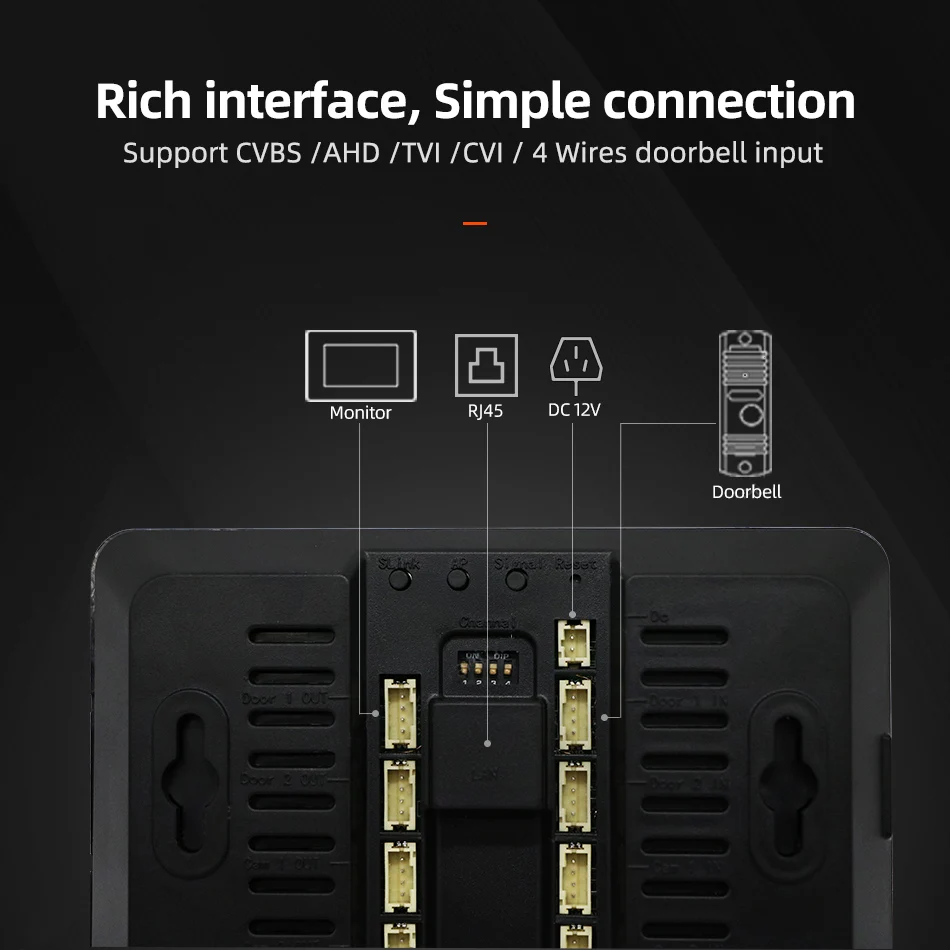

Rich Interface, Simple Connection

-Support CVBS/AHD/TVI/CVI/4 Wires doorbell input
