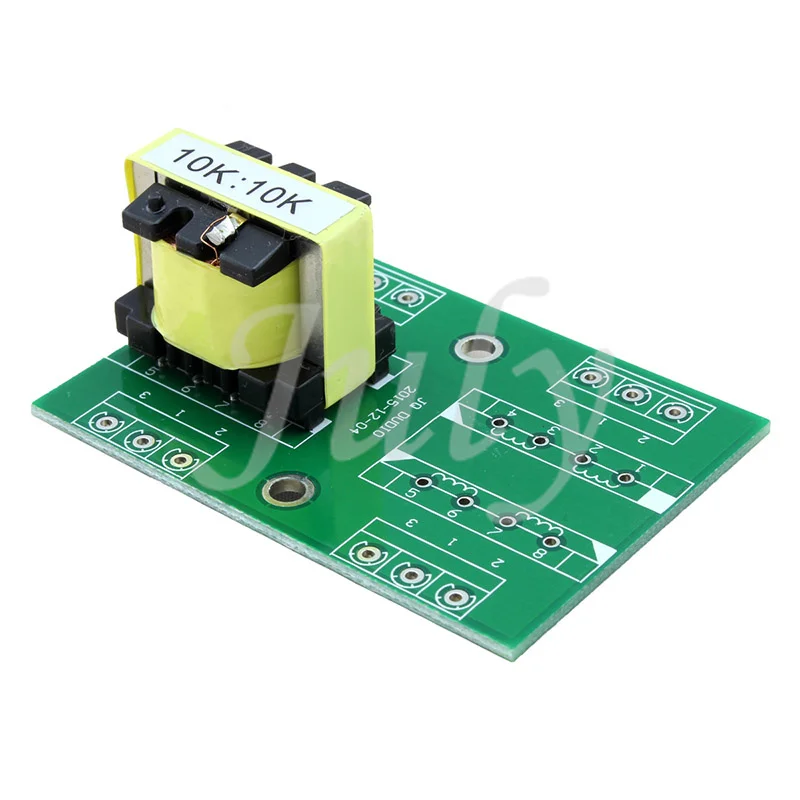

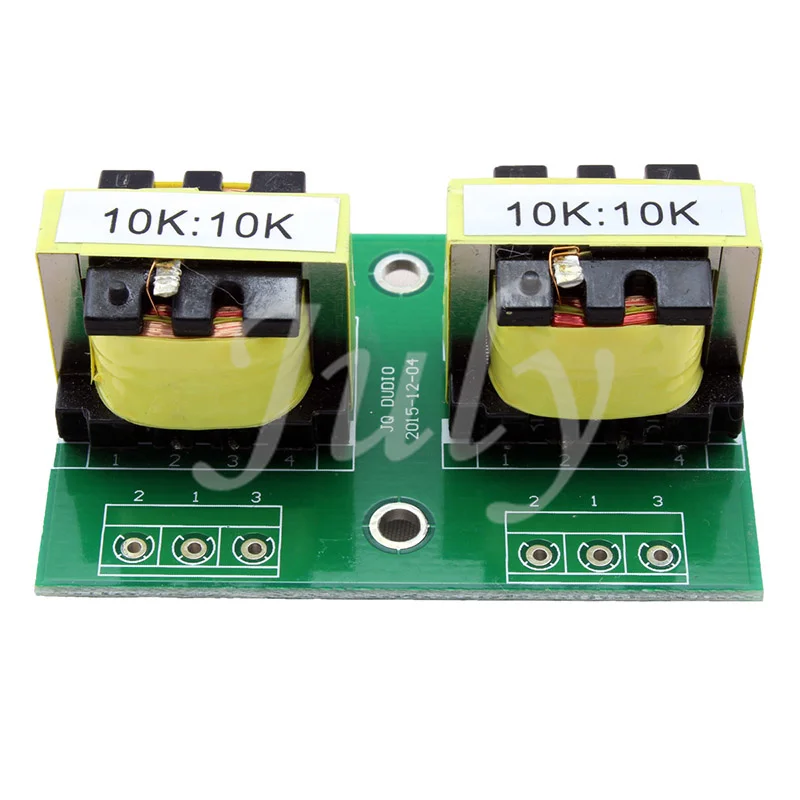

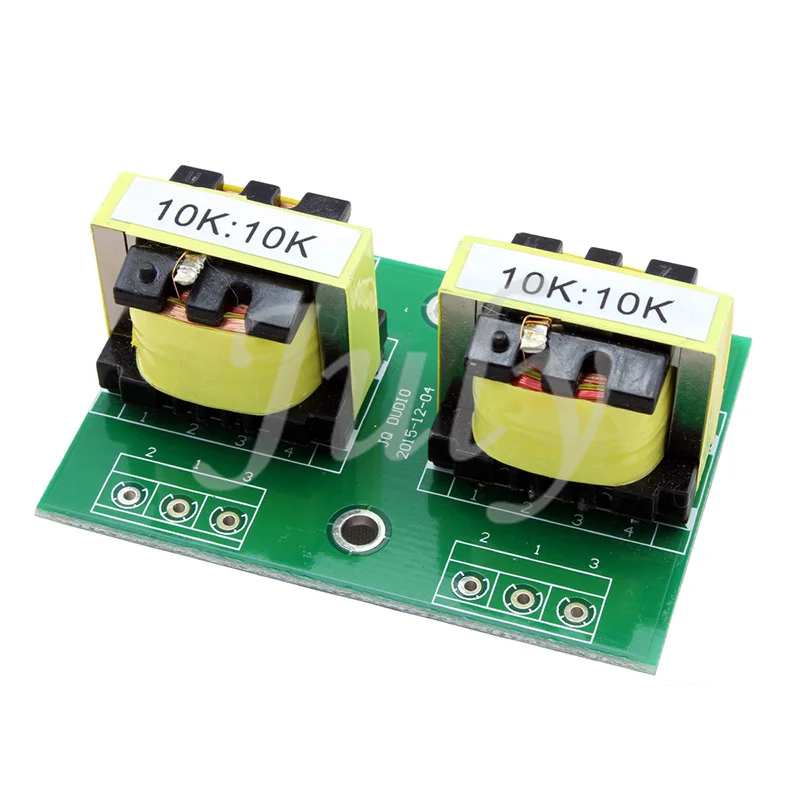

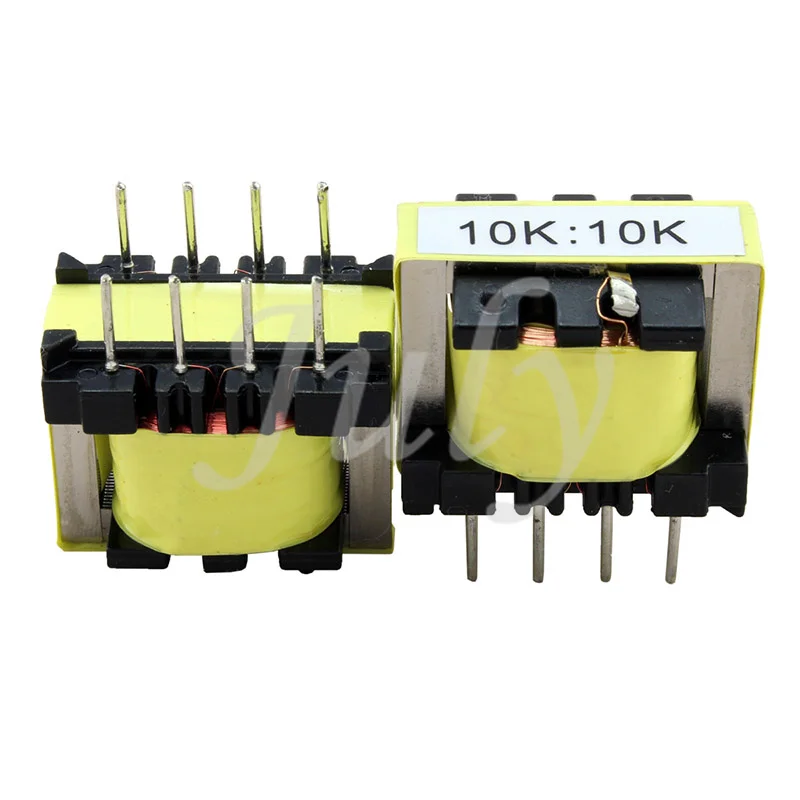

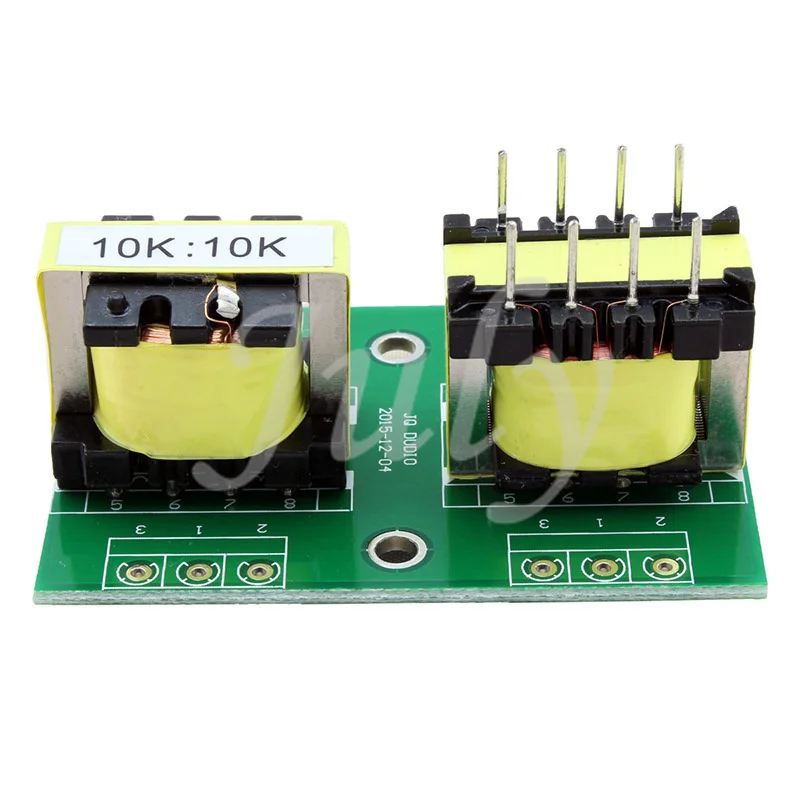

10k: 10k audio signal transformer, 1: 1 Permo audio isolation transformer, frequency response: 20hz—20Khz    Audio signal transformer, the primary and secondary use two sets of parallel winding method, (1 + 1: 1 + 1) can be used in two groups in parallel or two series, or can be used as an intermediate tap for flexible application.        This audio transformer adopts imported EE25mm permalloy sheet with high content of 80% or more, and high-purity oxygen-free copper wire. Pass the audio cow to make the audio signal more interesting. The response frequency is extremely wide, and the spectrum curve is straight. Suitable for high-quality audio transmission, audiophile DIY, pre-stage input and output impedance matching, professional audio field. This price is for a single sample. If you have any questions, please contact us at 13459266306.          Frequency response: 20hz—20Khz          AC impedance: 10K: 10K (1 + 1: 1 + 1)          DC impedance: 170 + 170: 200 + 200         Inductance: 35H + 35H: 35H + 35H           Because according to the measurement standard, measuring instrument, and ambient temperature, the actual measurement data may have +-deviation, whichever is the actual measurement.        Size: 25MMX18MMX20MM (excluding feet)
