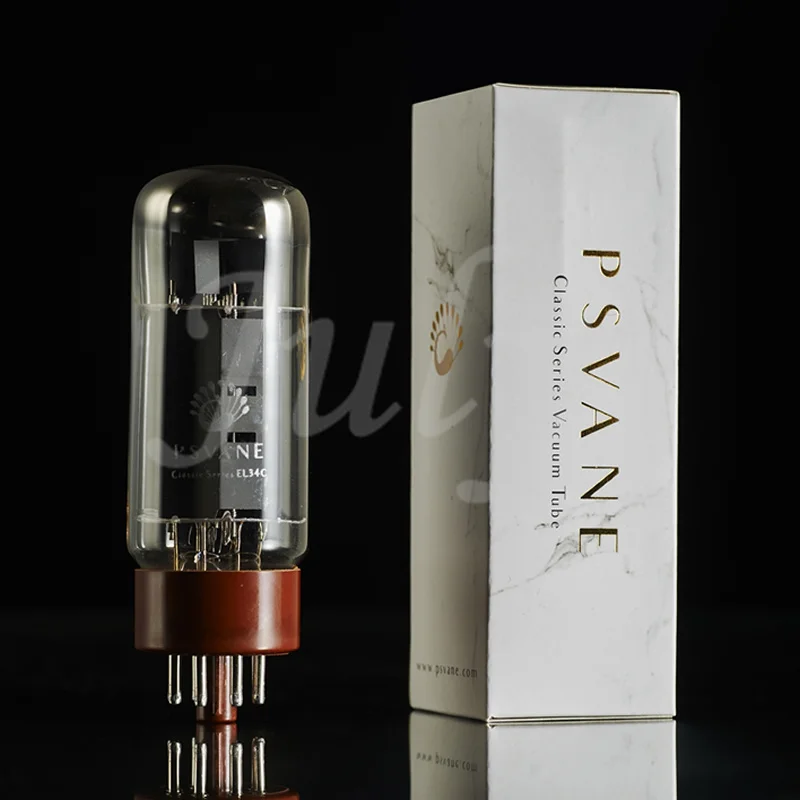

Noble Voice EL34C tube， high-performance audio output pentode ，replaces EL34B 6CA7 6P3P 6L6 5881 | Transformers

---

Description

HiFi series: classic model, refined technology, comprehensive and balanced voice performance, the world's largest sales of hi-fi series.       EL34C       Series el34 high-performance audio output pentode, its anode limit dissipation power is 25W, the output power is more than 10W when the single tube is used as class A1 amplifier, and more than 35W when the double tube is used as class Ab1 amplifier.   El34c is similar to el34 and 6ca7 and can be used interchangeably.           &Hot wire heating   UH…………………………… 6.3 V   IH…………………………… 1.5 A       Limit rating   Anode voltage 800 V   Second gate voltage 500 V   First gate voltage -100 V   Anode dissipation power 25 W   Second gate dissipated power 8 W   Cathode current 150 mA   First grid resistance   Self bias 0.7 M Omega   When the bias voltage is fixed 0.5 M Omega   Voltage between hot wire cathodes + 100 V   Glass shell temperature 250 C       Interpole capacitance   Input capacitance 15.2 PF   Output capacitance 8.4 PF   Cross circuit capacitance 1.1 PF   First grid hot wire capacitance 1 PF   Capacitance between hot wire cathodes 10 PF       Static parameter   Ua…………………………… 250 V   Ug2…………………………… 250 V   Ug3…………………………… 0 V   -Ug1………………………… 12.2 V   Ia…………………………… 100 mA   Gm…………………………… 11 mA/V   ri…………………………… 15 K Omega   μg1-g2……………………… Eleven

---
